Speedometer Gear, A/T: Service and Repair

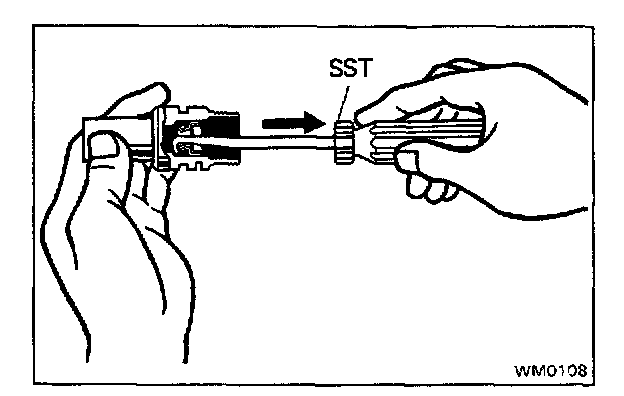

REMOVAL OF SPEEDOMETER DRIVEN GEAR OIL SEAL



Using SST, remove the oil seal.
SST 09921-00010

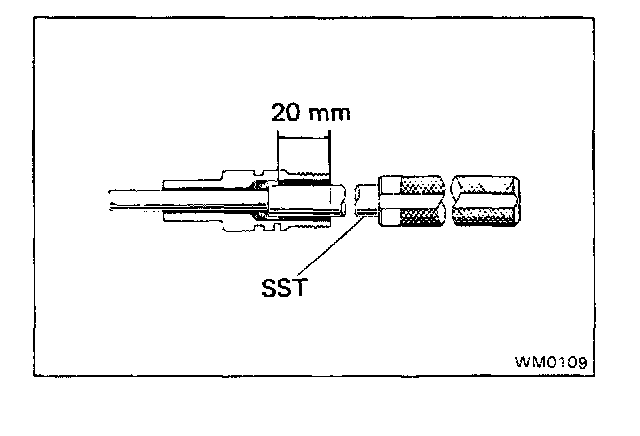

INSTALLATION OF SPEEDOMETER DRIVEN GEAR OIL SEAL



Using SST, install a new oil seal.
SST 09201-60011

Drive in depth: 20 mm (0.79 in.)
