Front Planetary Gear

COMPONENTS





CHECK FRONT PLANETARY RING GEAR BUSHING

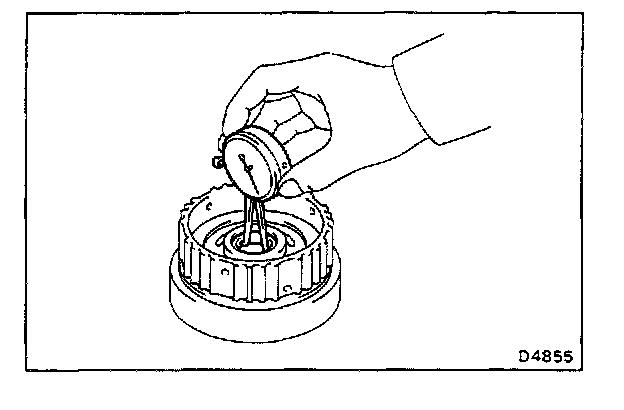

Using a dial indicator, measure the inside diameter of the planetary ring gear bushing.

Maximum inside diameter: 24.08 mm (0.9480 in.)


If the inside diameter is greater than the maximum, replace the planetary ring gear.
