Extension Housing

INSPECTION OF EXTENSION HOUSING




1. INSPECT EXTENSION HOUSING BUSHING

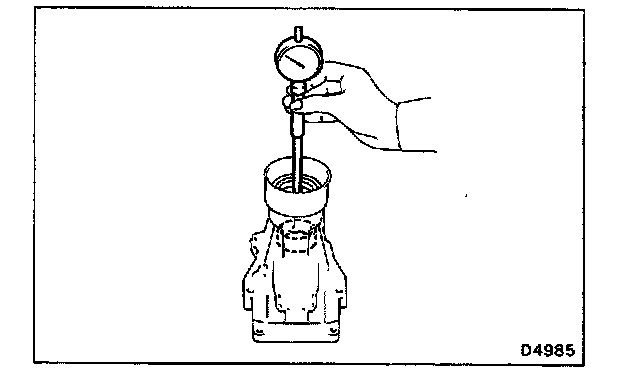

Using a cylinder gauge, measure the inside diameter of the extension housing bushing.

Maximum inside diameter: 40.09 mm (1.5783 in.)

If the inside diameter is greater than the maximum, replace the extension housing.

2. IF NECESSARY, REPLACE OIL SEAL

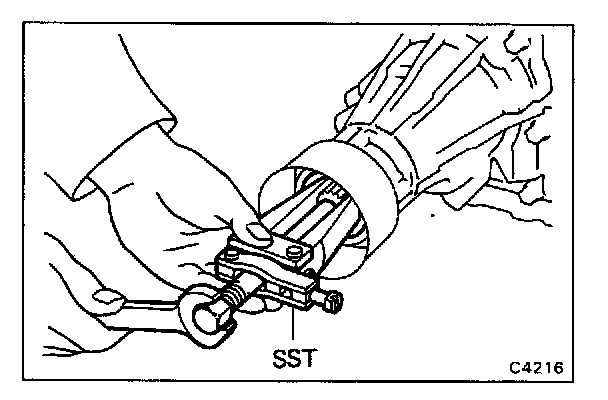

a. Using SST, remove the oil seal.
SST 09308 - 00010 or 09308 - 10010 with output shaft installed

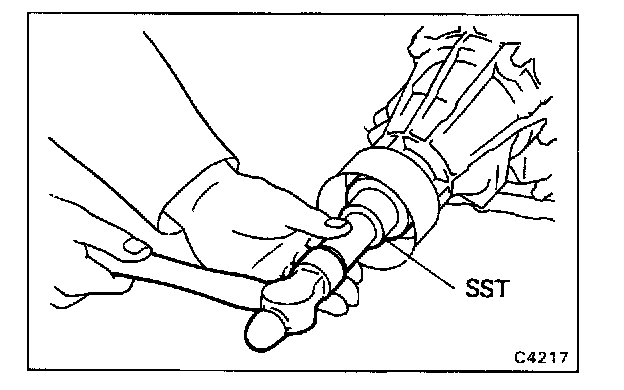

b. Using SST, drive in a new oil seal as far as it will go.
SST 09325 - 40010

c. Coat the oil seal lip with MP grease.
