Part 1
INSTALLATION OF COMPONENTS PARTSDisassembly, inspection and assembly of each component group have been indicated in the preceding chapter. Before assembly, make sure again that all component groups are assembled correctly.
If something wrong is found in a certain component group during assembly, inspect and repair this group immediately.
Recommended ATF: DEXRON(R) II

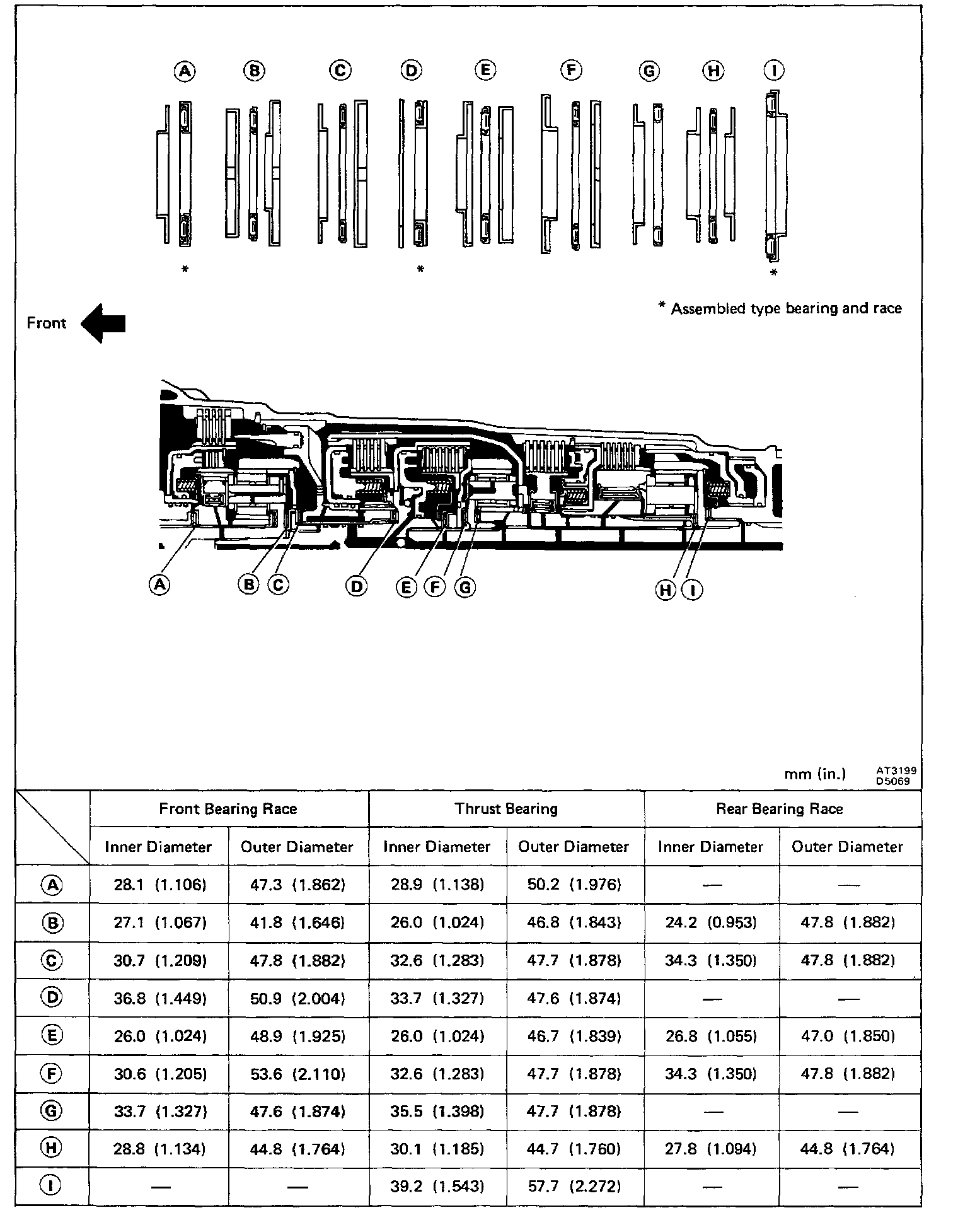

Installation Position And Inspection Of Bearings And Races:
GENERAL NOTES:
1. The automatic transmission is composed of highly precision-finished parts, necessitating careful inspection before assembly because even a small nick could cause fluid leakage or affect performance.
2. Before assembling new clutch discs, soak them in automatic transmission fluid for at least two hours.
3. Apply automatic transmission fluid on the sliding or rotating surfaces of parts before assembly.
4. Use petroleum jelly to keep small parts in their places.
5. Do not use adhesive cements on gaskets and similar parts.
6. When assembling the transmission, be sure to use new gaskets and O-rings.
7. Dry all parts with compressed air - never use shop rags.
8. When working with FIPG material, you must be observe the following.
- Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces.
- Thoroughly clean all components to remove all the loose material.
- Clean both sealing surfaces with a non-residue solvent.
- Parts must be assembled within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.
ASSEMBLY

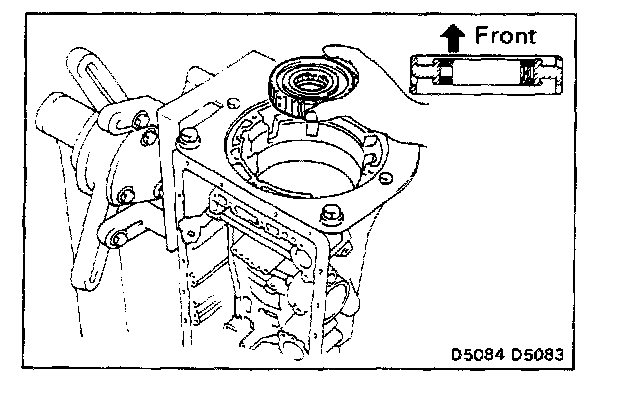

1. INSTALL MANUAL VALVE LEVER, SHAFT AND OIL SEALS

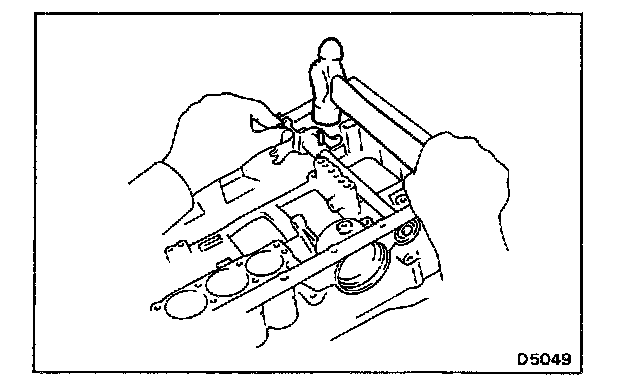

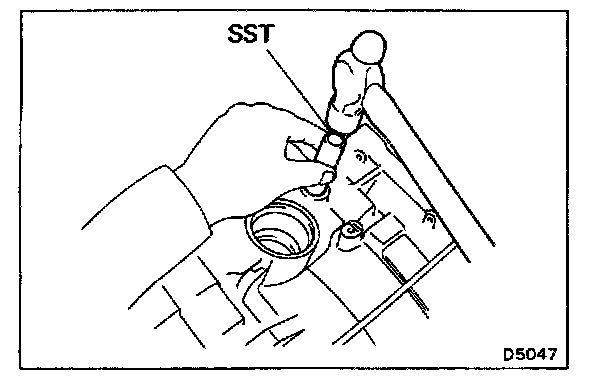

a. Using SST, drive in two new oil seals.
SST 09350 - 30020 (09350 - 07110)
b. Coat the oil seal lip with MP grease.

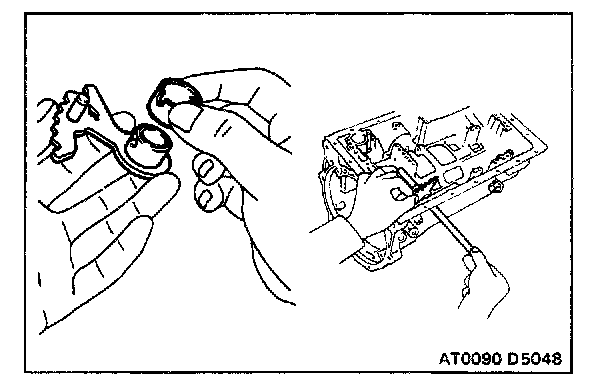

c. Assemble a new spacer to the manual valve lever.
d. Install the manual valve lever shaft to the transmission case through the manual valve lever.

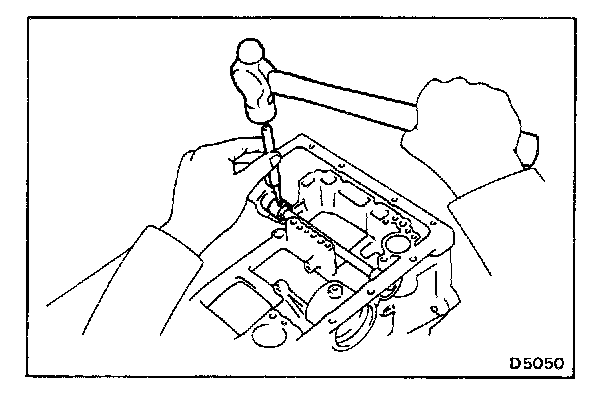

e. Drive in the pin with the slot at a right angle to the shaft.
f. Match the spacer hole to the lever calking hollow and calk the spacer to the lever.
g. Make sure the manual valve lever shaft turns smoothly.
2. INSTALL COMPONENTS OF FIRST AND REVERSE BRAKE PISTON
a. Coat three new O-rings with ATF.
b. Install the two O-rings on No. 1 piston.
c. Install the O-ring on the reaction sleeve.

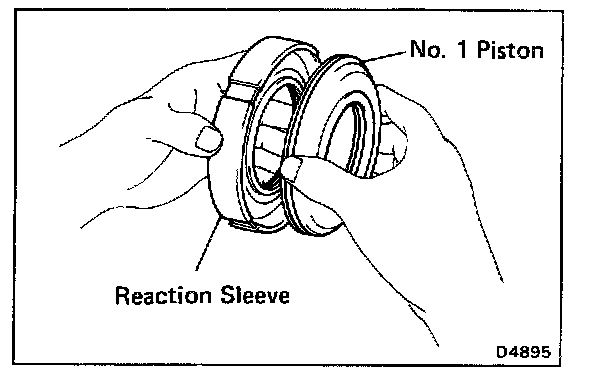

d. Install No. 1 piston to the reaction sleeve.
e. Coat a new O-ring with ATF and install it on No.2 piston.

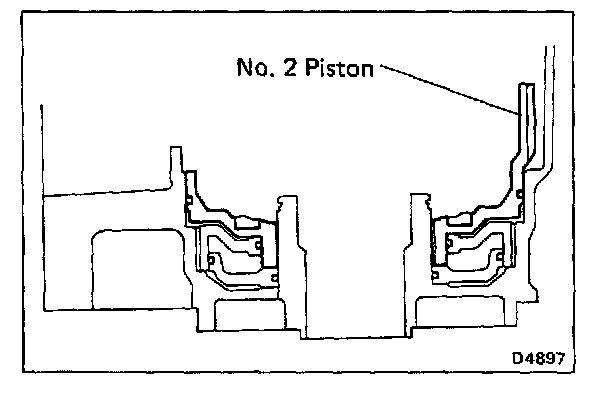

f. Install No.1 piston with reaction sleeve onto No.2 piston.
g. Align the teeth of No.2 piston into the proper grooves.

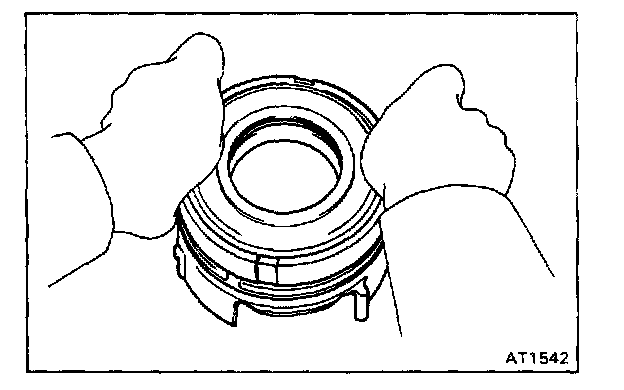

h. Being careful not to damage the O-ring, press in No. 2 and No.1 first and reverse brake pistons into the transmission case.
i. Place the piston return spring onto No.2 piston.

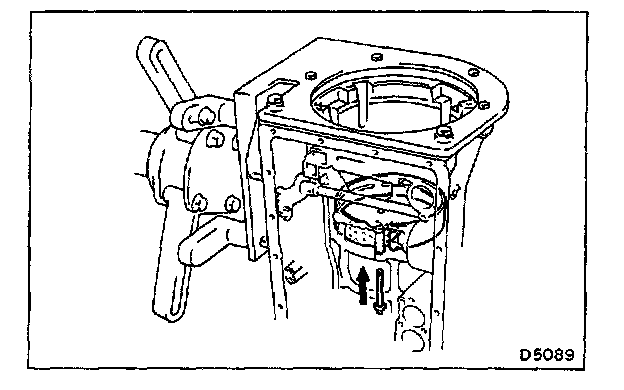

j. Set SST as shown, and compress the return spring with SST.
SST 09350 - 30020 (09350 - 07050)
k. Install the snap ring with snap ring pliers. Be sure the end gap of the snap ring is not aligned with the spring retainer claw.
3. CHECK FIRST AND REVERSE BRAKE PISTON MOVING

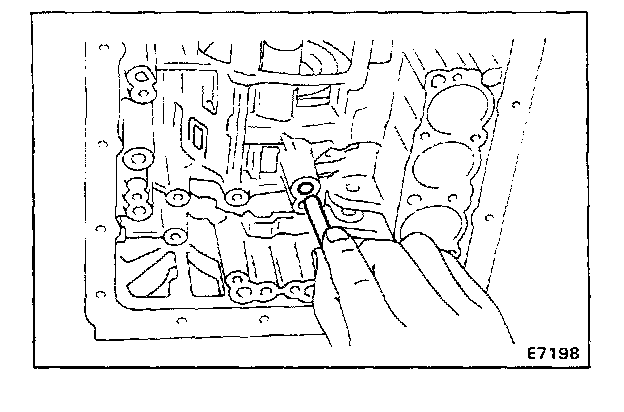

Make sure the first and reverse brake piston moves smoothly when applying and releasing the compressed air into the transmission case.
4. INSTALL REAR PLANETARY GEAR UNIT WITH SECOND BRAKE DRUM, FIRST AND REVERSE BRAKE PACK AND OUTPUT SHAFT

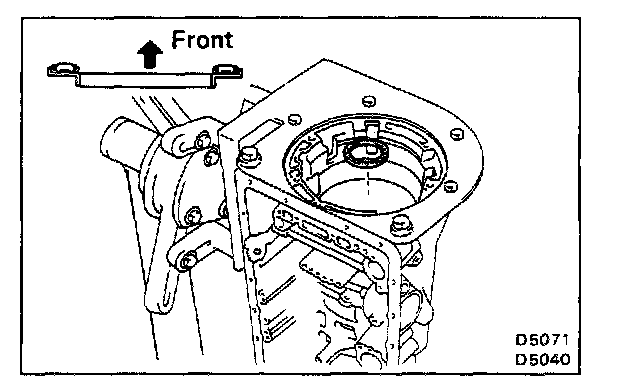

a. Install the flange, facing the rounded edge rearward.

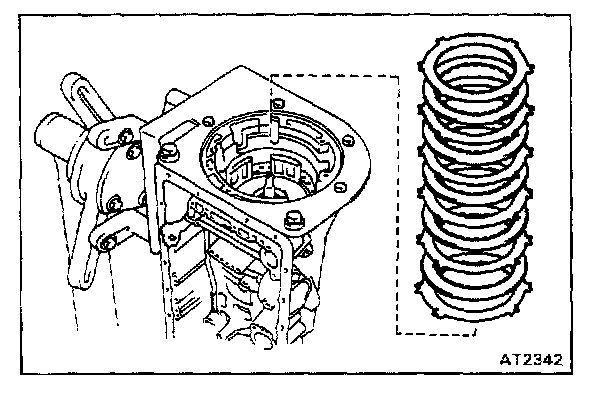

b. Install the plates and discs.
Install in order: P = Plate D = Disc
7M-GE: D-P-D-P-D-P-D-P-D-P-D-P
7M-GTE: D-P-D-P-D-P-D-P-D-P-D-P-D-P
c. Install the second brake drum assembly.

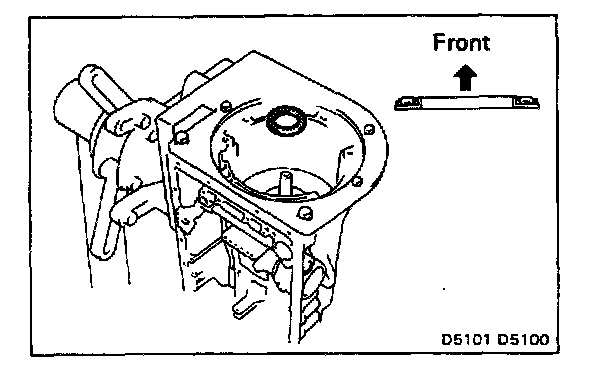

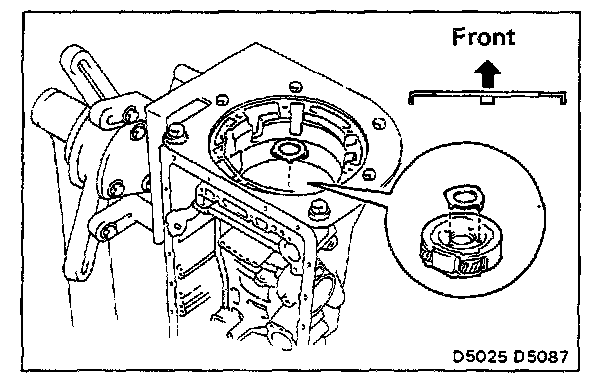

d. Coat the assembled bearing and race with petroleum jelly and install it onto the case.

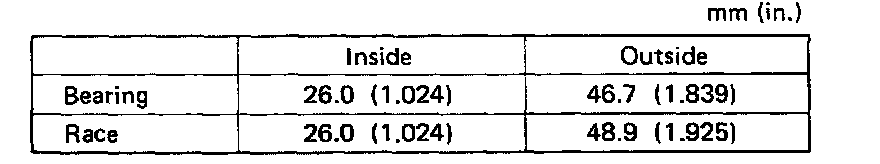

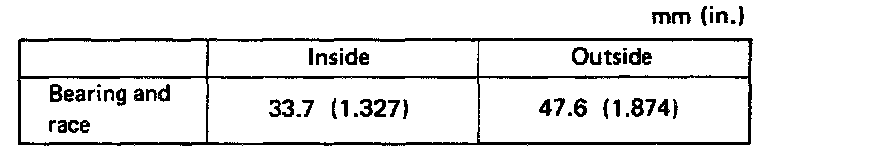

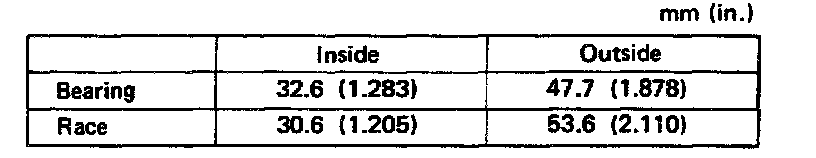

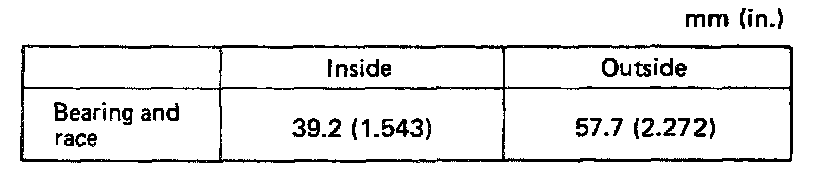

NOTE: Assembled bearing and race diameter

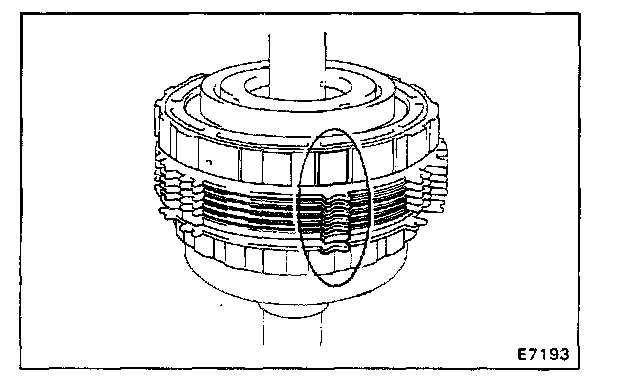

e. Align the teeth of the second brake drum, flange, discs and plates as shown in the figure.

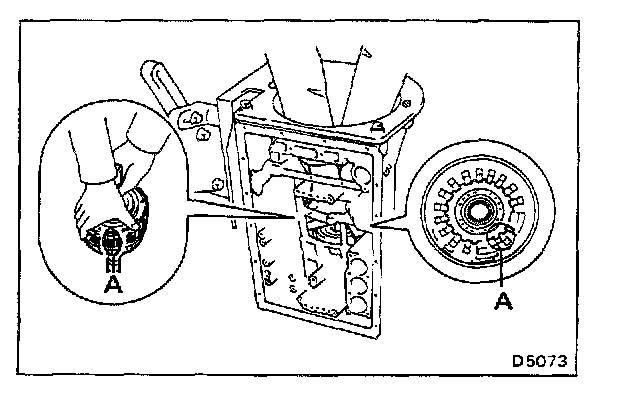

f. Align the splines of the transmission case and the assembled rear planetary gear, second brake drum, first and reverse brake pack and output shaft, indicated by A.

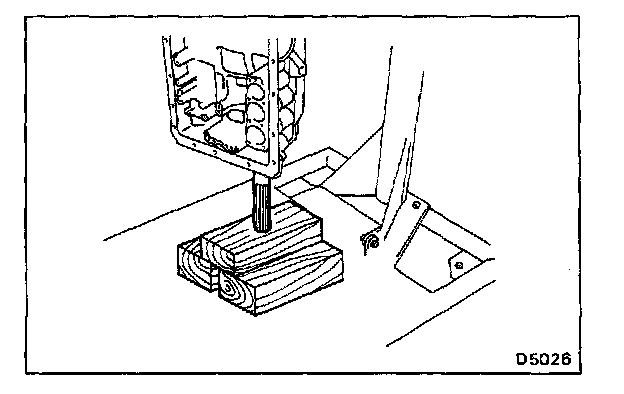

g. Hold the output shaft with wooden blocks.

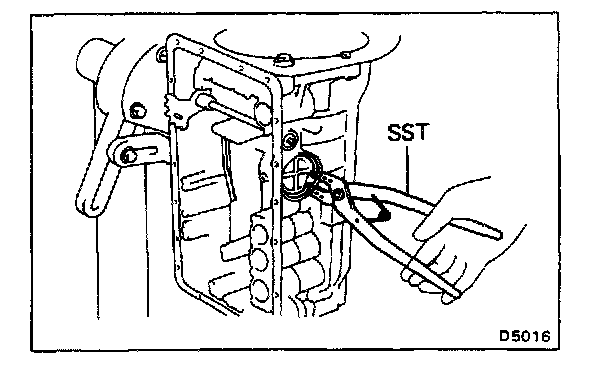

h. Using SST, install the snap ring.
SST 09350 - 30020 (09350 - 07060)
5. CHECK PACK CLEARANCE OF FIRST AND REVERSE BRAKE

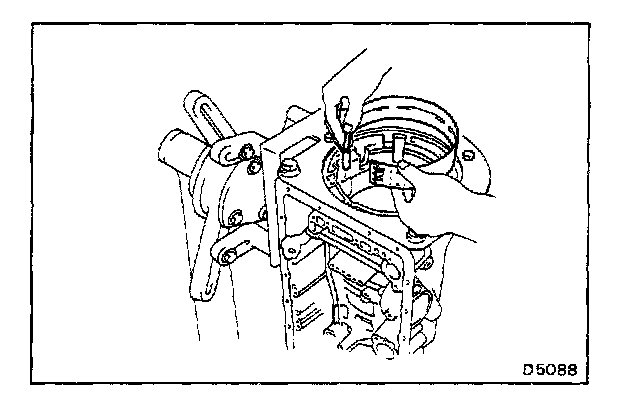

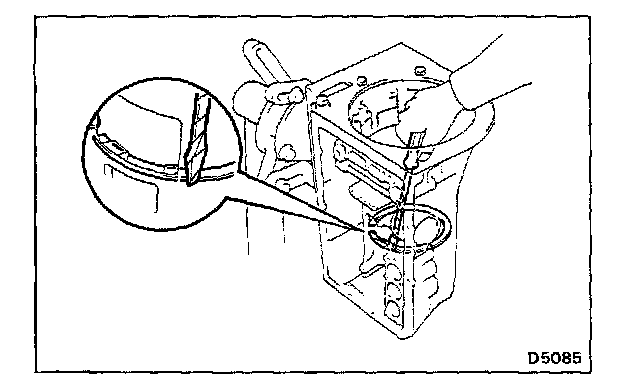

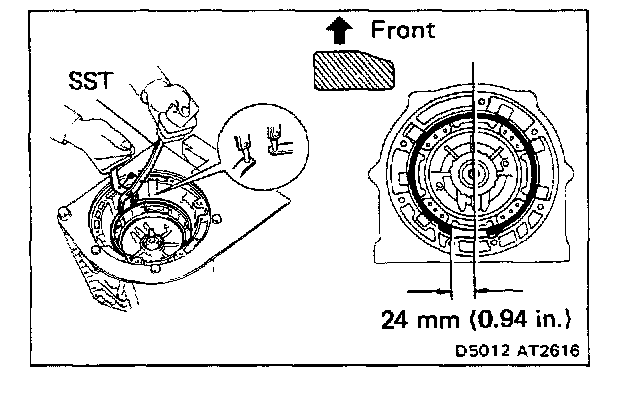

Using a thickness gauge, measure the clearance between the plate and second brake drum as shown in the figure.
Clearance:
7M-GE 0.74 - 2.24 mm (0.0291 - 0.0882 in.)
7M-GTE 0.94 - 2.51 mm (0.0370 - 0.0988 in.)
If the values are nonstandard, check for an improper installation.
6. INSTALL SECOND BRAKE PISTON SLEEVE
7. INSTALL NEW BRAKE DRUM GASKET
8. INSTALL PARKING LOCK PAWL AND ROD

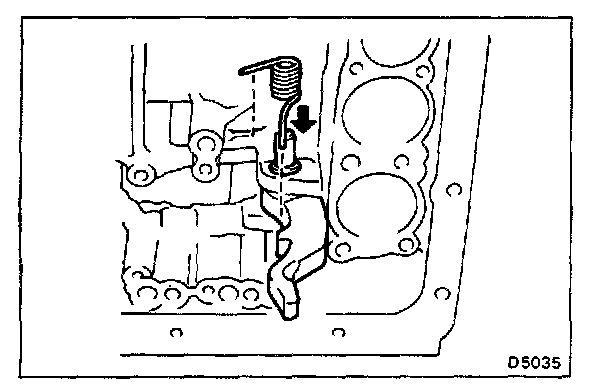

a. Install the parking lock pawl, shaft and spring.
b. Connect the parking lock rod to the manual valve lever.

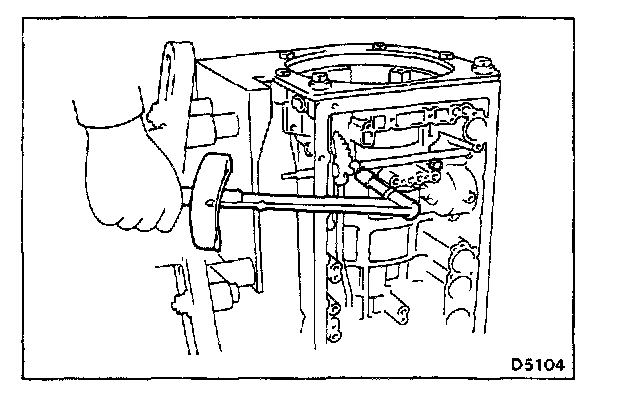

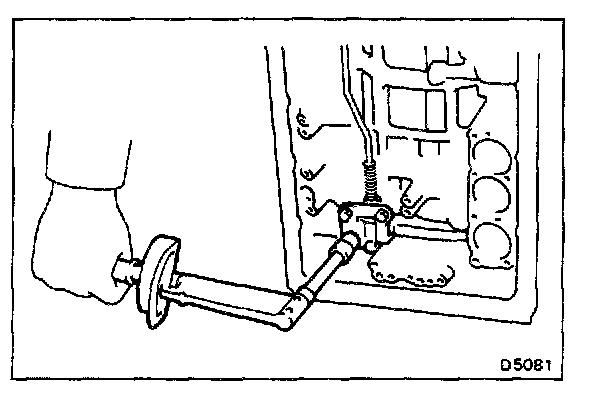

c. Install the parking lock pawl bracket. Torque the bolts.
Torque: 75 kg.cm (65 in.lb, 7.4 N.m)

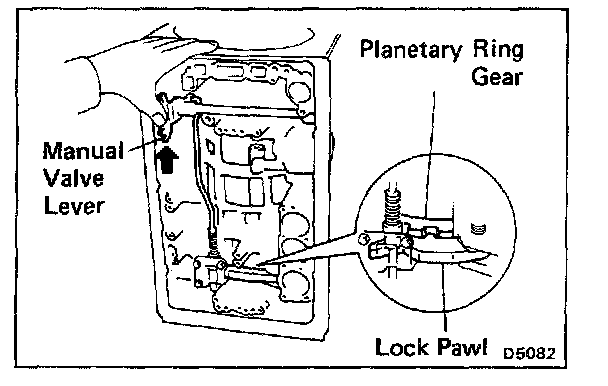

d. Shift the manual valve lever to the P position, and confirm the planetary ring gear is locked up lock pawl correctly.

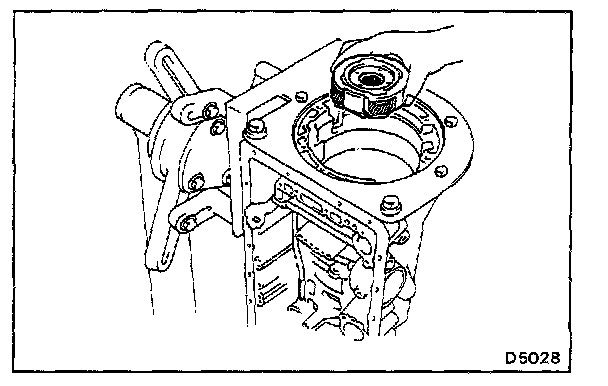

9. INSTALL NO.1 ONE-WAY CLUTCH

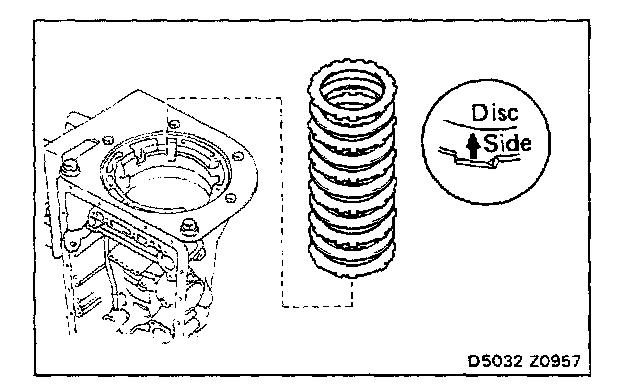

10. INSTALL FLANGE, PLATES AND DISCS OF SECOND BRAKE
a. Install the 1.8 mm (0.071 in.) thick plate with the rounded edge side of the plate facing the disc.
b. Install the plates and discs.
Install in order: P = Plate D = Disc
D-P-D-P-D-P-D-P-D
c. Install the flange with the rounded edge of the flange facing the disc.

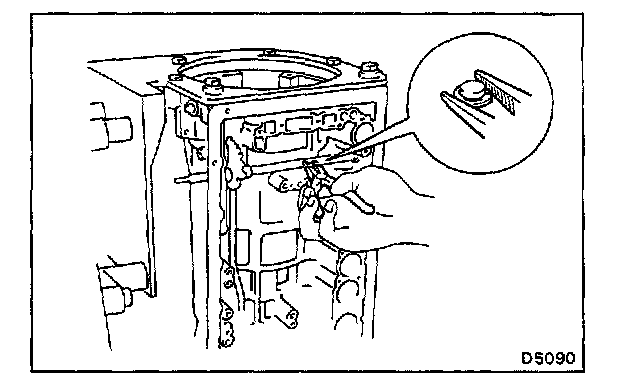

d. Install the snap ring.
11. CHECK PACK CLEARANCE OF SECOND BRAKE

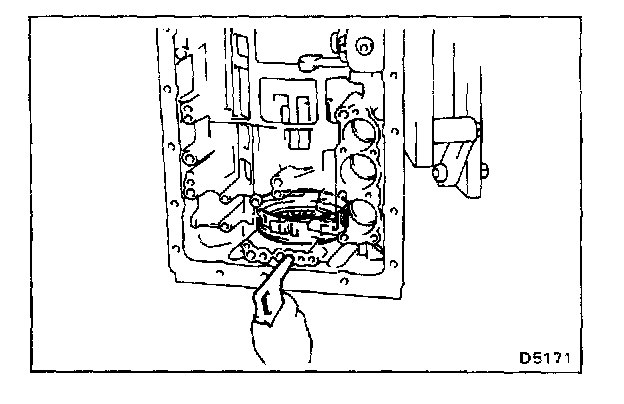

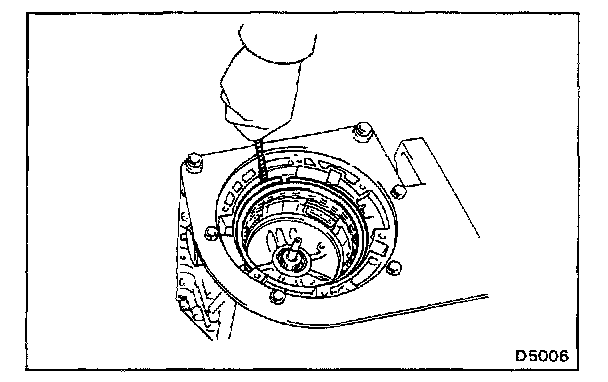

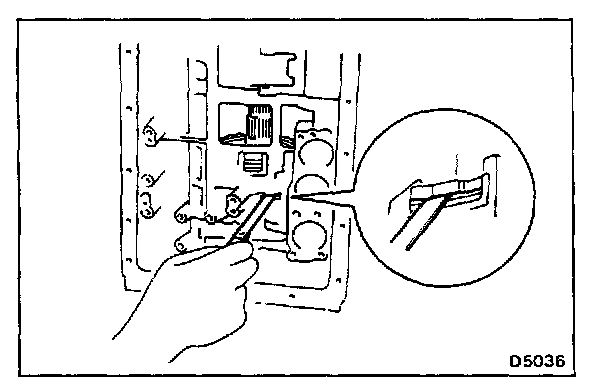

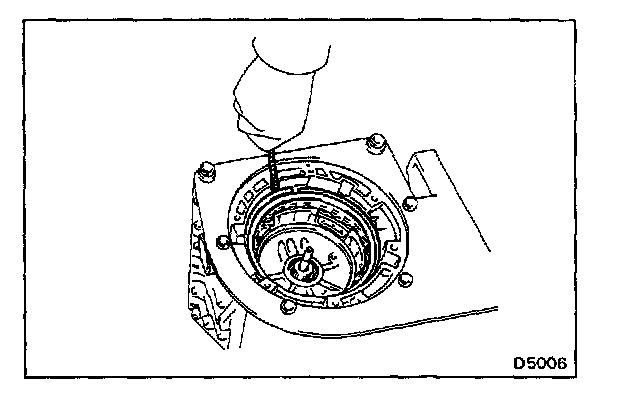

Using a thickness gauge, measure the clearance between the snap ring and flange as shown in the figure.
Clearance: 0.62 - 1.98 mm (0.0244 - 0.0780 in.)
If the values are nonstandard, check for an improper installation.
12. INSTALL PLANETARY SUN GEAR

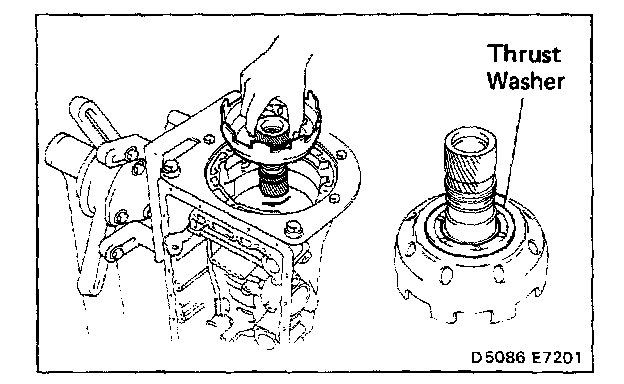

While turning the planetary sun gear clockwise, install it into No.1 one-way clutch.
NOTE: Confirm the thrust washer is installed correctly.
13. INSTALL FRONT PLANETARY GEAR

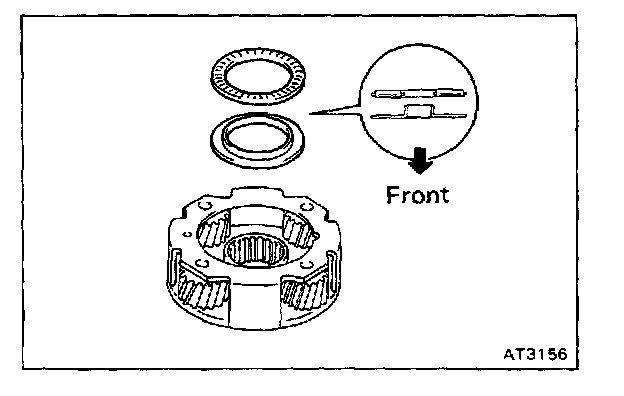

a. Coat the bearing and race with petroleum jelly and install them onto the front planetary gear.

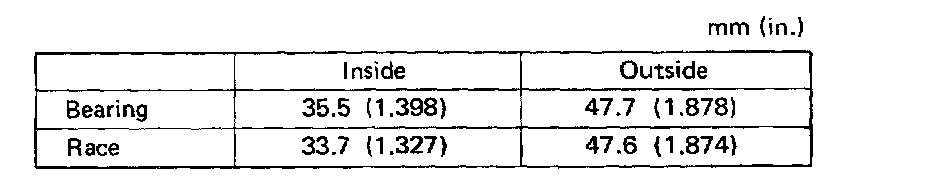

NOTE: Bearing and race diameter
b. Install the front planetary gear to the sun gear.
c. Using SST, install the snap ring.
SST 09350 - 30020 (09350 - 07070)
d. Remove the wooden blocks under the output shaft.
e. Coat the bearing race with petroleum jelly and install it onto the front planetary gear.

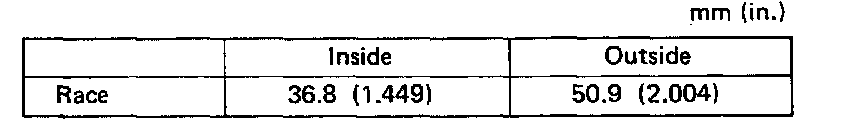

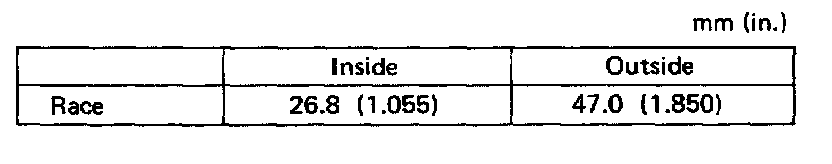

NOTE: Race diameter
14. INSTALL SECOND COAST BRAKE BAND
a. Insert the second coast brake band to the case.
b. Install the pin through the brake band.
c. Install the E-ring to the pin
15. INSTALL FRONT PLANETARY RING GEAR TO FORWARD AND DIRECT CLUTCH
a. Coat the bearing and race with petroleum jelly and install them onto the forward clutch.
NOTE: Bearing and race diameter

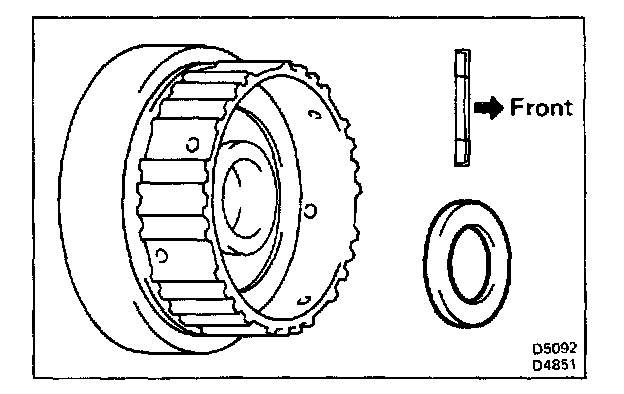

b. Coat the race with petroleum jelly and install it onto the front planetary ring gear.

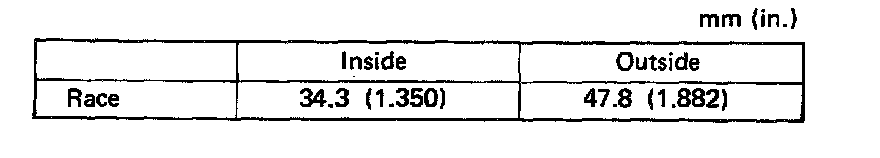

NOTE: Race diameter

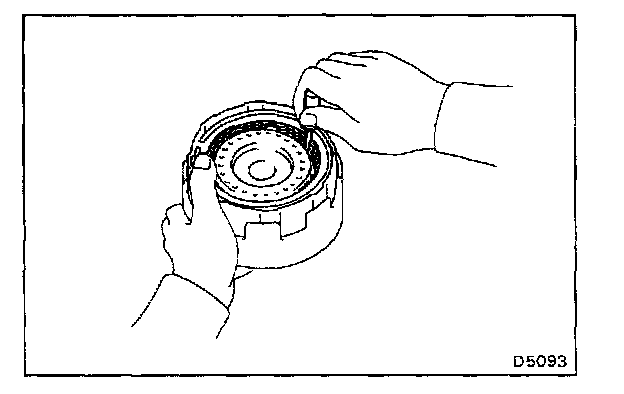

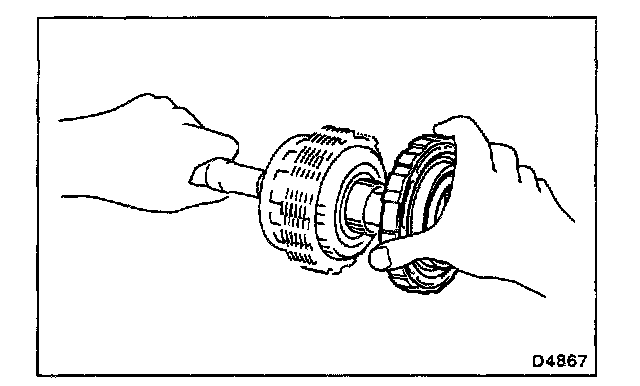

c. Align the flukes of the discs in the forward clutch.

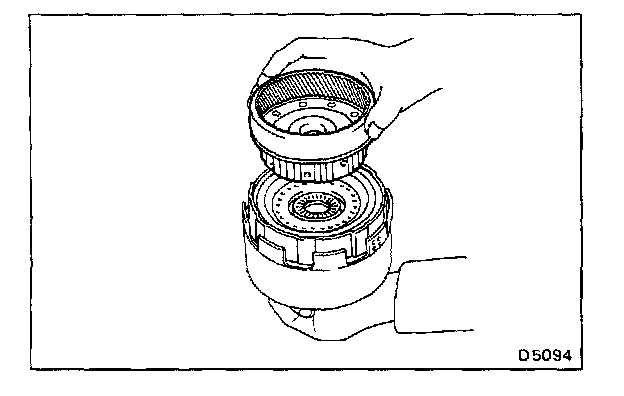

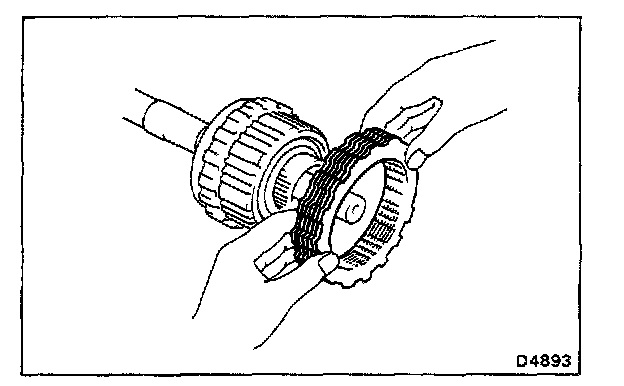

d. Align the splines of the front planetary ring gear with the flukes of the discs and install the front planetary ring gear to the forward clutch.
16. INSTALL ASSEMBLED DIRECT CLUTCH, FORWARD CLUTCH AND FRONT PLANETARY RING GEAR INTO CASE
a. Coat the bearing and race with petroleum jelly and install them onto the ring gear.
NOTE: Bearing and race diameter

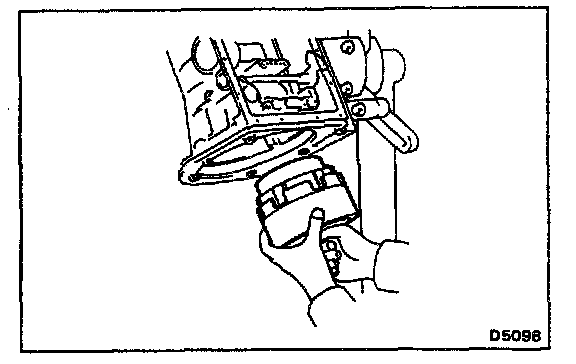

b. Install the assembled direct clutch, forward clutch and front planetary ring gear into the transmission case.

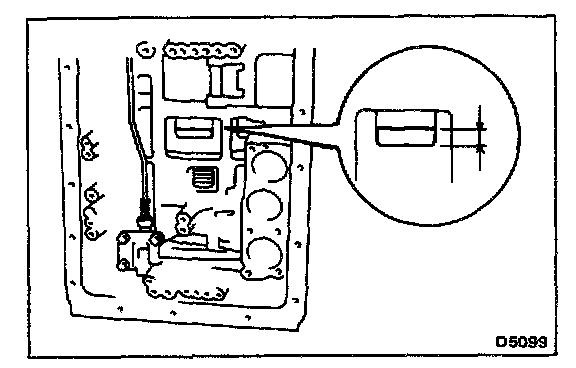

c. Using vernier calipers, measure the distance between the sun gear input drum and direct clutch drum as shown in the figure.
Height: 6.3 - 8.3 mm (0.248 - 0.328 in.)
If the values are nonstandard, check for an improper installation.

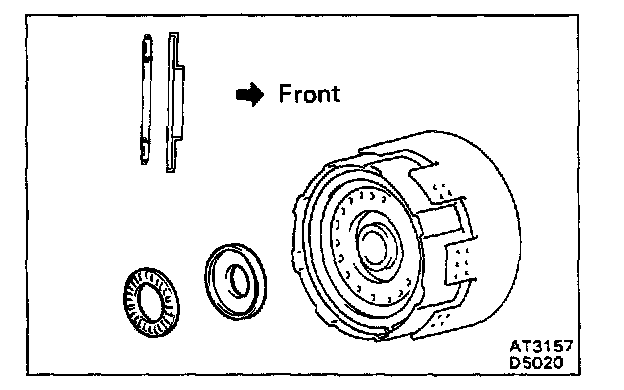

d. Coat the assembled bearing and race with petroleum jelly and install it onto the forward clutch.
NOTE: Assembled bearing and race diameter
17. INSTALL SECOND COAST BRAKE COVER, PISTON ASSEMBLY AND SPRING
a. Coat two new O-rings with ATF and install them to the cover
b. Install the spring, piston assembly and cover to the case.
c. Using SST, install the snap ring.
SST 09350 - 30020 (09350 - 07060)
18. CHECK PISTON ROD STROKE OF SECOND COAST BRAKE

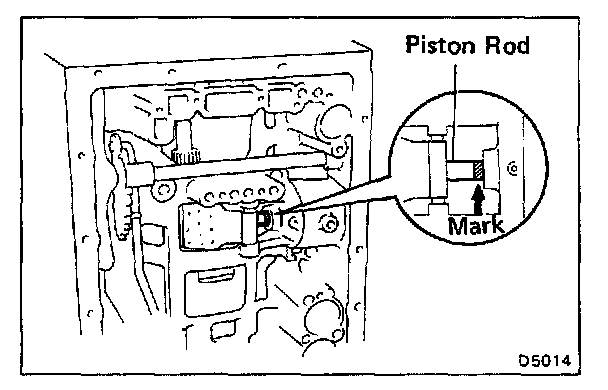

a. Place a mark on the second coast brake piston rod as shown in the figure.

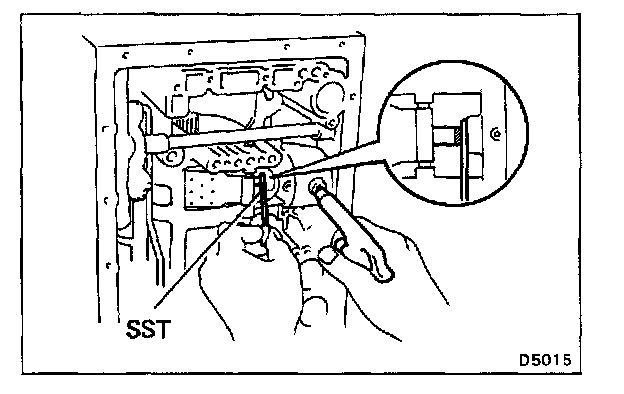

b. Using SST, measure the stroke applying the compressed air (4 8 kg/sq.cm, 57 - 114 psi or 392 - 785 kPa) as shown in the figure.
SST 09240 - 00020
Piston rod stroke: 1.5 - 3.0 mm (0.059 - 0.118 in.)
If it is still more than standard value, replace the brake band with a new one.
19. INSTALL OVERDRIVE SUPPORT ASSEMBLY

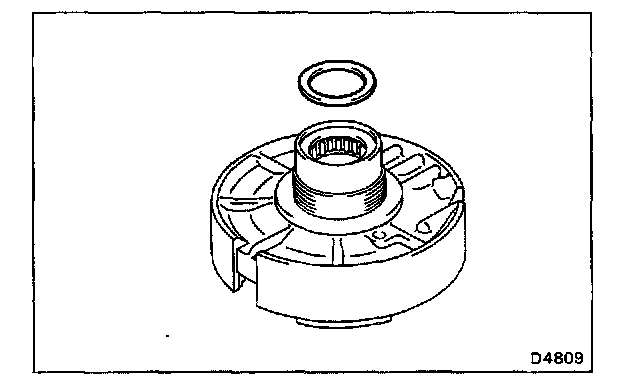

a. Coat the race with petroleum jelly and install it onto the overdrive support assembly.
NOTE: Race diameter

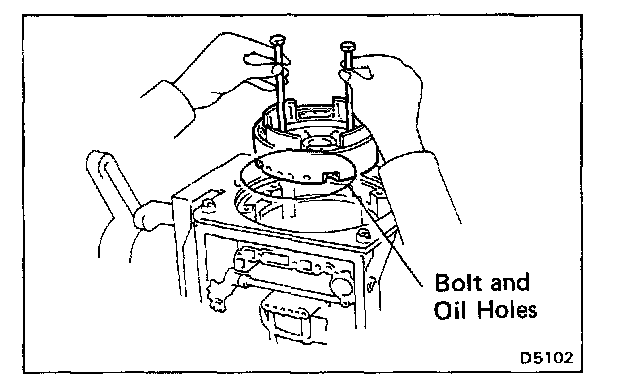

b. Aim the bolt and oil holes of the overdrive support toward the valve body side, and align them with the bolt holes of the transmission case and insert.

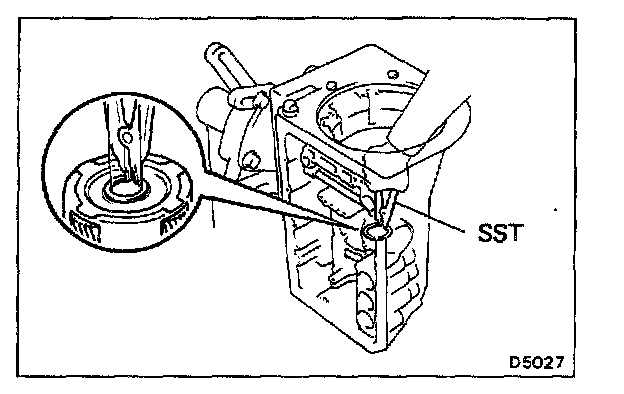

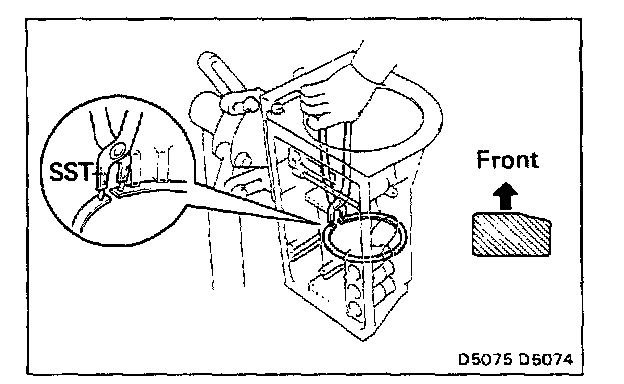

c. Using SST, install the snap ring as shown in the figure.
SST 09350 - 30020 (09350 - 07060)
d. Install and torque the two bolts.
Torque: 260 kg.cm (19 ft.lb, 25 N.m)
20. CHECK OUTPUT SHAFT

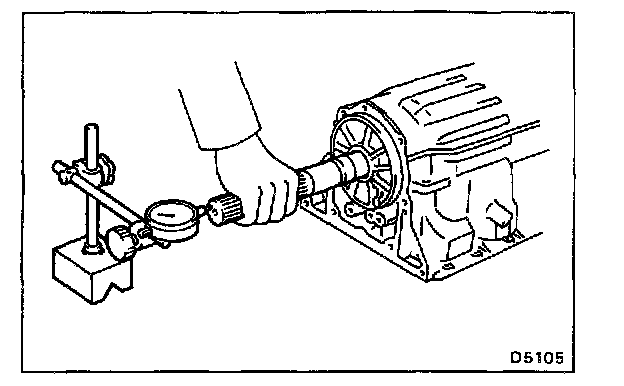

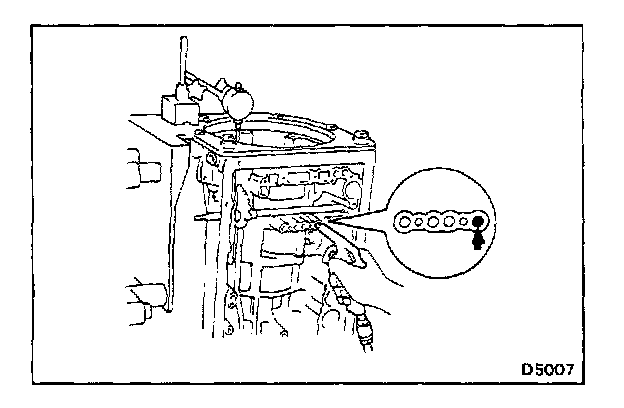

a. Using a dial indicator, measure the end play of the output shaft by hand.
End play: 0.27-0.86 mm (0.0106 - 0.0339 in.)
If the values are nonstandard, check for an improper installation.
b. Check to see that output shaft rotates smoothly.

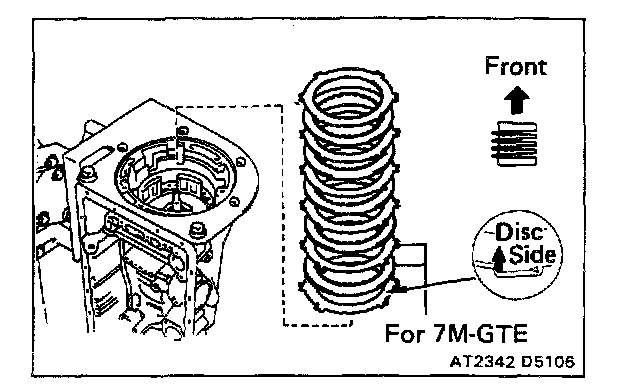

21. INSTALL FLANGES, PLATES AND DISCS OF OVERDRIVE BRAKE

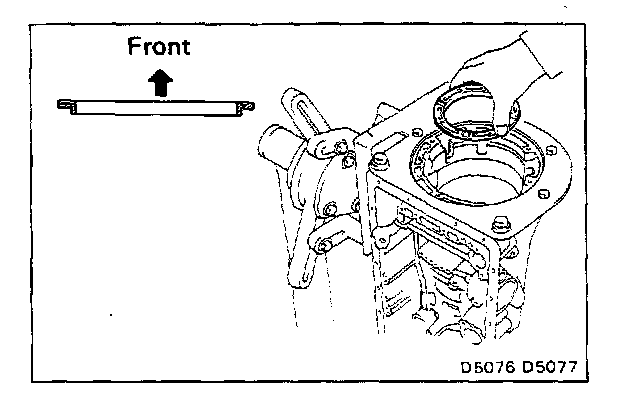

a. Install the 4.0 mm (0.157 in.) thick flange (flat ring) with the rounded edge side of the flange facing the disc.
b. Install the plates and discs.
Install in order: P=Plate D=Disc
7M-GE: D-P-D-P-D-P-D
7M-GTE: D-P-D-P-D-P-D-P-D
c. Install the flange (stepped ring) with the flat side of the flange facing the disc.
d. Install the snap ring.
22. CHECK PISTON STROKE OF OVERDRIVE BRAKE

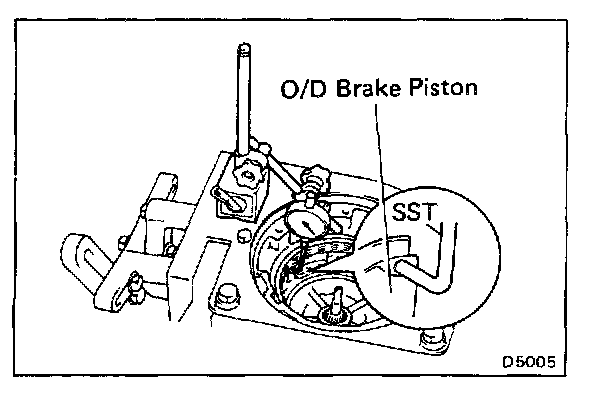

a. Place SST and a dial indicator onto the overdrive brake piston as shown in the figure.
SST 09350 - 30020 (09350 - 06120)
b. Measure the stroke applying and releasing the compressed air (4 8 kg/sq.cm, 57 - 114 psi or 392 - 785 kPa) as shown in the figure.
Piston stroke:
7M-GE 1.40 - 1.70 mm (0.0551 - 0.0669 in.)
7M-GTE 1.75 - 2.05 mm (0.0689 - 0.0807 in.)
If the piston stroke is less than the limit, parts may be mis- assembled and reinstall them.
If the piston stroke is nonstandard, select another flange.

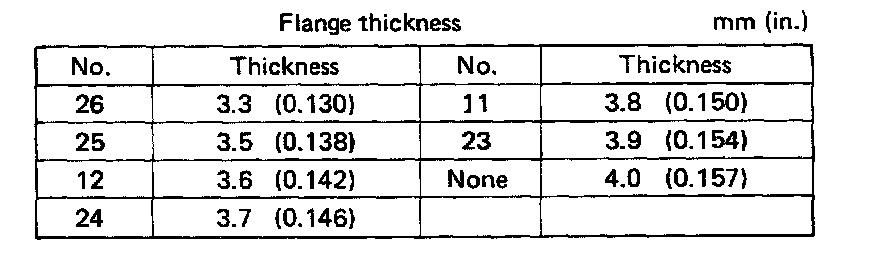

NOTE: There are seven different thicknesses for flange.
23. REMOVE FLANGES, PLATES AND DISCS OF OVERDRIVE BRAKE
a. Remove the snap ring.
b. Remove the flanges, plates and discs.
