Home >> Toyota >> 1988 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Testing and Inspection

Neutral Safety Switch: Testing and Inspection

INSPECT NEUTRAL START SWITCH

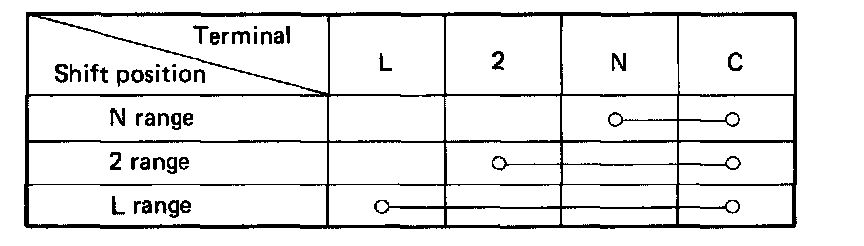

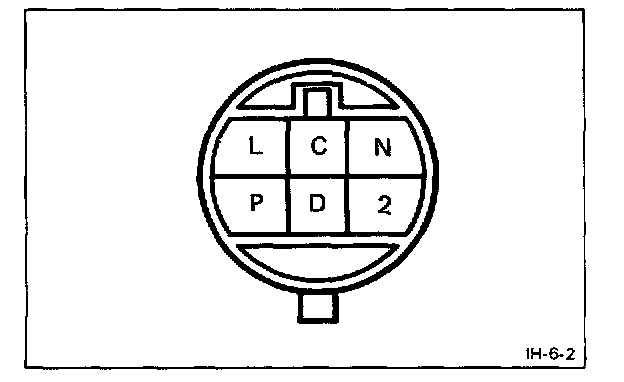

Check that there is continuity between terminals L - C, 2 - C, and N - C.
