With Super Monitor Display

CHECK "O/D OFF" INDICATOR LIGHT




1. Turn the ignition switch ON.
2. The "O/D OFF" light will come on when the O/D switch is placed at OFF.
3. When the O/D switch is set to ON, the "O/D OFF" light should go out.
If the "O/D OFF" light flashes when the O/D switch is set to ON, the electronic control system is faulty.


READ DIAGNOSTIC CODE

(With Super Monitor Display)

NOTE: Never depress the accelerator pedal while the Super Monitor Display Diagnostic Code is being displayed. Otherwise, it will cancel the display.

1. TURN IGNITION SWITCH TO ON
Do not start the engine.

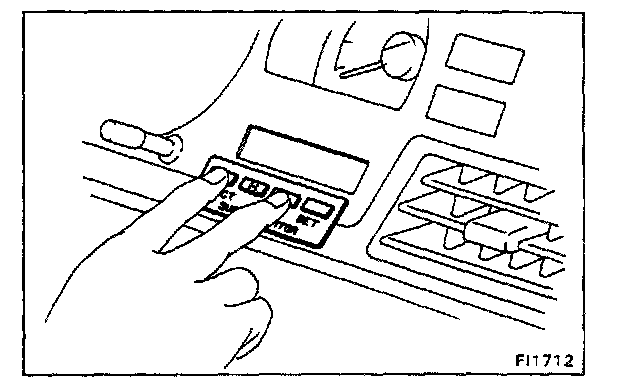

2. PUSH AND HOLD IN "SELECT" AND INPUT "M" KEYS
Simultaneously push and hold in the SELECT and INPUT "M" keys for at least 3 seconds. The letters DIAG will appear on the screen.

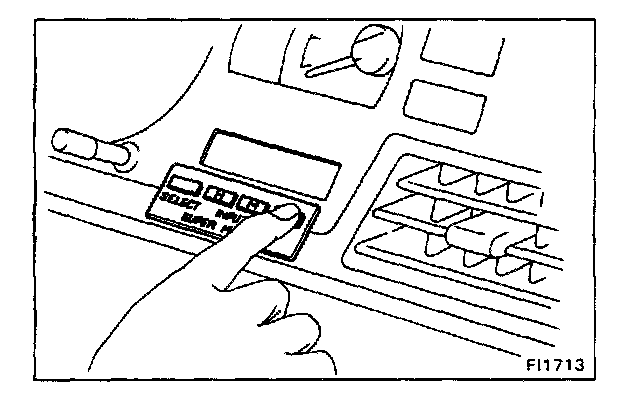

3. PUSH AND HOLD IN "SET" KEY
After a short pause, push and hold in the SET key for at least 3 seconds.

(Diagnostic Code Indication)
- If the system is normal (no malfunction), ECT OK will appear on the screen.
- If there is a malfunction, the code number for it will appear on the screen. In event of 2 or more numbers, there will be a 3 seconds between each.

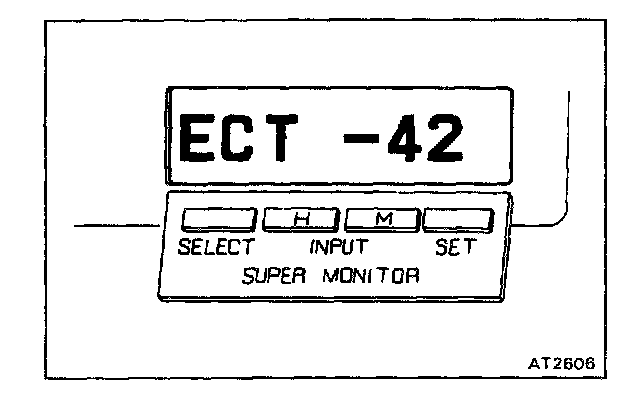

Example: ECT 42

4. TURN OFF IGNITION KEY
After confirmation of the diagnostic code, either turn off the ignition switch or push the Super Monitor Display key so that the time appears.
