Basic and General Troubleshooting

Before troubleshooting an ECT, first determine whether the problem is electrical or mechanical. To do this, just refer to the basic troubleshooting flow-chart.

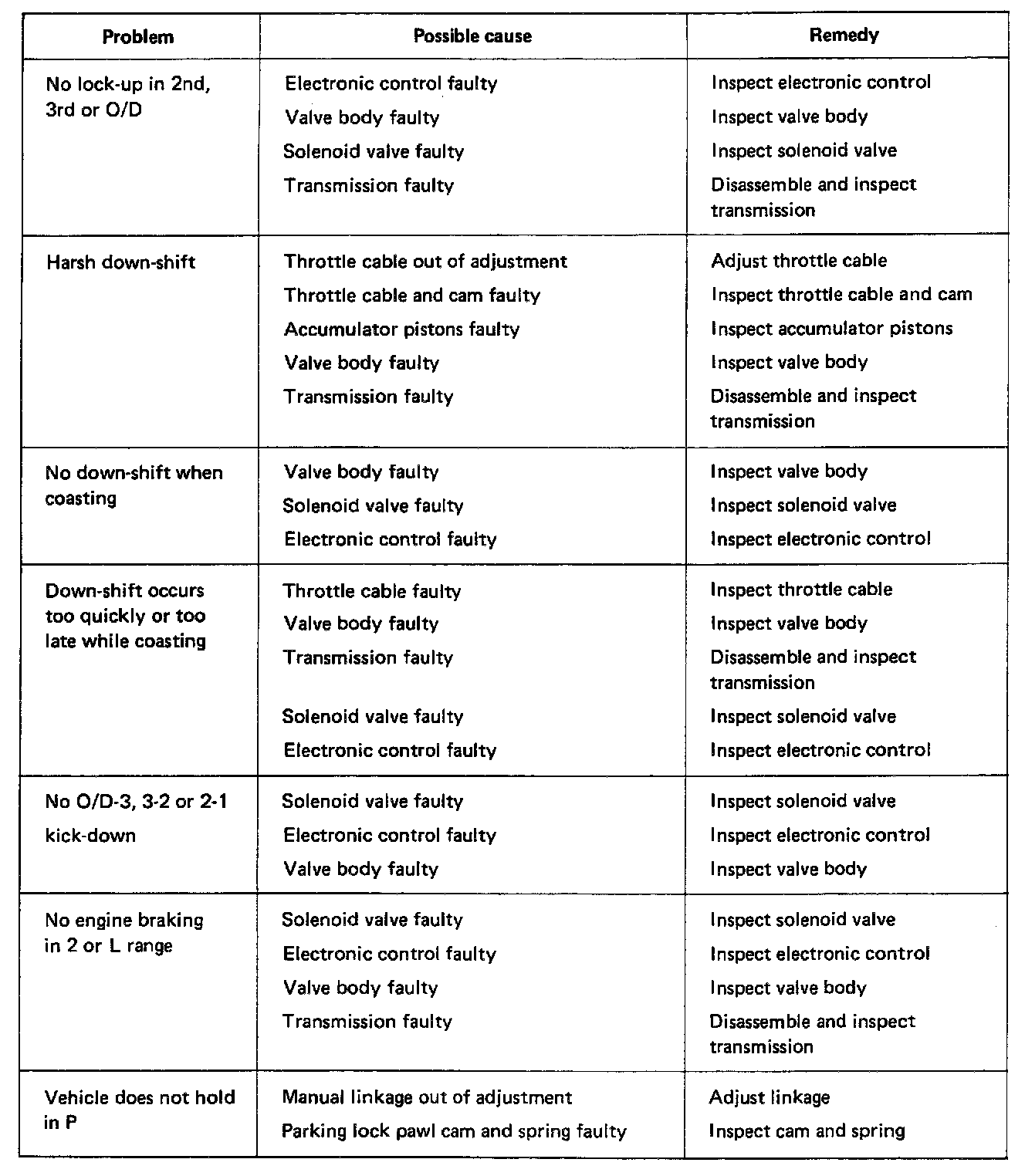

If the cause is already known, using the basic troubleshooting chart along with the general troubleshooting chart should speed the procedure.

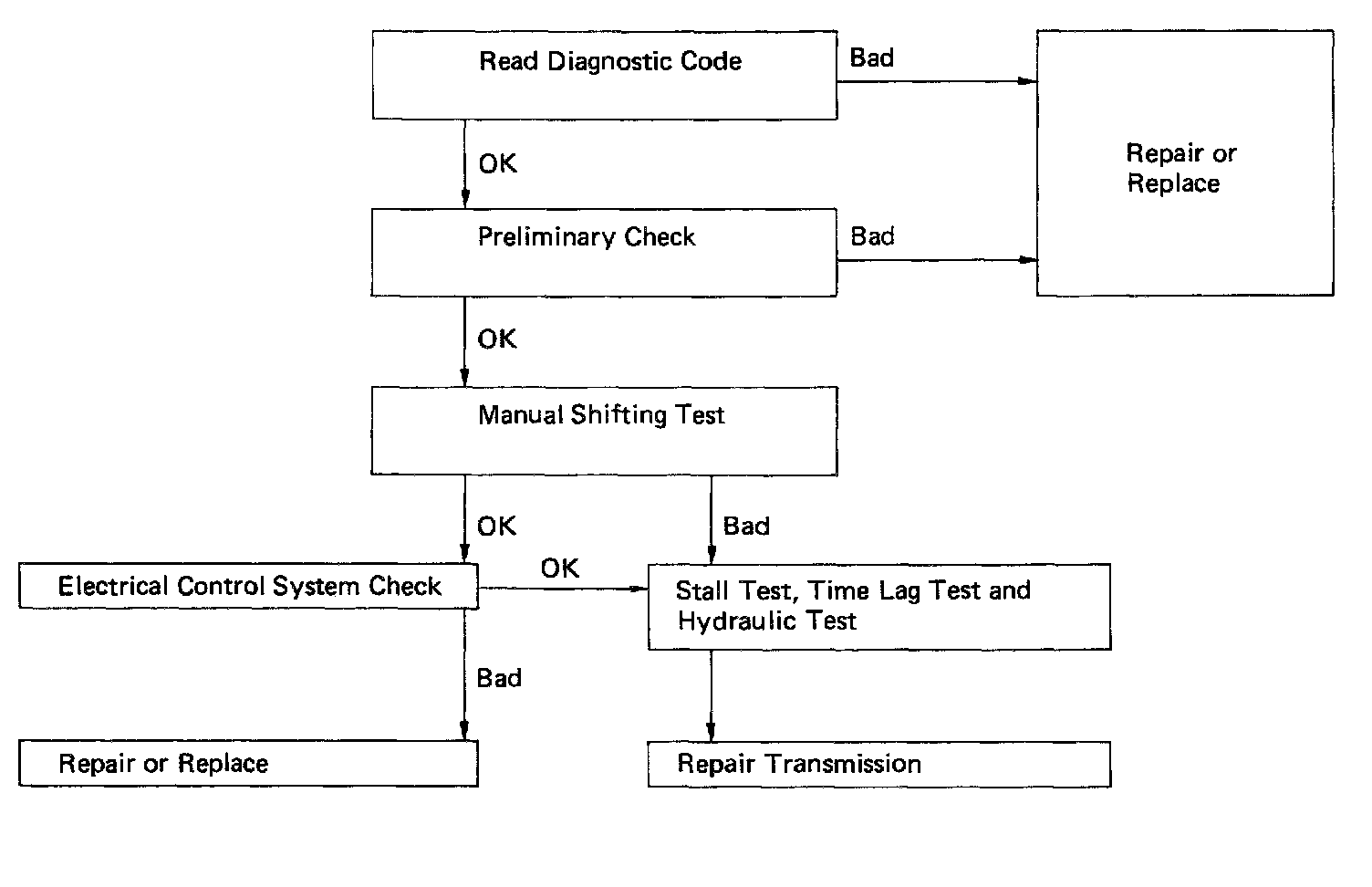

Basic Troubleshooting Chart
