Wiring Diagram

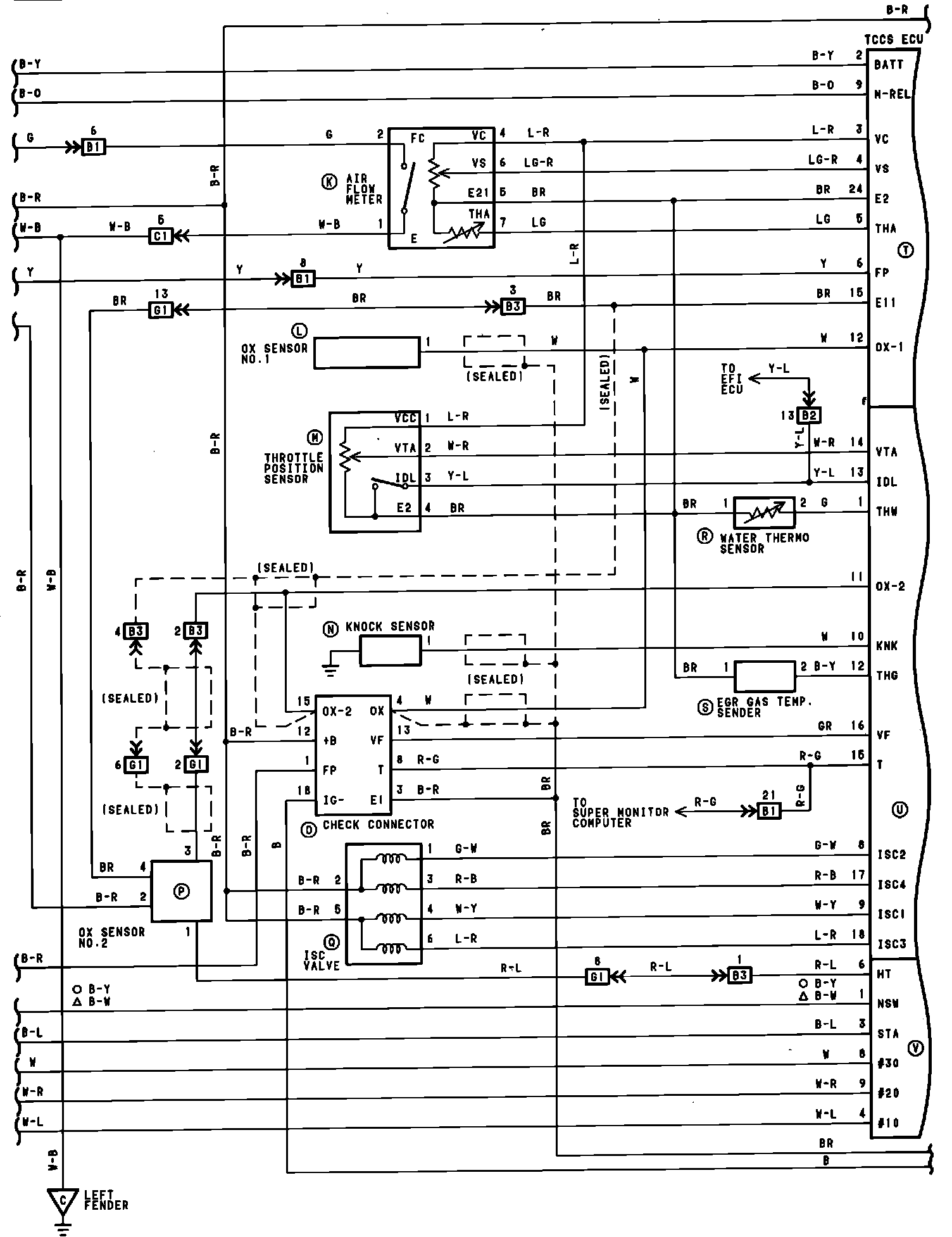

Fig. 292 EFI Wiring Diagram:

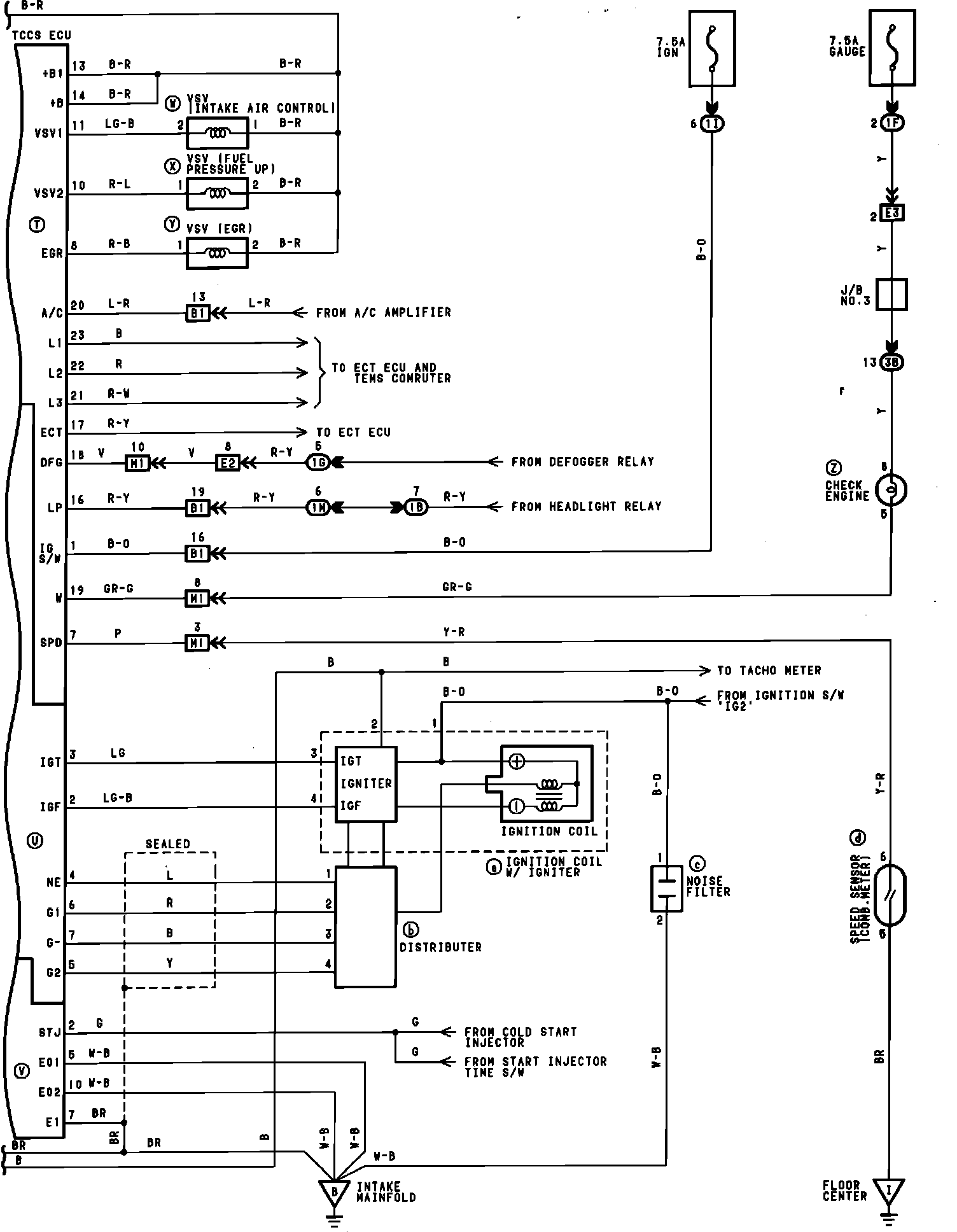

Fig. 293 EFI Wiring Diagram:

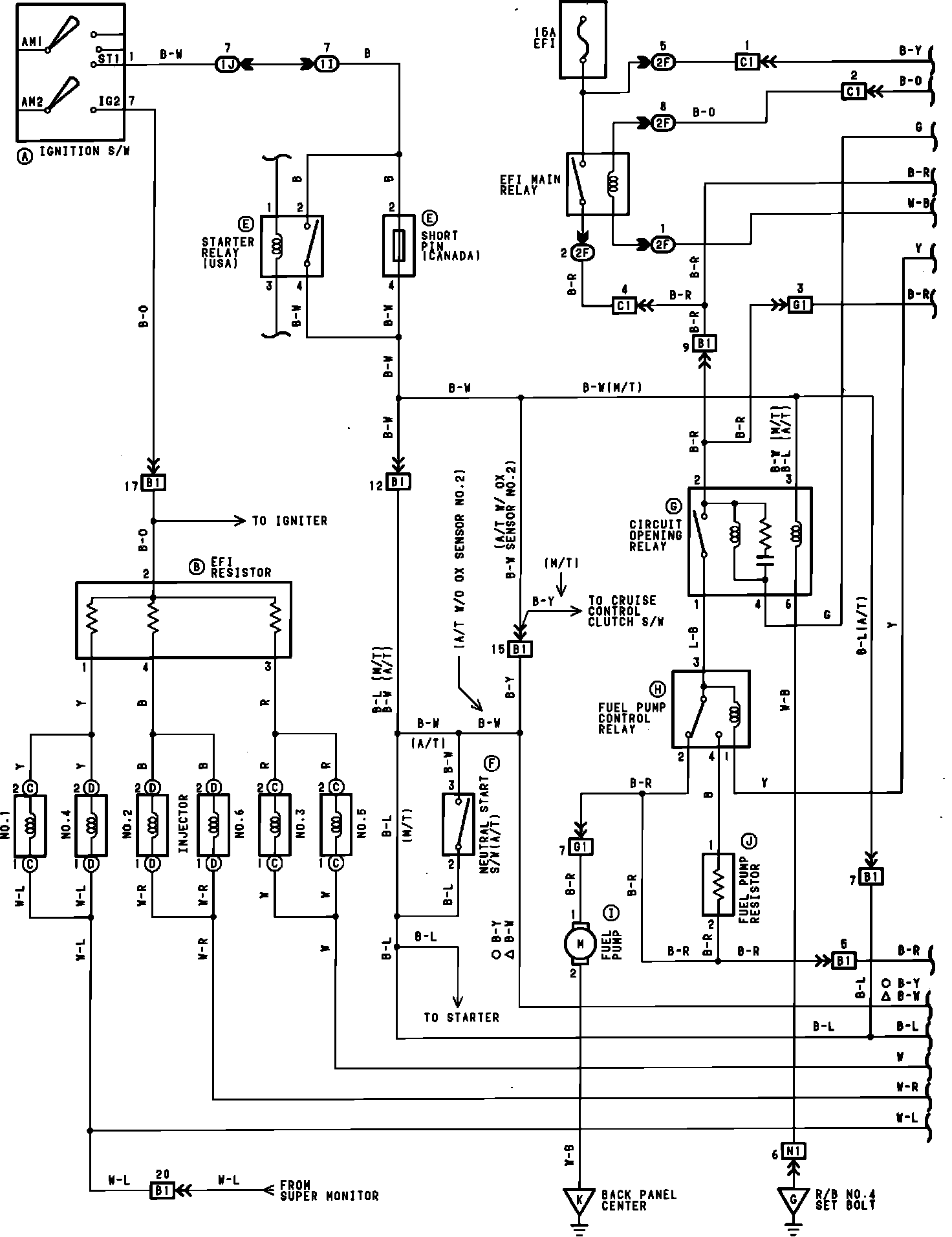

Fig. 294 EFI Wiring Diagram:
