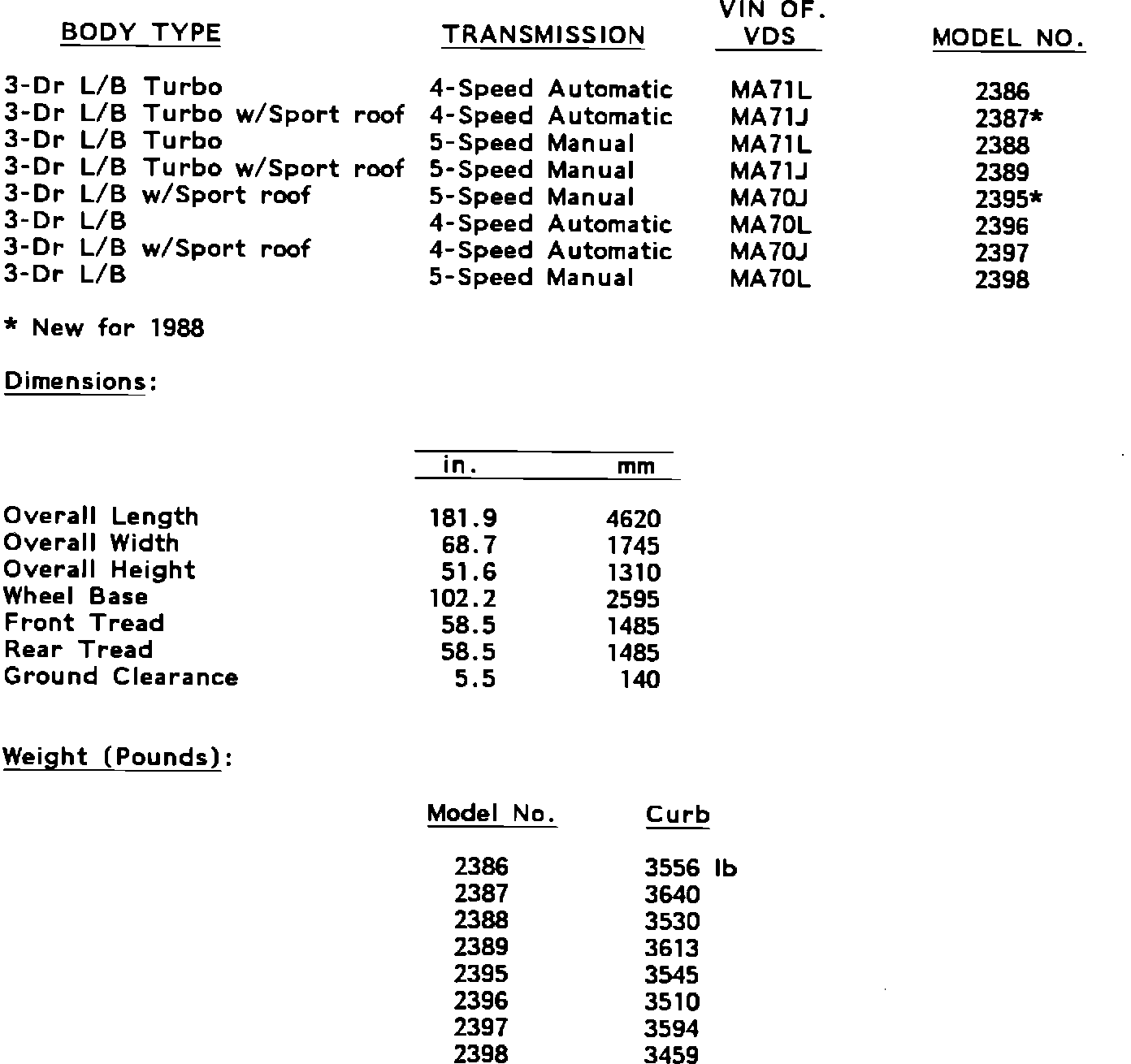

Vehicle Specifications

Engine:

Model 7M-GE
Type 6 cylinder in-line DOHC gasoline
Displacement 180.3 cu. in. (2954 cc)
Bore and Stroke 3.27 x 3.58 in. (83 x 91 mm)
Compression Ratio 9.2:1
Compression Pressure STD 156 psi @ 250 rpm, limit 128 psi
HP (SAE Net) 200/6000
Torque (SAE Net) 185/4800

Model 7M-GTE
Type 6 cylinder in-line DOHC gasoline turbo
Displacement 180.3 cu. in. (2954 cc)
Bore and Stroke 3.27 x 3.58 in. (83 x 91 mm)
Compression Ratio 8.4:1
Compression Pressure STD 142 psi @ 250 rpm, limit 128 psi
HP (SAE Net) 230/5600
Torque (SAE Net) 246/4000

Ignition System:

Spark Plug Type 7M-GE 7M-GTE

Nippondenso PQ16R (Platinum PQ20R-P8
tipped spark plugs) (Platinum tipped

spark plugs)

NGK BCPR5EP11 (Platinum BCPR6EP-N8
tipped spark plugs) (Platinum tipped

spark plugs)

Spark Plug Gap 0.043 in. (1.1 mm) 0.031 in. (0.8 mm)
Firing Order 1-5-3-6-2-4 1-5-3-6-2-4

Ignition Timing:

10~ BTDC @ Idle Check connector T-E(1') shorted
