Home
>>
Toyota
>>
1988
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Overdrive Assembly, A/T
>>

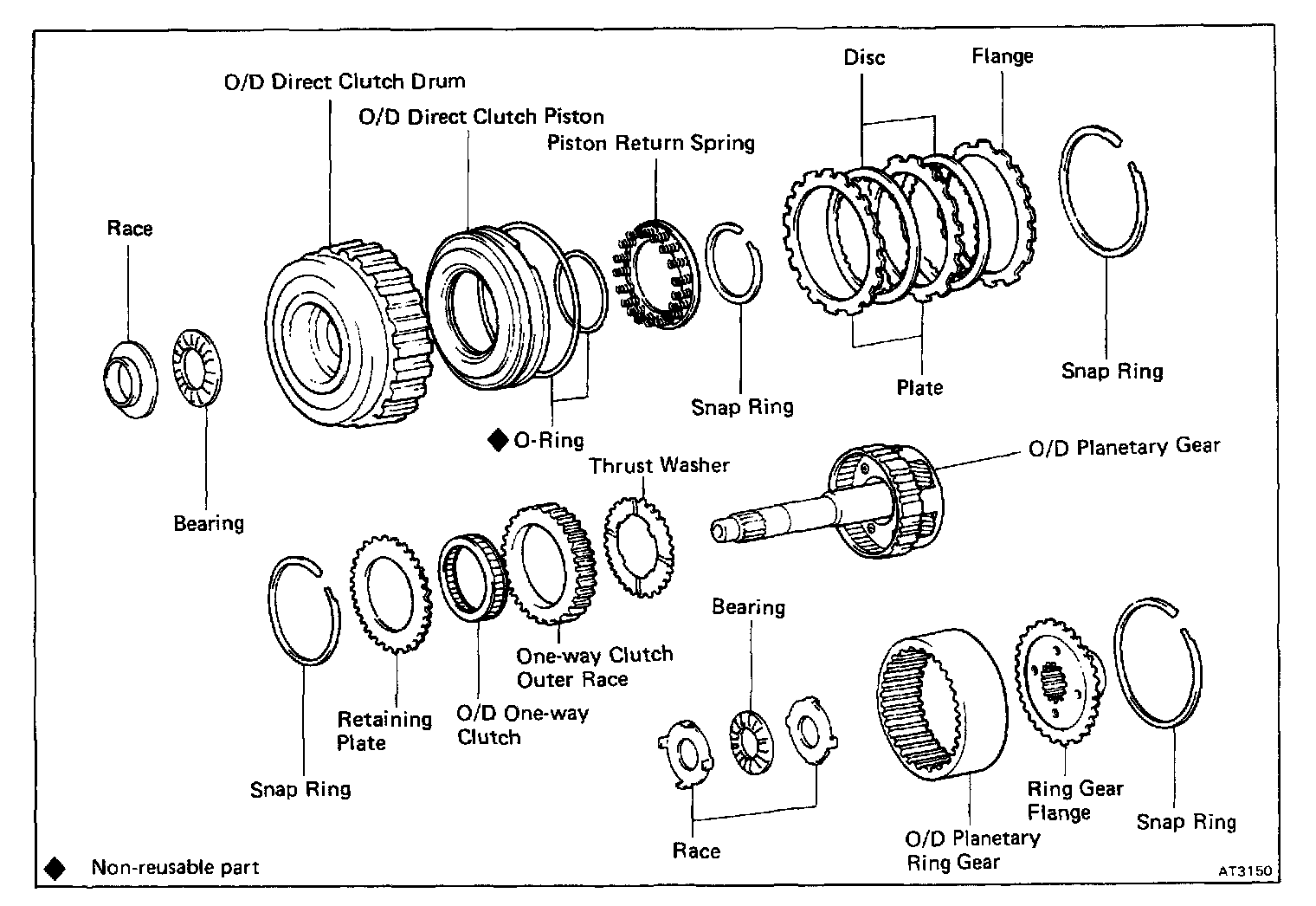

O/D Planetary Gear, O/D Direct Clutch and O/D One-Way Clutch
O/D Planetary Gear, O/D Direct Clutch and O/D One-Way Clutch
