Toyota
>>
1988
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

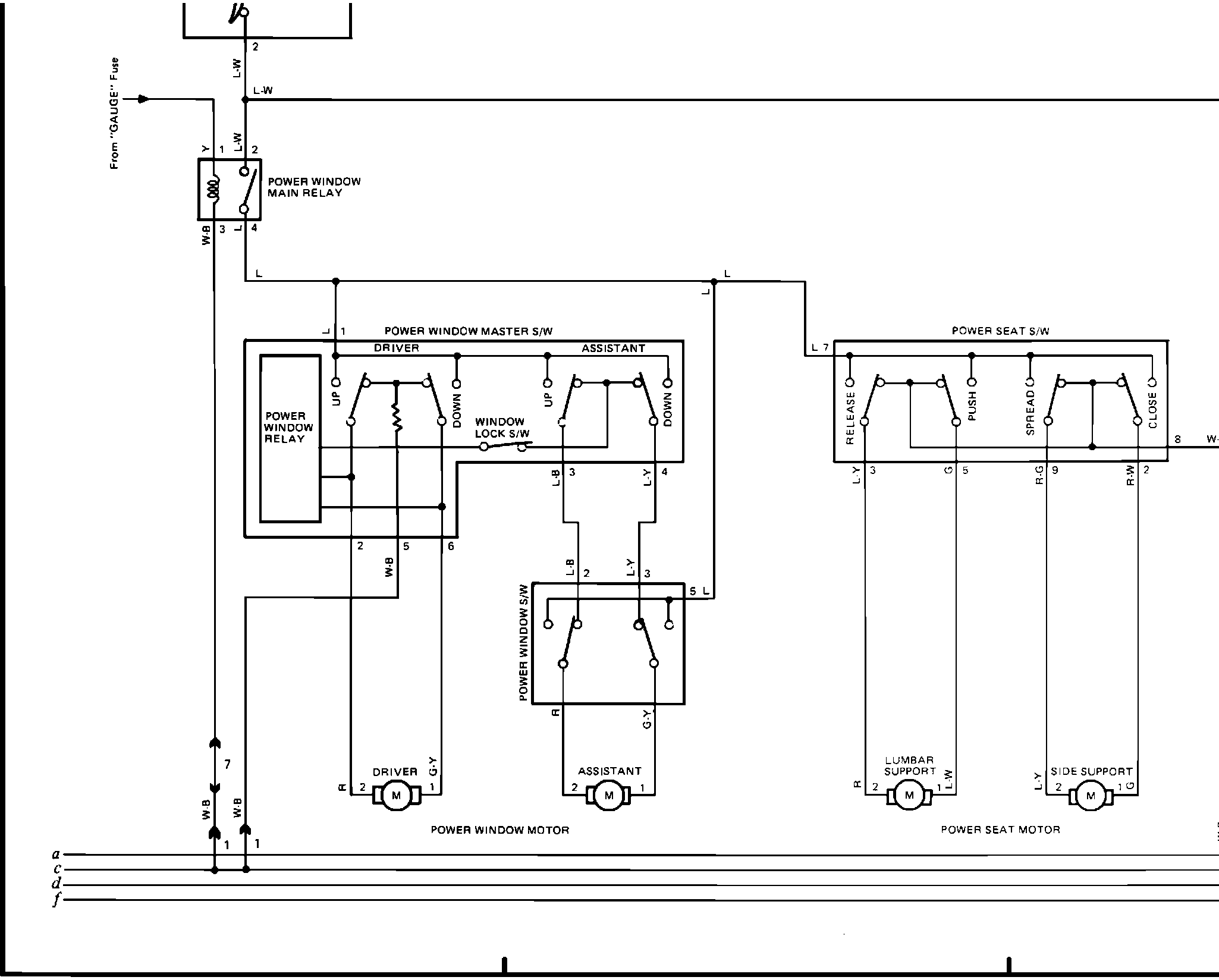

�&/�B/bh/r/�w/�{/L�/Fig. 8dh Power Windows, Power Seat, Door Locks, Theft Deterrent System:
