Engine Control System

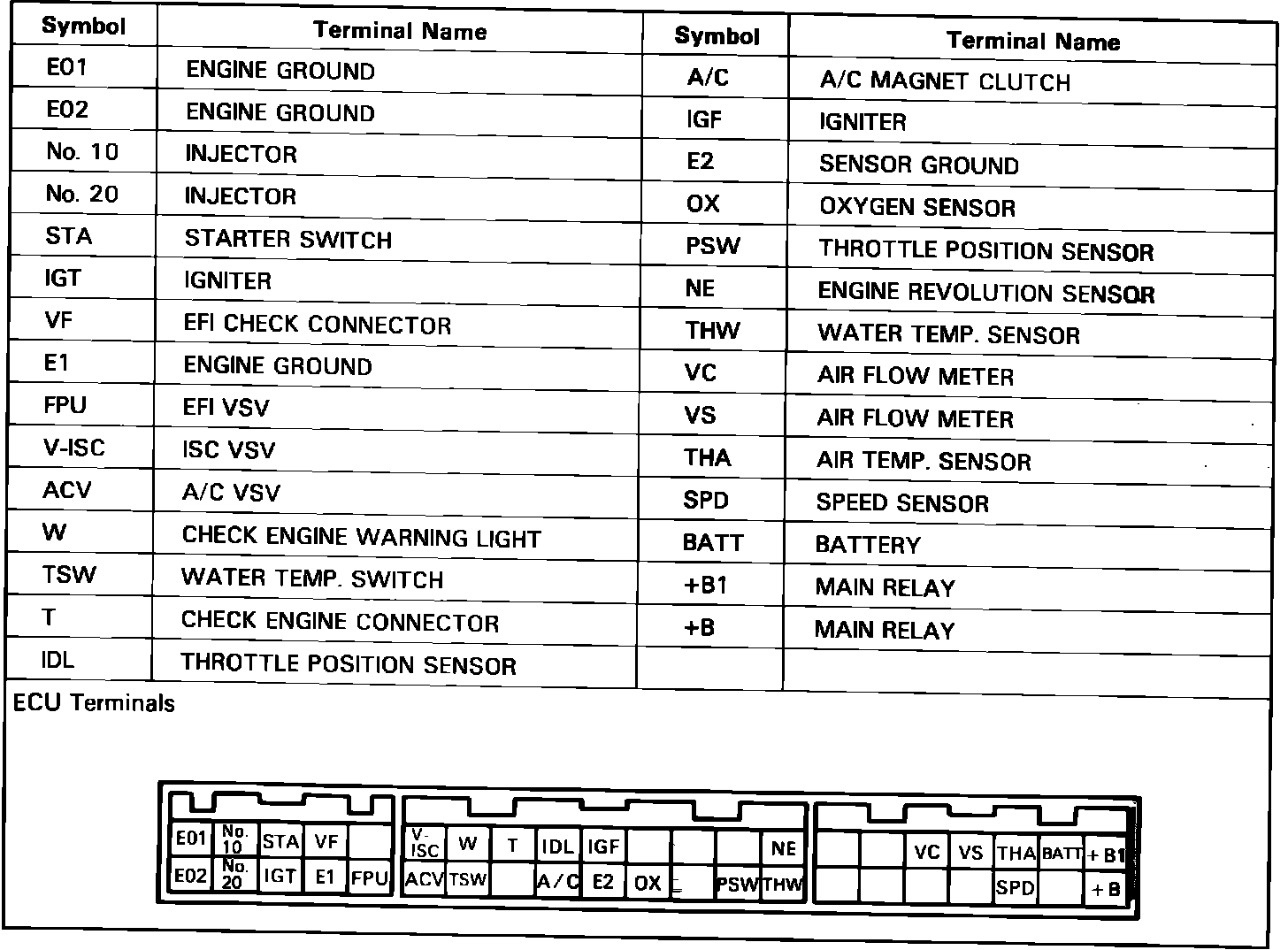

Fig. 121a Diagnosis Indication.:

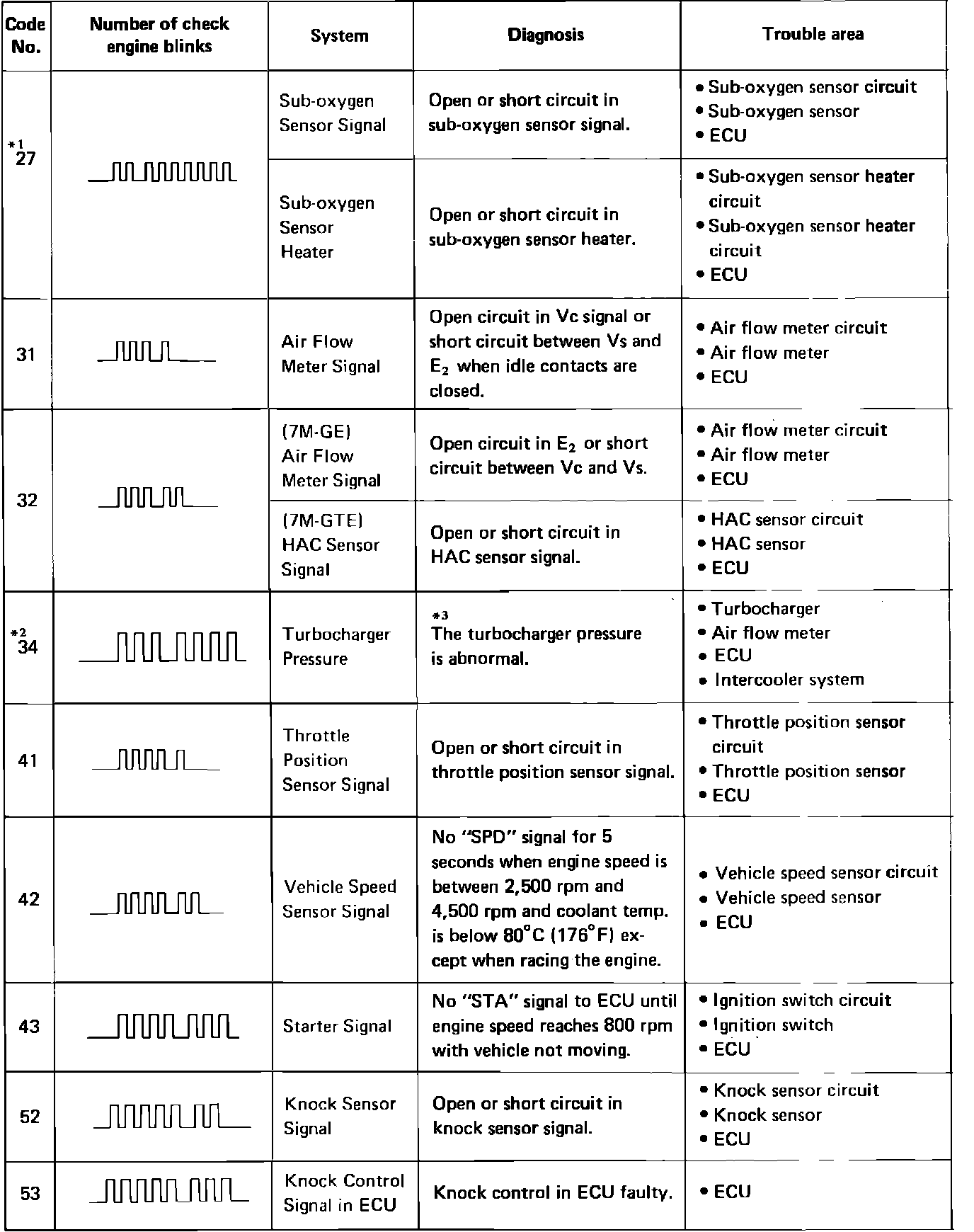

Fig. 121b Diagnosis Indication.:

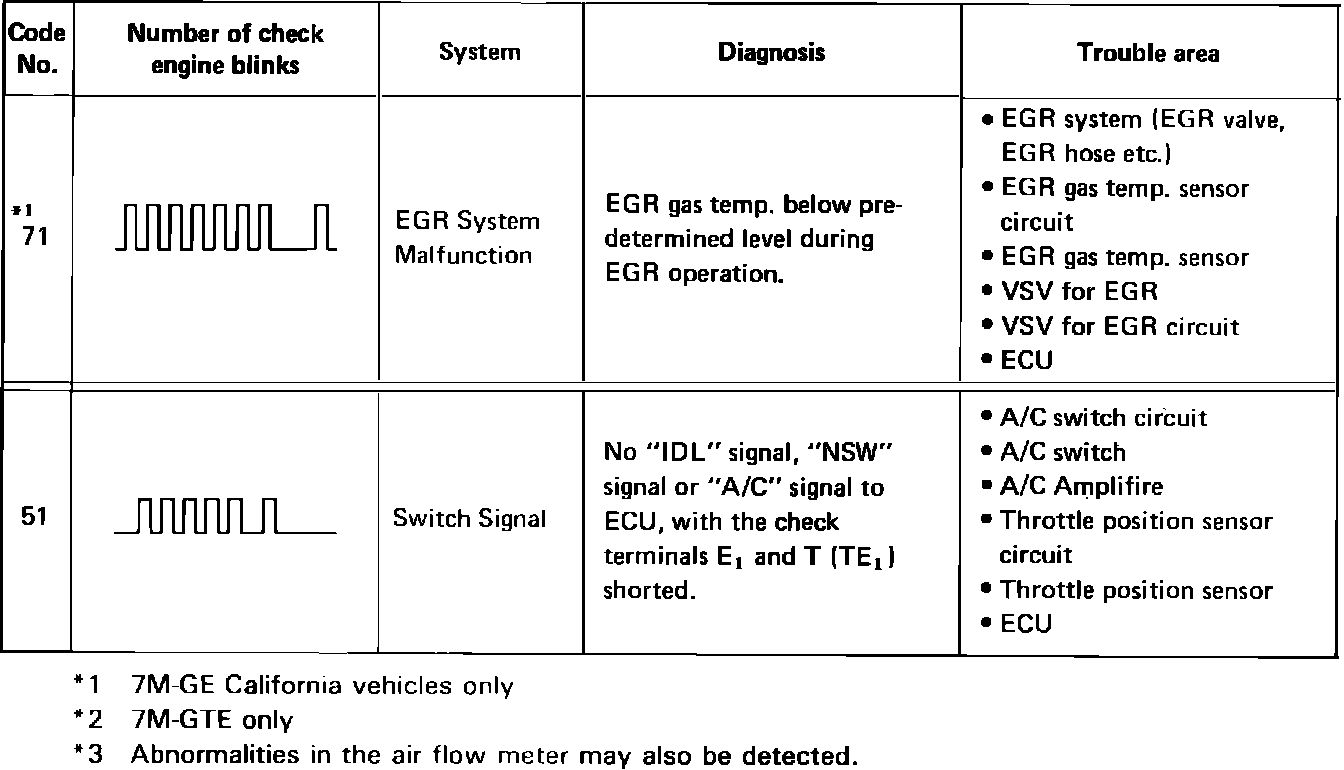

Fig. 121c Diagnosis Indication.:
