Home >> Toyota >> 1988 >> Corolla Wagon L4-1587cc 1.6L DOHC (4A-F) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Test Charts (For Trouble Code Diagnosis) >> Chart 8

Chart 8

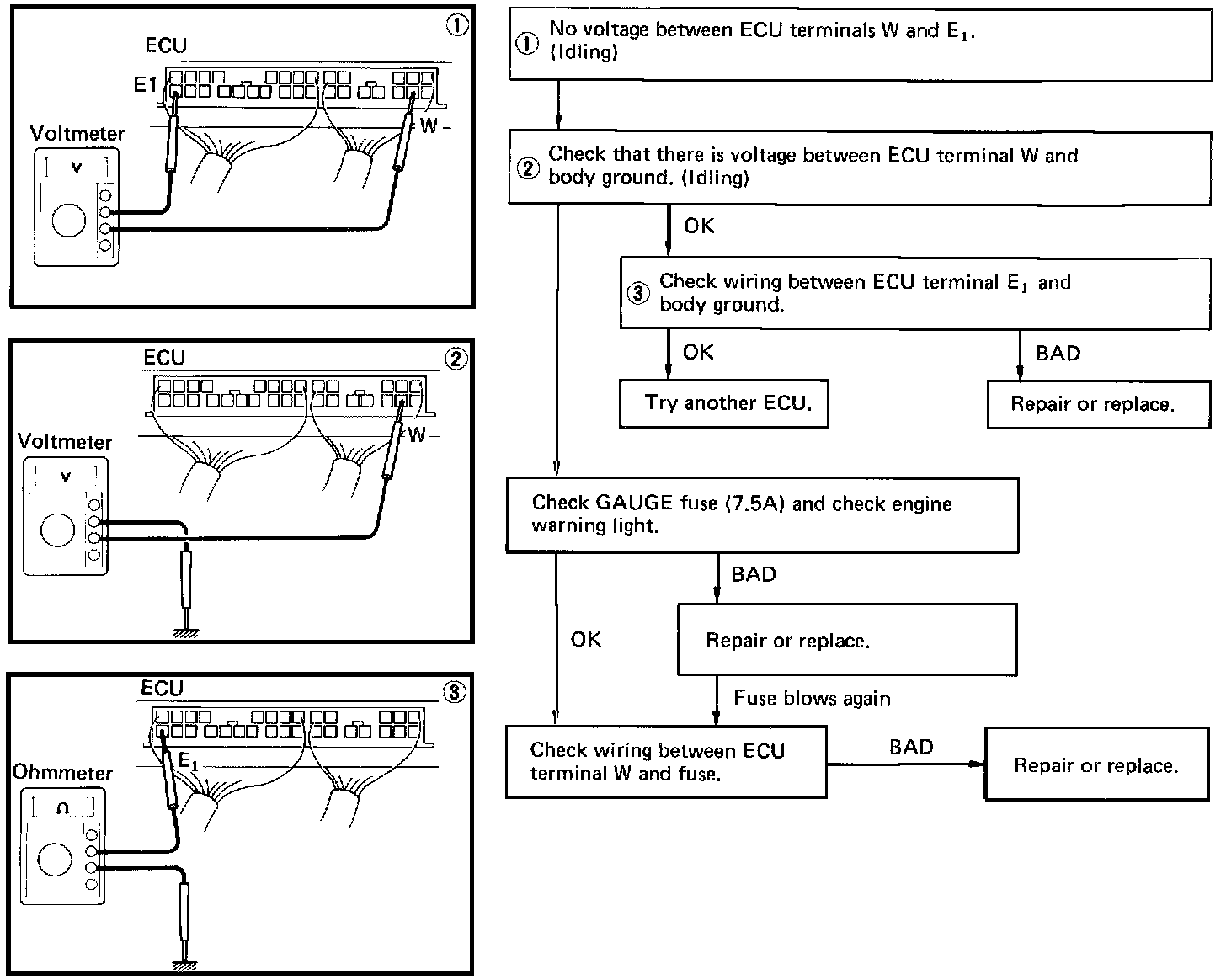

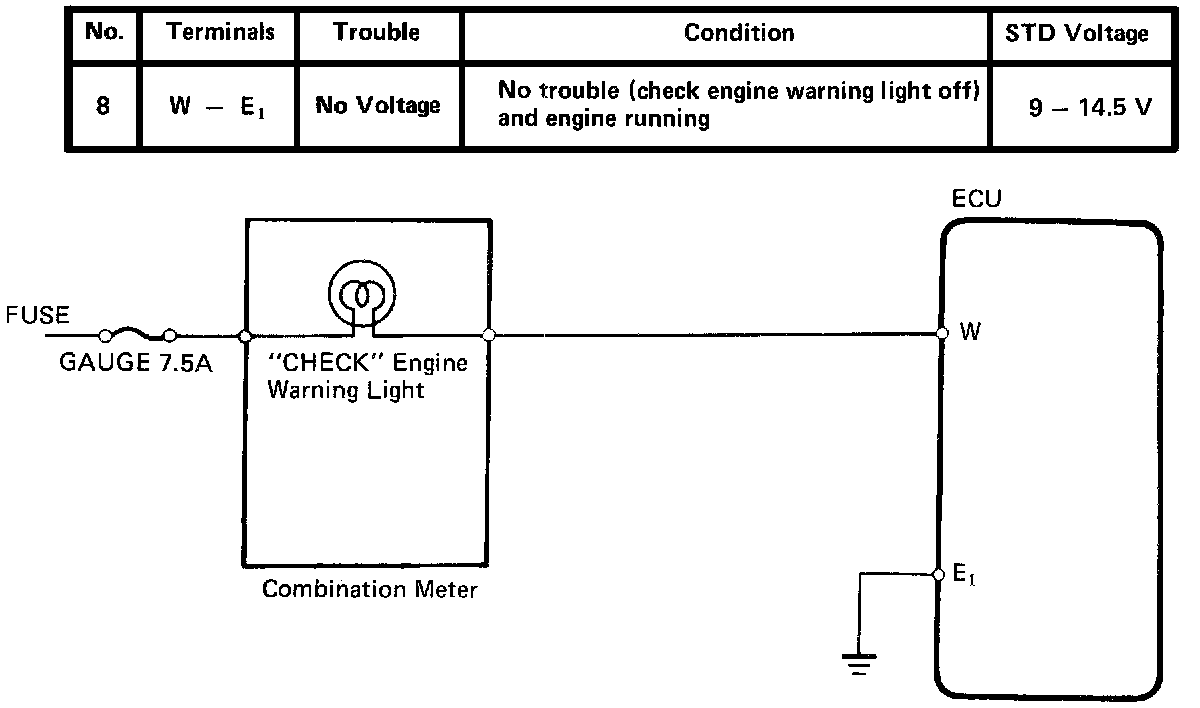

Test No. 8 - California Only




PART 1 OF 2




PART 2 OF 2
