Differential: Service and Repair
Differential:

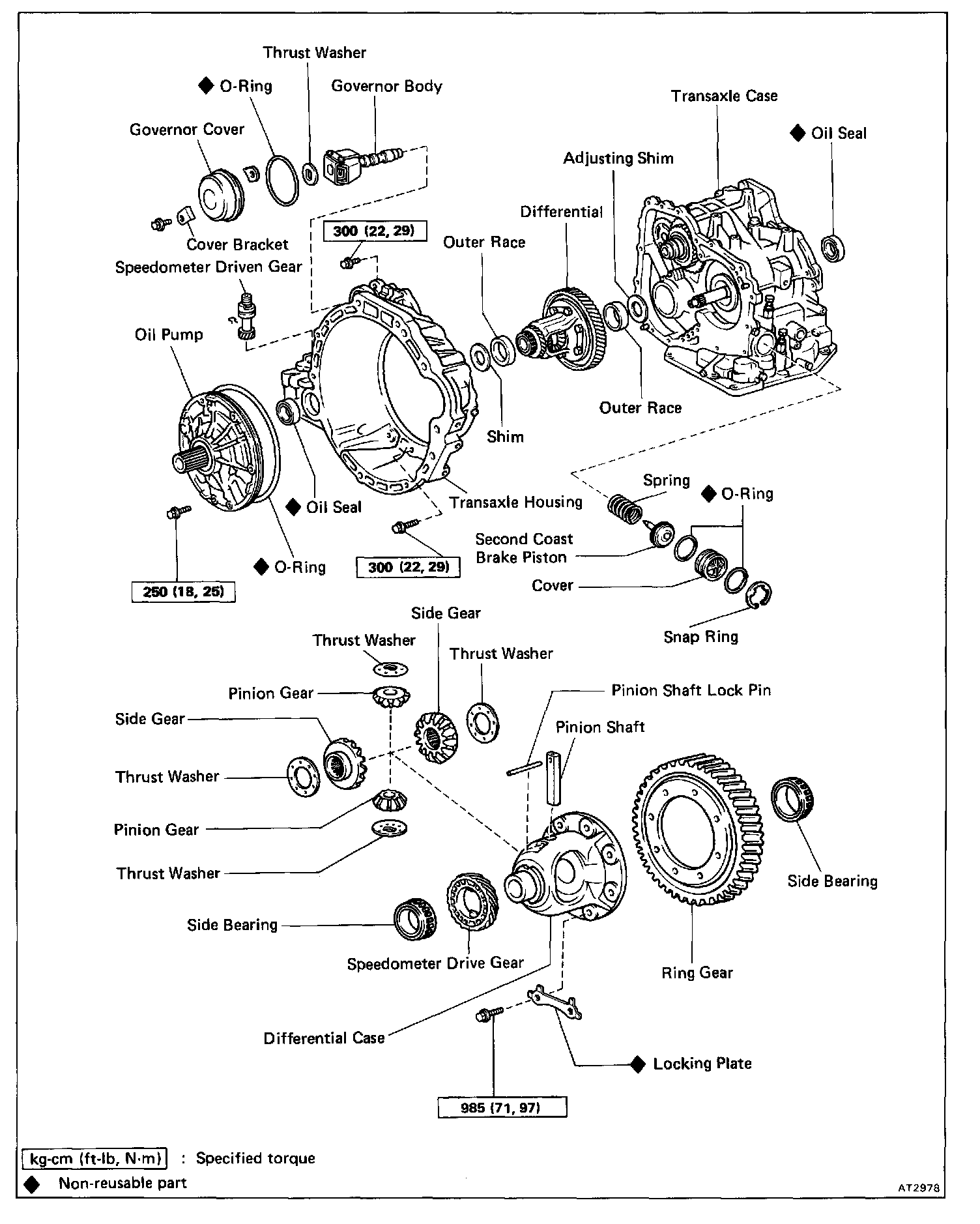

COMPONENTS
REMOVAL OF DIFFERENTIAL

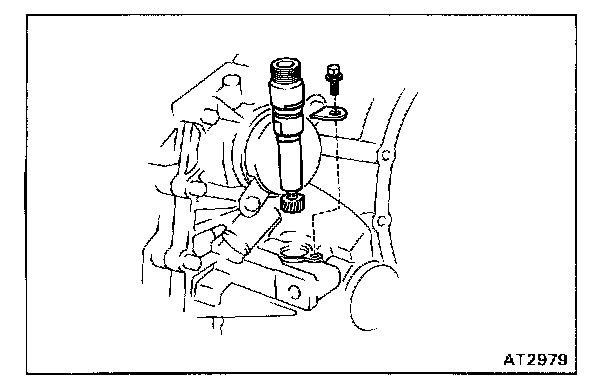

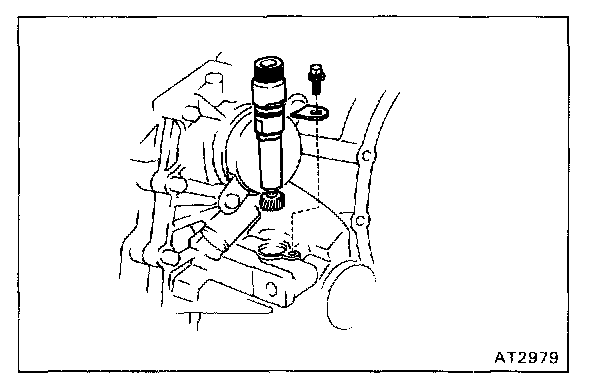

1. REMOVE SPEEDOMETER DRIVEN GEAR
2. REMOVE GOVERNOR BODY
a. Remove the two bolts and cover brackets.

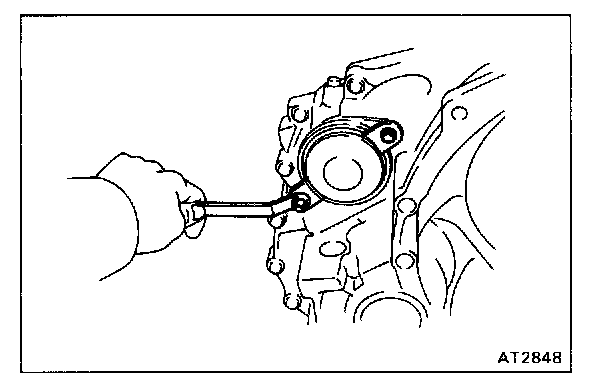

b. Using a screwdriver, remove the governor cover.
NOTE: Tape the screwdriver tip before use not to damage the cover or transaxle case.
c. Remove the O-ring from the cover.

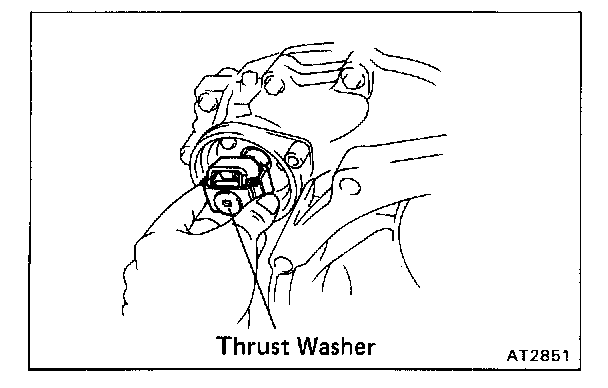

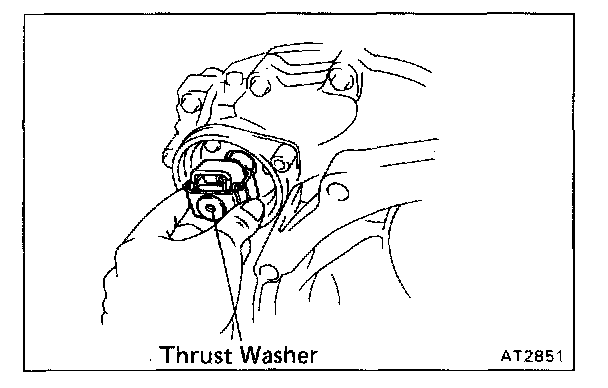

d. Remove the governor body with thrust washer.
3. REMOVE SECOND COAST BRAKE

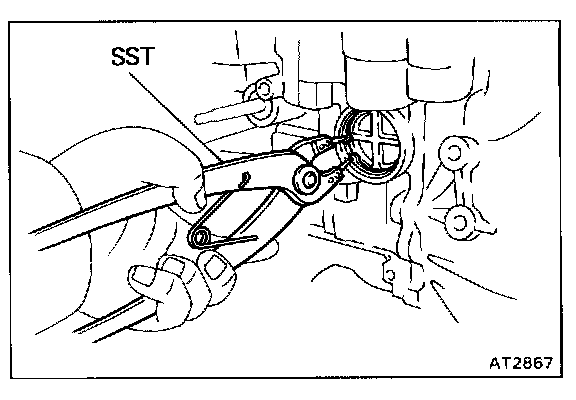

a. Using SST, remove the snap ring.
SST 09350-32013 (09351-32050)

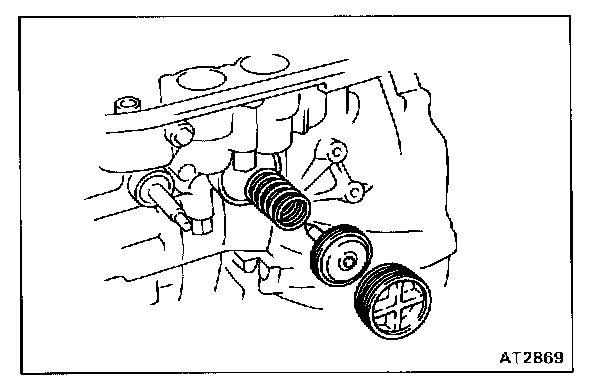

b. Remove the cover, piston and spring.
c. Remove the two O-rings from the cover.
4. REMOVE OIL PUMP

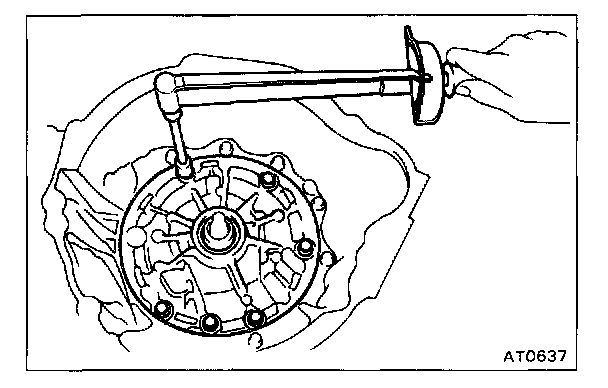

a. Remove the six bolts.

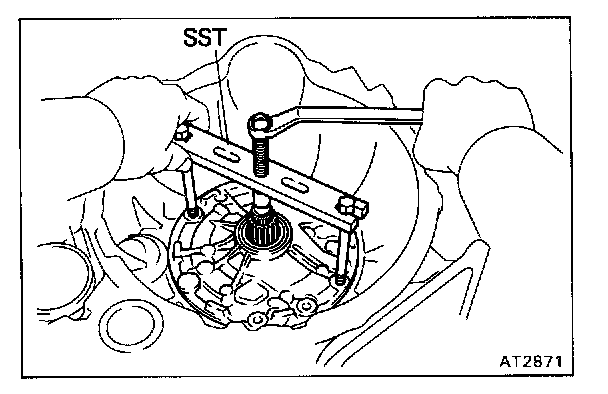

b. Using SST, remove the oil pump.
SST 09350-32013 (09351-32061)
c. Remove SST.
d. Remove the race from the oil pump.
e. Remove the O-ring from the oil pump.
5. REMOVE TRANSAXLE HOUSING

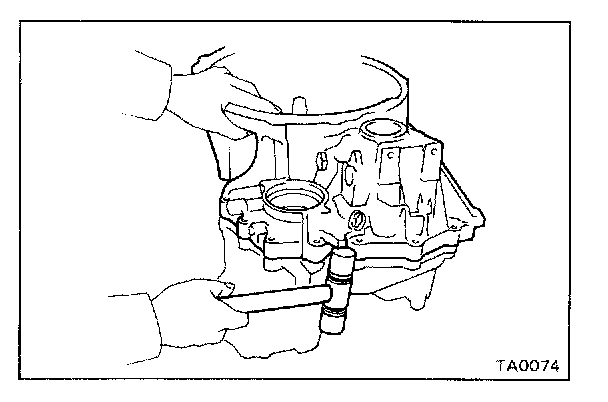

Remove the eighteen bolts and transaxle housing.

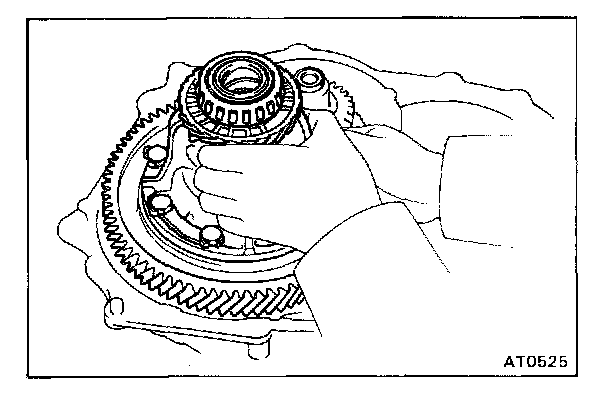

6. REMOVE DIFFERENTIAL
DISASSEMBLY OF DIFFERENTIAL
1. REMOVE RING GEAR
a. Place the matchmarks on the ring gear and differential case.

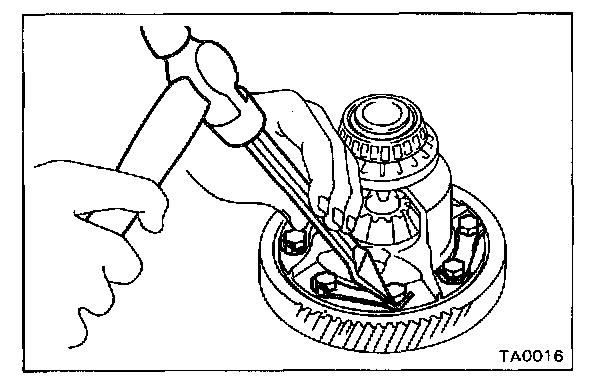

b. Loosen the staked part of the locking plate.
c. Remove the eight bolts and four locking plates.

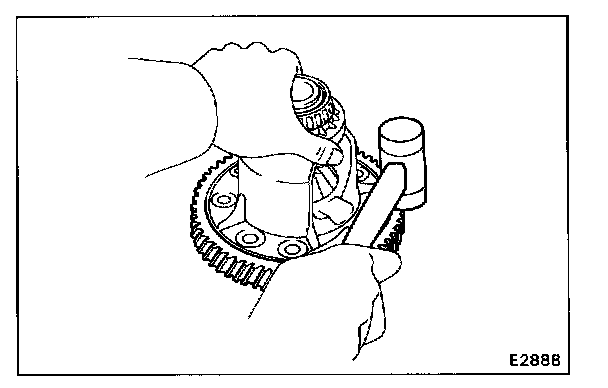

d. Using a plastic hammer, tap on the ring gear to remove it from the case.
2. REMOVE SIDE BEARINGS FROM DIFFERENTIAL CASE

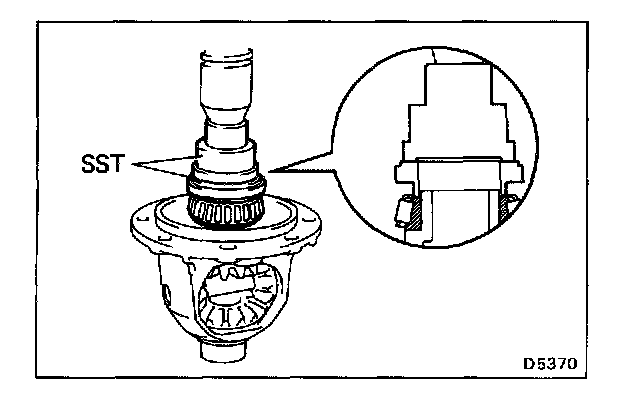

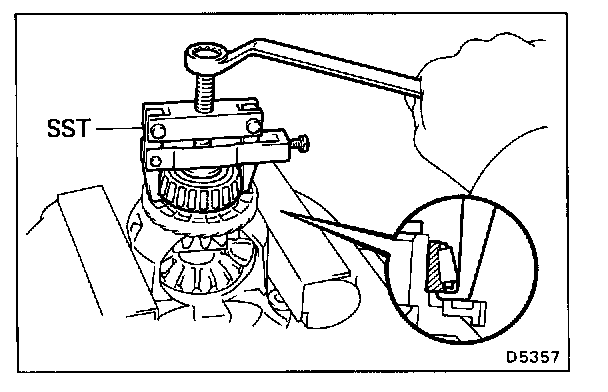

a. Setting SST to the cut-out portion on the speedometer drive gear, remove the bearing from the differential case.
SST 09502-10012
b. Remove the speedometer drive gear.

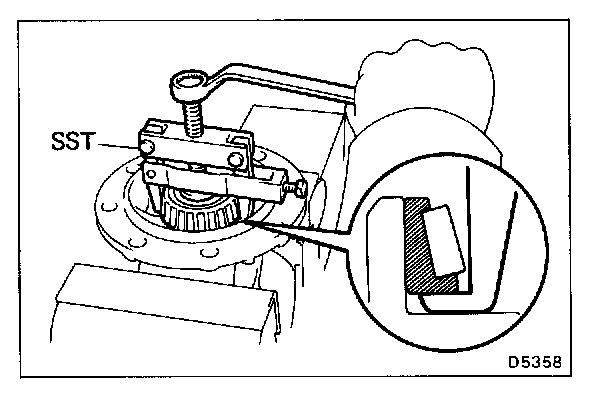

c. Setting SST to the cut-out portion on the differential case, remove the bearing.
SST 09502-10012
3. DISASSEMBLE DIFFERENTIAL CASE

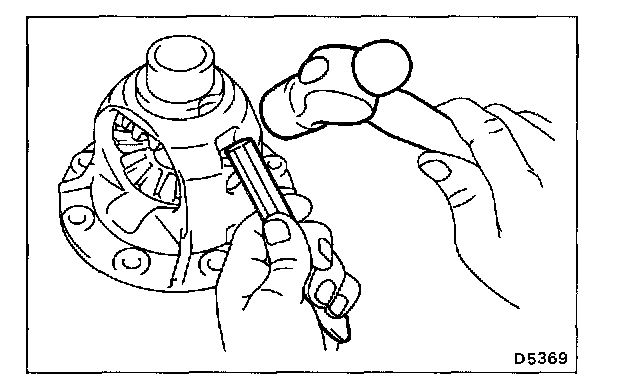

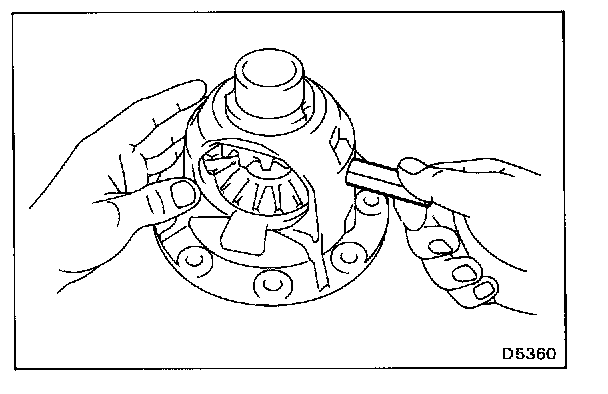

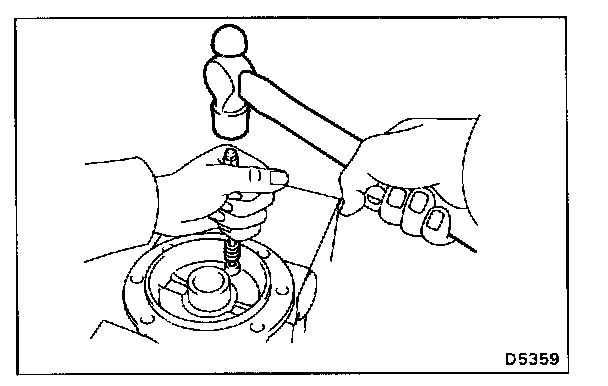

a. Drive out the pinion shaft lock pin from the ring gear side.
b. Remove the pinion shaft from the case.
c. Remove the two pinions, two side gears and four thrust washers.
4. REMOVE OIL SEAL OF TRANSAXLE HOUSING
Using a screwdriver and a hammer, remove the oil seal.
5. REMOVE SIDE BEARING OUTER RACE OF TRANSAXLE HOUSING
Using SST and a hammer, drive out the outer race and shim.
SST 09350-32013 (09351-32090)
6. REMOVE OIL SEAL OF TRANSAXLE CASE

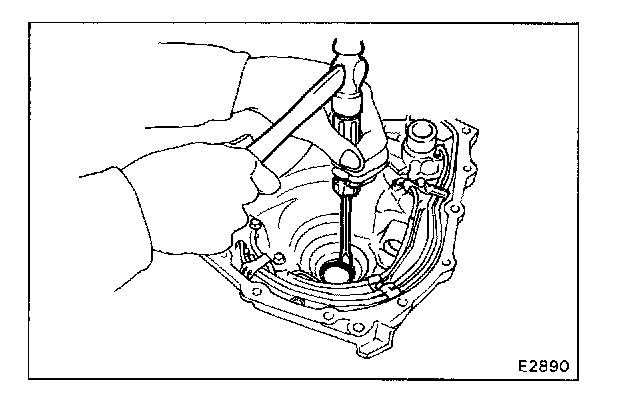

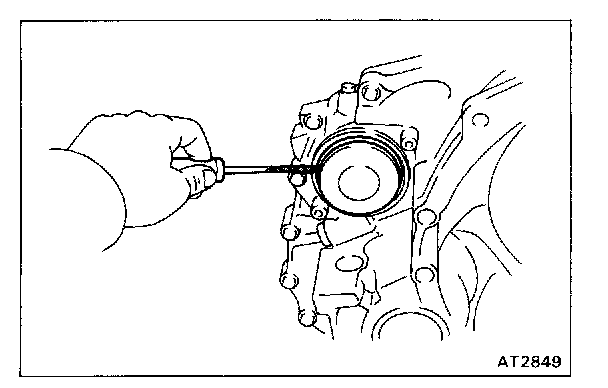

Using a screwdriver, remove the oil seal.
7. REMOVE SIDE BEARING OUTER RACE OF TRANSAXLE CASE
Using SST and a hammer, drive out the outer race and adjusting shim.
SST 09350-32013 (09351-32130, 09351-32150)
ASSEMBLY OF DIFFERENTIAL
1. IN STALL SIDE BEARING OUTER RACE OF TRANSAXLE HOUSING
a. Place the shim onto the transaxle housing.

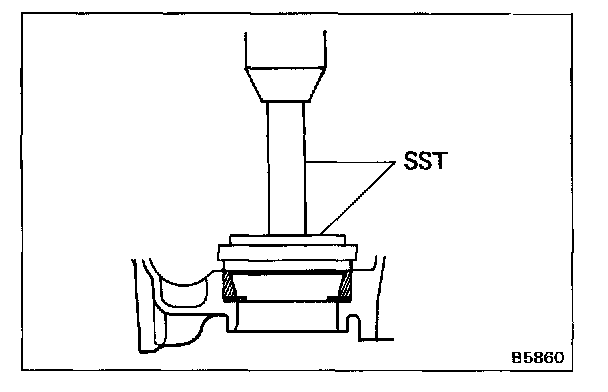

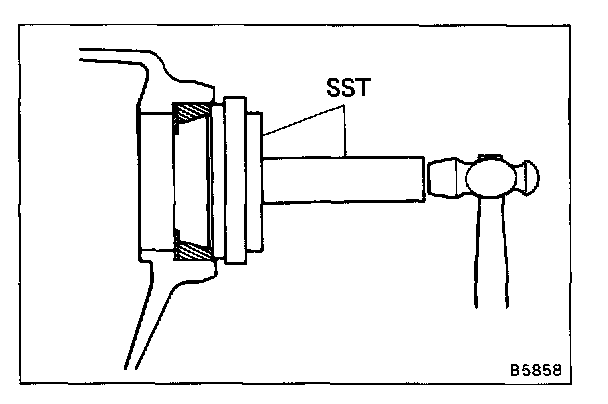

b. Using SST and press, press a new outer race into the transaxle housing.
SST 09350-32013 (09351-32111, 09351-32130)
2. INSTALL SIDE BEARING OUTER RACE OF TRANSAXLE CASE
a. Place the adjusting shim onto the transaxle case.

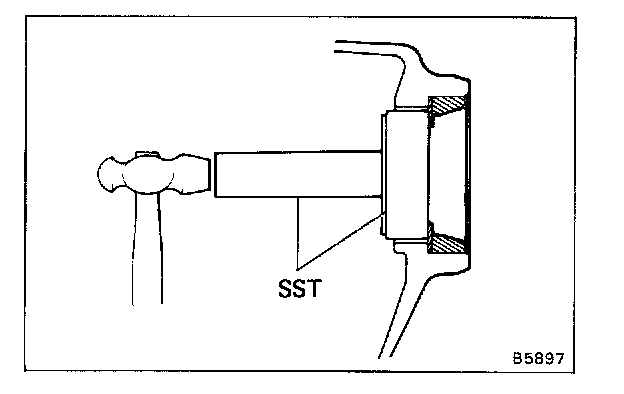

b. Using SST and a hammer, drive in a new outer race into the transaxle case.
SST 09350-32013 (09351-32111, 09351-32130)

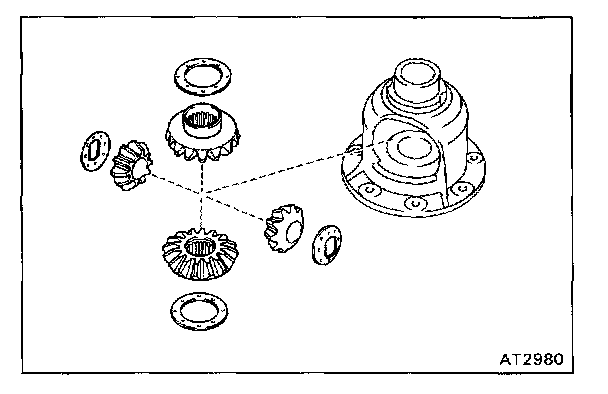

3. ASSEMBLE DIFFERENTIAL CASE
a. Install the thrust washers to the side gears.
b. Install the side gears with thrust washers, pinion gears and pinion thrust washers into the differential case.
c. Install the pinion shaft so as to align the lock pin holes on the pinion shaft and differential case.
4. CHECK SIDE GEAR BACKLASH

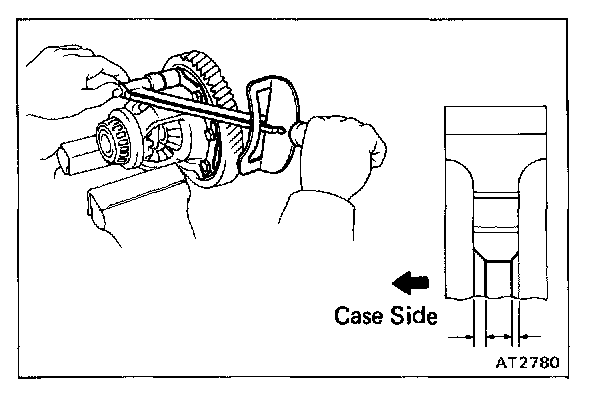

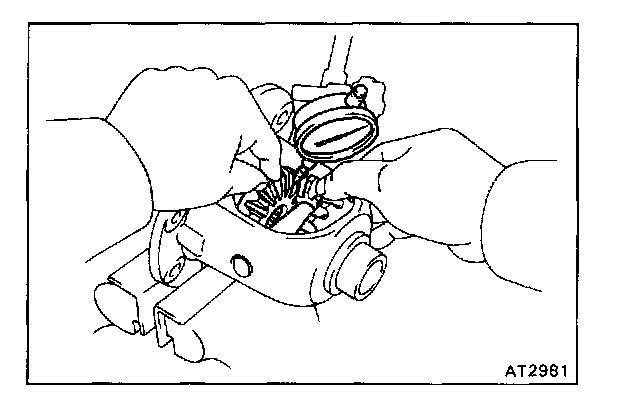

a. Measure the side gear backlash while holding one pinion gear toward the case.
Standard backlash: 0.05 - 0.20 mm (0.0020 - 0.0079 in.)
If the backlash is out of specification, install the correct thrust washer to the side gear.

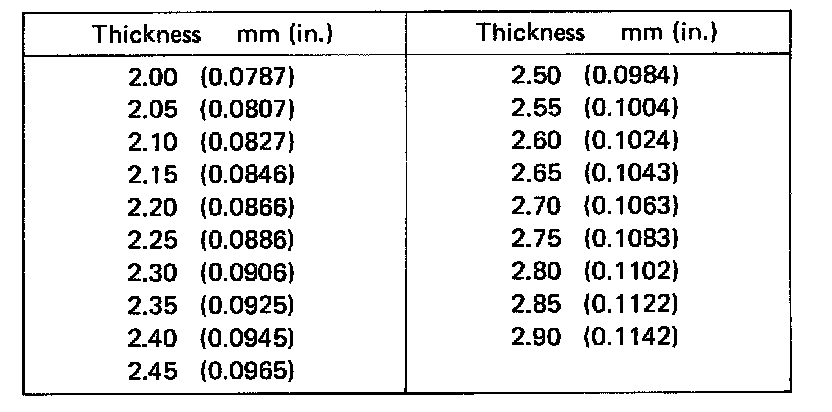

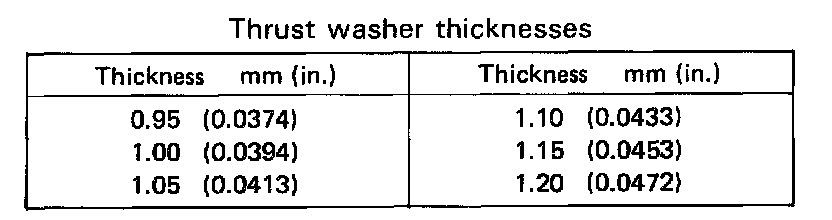

b. Referring to the table, select thrust washers which will ensure that the backlash is within specification. Try to select washers of the same size of both sides.
If the backlash is not within specification, install a thrust washer of a different thickness.

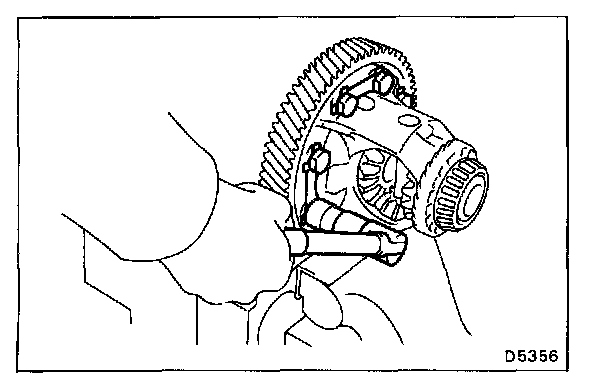

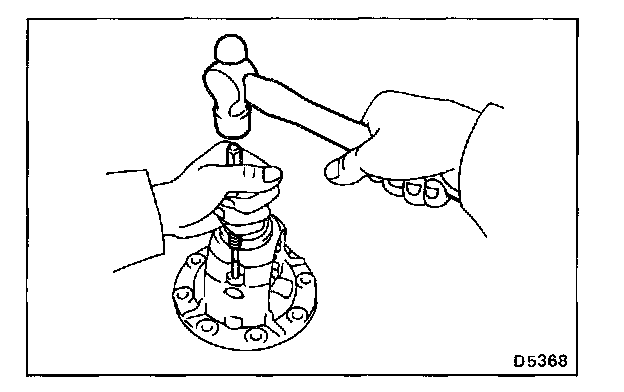

5. INSTALL LOCK PIN
a. Using a hammer and punch, drive the lock pin through the case and hole in the pinion shaft.
b. Stake the differential case.
6. INSTALL SIDE BEARINGS TO DIFFERENTIAL CASE

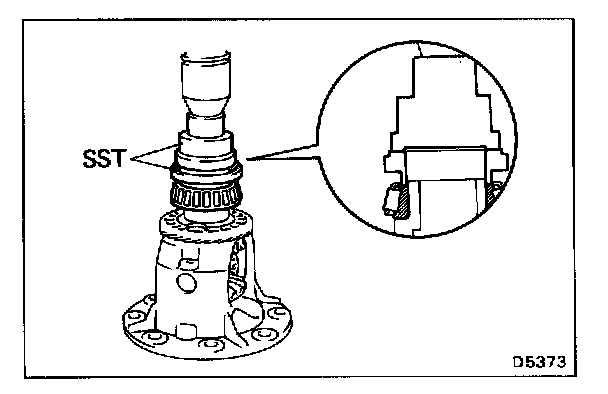

a. Using SST and press, press the side bearing into the differential case.
SST 09350-32013 (09351-32090, 09351-32120)
b. Install the speedometer drive gear to the differential case.
c. Using SST and press, press the side bearing into the differential case.
SST 09350-32013 (09351-32090, 09351-32120)
7. ADJUST SIDE BEARING PRELOAD
a. Remove any packing material and be careful not to get oil on the contacting surfaces of the transaxle housing or transmission case.
b. Install the differential to the transaxle case.
c. Install the transaxle housing to the transaxle case.
d. Install and tighten the bolts.
Torque: 300 kg.cm (22 ft.lb, 29 N.m)

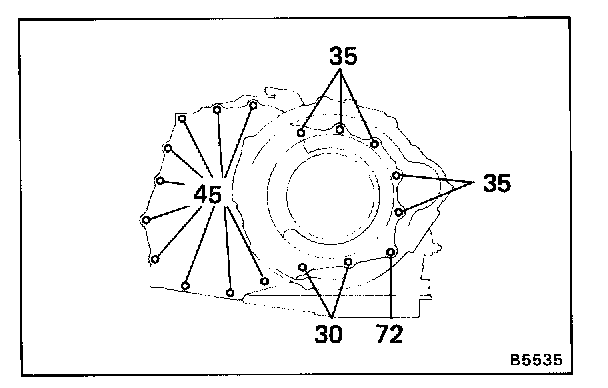

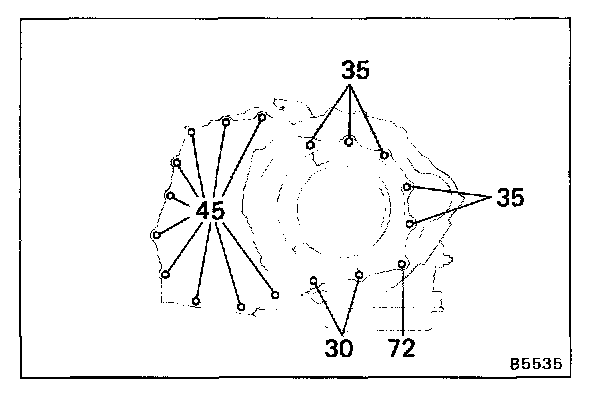

NOTE: Each bolt length (mm) is indicated in the illustration.
e. Using SST, rotate the differential in both directions to snug the bearing down.
SST 09564-32011
f. Using SST and a torque meter, measure the preload of the side bearing.
SST 09564-32011
Preload (at starting)
New bearing 8 - 14 kg.cm (6.9 - 12.2in.lb,0.8 - 1.4N.m)
Used bearing 4 - 7 kg.cm (3.5 - 6.1 in.lb, 0.4 - 0.7 N.m)
If the preload is not within specification, remove the differential from the transaxle case. Reselect the transaxle case side adjusting shim.
NOTE: The preload will change about 3 - 4 kg.cm (2.6 - 3.5 in.lb, 0.3 - 0.4 N.m) with each shim thickness.
g. Remove the bolts and transaxle housing.
h. Remove the differential from the transaxle case.
8. INSTALL RING GEAR TO DIFFERENTIAL
a. Clean the contact surface of the differential case.

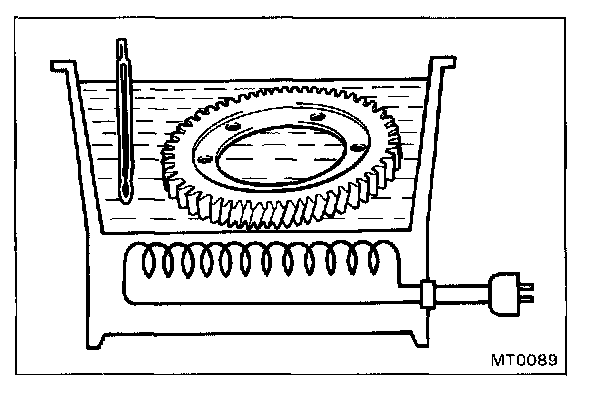

b. Heat the ring gear to about 100 °C (212 °F) in an oil bath.
CAUTION: Do not heat the ring gear above 110 °C (230 °F).
c. Clean the contact surface of the ring gear with cleaning solvent.
d. Quickly install the ring gear on the differential case.
e. Install new locking plates and set bolts.
NOTE: Tighten the set bolts uniformly and a little at a time. Torque the bolts.
Torque: 985 kg.cm (71 ft.lb, 97 N.m)

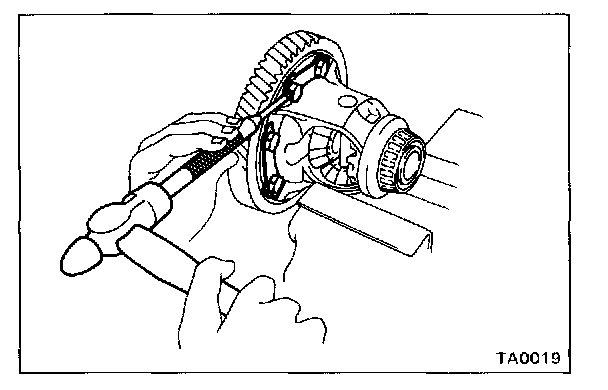

f. Using a hammer and drift punch, stake the locking plates.
NOTE: Stake one claw flush with the flat surface of the nut. For the claw contacting the protruding portion of the nut, stake only the half on the tightened side.
INSTALLATION OF DIFFERENTIAL

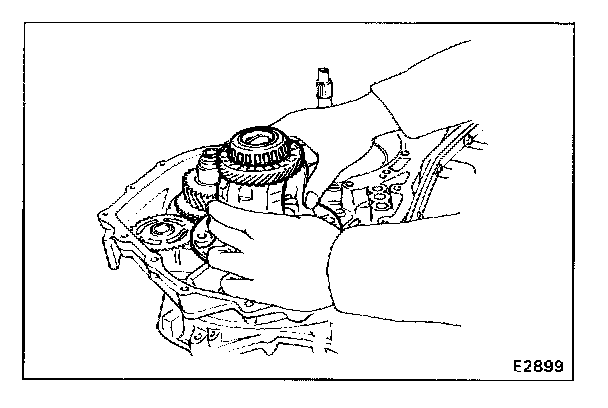

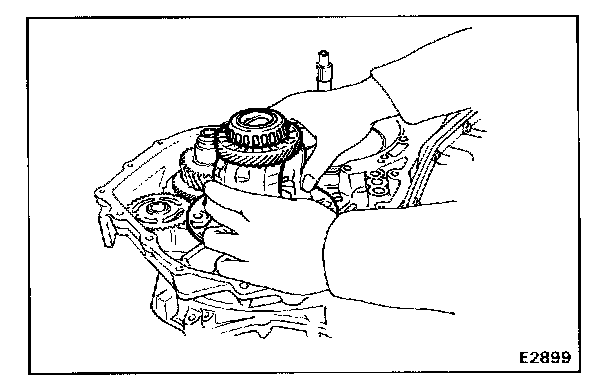

1. INSTALL DIFFERENTIAL
Install the differential onto the transaxle case.
2. INSTALL TRANSAXLE HOUSING
a. Remove any packing material and be careful not to get oil on the contacting surfaces of the transaxle housing or transmission case.

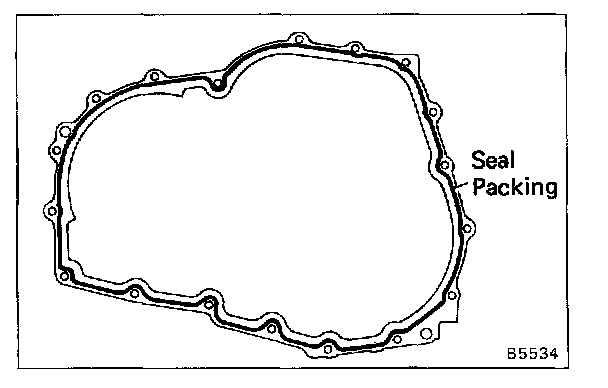

b. Apply seal packing to the transaxle housing as shown.
Seal packing: Part No. 08833-00090. THREE BOND 1131, LOCTITE 518 or equivalent
c. Install the transaxle housing to the transaxle case.
d. Install and tighten the bolts.
Torque: 300 kg.cm (22 ft.lb, 29 N.m)
NOTE: Each bolt length (mm) is indicated in the illustration.
3. INSTALL OIL PUMP

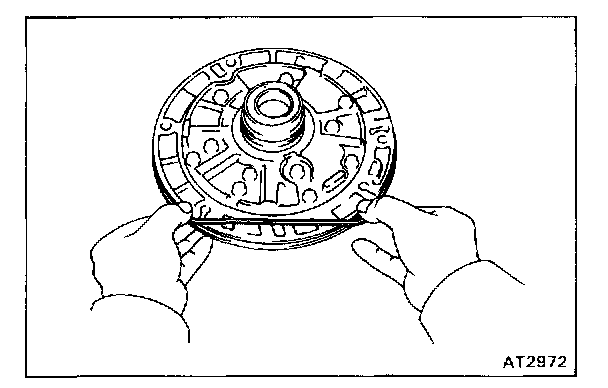

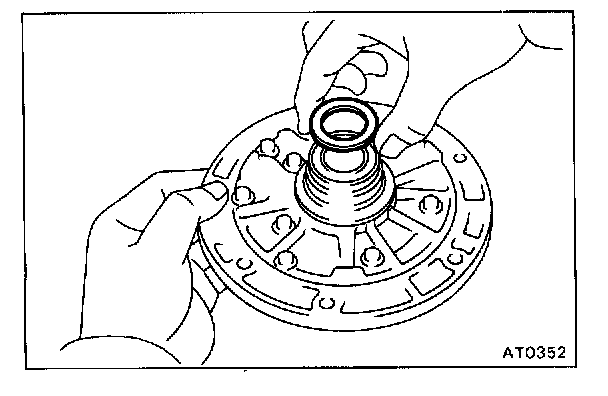

a. Install a new O-ring to the oil pump.

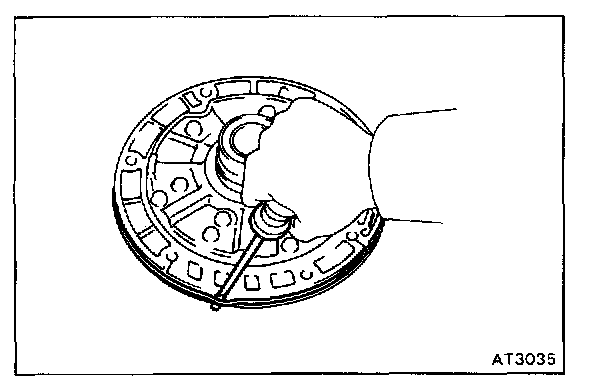

NOTE: Coat the O-ring with ATF.
b. Coat the race with petroleum jelly and install it onto the stator shaft.

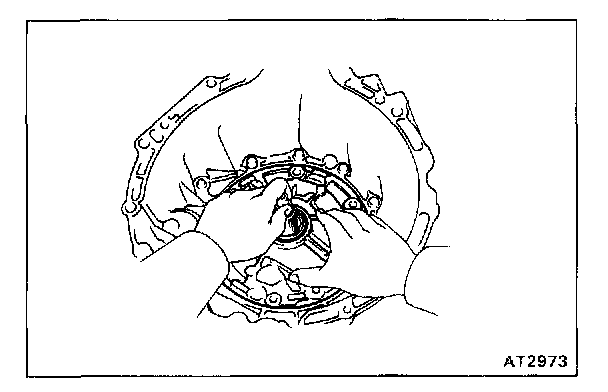

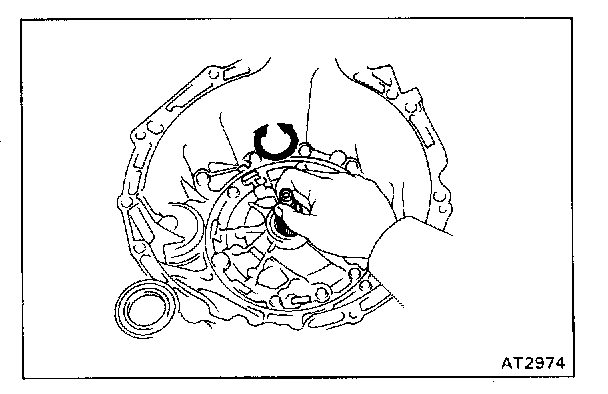

c. Place the oil pump through the input shaft, and align the bolt holes of the pump body with the transmission case.
d. Hold the input shaft, and lightly press the oil pump body to slide the oil seal rings on the stator shaft through the direct clutch drum.
CAUTION: Do not push on the oil pump strongly, or the oil seal ring will stick to the direct clutch drum.
e. Install and tighten the six bolts.
Torque: 250 kg.cm (18 ft.lb, 25 N.m)
f. Check that the input shaft rotates smoothly.

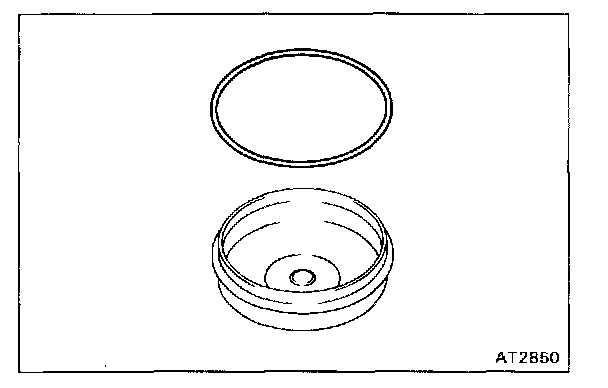

4. INSTALL SECOND COAST BRAKE

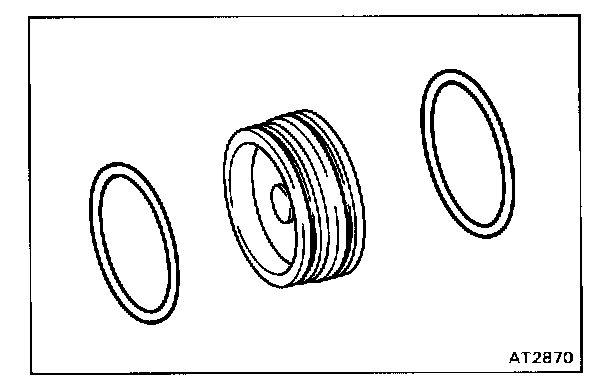

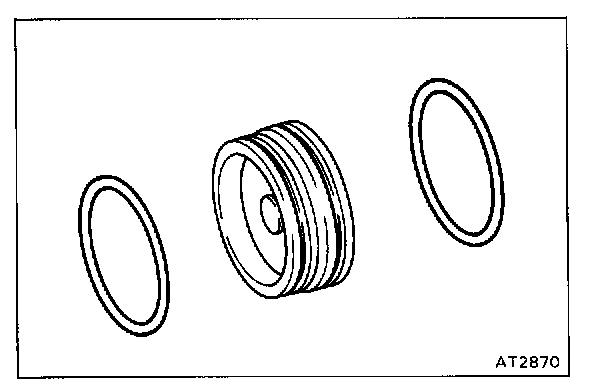

a. Install the two new O-rings to the cover.

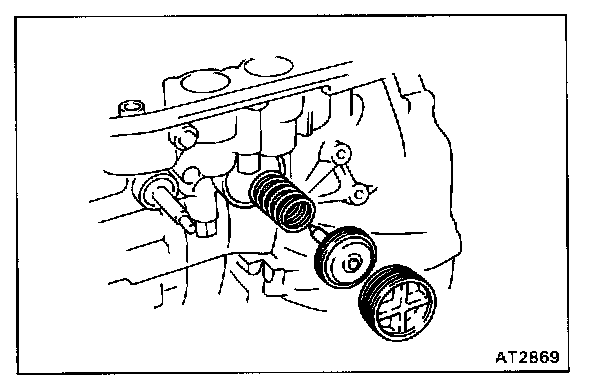

b. Install the spring, piston and cover.

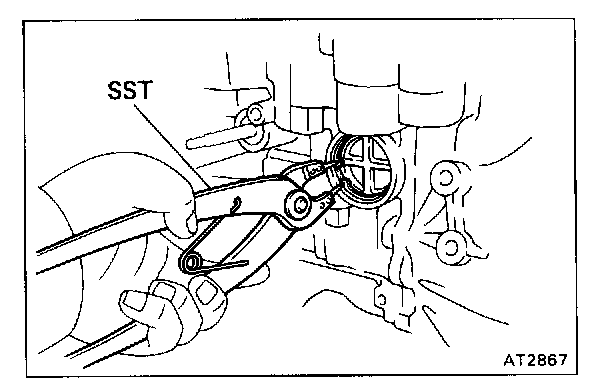

c. Using SST, install the snap ring while pressing the the cover.
SST 09350-32013 (09351-32050)

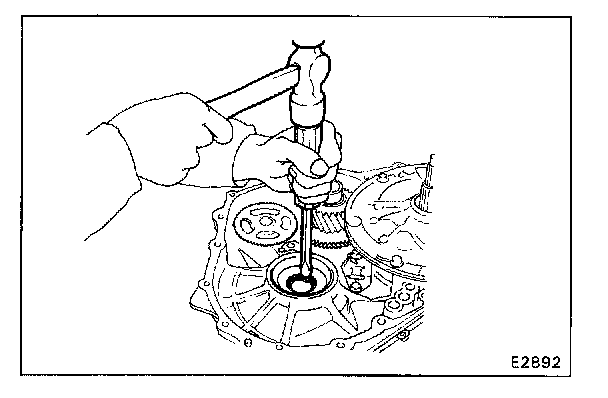

5. INSTALL OIL SEAL OF TRANSAXLE CASE

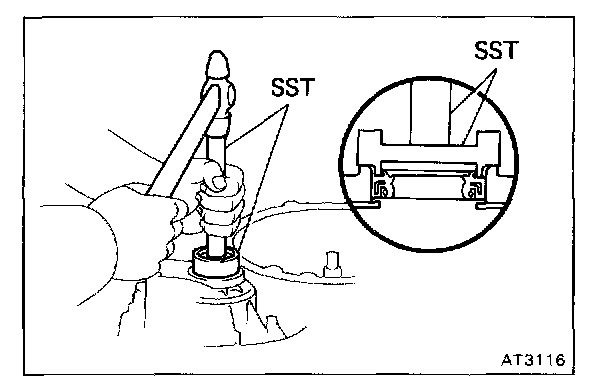

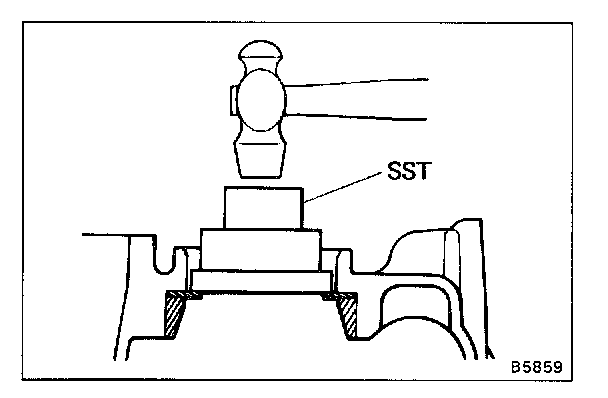

a. Using SST and a hammer, drive in a new oil seal.
SST 09350-32013 (09351-32130, 09351-32111)
b. Coat the lip of oil seal with MP grease.
6. INSTALL OIL SEAL OF TRANSAXLE HOUSING
a. Using SST and a hammer, drive in a new oil seal.
SST 09350-32013 (09351-32130, 09351-32150)
b. Coat the lip of oil seal with MP grease.
7. INSTALL GOVERNOR BODY
a. Install the governor body and thrust washer to the transaxle housing.
b. Install a new O-ring to the cover.
c. Install the cover to the transmission and then install the two cover brackets with the two bolts.
Torque: 130 kg.cm (9 ft.lb, 13 N.m)
8. INSTALL SPEEDOMETER DRIVEN GEAR
