A/T - Interchangeability
88toyota06REFERENCE: Transmission and Clutch
NUMBER 012
DATE 5-20-88
MODEL AE82 (Corolla FF)
TITLE A131# AUTOMATIC TRANSAXLE INTERCHANGEABILITY
This Service Bulletin has been prepared to assist you in identifying the three types (A, B, & C) of A131# automatic transaxle/cases used.
When transaxle assemblies/cases require replacement, you may receive "A" or "C" type (depending on current availability of parts).
EXAMPLE:

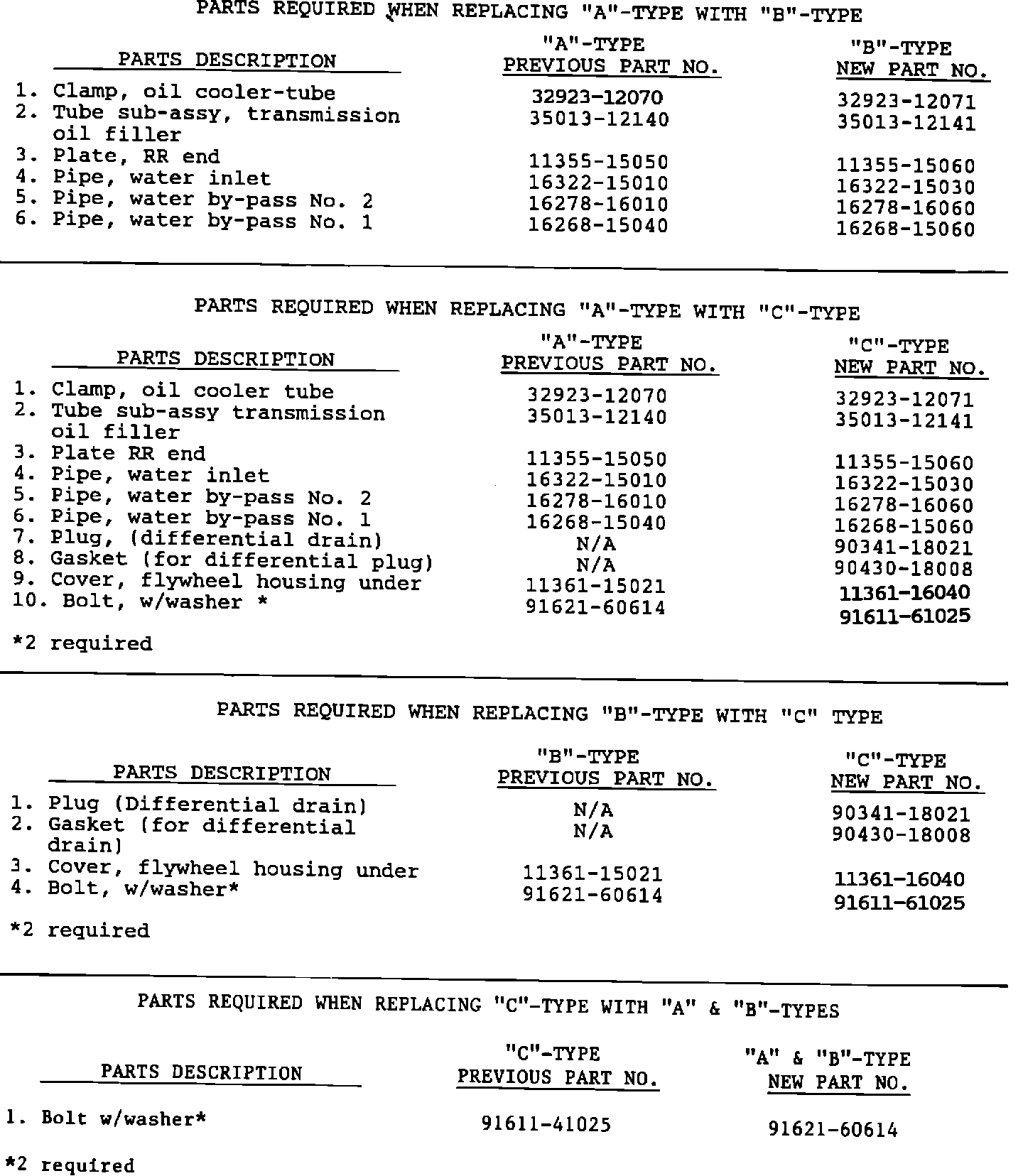

If you order "A" type and the stock has become depleted you will receive from the parts depot a parts supersession sheet. This sheet will contain the part numbers of the "C" type case and all required attaching hardware. A second order using the new part numbers will be required. (See application chart on page 3 for details)

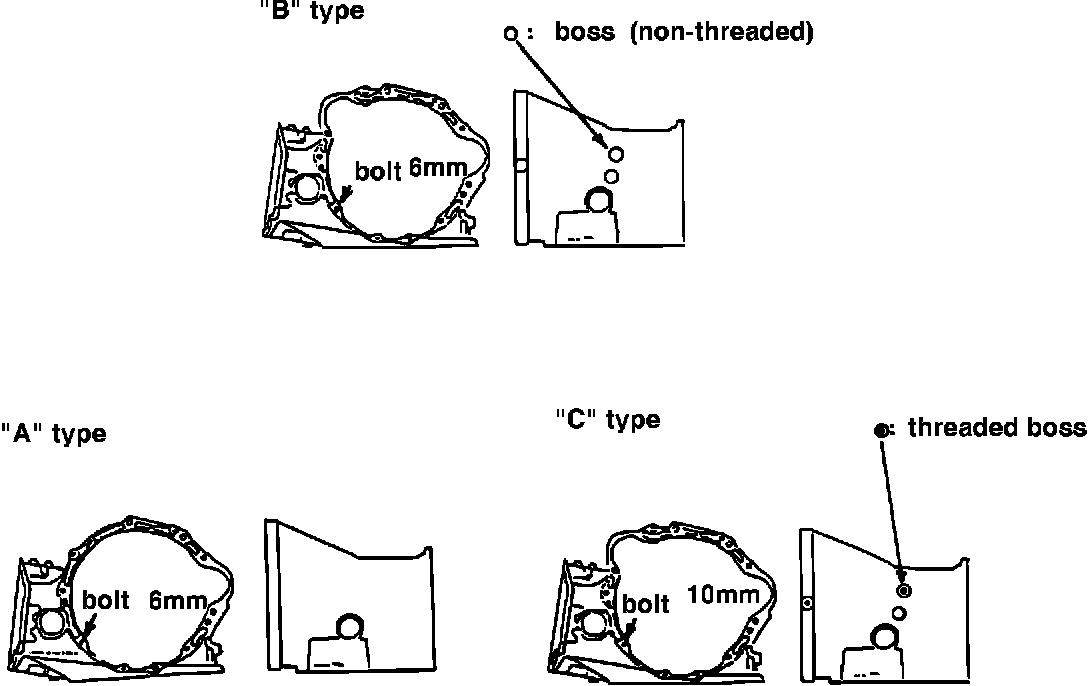

^ The different designs of the automatic transaxle cases used are classified as A, B, or C type.
^ The shape, production range, part number and interchangeability are as follows:
Trans type Production Dates VIN
"A" type 08/83 to 04/87 Beg. Prod. to JT2AE82*#H3528644
"B" type 03/87 to 04/87 (JT2AE82*#) H3507005 to H3528644
"C" type 04/87 to 08/87 (JT2AE82*#) H3516932 to H3548739

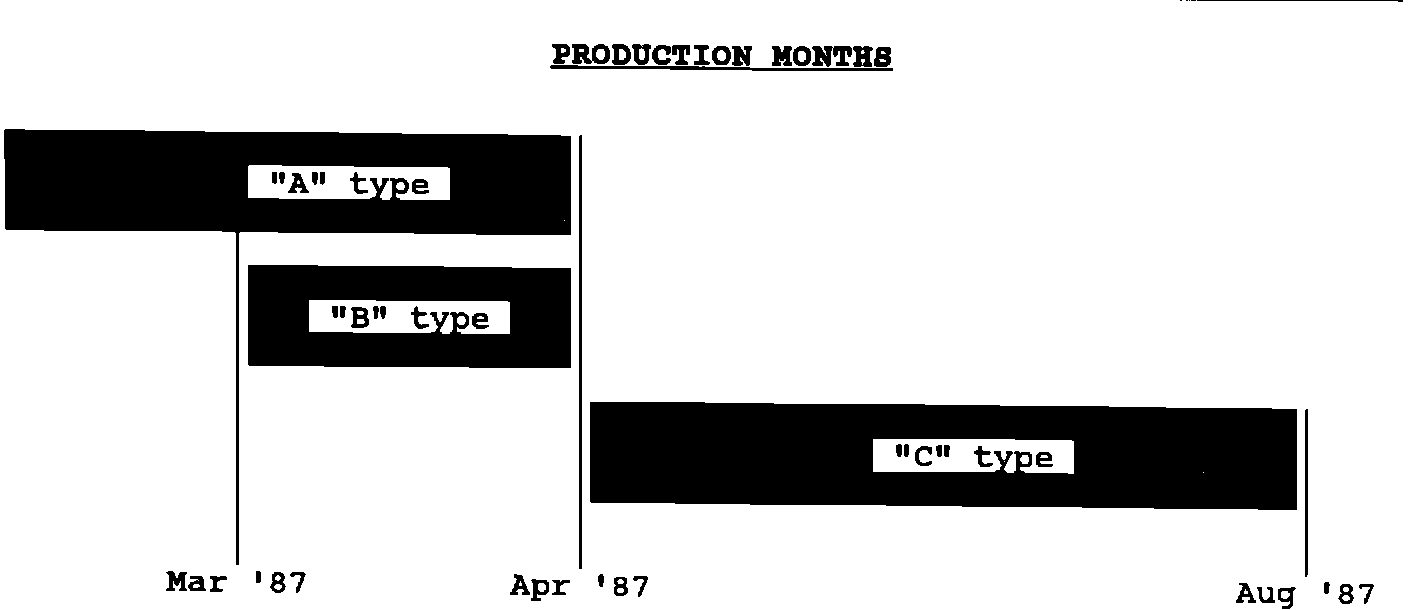

^ During the month of March there is the possibility of two types of transmission in the Corolla: "A" or "B" type.
^ During the month of April there is the possibility of three types of transmission in the Corolla: "A", "B", or "C" type.
^ Parts Number Information
Part Number Part Name
"A" type "B" type "C" type
30500-12031 --- 30500-12032 Transaxle Assy, A/T
35104-12063 *35104-12160 35104-12161 Case Sub-assy, A/T
*Not available for replacement parts
