Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
>>
TCCS Circuit Resistance Specs
TCCS Circuit Resistance Specs

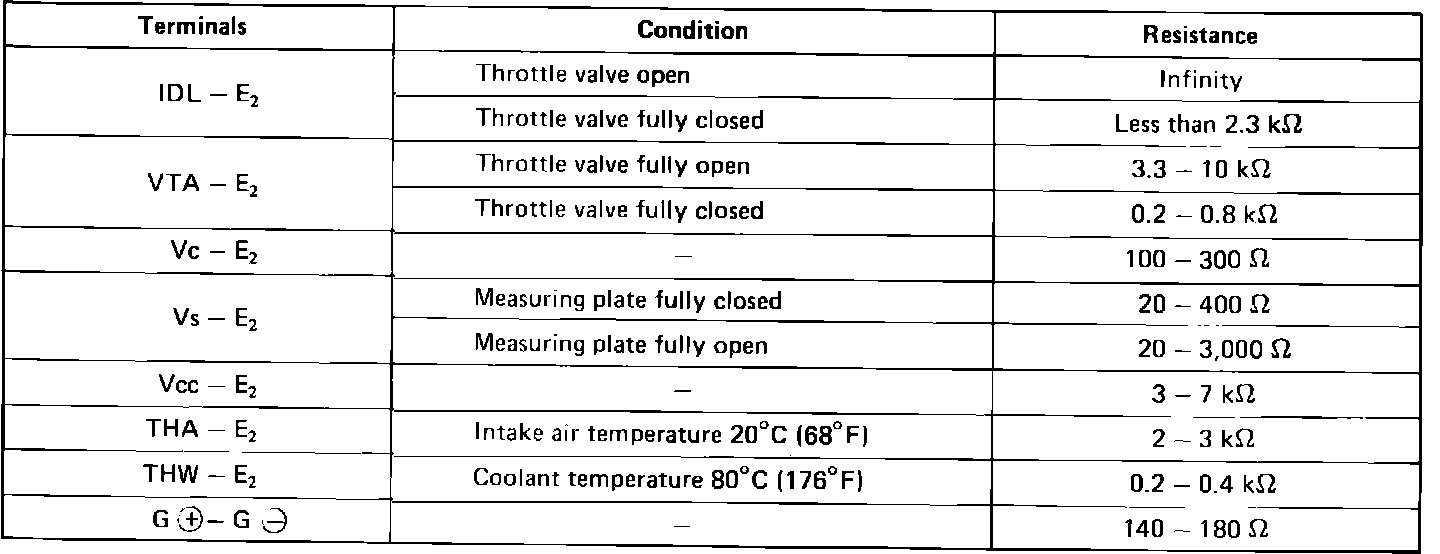

Fig. 233 Resistance Values at ECU Wiring.:
