Planetary Gears: Service and Repair

No.2 One-Way Clutch And Rear Planetary Gear:

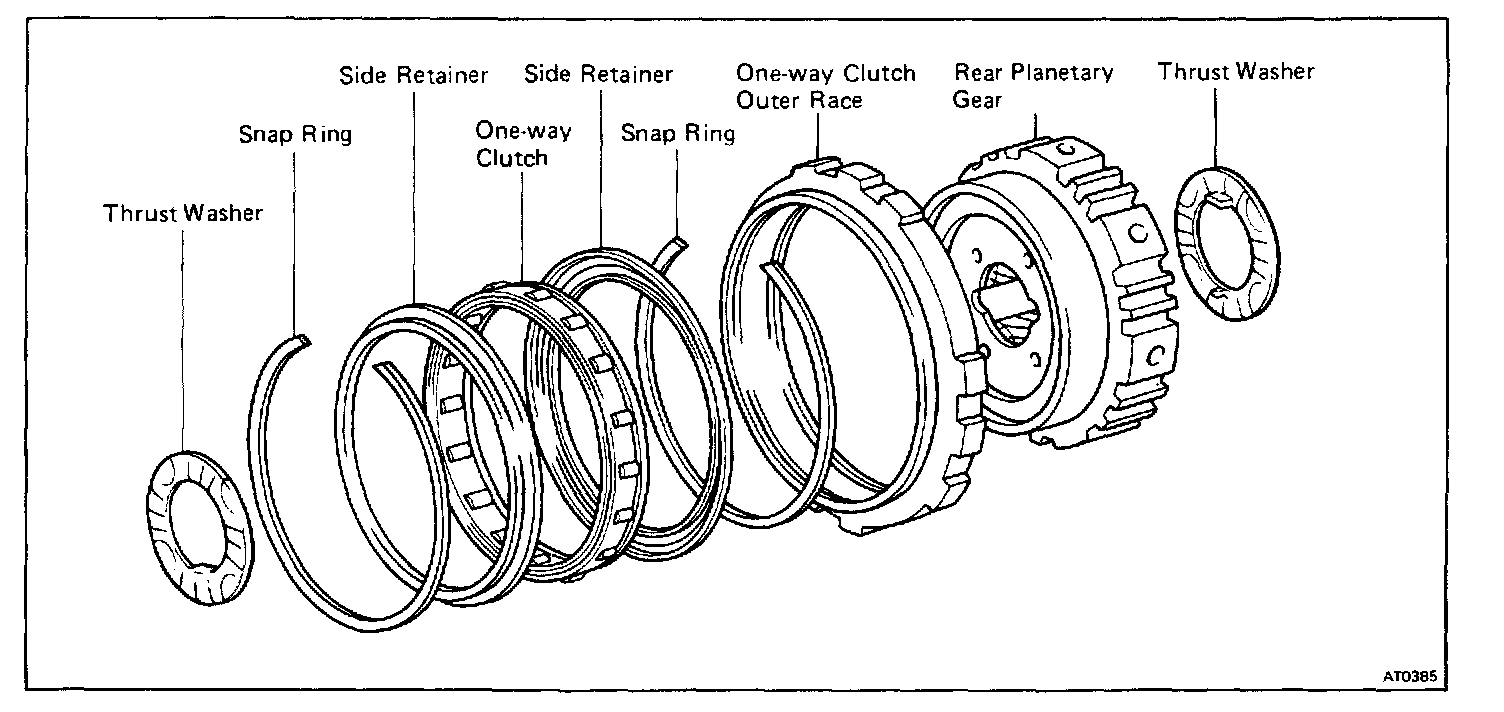

COMPONENTS

DISASSEMBLY OF ONE-WAY CLUTCH

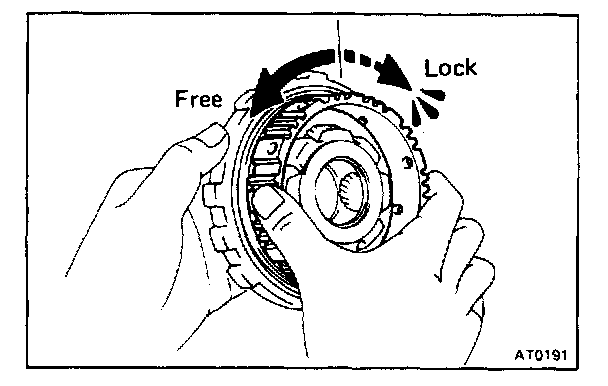

1. CHECK OPERATION OF ONE-WAY CLUTCH
Hold the outer race and turn the hub.
The hub should turn freely counterclockwise and should lock clockwise.

2. REMOVE NO.2 PLANETARY CARRIER THRUST WASHER FROM BOTH SIDES OF CARRIER
3. DISASSEMBLE ONE-WAY CLUTCH
Remove the hub and the planetary gear from the one-way clutch.

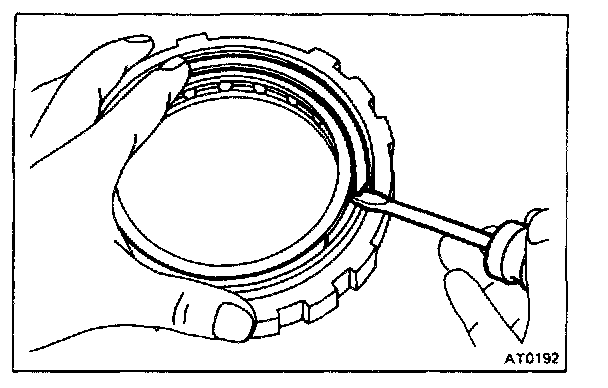

4. REMOVE SNAP RING ON BOTH SIDES AND TWO SIDE RETAINERS
5. REMOVE ONE-WAY CLUTCH FROM OUTER RACE

ASSEMBLY OF ONE-WAY CLUTCH

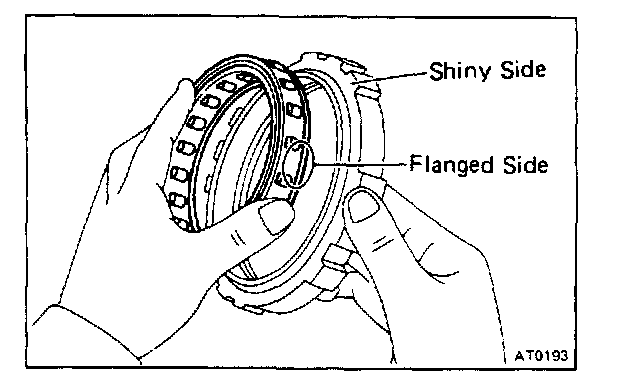

1. INSTALL ONE-WAY CLUTCH
Install the one-way clutch into the outer race, facing the flanged side of one-way clutch toward the shiny side of outer race.

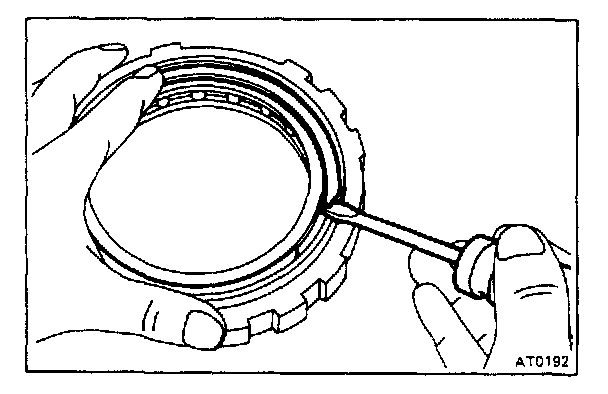

2. INSTALL BOTH RETAINERS AND TWO SNAP RINGS

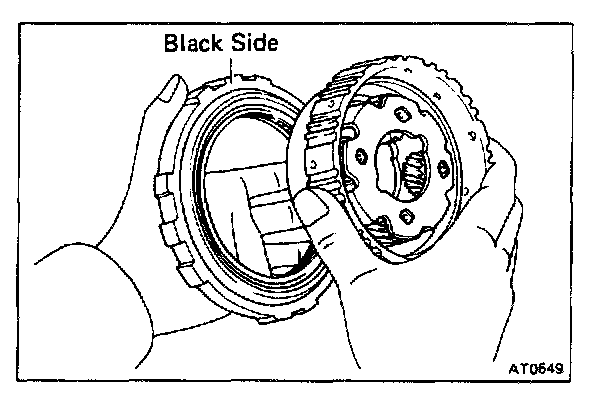

3. INSTALL REAR PLANETARY GEAR INTO ONE-WAY CLUTCH
Install the planetary gear into the one-way clutch, facing the inner race of planetary gear toward the black side of the one-way clutch Outer race.

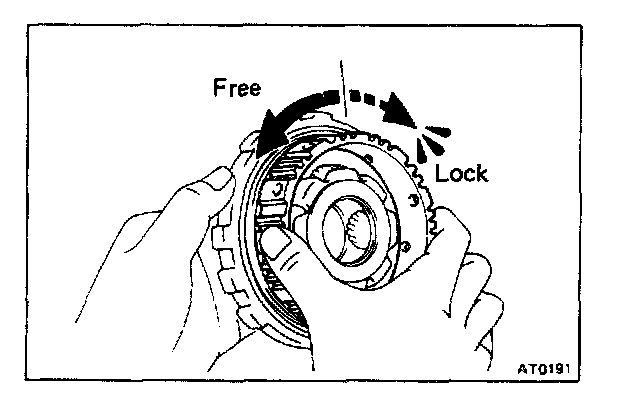

4. CHECK OPERATION OF ONE-WAY CLUTCH
5. INSTALL NO.2 PLANETARY CARRIER THRUST WASHERS ONTO BOTH SIDES OF CARRIER
a. Coat the thrust washers with petroleum jelly.
b. Align the tab of the washers with the hollow of the carrier.
