Intermediate Shaft: Service and Repair

Intermediate Shaft:

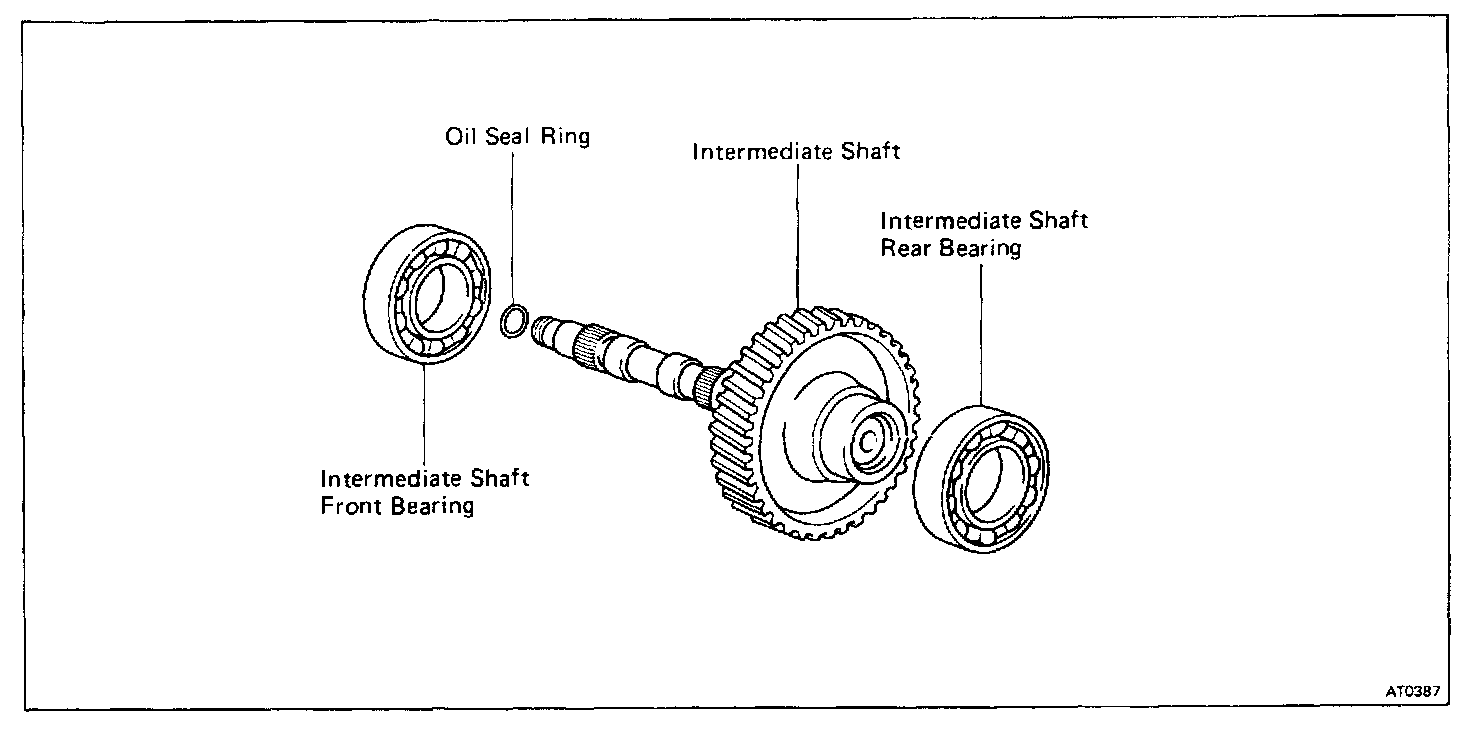

COMPONENTS

REPLACEMENT OF INTERMEDIATE SHAFT FRONT BEARING

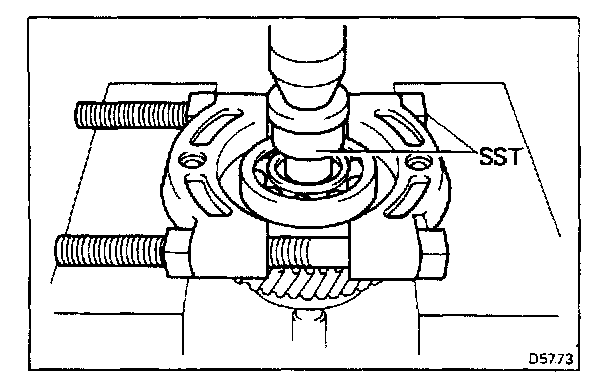

1. REMOVE INTERMEDIATE SHAFT FRONT BEARING Using SST, press out the bearing.

SST: 09950-00020

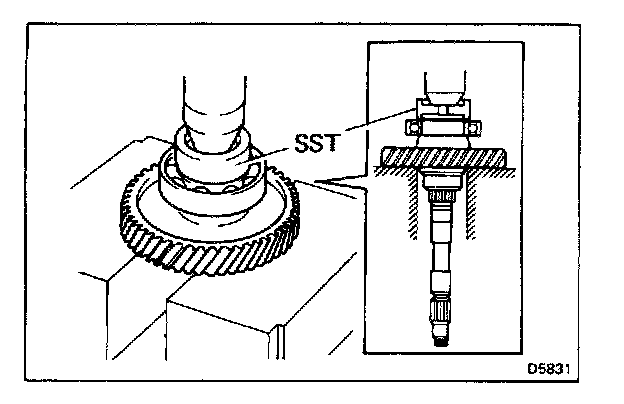

2. INSTALL INTERMEDIATE SHAFT FRONT BEARING Using SST, press in a new bearing.

SST 09350-32013 (09351-32120)

REPLACEMENT OF INTERMEDIATE SHAFT REAR BEARING




1. REMOVE INTERMEDIATE SHAFT REAR BEARING

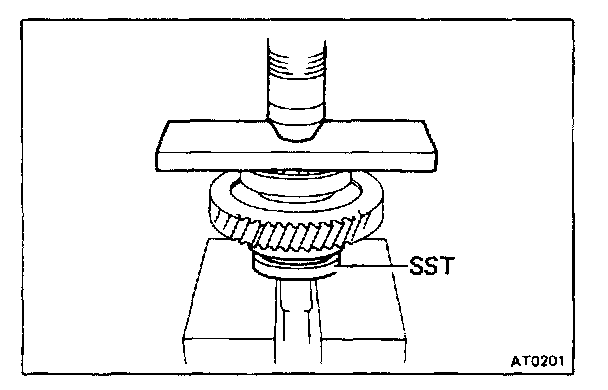

Using SST press out the bearing.

SST: 09350-32013 (09351-32090) and 09950-00020

2. INSTALL INTERMEDIATE SHAFT REAR BEARING

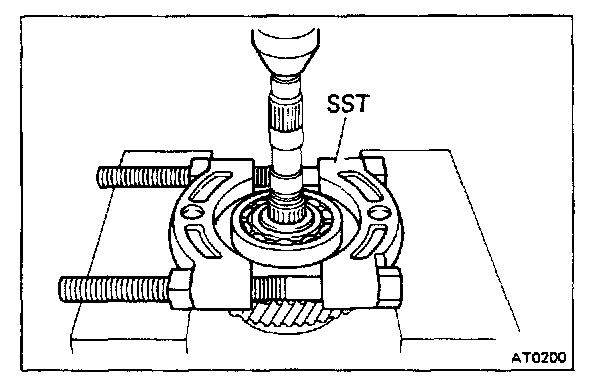

a. Using SST, press in a new bearing.

SST 09350-32013 (09351-32150)

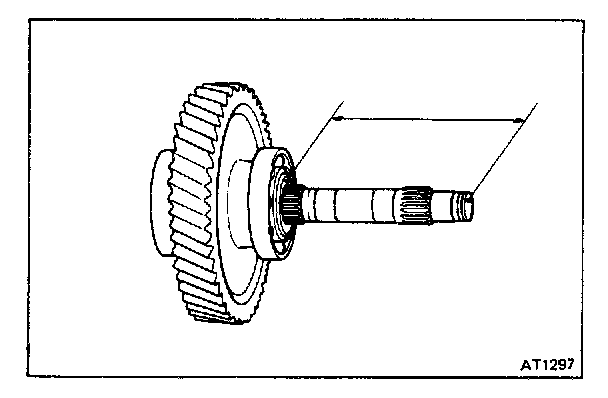

b. Check that the distance from the gear flange end to the intermediate shaft end should be about 115.8 mm (4.560 in.).
