Vehicle - Specifications Updated
88toyota09PRODUCT GENERAL
REFERENCE INFORMATION
NUMBER 013 (REVISED)
DATE 06-01-88
MODEL 88 COROLLA (AE9)
TITLE 1988 MODEL COROLLA SPECIFICATIONS
Vehicle Model and Codes

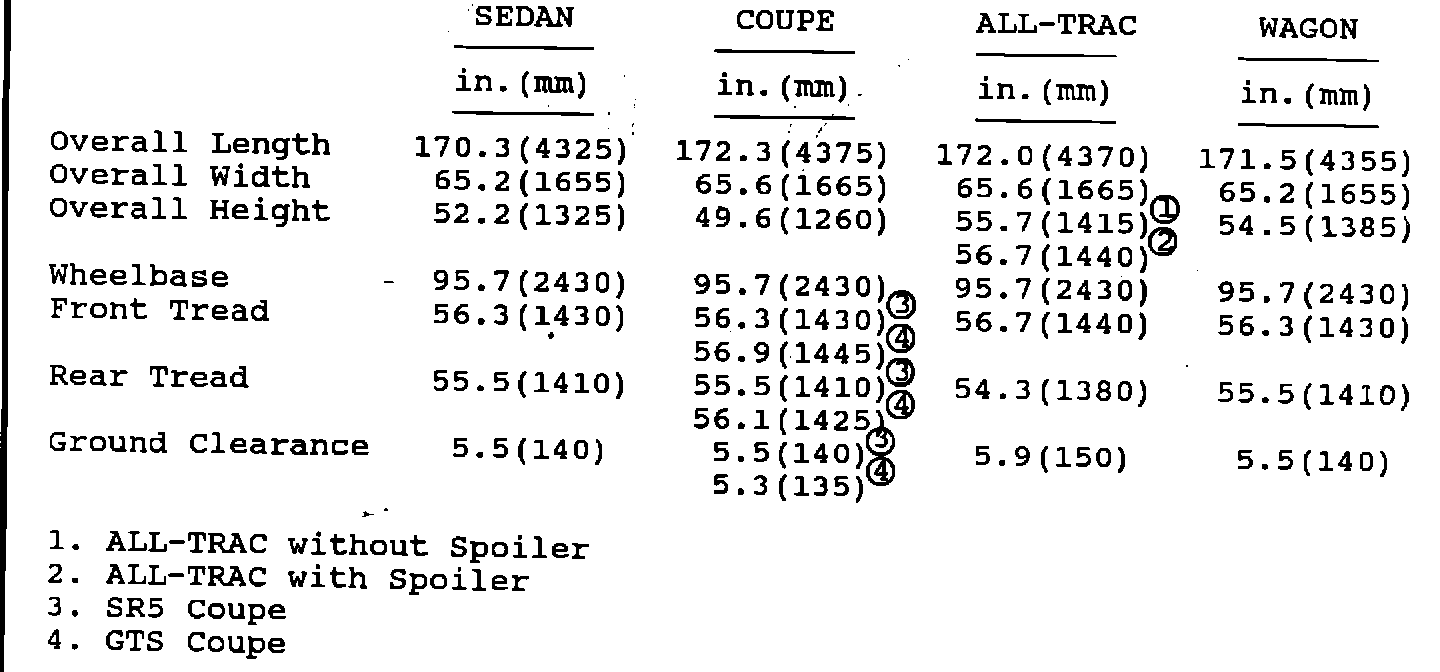

Dimensions:
Weight (Pounds):
Model No. Curb
1702 2206
1703 2246
1705 2242
1706 2317
1767 2282
1764 2321
1725 2242
1727 2313
1728 2372
1754 2740
1755 2736
1757 2690

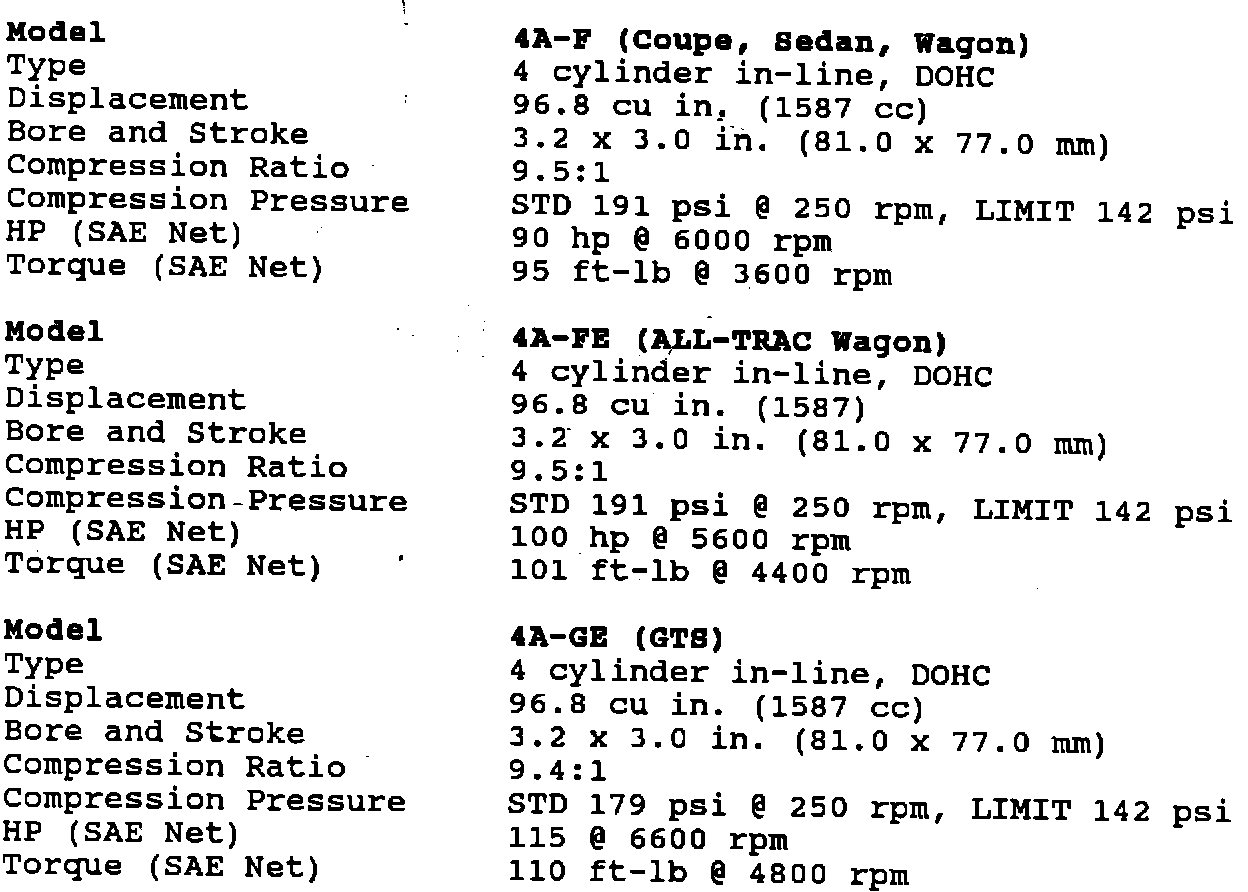

Engine

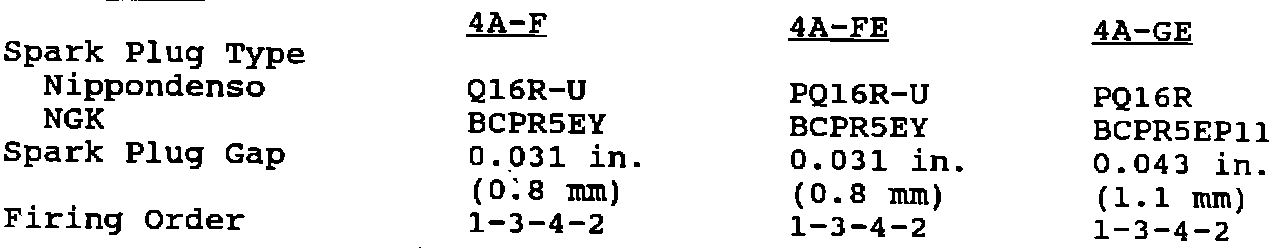

Ignition System:
Ignition Timing:
Valve Clearance: 4A-F, 4A-FE, 4A-GE (Cold)
Intake 0.006-0.010 in. (0.15-0.25 mm)
Exhaust 0.008-0.012 in. (0.20-0.30 mm)

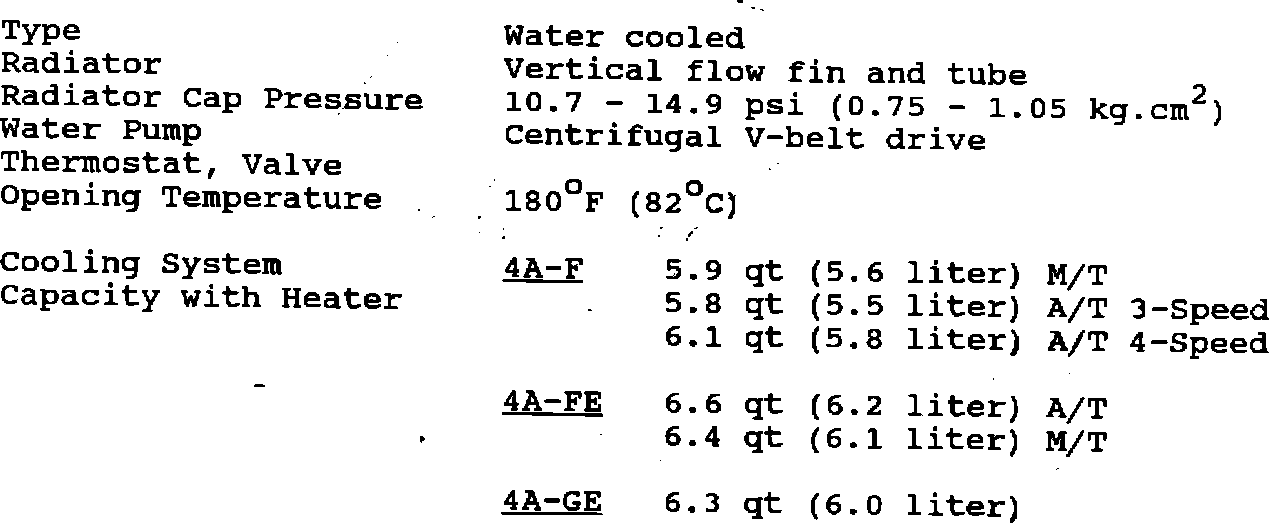

Cooling System:

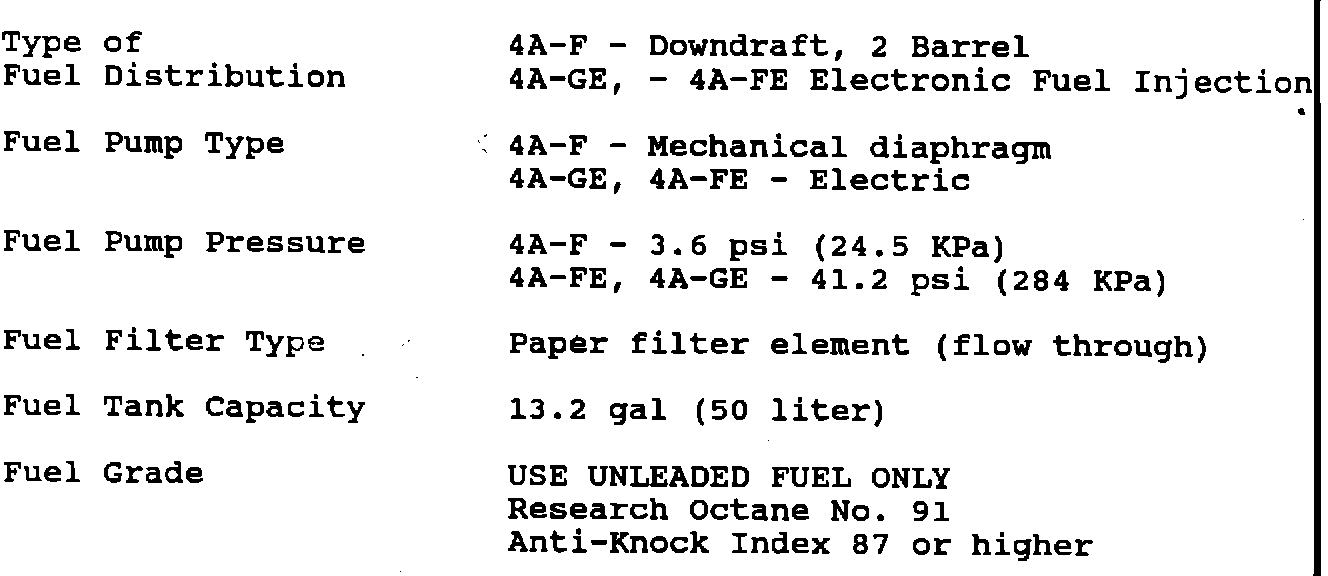

Fuel System:
Lubrication system:
Type Mechanical
Oil Pump Gear type -
Oil Filter Capacity 0.3 qt.
Recommended Motor Oil API grade SP or better
Oil Capacity w/Filter Drain/Refill (with filter change)
3.5 qt. (3.3 liter) Dry Fill 3.9 qt. (3.7 liter)
Electrical System:
Battery 12V/50A-hr
(volts/amp hours)
Alternator - 12V/60A
(volts/amps)
Starter Motor 12V/1.0 kW
(volts/kW) 12V/1.4 kW (Cold Weather Spec.)

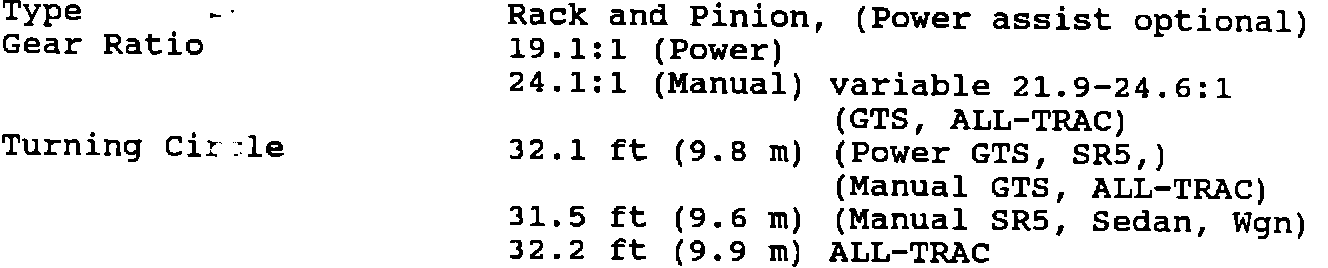

Steering:

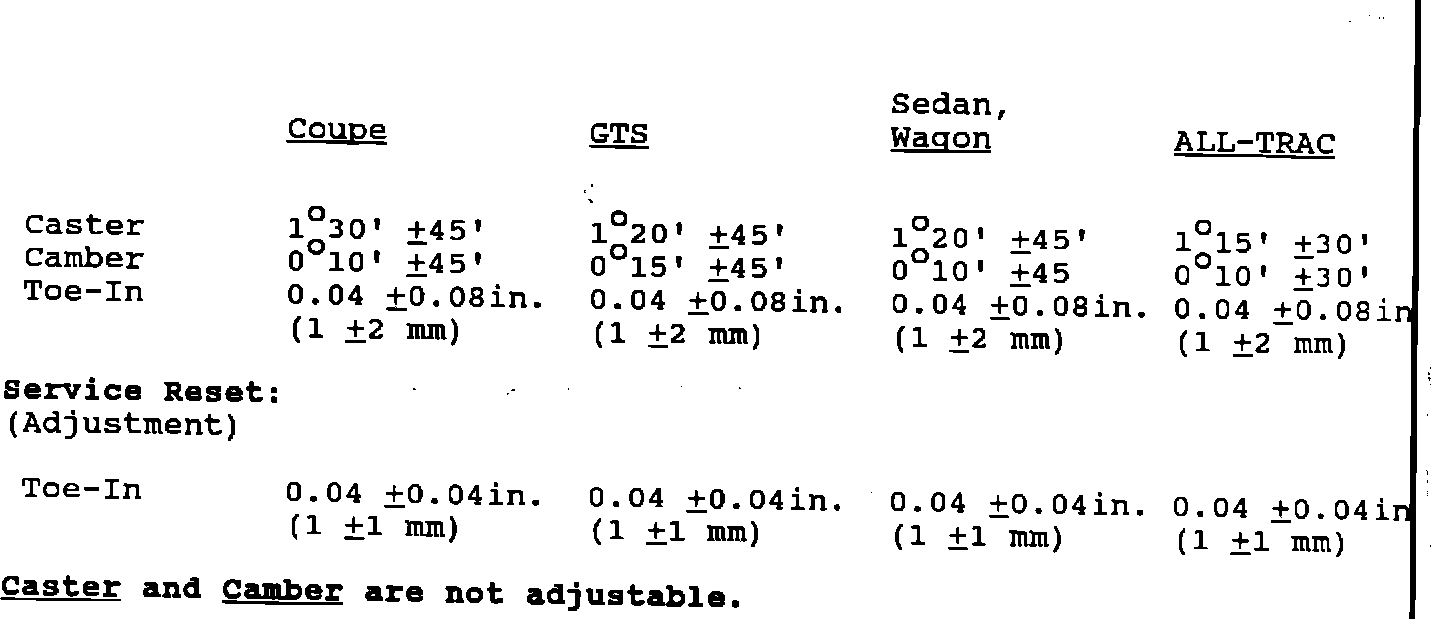

Alignment, Front Wheel (Unloaded):
Suspension:
Front MacPherson Strut coil spring
Stabilizer Diameter 24 mm
Rear Independent, MacPherson Strut coil spring
ALL-TRAC - Trailing axle, coil spring
Stabilizer Diameter SR5 - 13 mm
GTS - 14 mm ALL-TRAC - 16 mm
Axle Front:
Tires:
Size, Type 155 SR13, Radial (ALL-TRAC Deluxe)
175/70R13, Radial (LE, SR5, ALL-TRAC SR5) 185/60R14, 85H, Radial, (GTS)

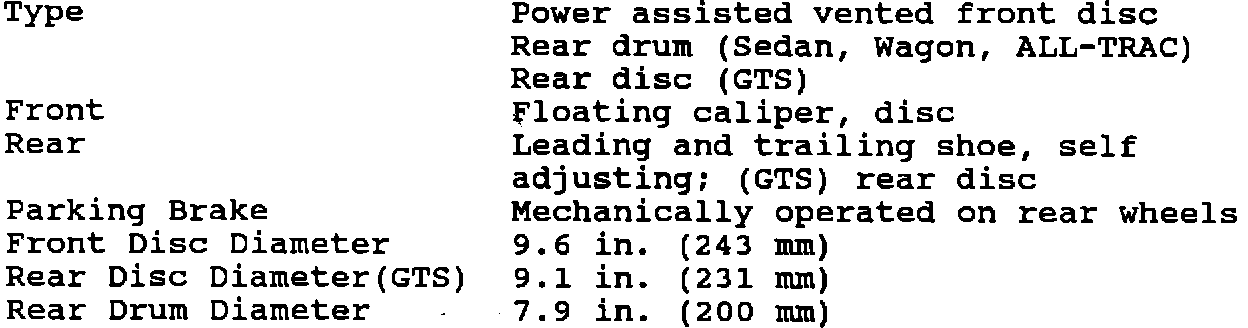

Brakes:
Clutch:
Type Single dry plate
Operation Hydraulic
Disc Diameter 7.87 in. (200 mm),
ALL-TRAC 8.82 in. (224 mm)
Pressure Plate Type Diaphragm, spring
Clutch Pedal Free Play 0.197-0.591 in. (5.0-15.0 mm)
Release Fork End Play Non-adjustable type

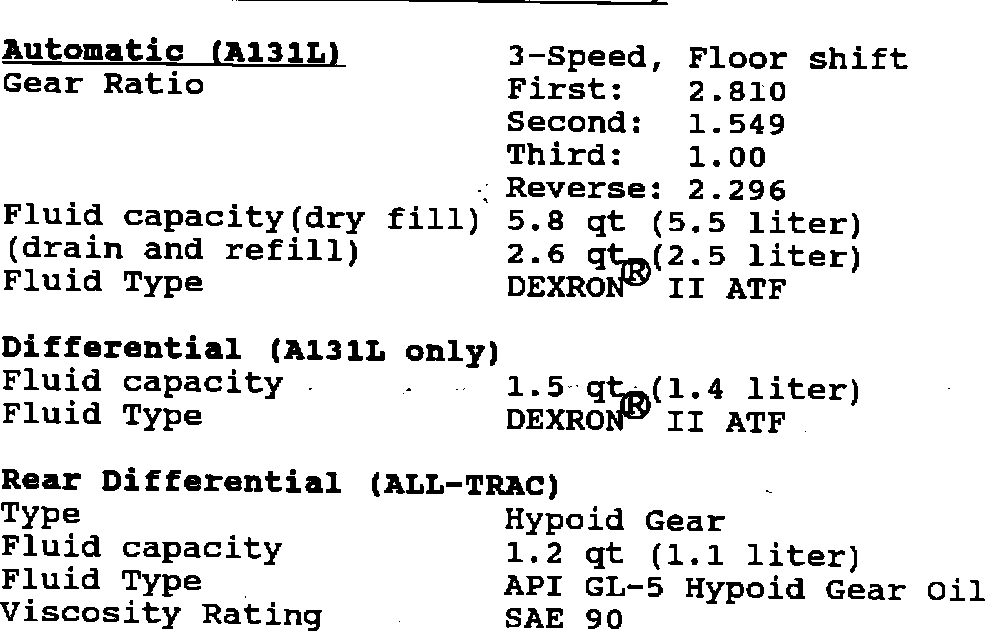

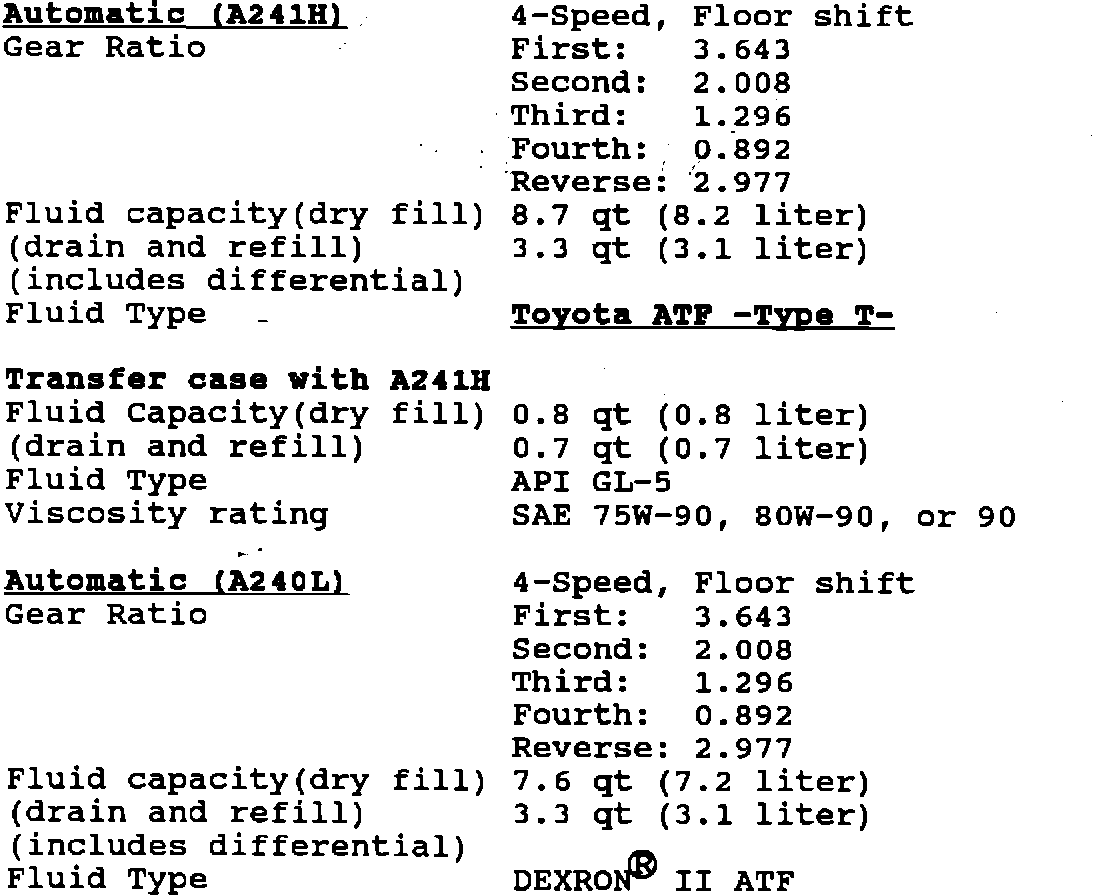

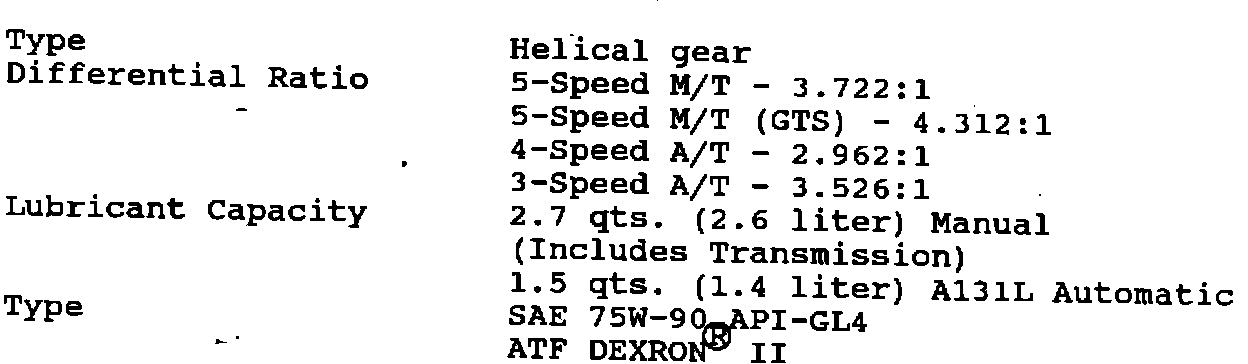

Transmission (Automatic):
Transmission (Manual):
