Control Module HVAC: Locations

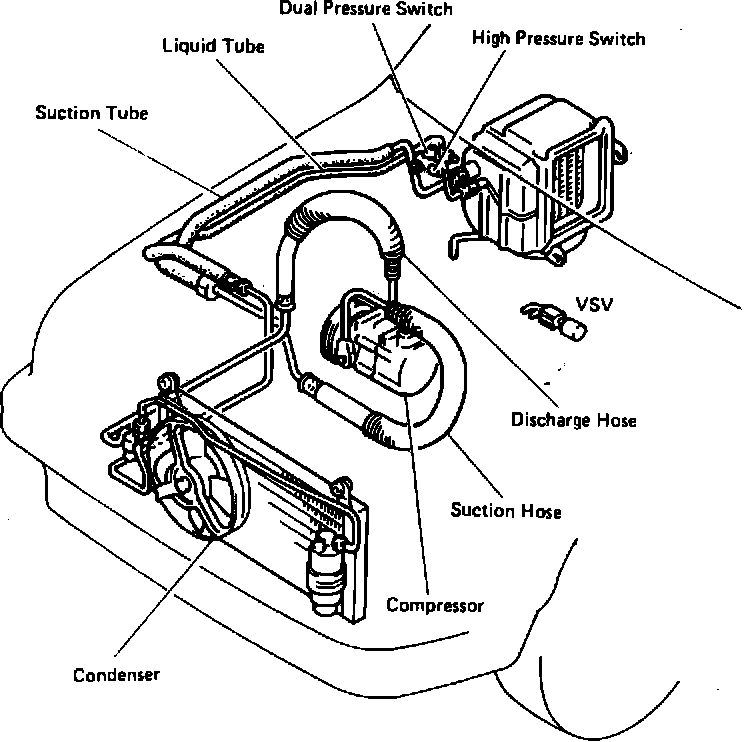

A/C Components.:
A/C Components.:

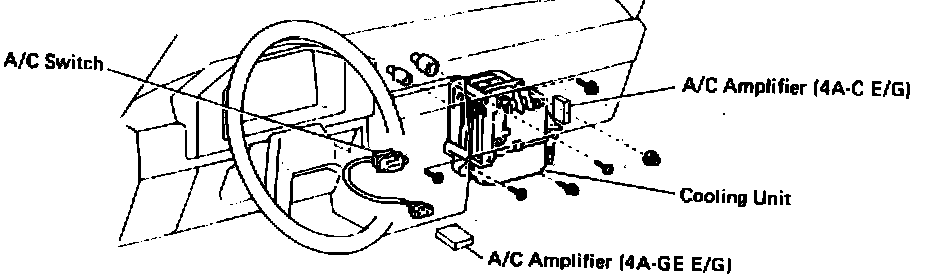

Under RH Side Of I/P
Applicable to: 1988 Corolla FX/FX16
