Condenser HVAC: Locations

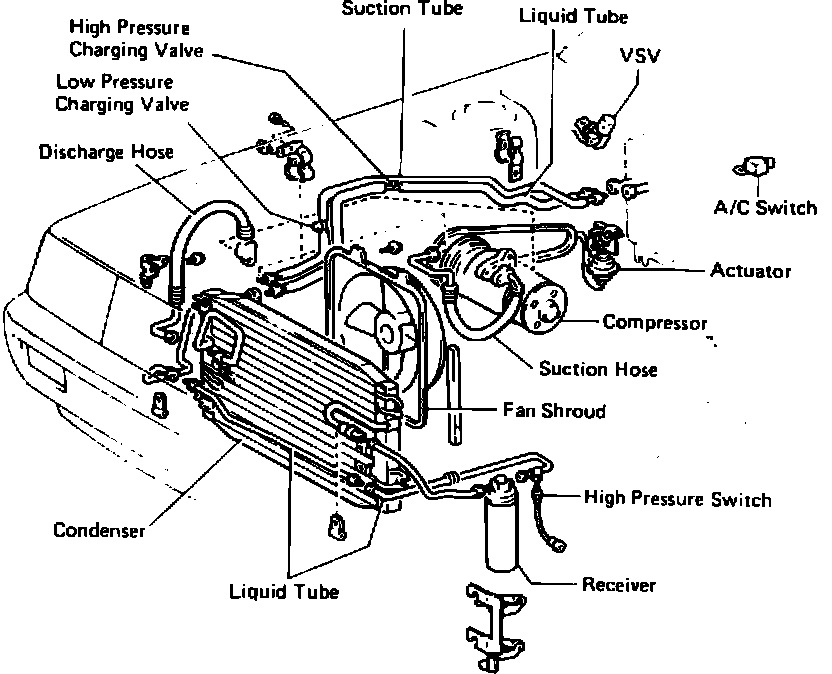

A/C Components.:
A/C Components.:
Front Of Engine Compartment
Applicable to: 1988 Corolla FX/FX16 w/4A-GE Engine
