M/T Technical Data

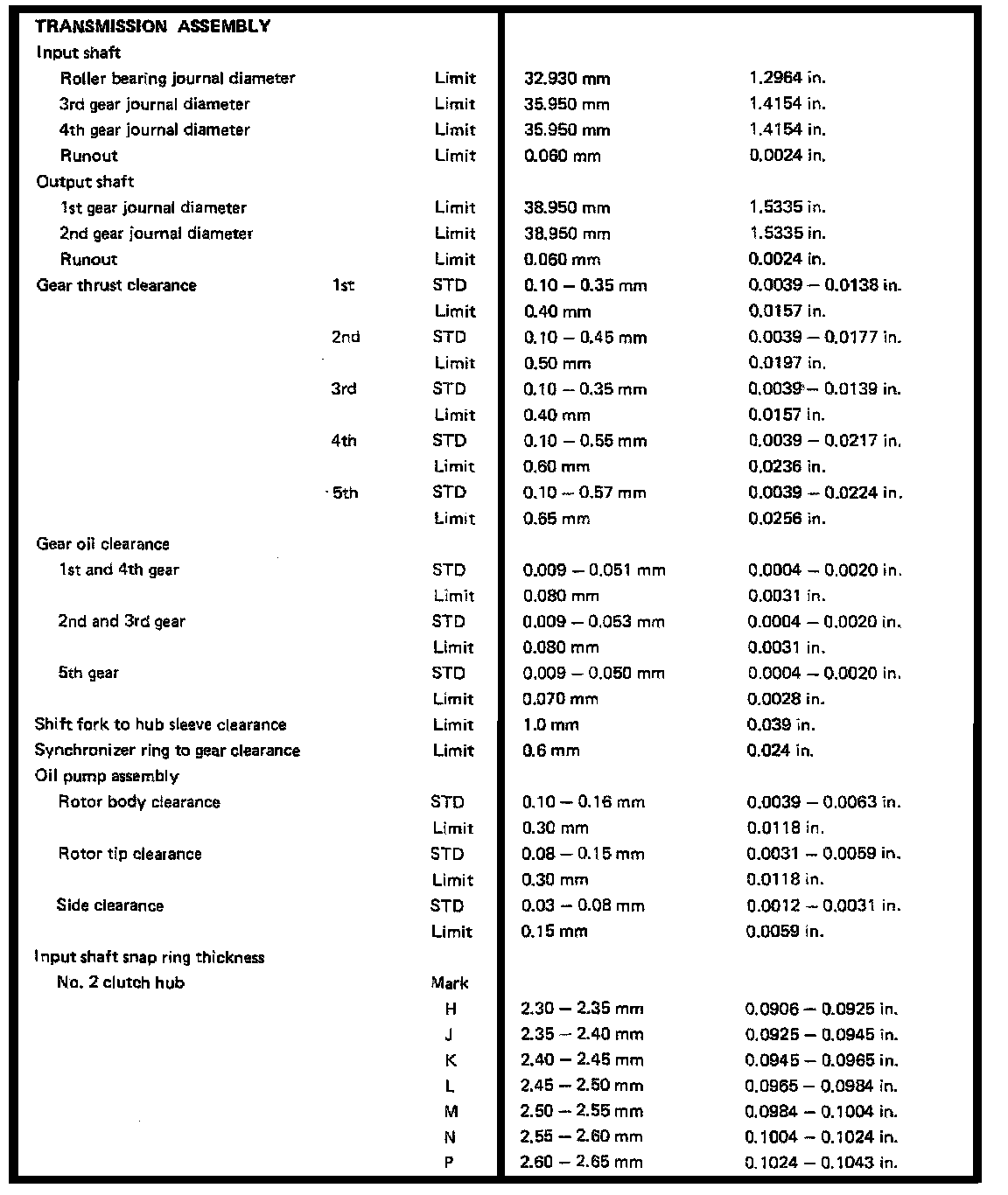

E50F2 5-spd M/T, Transmission Clearances:

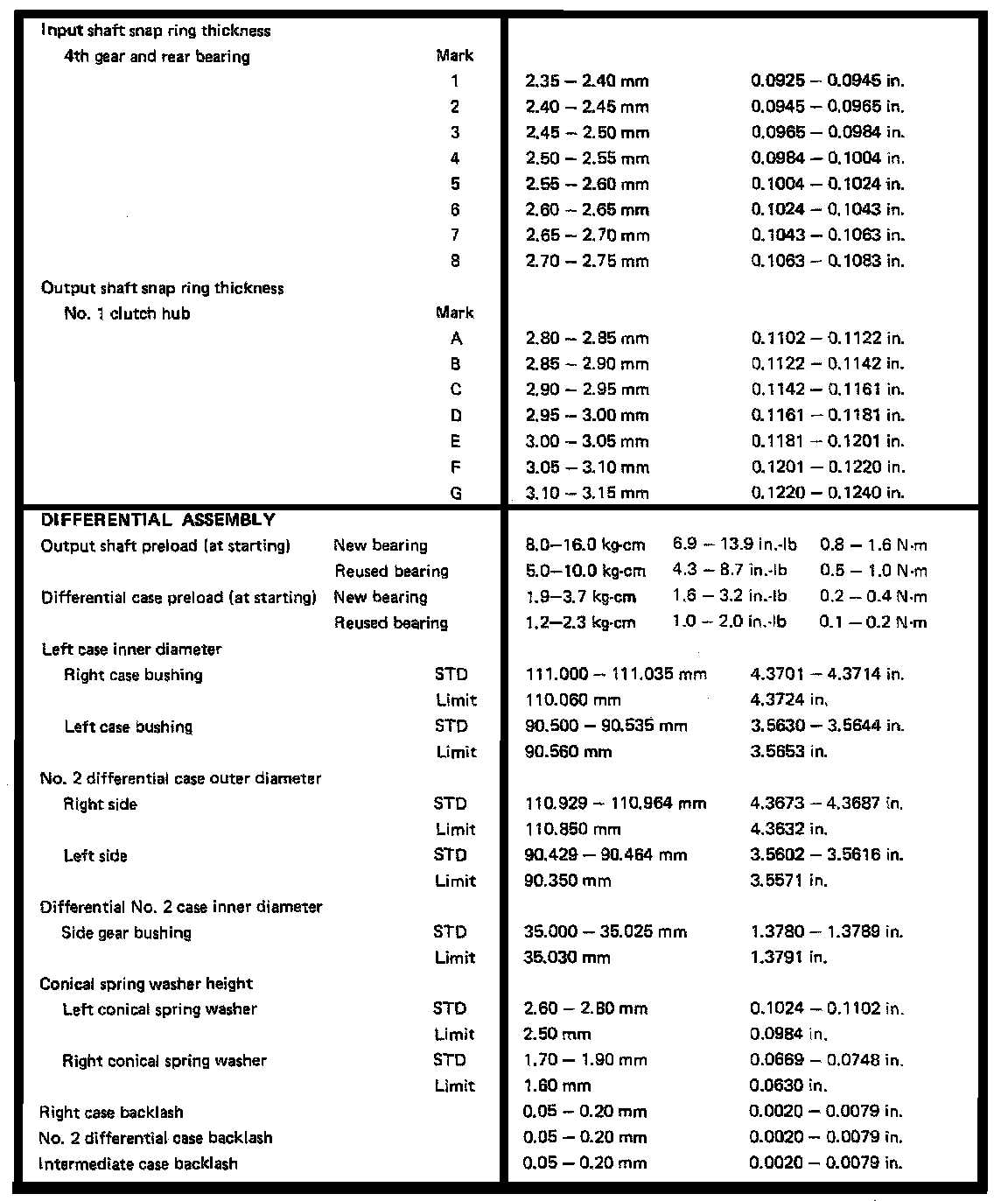

E50F2 5-spd M/T Input Shaft/Differential Clearances:

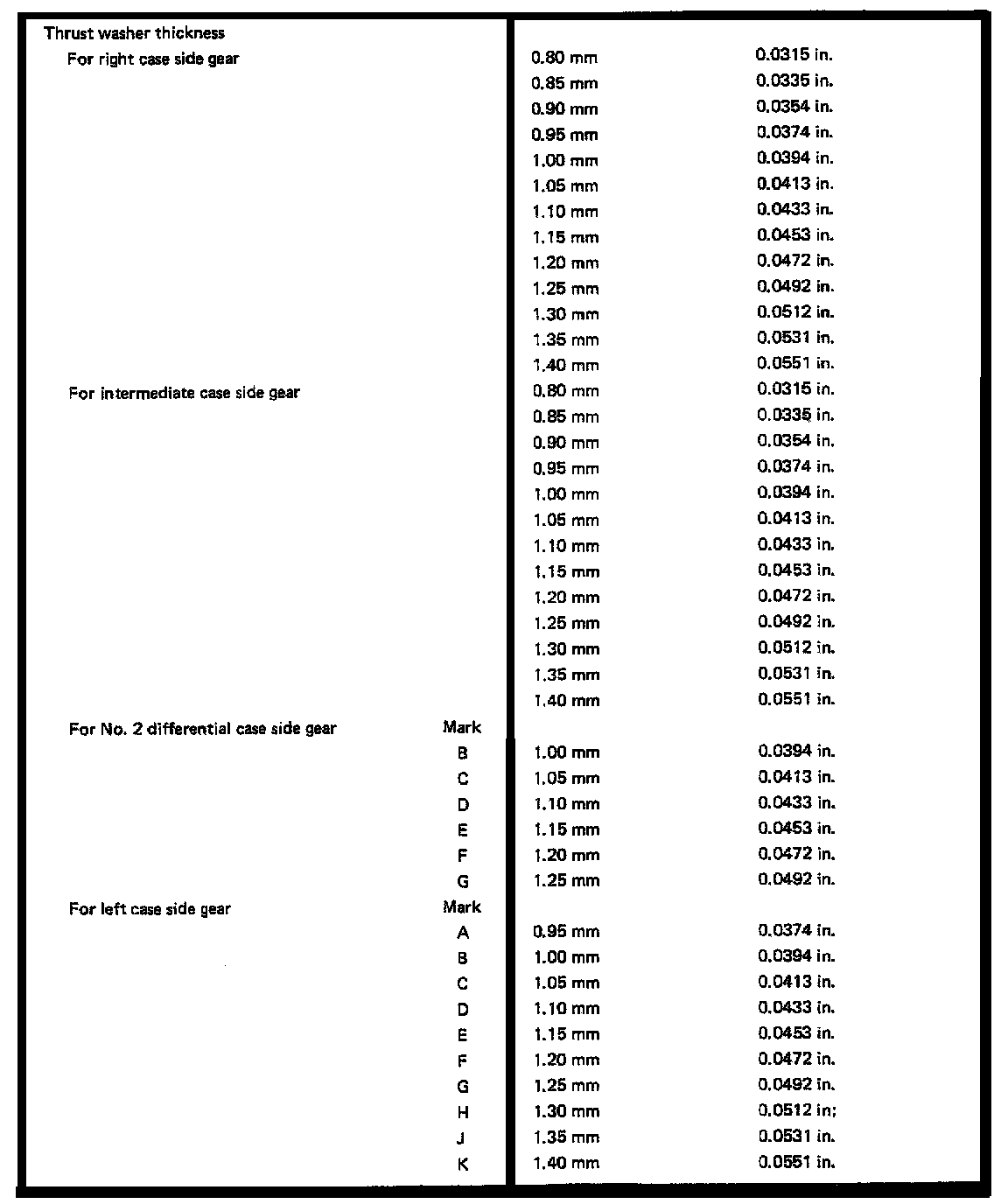

E50F2 5-spd M/T, Differential Thickness:

E50F2 5-spd M/T, Differential Preload:

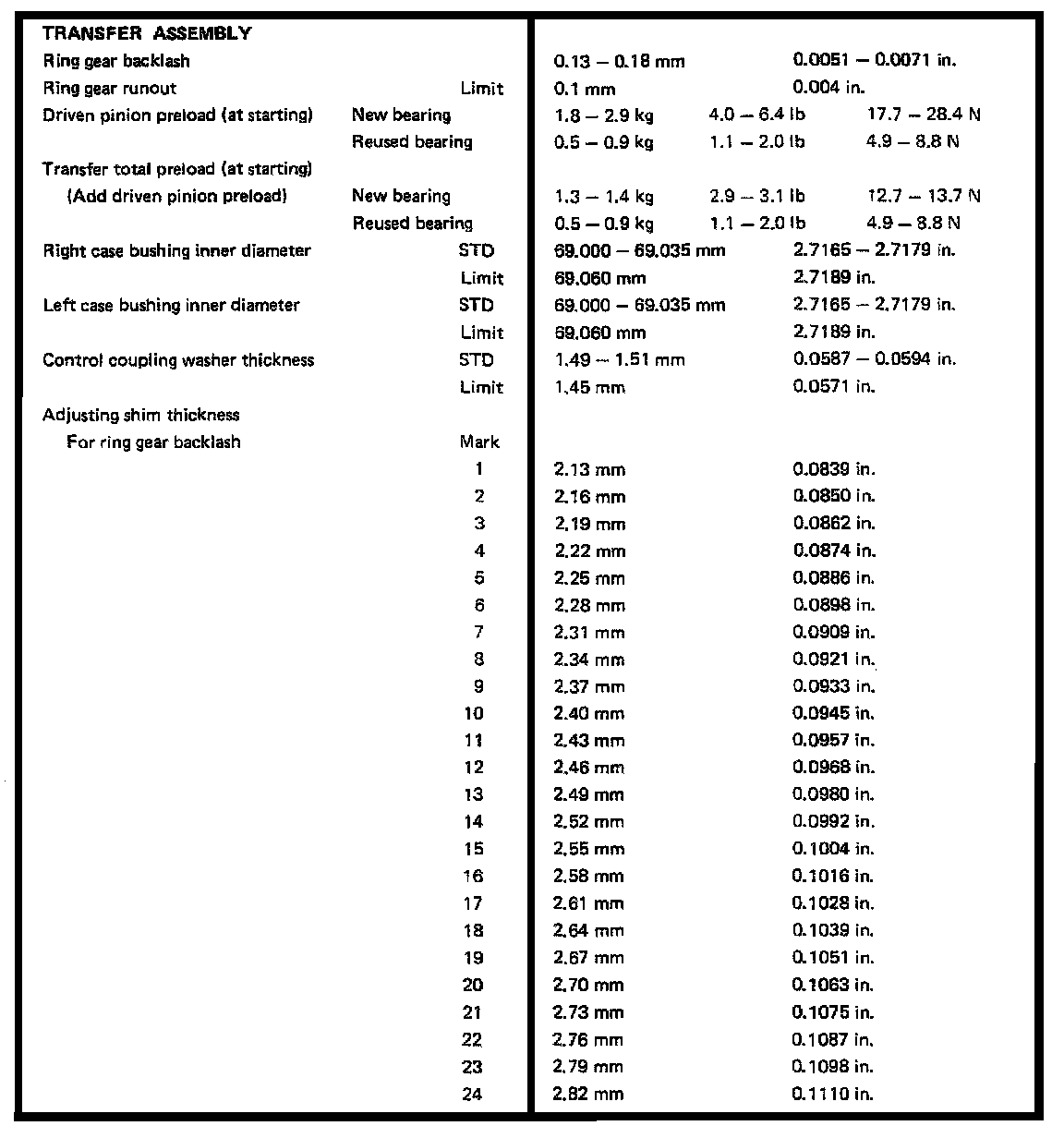

E50F2 5-spd M/T, Transfer Clearances:

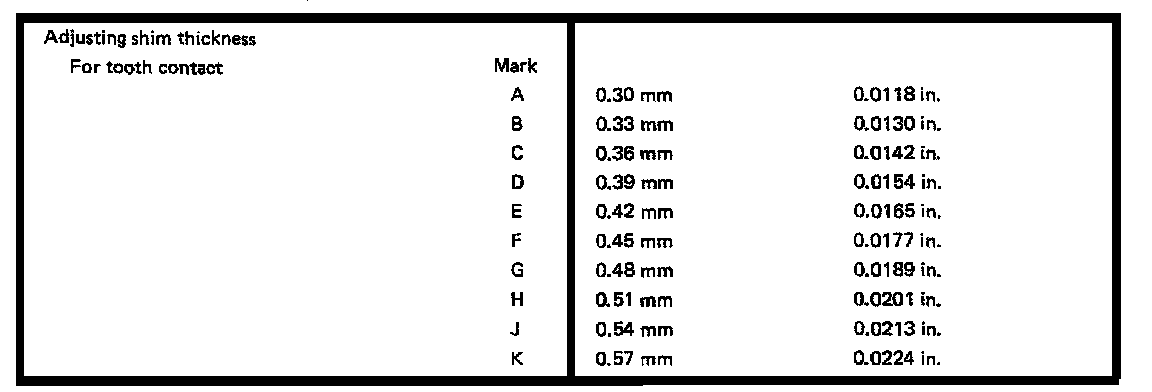

E50F2 5-spd M/T, Transfer Shim Thickness:
