Throttle Position Sensor: Testing and Inspection

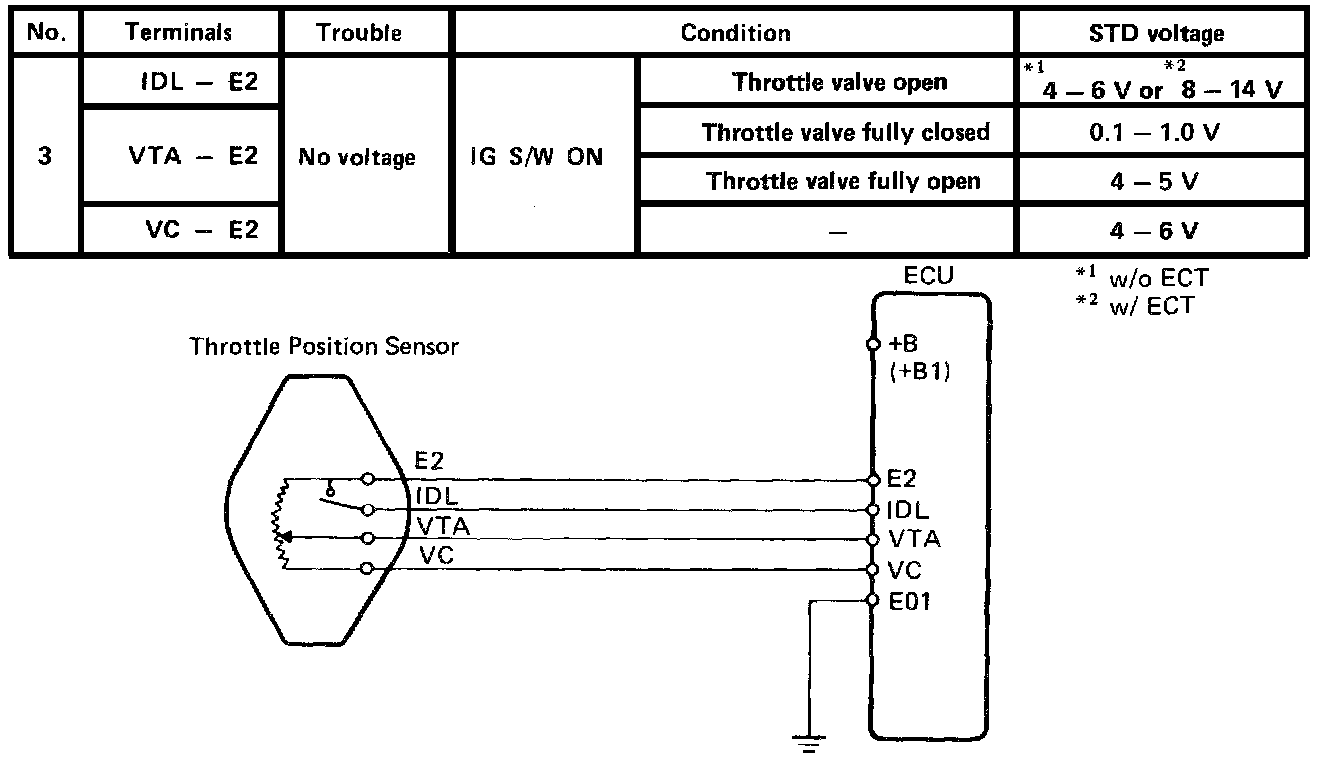

Part 1 of 4:

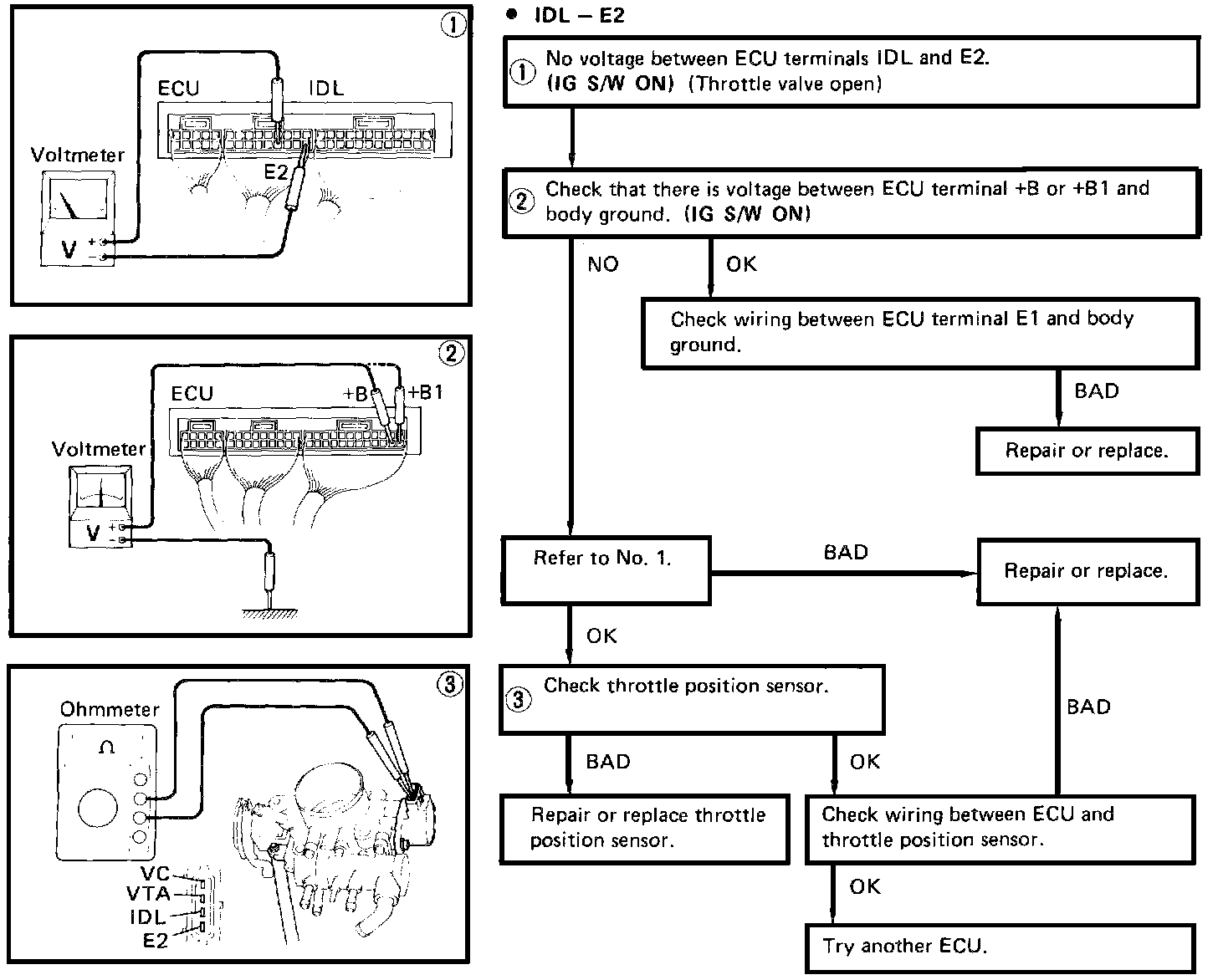

Part 2 of 4 (IDL - E2):

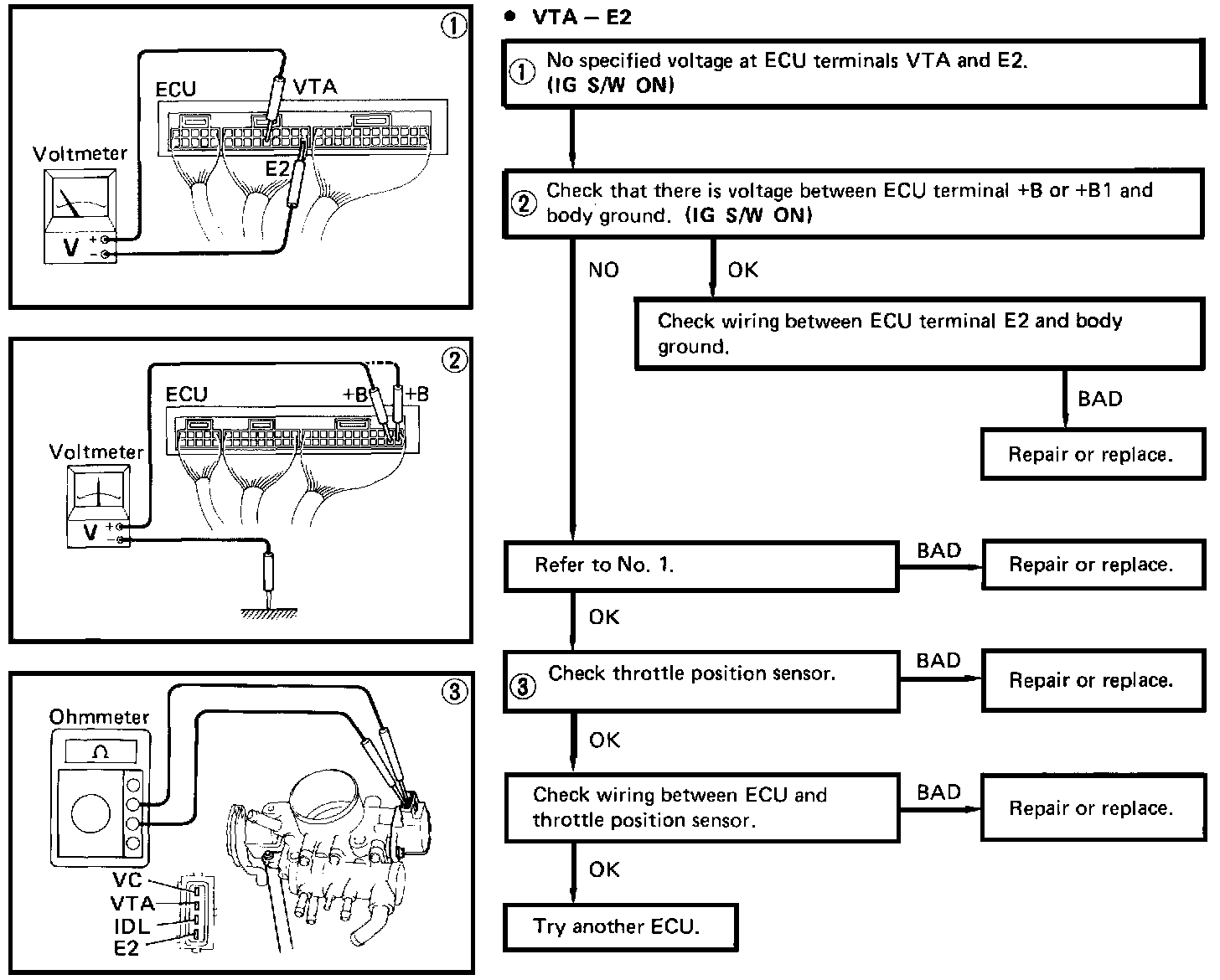

Part 3 of 4 (VTA - E2):

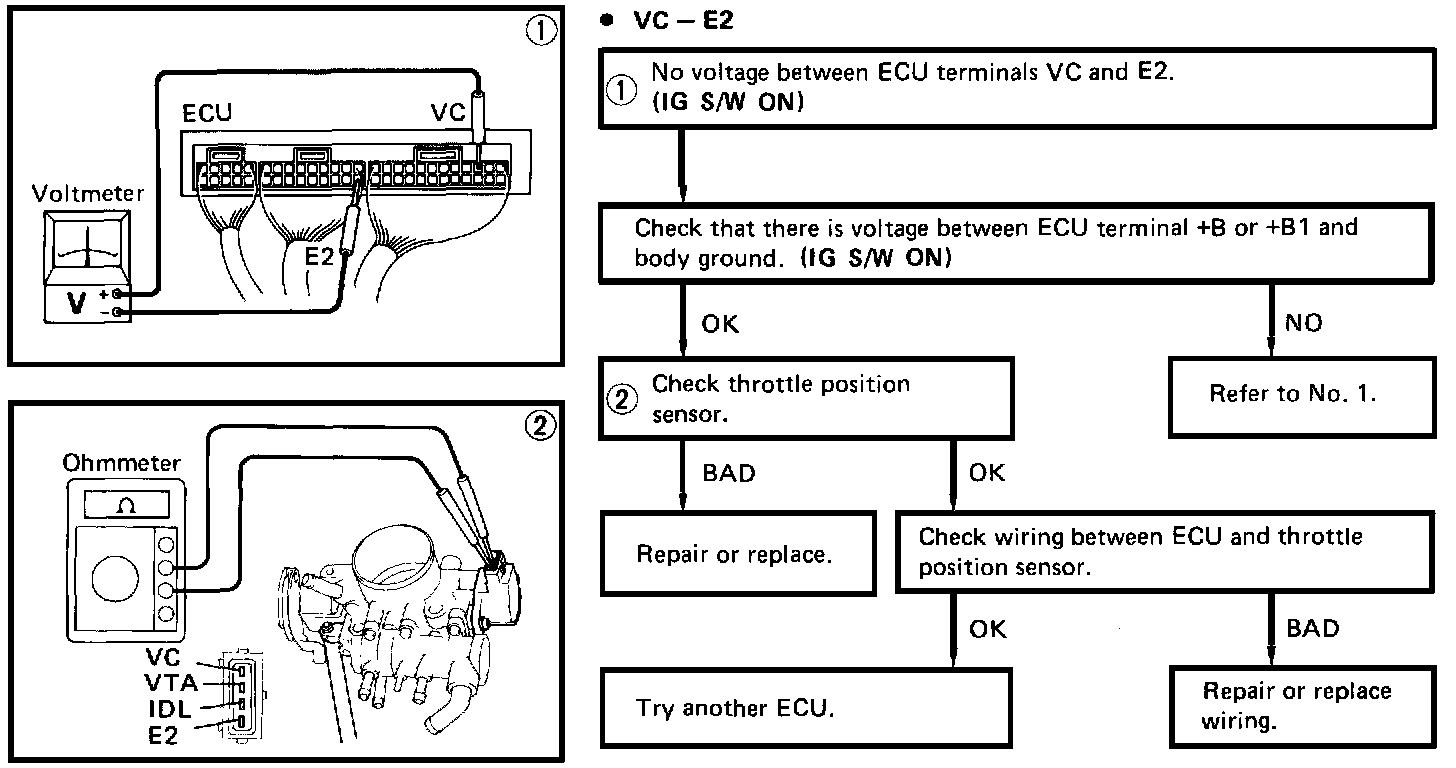

Part 4 of 4 (VC - E2):
