Assembly and Disassembly

Valve Body (A140L/3S-FE):

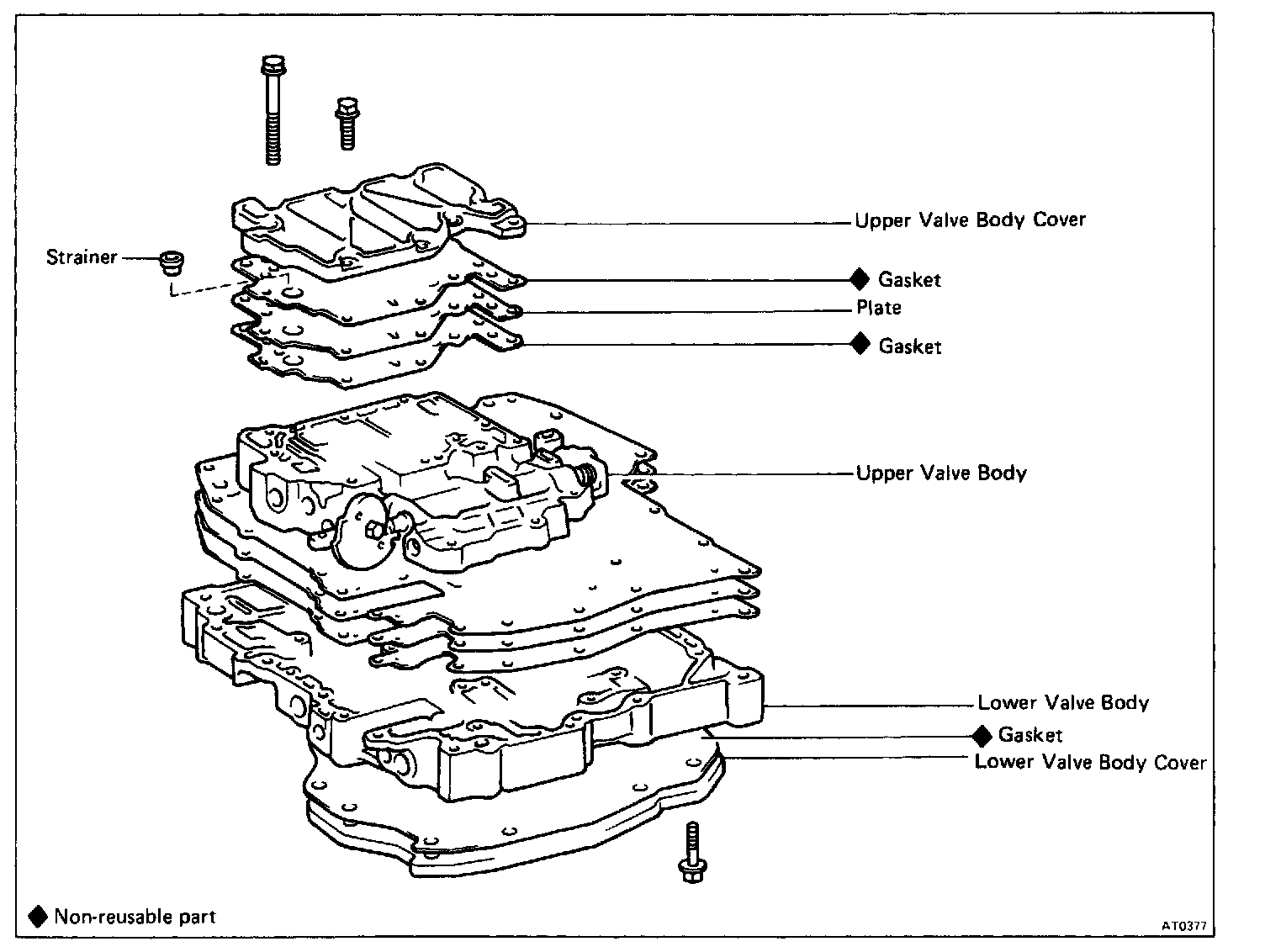

COMPONENTS

DISASSEMBLY OF VALVE BODY




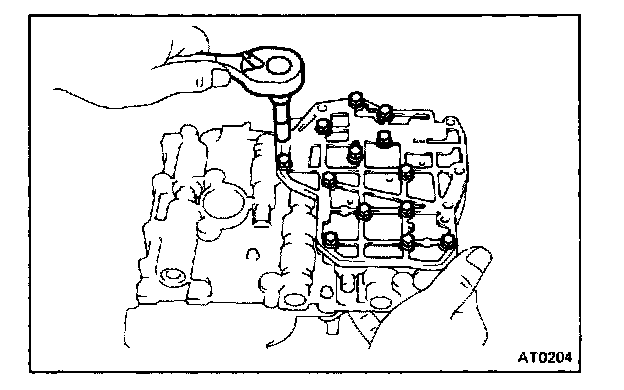

1. REMOVE LOWER VALVE BODY COVER
a. Remove the fourteen bolts.
b. Remove the cover and the gasket.

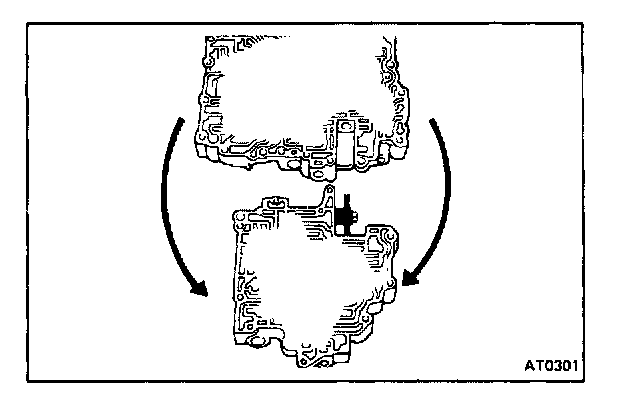

2. TURN ASSEMBLY OVER AND REMOVE THE TWELVE BOLTS FROM UPPER VALVE BODY AND UPPER VALVE BODY COVER




3. REMOVE UPPER VALVE BODY COVER, STRAINER, GASKETS AND PLATE




4. TURN ASSEMBLY OVER AND REMOVE THE THREE BOLTS FROM LOWER VALVE BODY

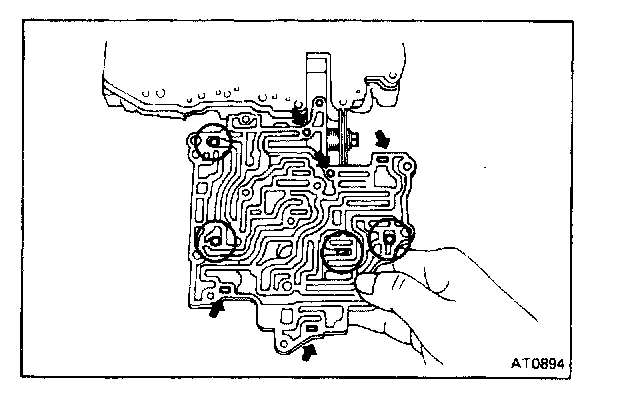

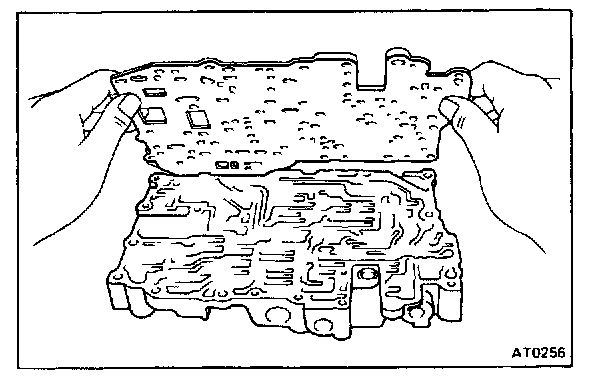

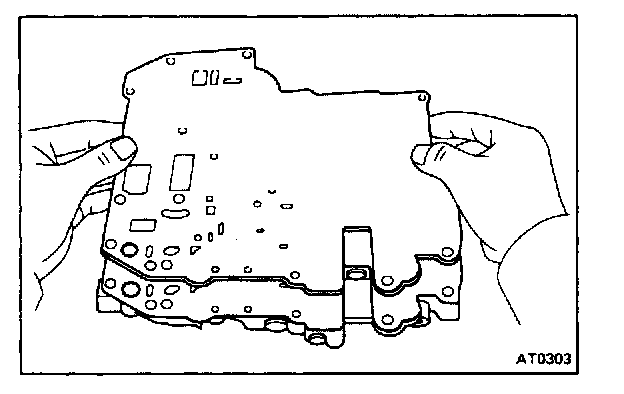

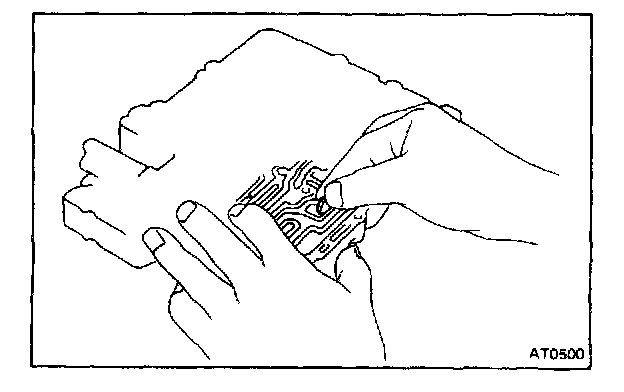

5. LIFT OFF LOWER VALVE BODY AND PLATE AS SINGLE UNIT
Hold valve body plate to lower valve body.

NOTE: Be careful that the check valve and balls do not fall out.

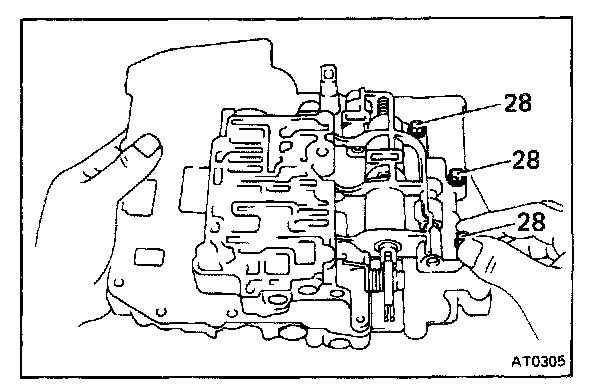

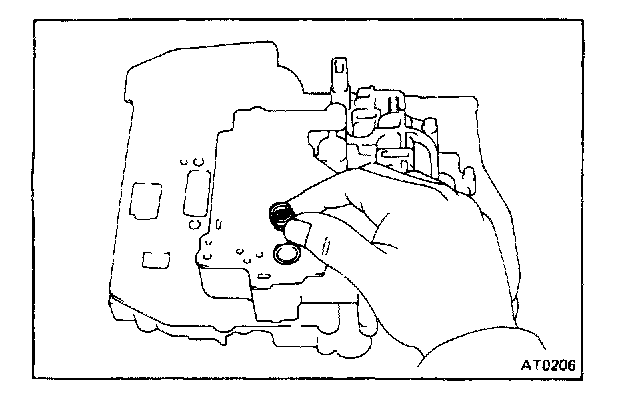

6. WATCH FOR THREE STEEL BALLS, RETAINERS AND PINS IN VALVE BODY

(UPPER VALVE BODY)

(LOWER VALVE BODY)

Lower Valve Body:

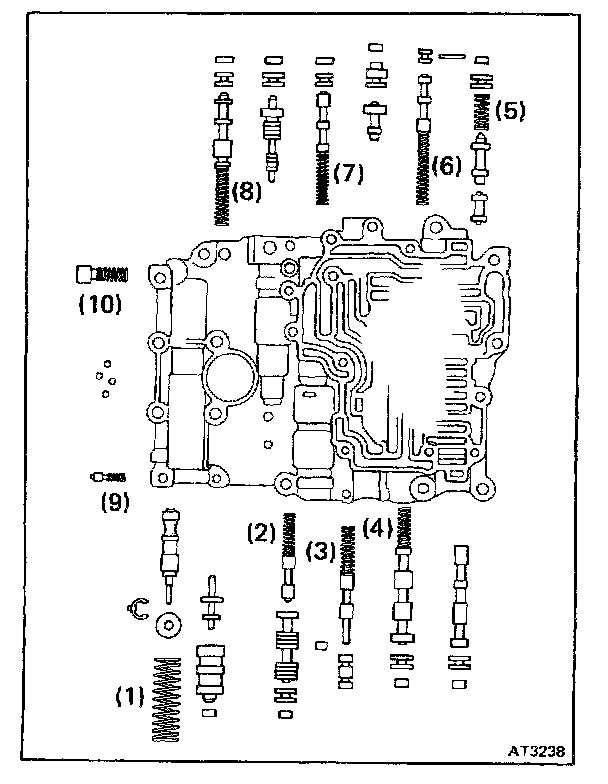

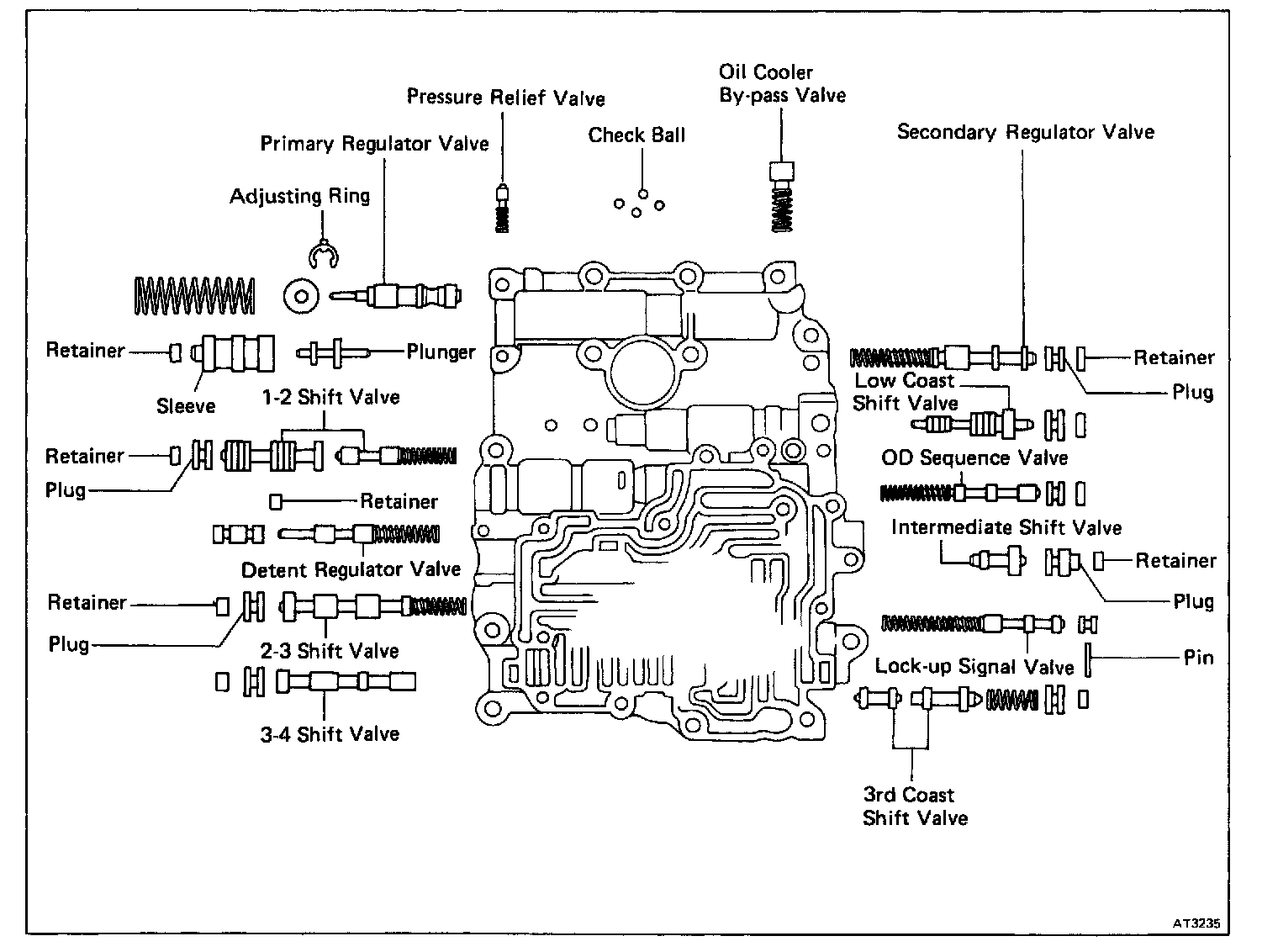

COMPONENTS

DISASSEMBLY OF LOWER VALVE BODY




1. REMOVE LOWER VALVE BODY PLATE AND GASKETS

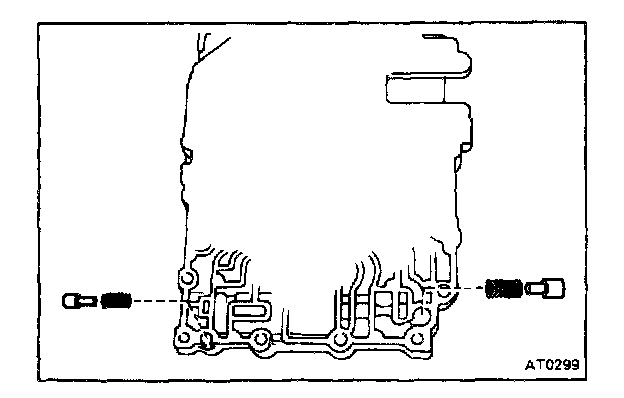

2. REMOVE COOLER BY-PASS VALVE AND SPRING
3. REMOVE PRESSURE RELIEF VALVE AND SPRING




4. REMOVE THE FOUR CHECK BALLS

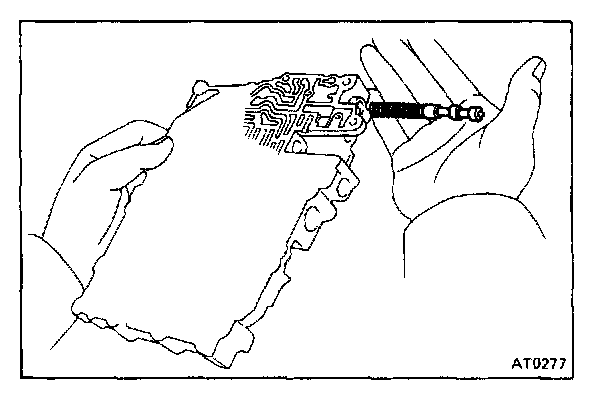

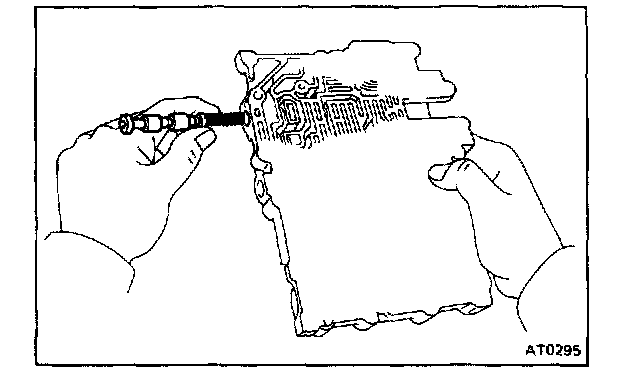

5. REMOVE PRIMARY REGULATOR VALVE

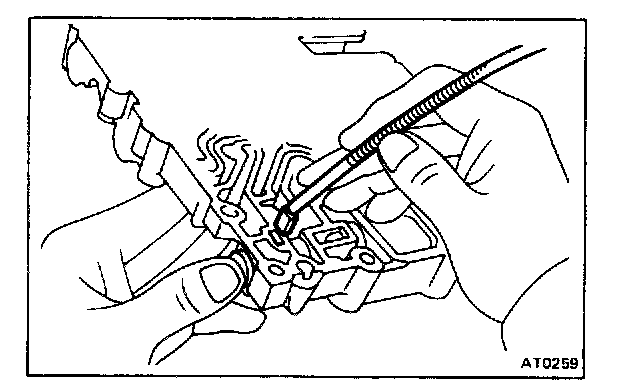

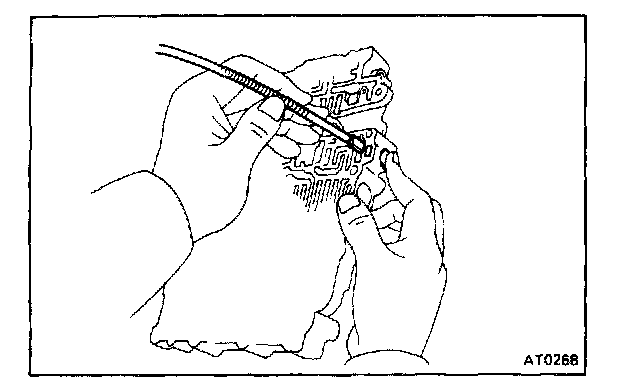

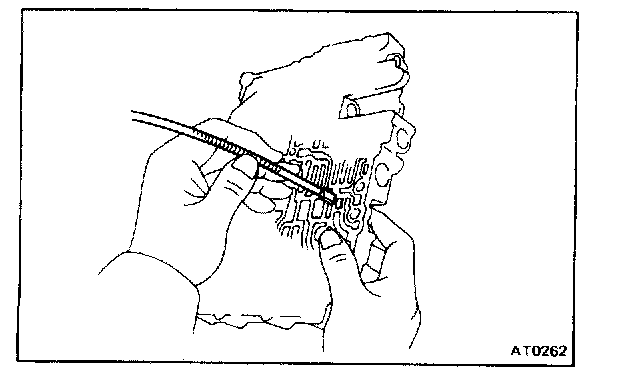

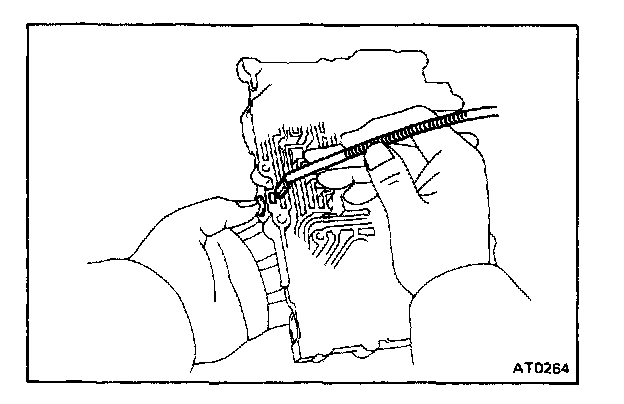

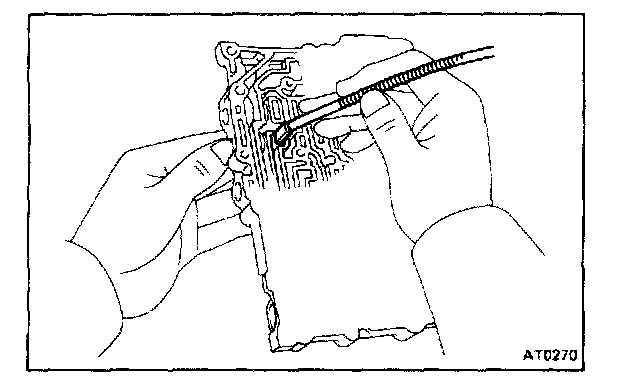

a. Remove the retainer with a magnetic finger.




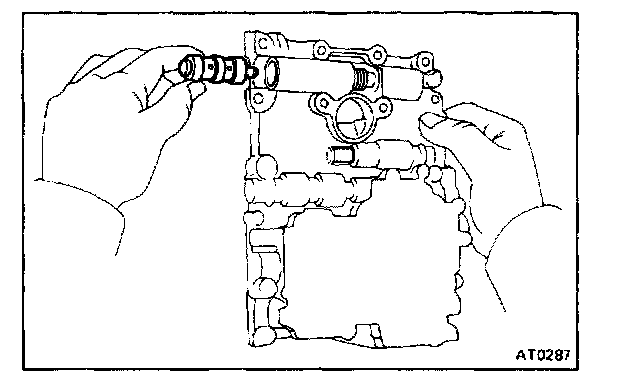

b. Remove the sleeve and plunger.




c. Remove the spring and valve.

NOTE: Note the number of adjusting rings.

6. REMOVE SECONDARY REGULATOR VALVE




a. Remove the retainer and plug.




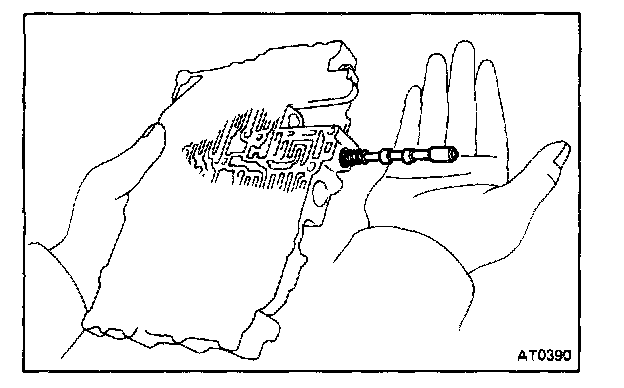

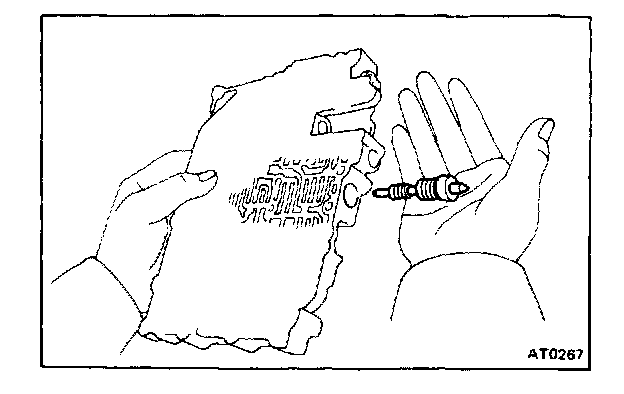

b. Remove the valve and spring.

7. REMOVE 1-2 SHIFT VALVE




a. Remove the retainer and plug.




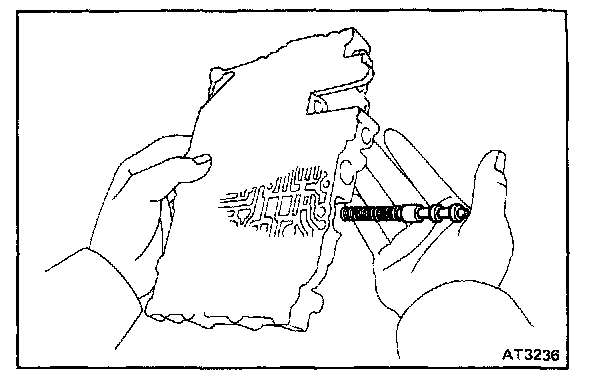

b. Remove the 1-2 shift lower valve, upper valve and spring.

8. REMOVE LOW COAST SHIFT VALVE




a. Remove the retainer and plug.




b. Remove the valve.

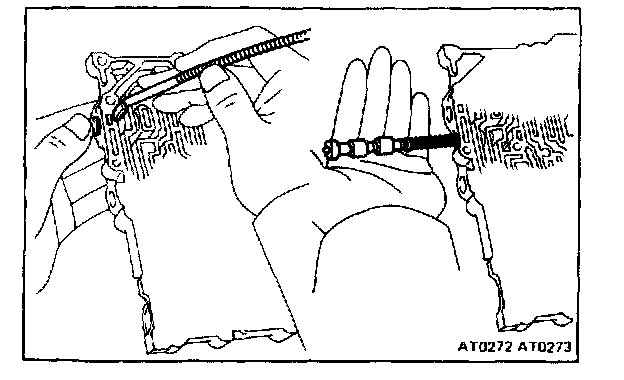

9. REMOVE OVERDRIVE SEQUENCE VALVE

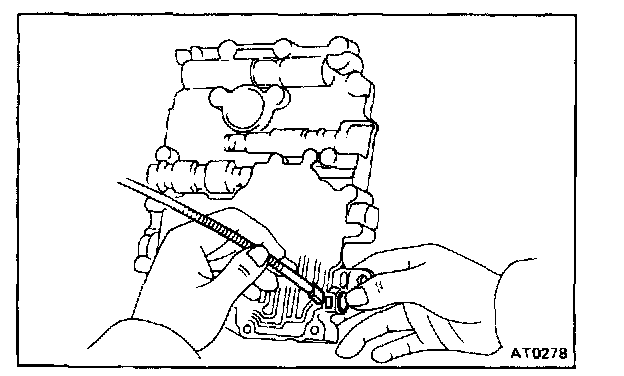

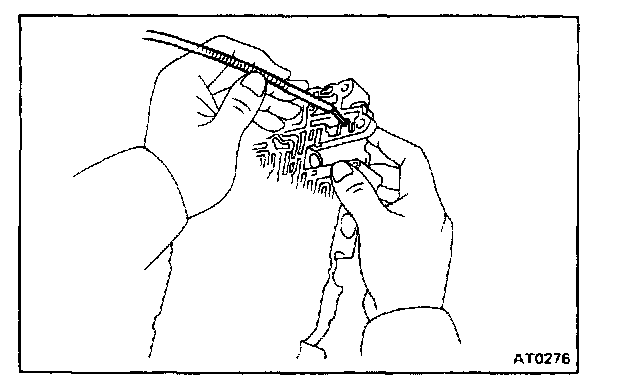

a. Remove the retainer with a magnetic finger.
b. Remove the plug.




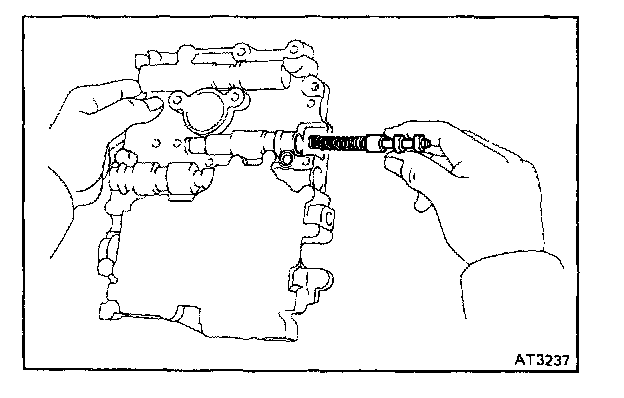

c. Remove the valve and spring.

10. REMOVE DETENT REGULATOR VALVE




a. Remove the retainer with a magnetic finger.
b. Remove the plug.




c. Remove detent regulator valve and spring.




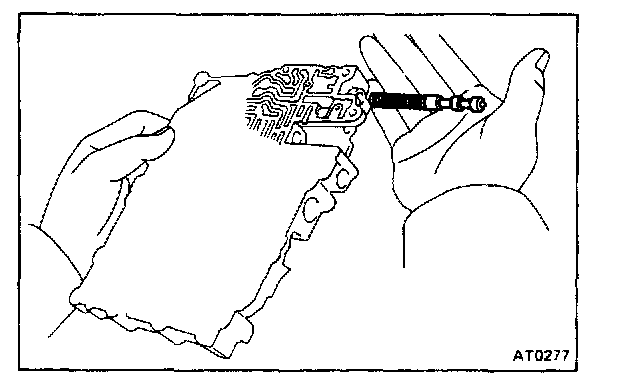

11. REMOVE 2-3 SHIFT VALVE

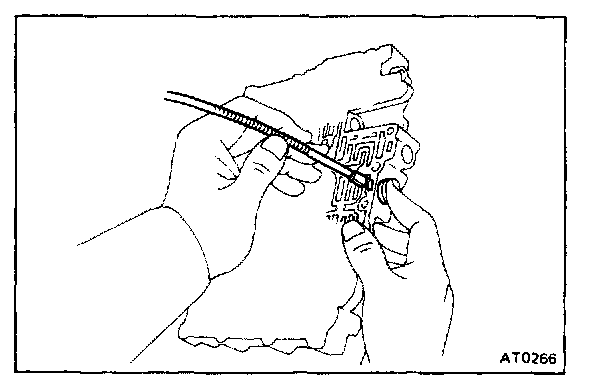

a. Remove the retainer with a magnetic finger.
b. Remove the valve and spring.

12. REMOVE INTERMEDIATE SHIFT VALVE




a. Remove the retainer with a magnetic finger.




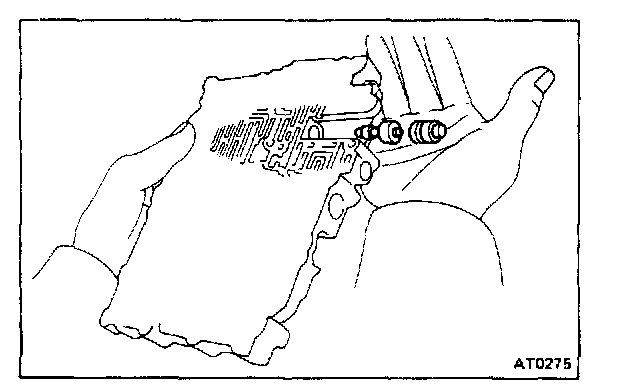

b. Remove the plug and valve.

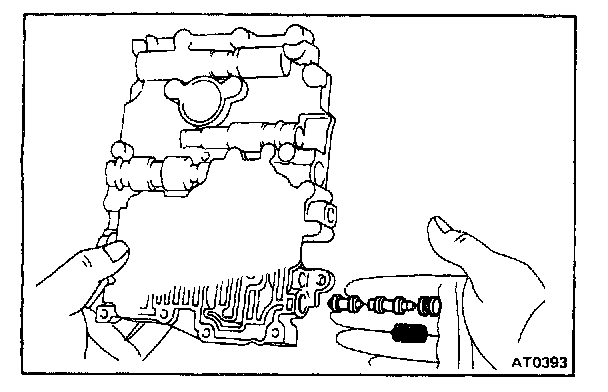

13. REMOVE LOCK-UP SIGNAL VALVE




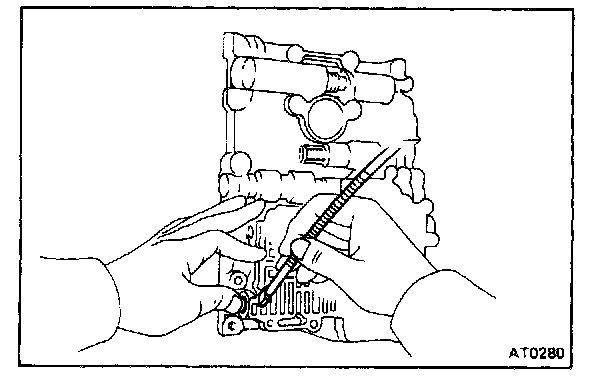

a. Remove the pin with a magnetic finger.
b. Remove the plug.




c. Remove the valve and spring.

14. REMOVE THIRD COAST SHIFT VALVE




a. Remove the retainer with a magnetic finger.




b. Remove the two valve and spring.

15. REMOVE 3-4 SHIFT VALVE




a. Remove the retainer with a magnetic finger.
b. Remove the plug.




c. Remove the 3-4 shift valve.

ASSEMBLY OF LOWER VALVE BODY

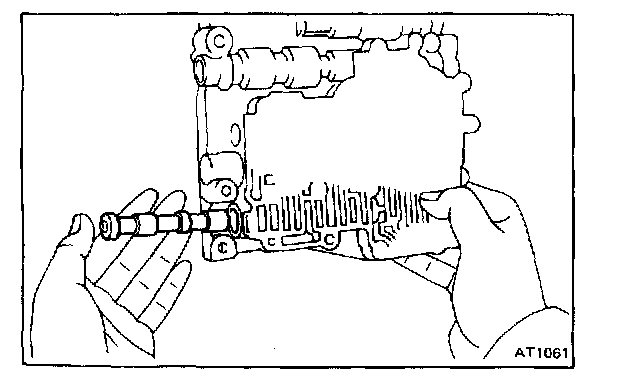

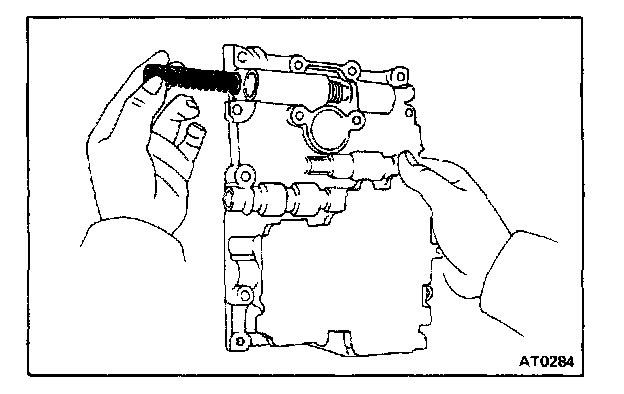

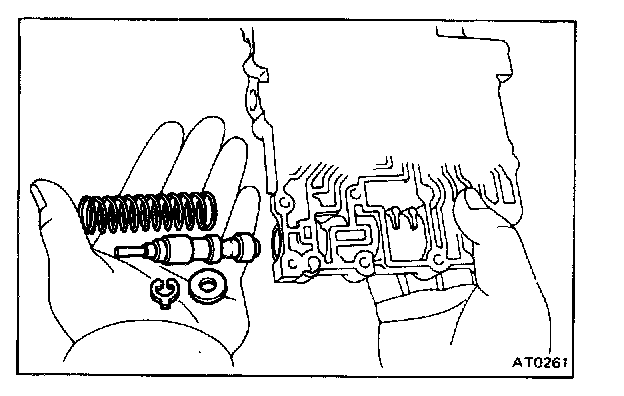

1. INSTALL PRIMARY REGULATOR VALVE




a. Install the adjusting rings and spring seat.

NOTE: Install the same number of adjusting rings as were removed.

b. Place the valve into the bore in the horizontal position.




c. Stand the valve body upward and push the valve into the bore until its tip touches the bore.
d. Install the valve spring.

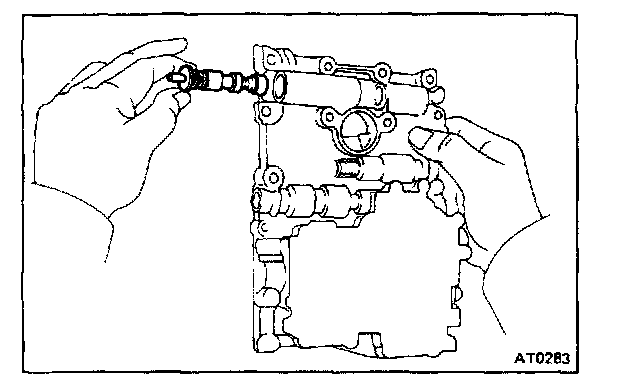

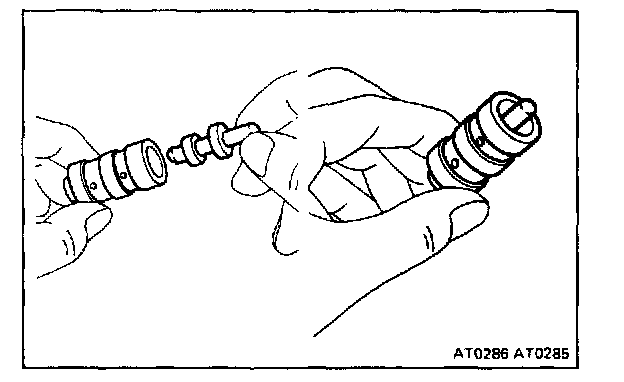

e. Insert the plunger with the short end first. Make sure that it is fully inserted: the plunger should be recessed inside the sleeve.




f. Install the sleeve with the plunger.
g. Make sure that the regulator valve fits flush with the bore.
h. Install the retainer.




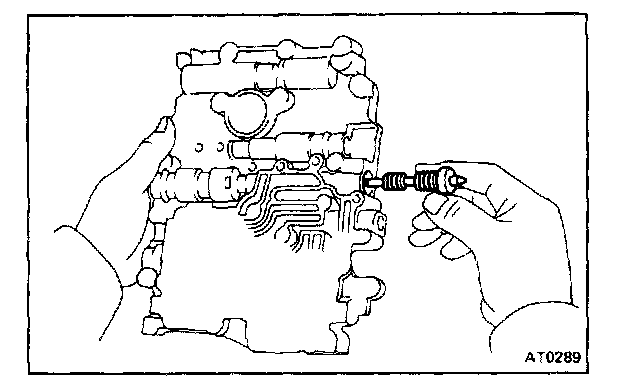

2. INSTALL SECONDARY REGULATOR VALVE

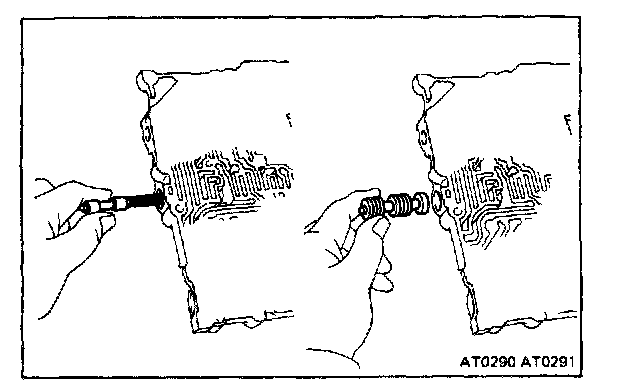

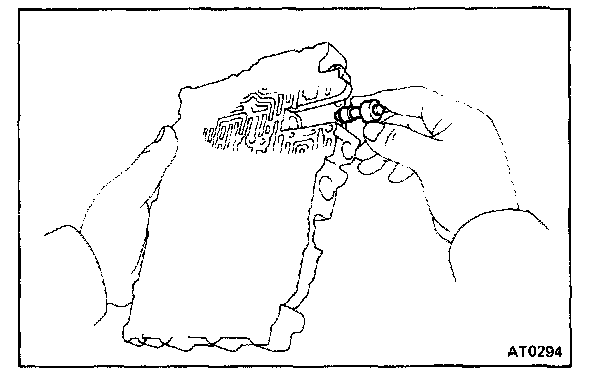

a. Install the spring and valve.
b. Install the plug and retainer.




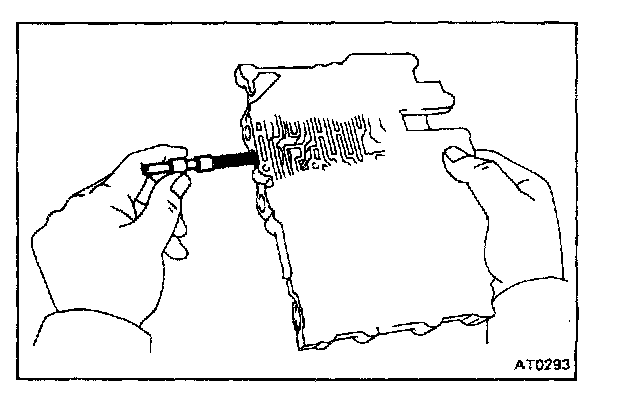

3. INSTALL 1-2 SHIFT VALVE
a. Install the spring and upper valve.
b. Install the lower valve flat end first.
c. Install the plug and retainer.

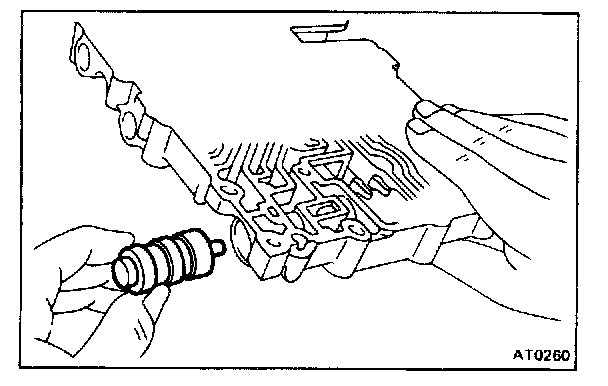

4. INSTALL LOW COAST SHIFT VALVE
a. Install the valve small end first.
b. Install the plug and retainer.




5. INSTALL OVERDRIVE SEQUENCE VALVE
a. Install the spring and valve.
b. Install the plug and retainer.

6. INSTALL DETENT REGULATOR VALVE




a. Install the spring and detent regulator valve with small end first.




b. Install retainer.




7. INSTALL INTERMEDIATE SHIFT VALVE
a. Install the valve small end first.
b. Coat the retainer with petroleum jelly.
c. Install the plug flat end first and install the retainer.




8. INSTALL 2-3 SHIFT VALVE
a. Install the spring and valve.
b. Install the plug and retainer.




9. INSTALL LOCK-UP SIGNAL VALVE
a. Install the spring and valve.
b. Install the plug and pin.

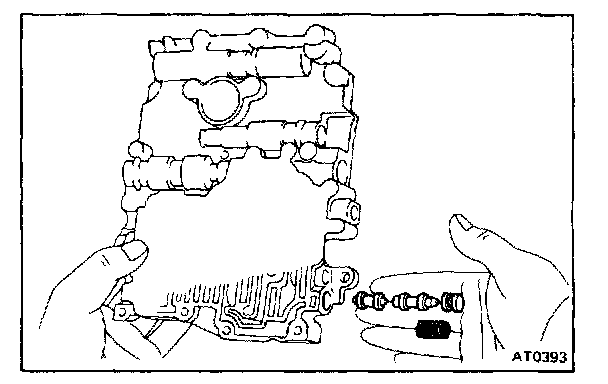

10. INSTALL THIRD COAST SHIFT VALVE
a. Install the two valves as shown.
b. Install the spring.
c. Install the plug and retainer.




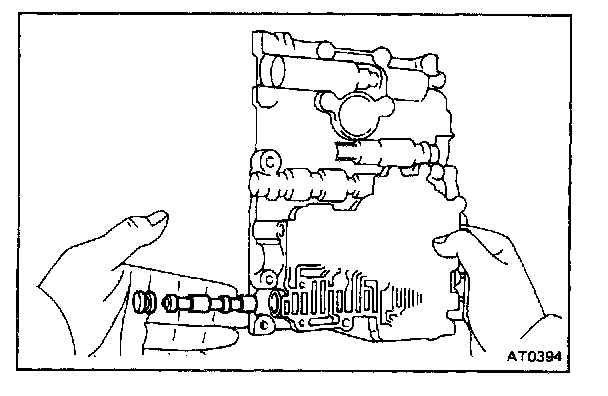

11. INSTALL 3-4 SHIFT VALVE
a. Install the valve flat end first.
b. Install the plug and retainer.

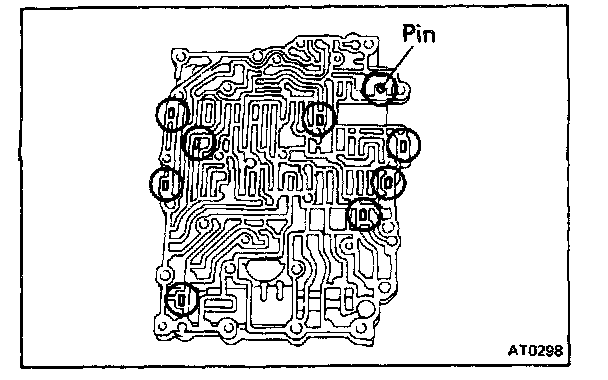

12. CHECK RETAINERS AND LOCATING PIN
Make sure that the retainers and pin are installed correctly.

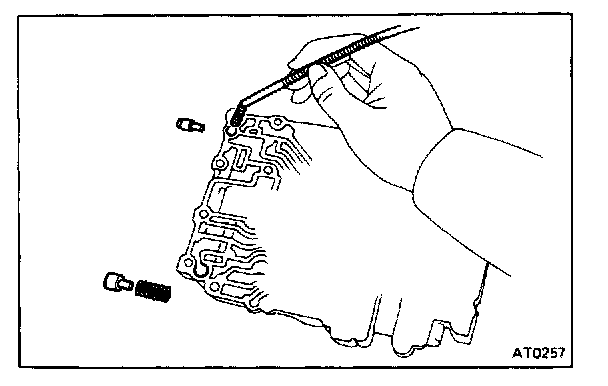

13. INSTALL SPRING AND COOLER BY-PASS VALVE
14. INSTALL SPRING AND PRESSURE RELIEF VALVE

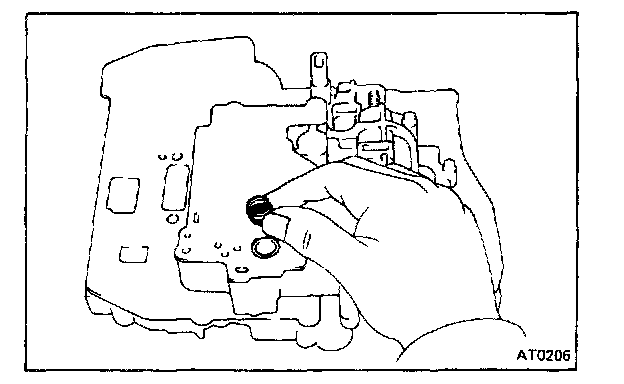

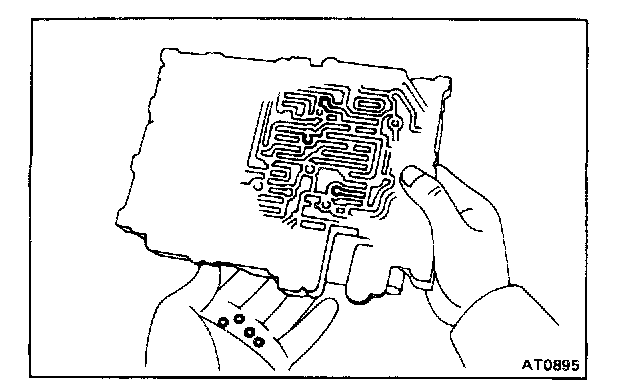

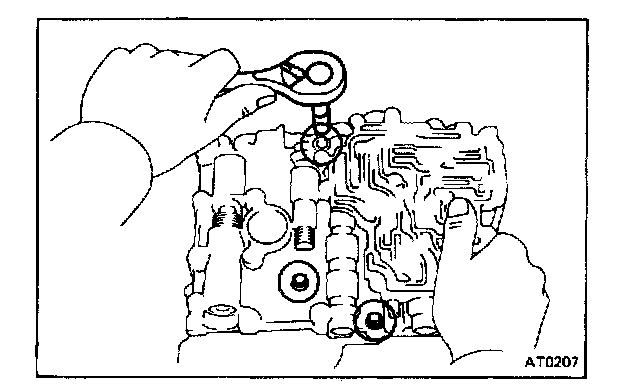

15. INSTALL THE FOUR CHECK BALLS AS SHOWN
Install the four rubber balls in the position shown in the figure.

INSPECTION OF LOWER VALVE BODY







INSPECT VALVE SPRINGS
Check for damage, squareness, rust and distorted coils.

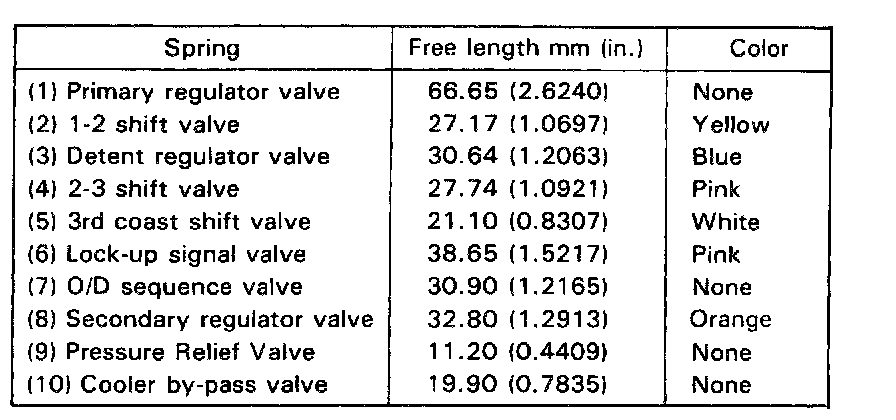

Measure the spring free height and replace if less than that shown below.




ASSEMBLY OF VALVE BODY






NOTE: Install the lower valve body on the upper valve body together with the plate.

1. POSITION NEW GASKET AND PLATE ON LOWER VALVE BODY

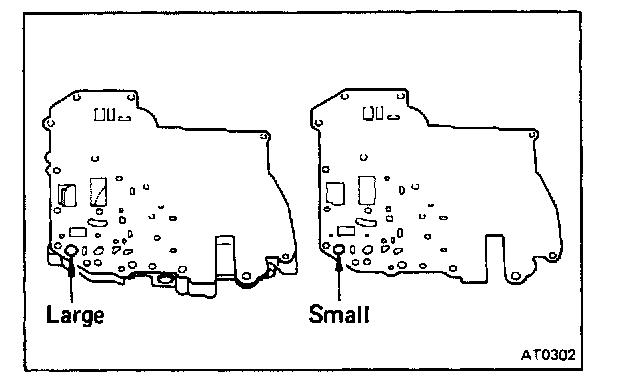

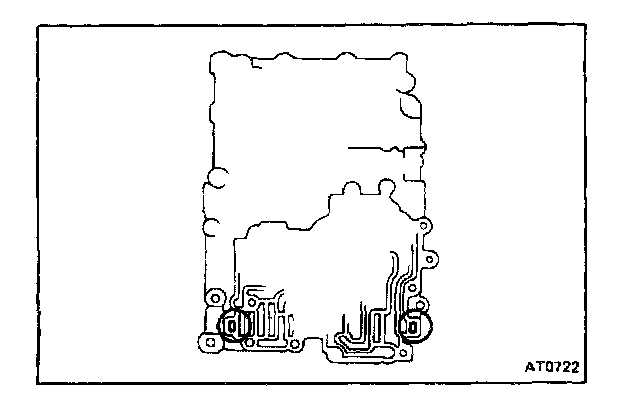

NOTE: As shown at left, assembly the large cooler bypass valve hole to the lower valve body.




a. Place the gasket and plate onto the lower valve body.
b. Align each bolt hole in the valve body with the gasket and plate.

2. POSITION NEW GASKET ON UPPER VALVE BODY
Align the gasket at each bolt hole.

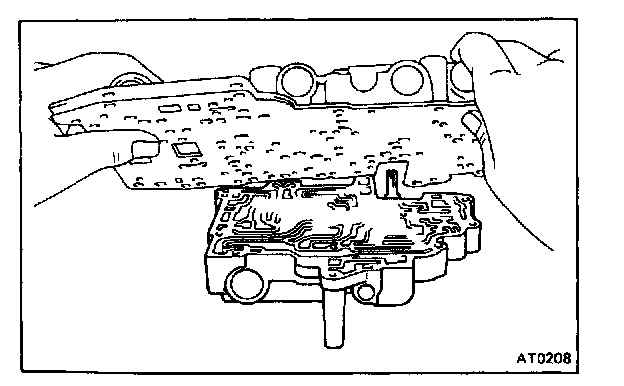

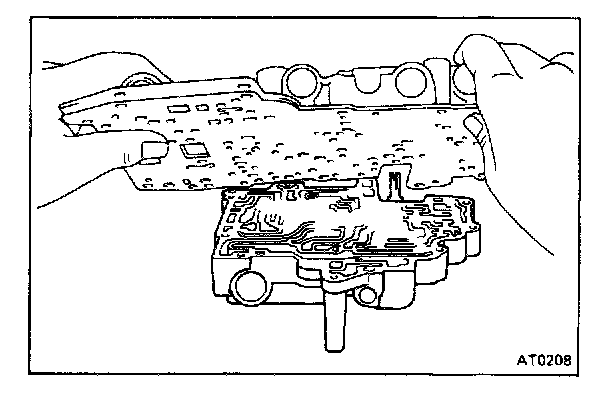

3. PLACE LOWER VALVE BODY WITH PLATE ON TOP OF UPPER VALVE BODY

NOTE: Hold the lower valve body and plate securely so they do not separate.

Align each bolt hole in the valve bodies with a gasket and plate.

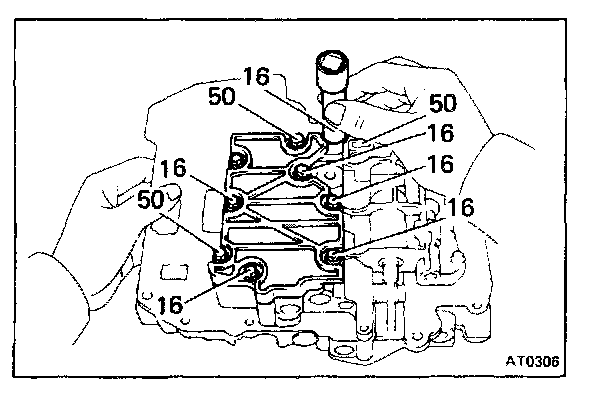

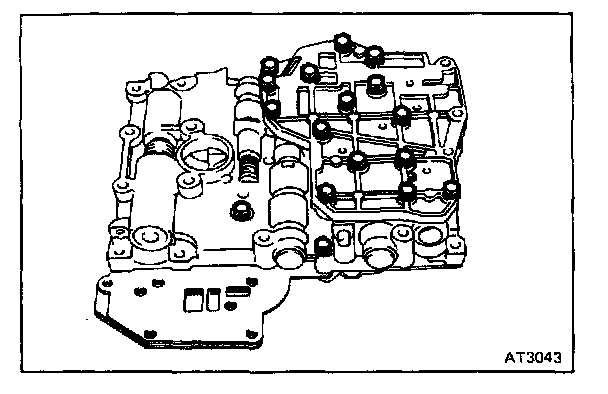

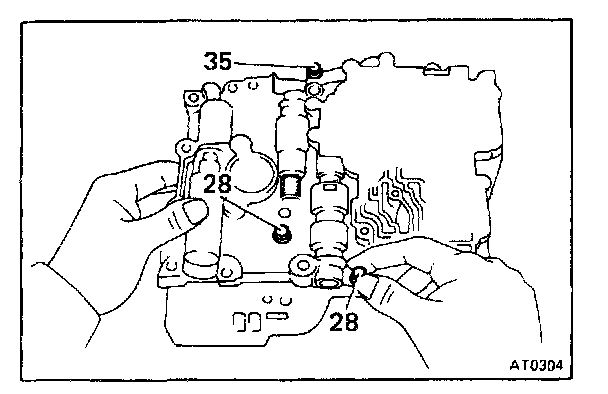

4. INSTALL AND FINGER TIGHTEN THE THREE BOLTS IN LOWER VALVE BODY TO SECURE UPPER VALVE BODY

NOTE: Each bolt length (mm) is indicated in the figure

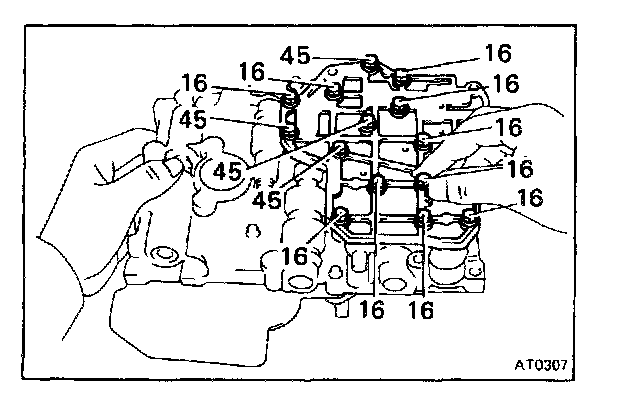

5. TURN ASSEMBLY OVER AND FINGER TIGHTEN THE THREE BOLTS IN UPPER VALVE BODY

NOTE: Each bolt length (mm) is indicated in the figure.

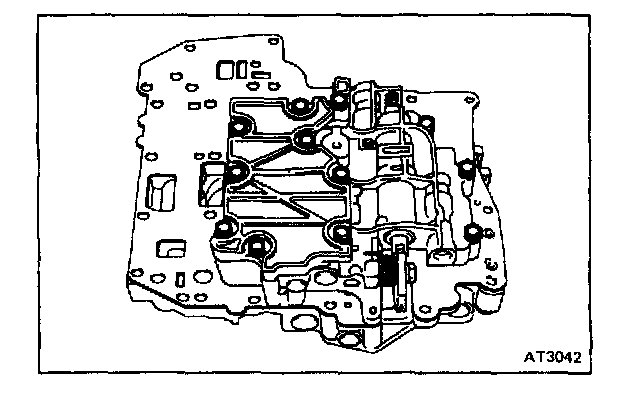

6. INSTALL UPPER VALVE BODY COVER AND STRAINER




a. Install the gasket, plate and gasket.
b. Install the strainer onto the plate.

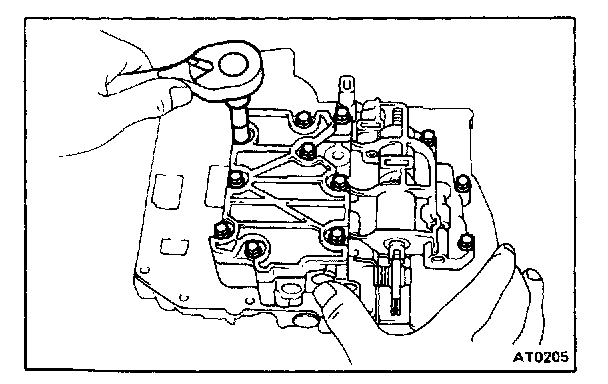

c. Install the valve body cover and finger tighten the nine bolts in valve body cover.

NOTE: Each bolt length (mm) is indicated in the figure.




7. INSTALL LOWER VALVE BODY COVER
a. Install the cover over the gasket.
b. Finger tighten the fourteen bolts.

NOTE: Each bolt length (mm) is indicated in the figure.




8. TIGHTEN BOLTS OF LOWER VALVE BODY COVER
Recheck the alignment of the gaskets.

Tighten the bolts.

Torque: 55 kg.cm (48 in.lb, 5.4 N.m)




9. TURN ASSEMBLY OVER AND TIGHTEN BOLTS IN UPPER VALVE BODY COVER

Tighten the bolts.

Torque: 55 kg.cm (48 in.lb, 5.4 N.m)
