Governor Valve

REMOVAL OF GOVERNOR VALVE

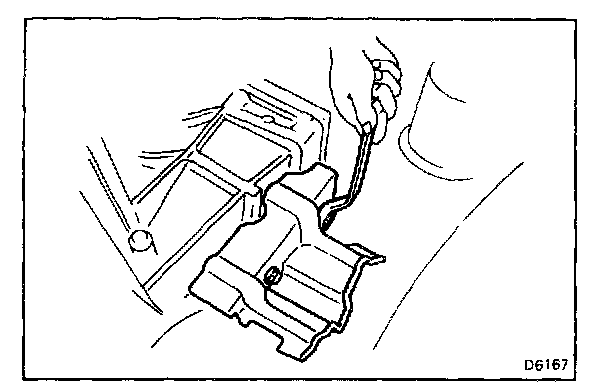

1. REMOVE TRANSAXLE PROTECTOR
2. REMOVE LH DRIVE SHAFT

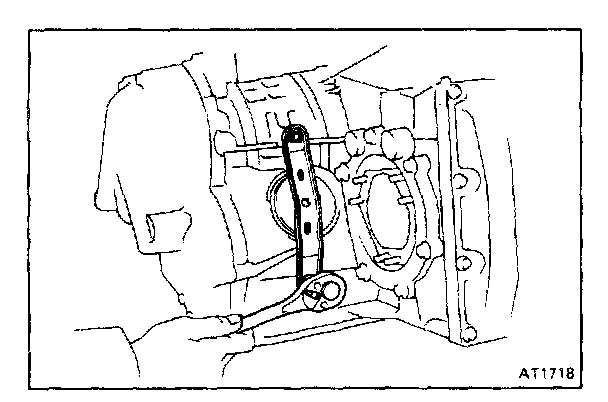

3. REMOVE BOLTS AND BRACKET
4. REMOVE GOVERNOR COVER AND O-RING

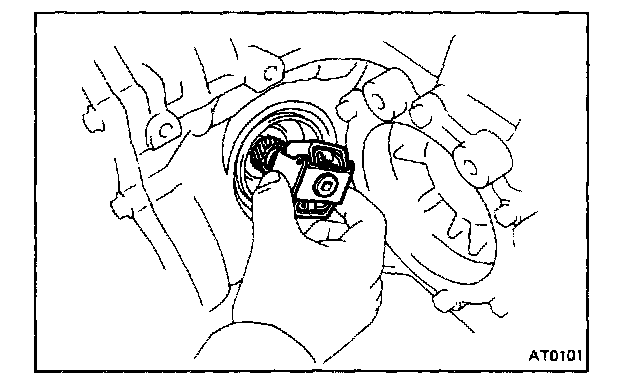

5. REMOVE GOVERNOR BODY. THRUST WASHER AND PLATE WASHER




6. REMOVE GOVERNOR BODY ADAPTOR

INSTALLATION OF GOVERNOR VALVE

1. INSTALL GOVERNOR BODY ADAPTOR

2. INSTALL GOVERNOR BODY, PLATE WASHER AND THRUST WASHER

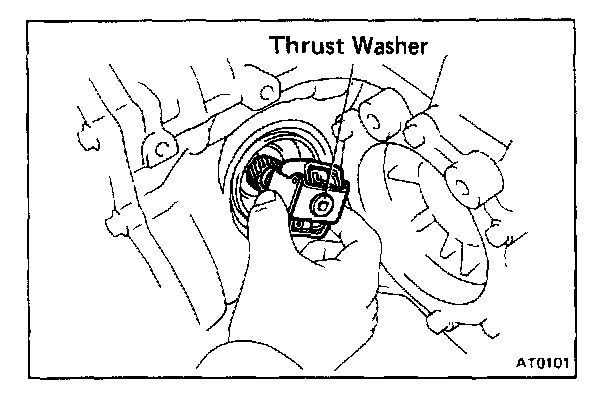

a. Install the thrust washer onto the governor body.

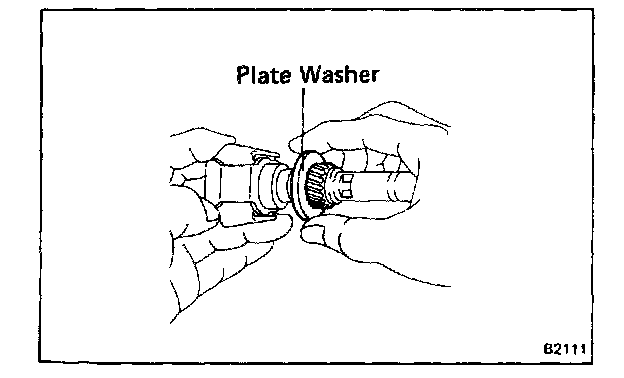

b. Install the washer into the governor body.




c. Install the governor body to the automatic transaxle.




3. INSTALL GOVERNOR COVER AND NEW O-RING
4. INSTALL BRACKET AND BOLTS
5. INSTALL TRANSAXLE PROTECTOR
6. INSTALL LH DRIVE SHAFT
