Governor: Service and Repair

REMOVAL OF GOVERNOR PRESSURE ADAPTOR

1. REMOVE MANUAL VALVE LEVER AND SHAFT

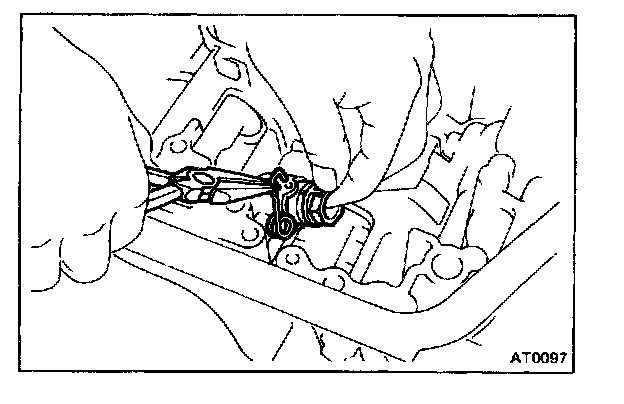

2. REMOVE TORSION SPRING
3. REMOVE GOVERNOR PRESSURE ADAPTOR




INSTALLATION OF GOVERNOR PRESSURE ADAPTOR

1. INSTALL GOVERNOR PRESSURE ADAPTOR INTO CASE

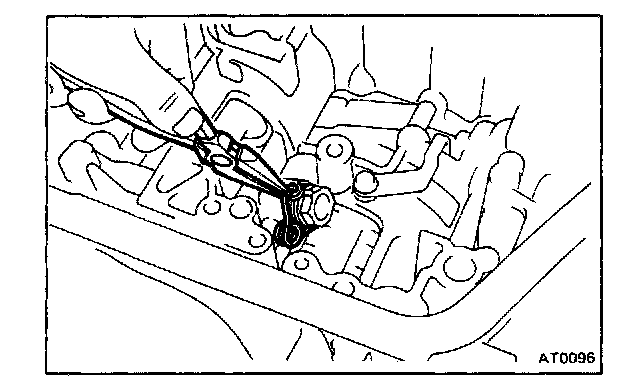

2. INSTALL TORSION SPRING
a. Align the hole of adaptor with the hole of case and install the torsion spring.
b. Check that the adaptor does not slide or the spring fall out when pulled by hand.

3. INSTALL MANUAL VALVE LEVER AND SHAFT
