M/T - Clicking Sound When Initially Accelerating R/1st
88toyota03REFERENCE: Transmission & Clutch
NUMBER: 008
DATE: 02-19-88
MODEL: Celica (ST), Camry (SV)
TITLE: MANUAL TRANSAXLE CLICKING SOUND (S50 SERIES)
To resolve a "click"-type sound from the transaxle when initially accelerating the vehicle in either first or reverse gears, the design of the No. 1 Clutch Hub has been changed to reduce the clearance between the splines of the hub and output shaft (see illustration below).

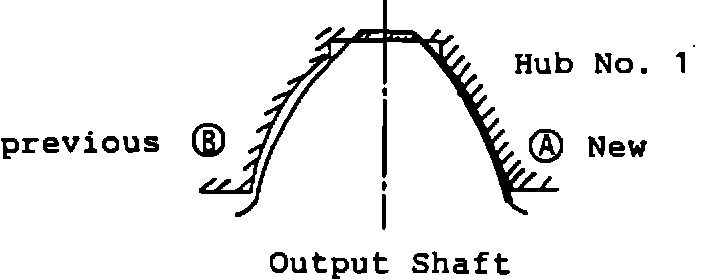

Cross-sectional View of the Hub and Output Shaft
PRODUCTION EFFECTIVE:
From VIN Production Date
JT2SV21E#H3103869 March, 1987
JT2SV21W#H0048537 March, 1987
JT2ST6#*#H7135797 March, 1987
PART NUMBER INFORMATION:
Part Name Previous Part No. New Part No.
Hub, clutch no. 33361-32010 33361-32011*
*New part interchangeable with previous part
