Instruments - Speedometer Drive Cable Noise

88toyota08

REFERENCE: NVH
NUMBER: 001
DATE: 05-13-88
MODEL: ST
TITLE:
SPEEDOMETER DRIVE CABLE NOISE


CONDITION: Speedometer drive cable No. 2 clatter/noise (P/N 83710-20530)

CAUSE: The outer casing of the No. 2 speedometer drive cable transmits clatter/noise from the speedometer cable into the passenger compartment.

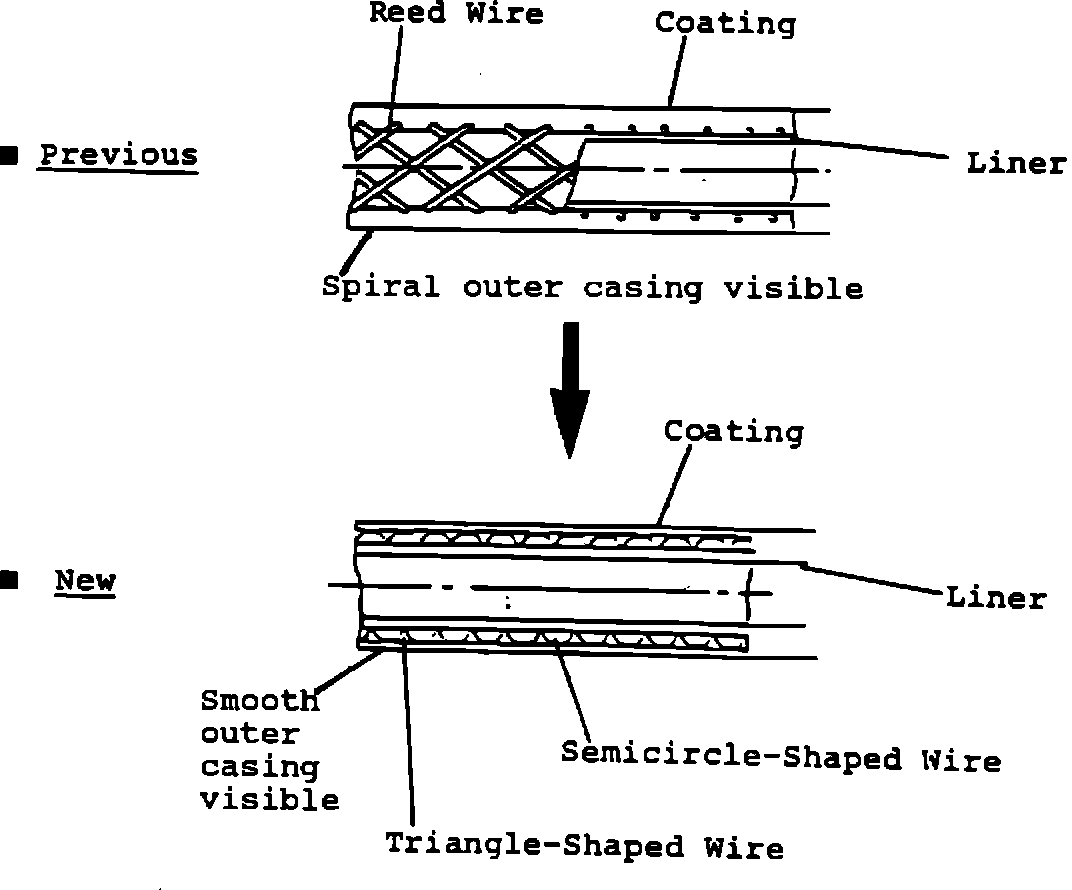

CORRECTION: The design of the outer casing of No. 2 speedometer drive cable has been changed as shown below:
IDENTIFICATION:

PREVIOUS CABLE: Spiral outer casing visible

NEW CABLE: Smooth outer casing visible


PRODUCTION EFFECTIVE: FROM FRAME No.:

August, 1987 ST162-7183253

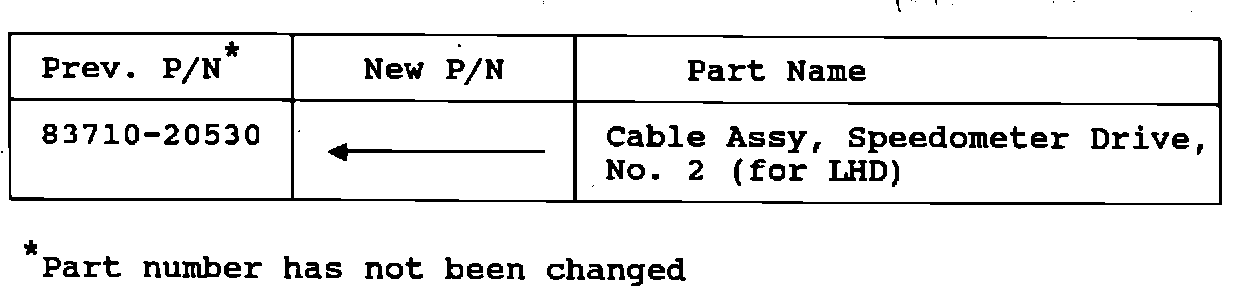

PART NUMBER INFORMATION:
