Home >> Toyota >> 1988 >> Celica 2WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Locations

Radiator Cooling Fan Motor Relay: Locations

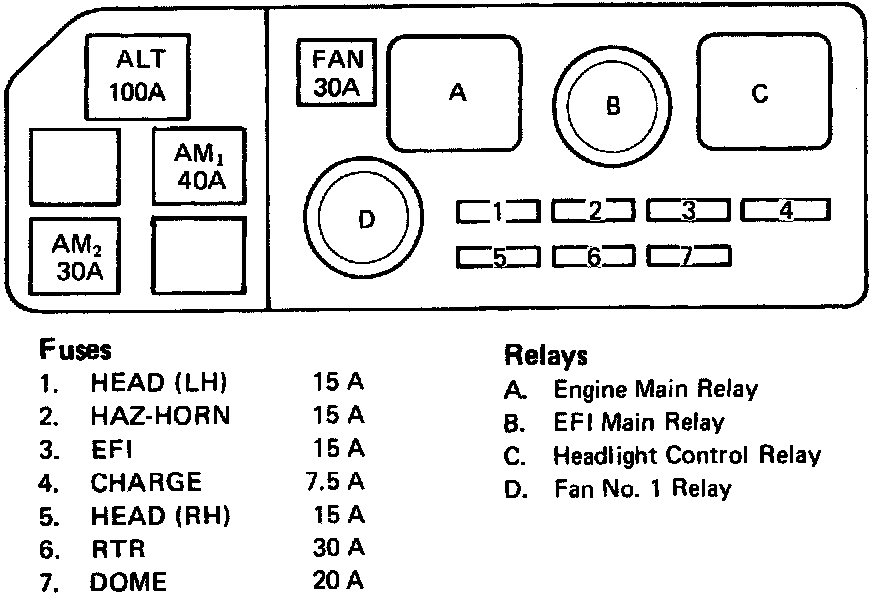

FUSE AND RELAY BLOCK NO.2 (LOCATION: Engine Compartment)
