Inspection of Diagnosis Circuit
INSPECTION OF DIAGNOSIS SYSTEM CIRCUIT

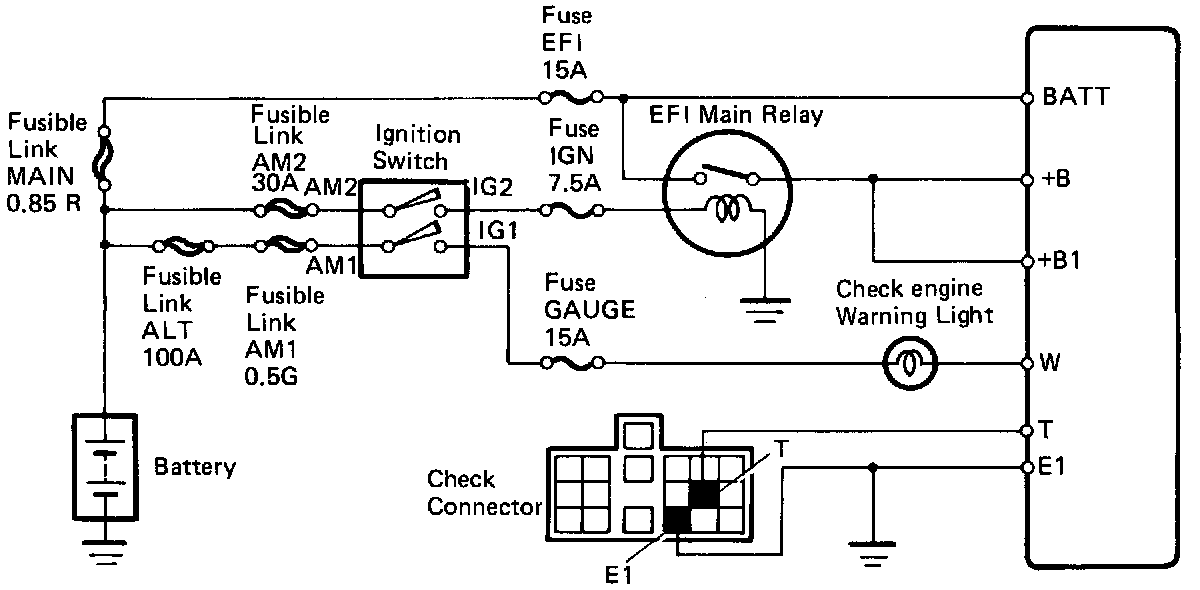

Diagnosis Circuit Part No. 1:

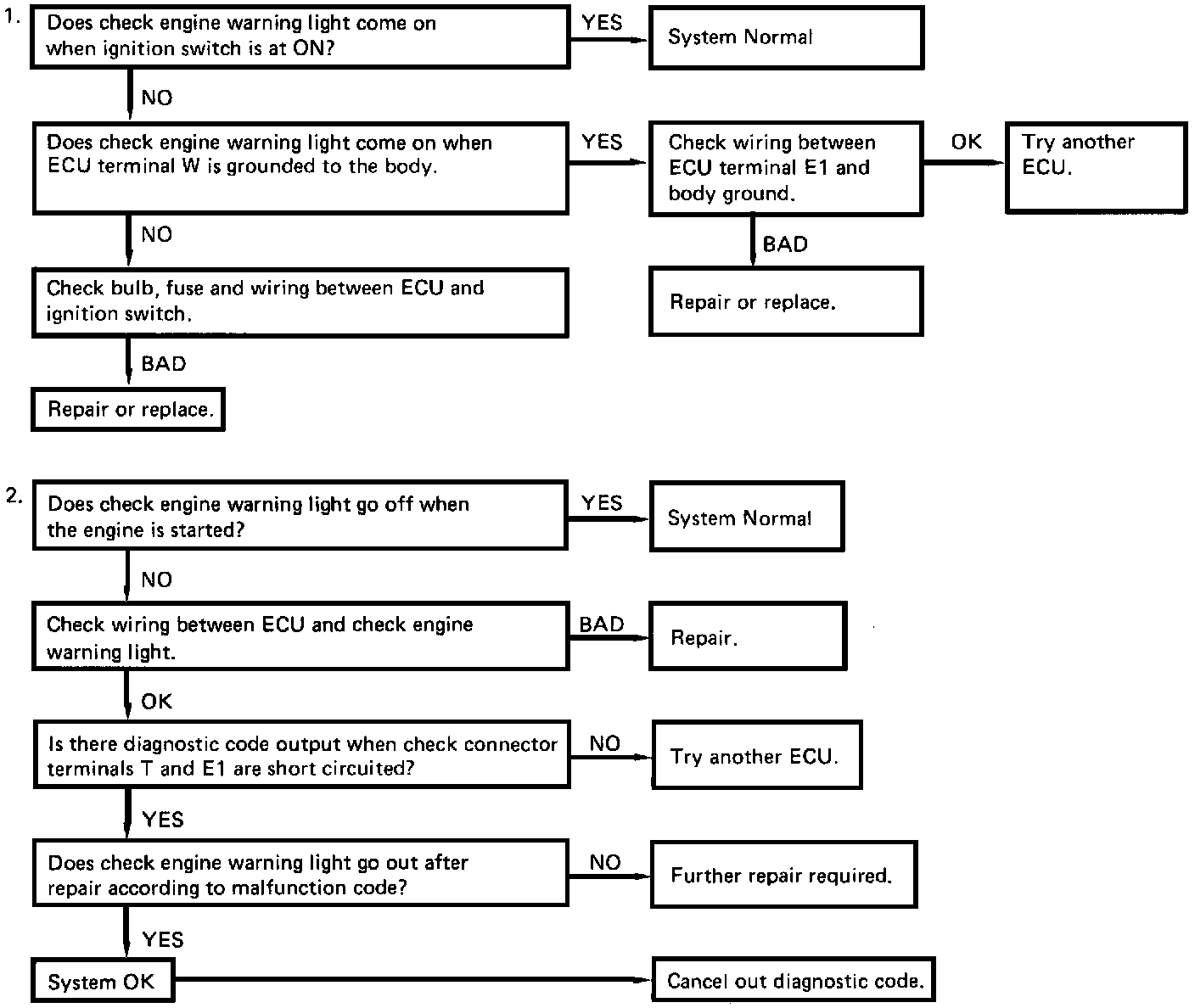

Diagnosis Circuit Part No. 2:
