Wiring Diagram

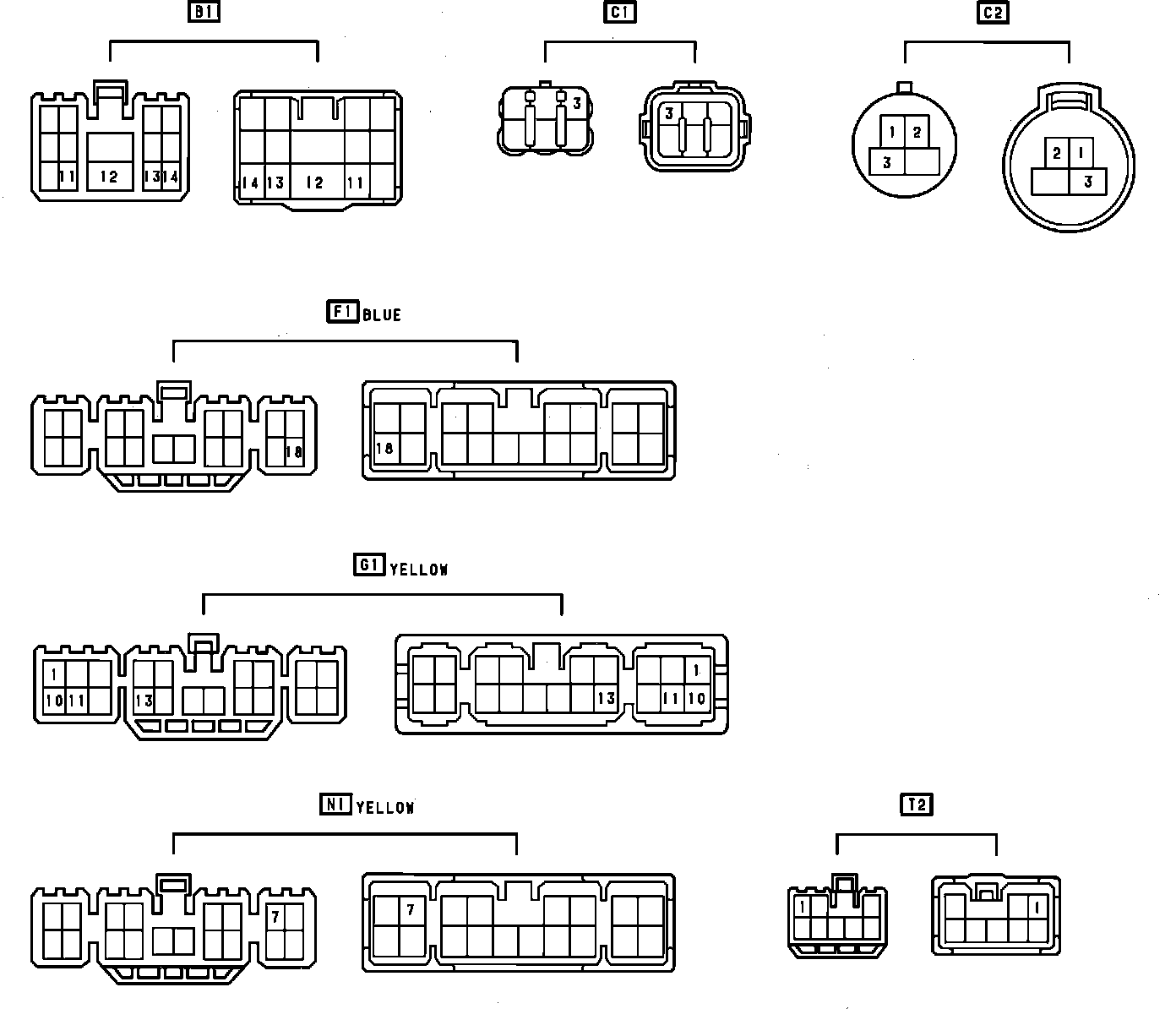

Fig. 255 EFI Wiring Diagram:

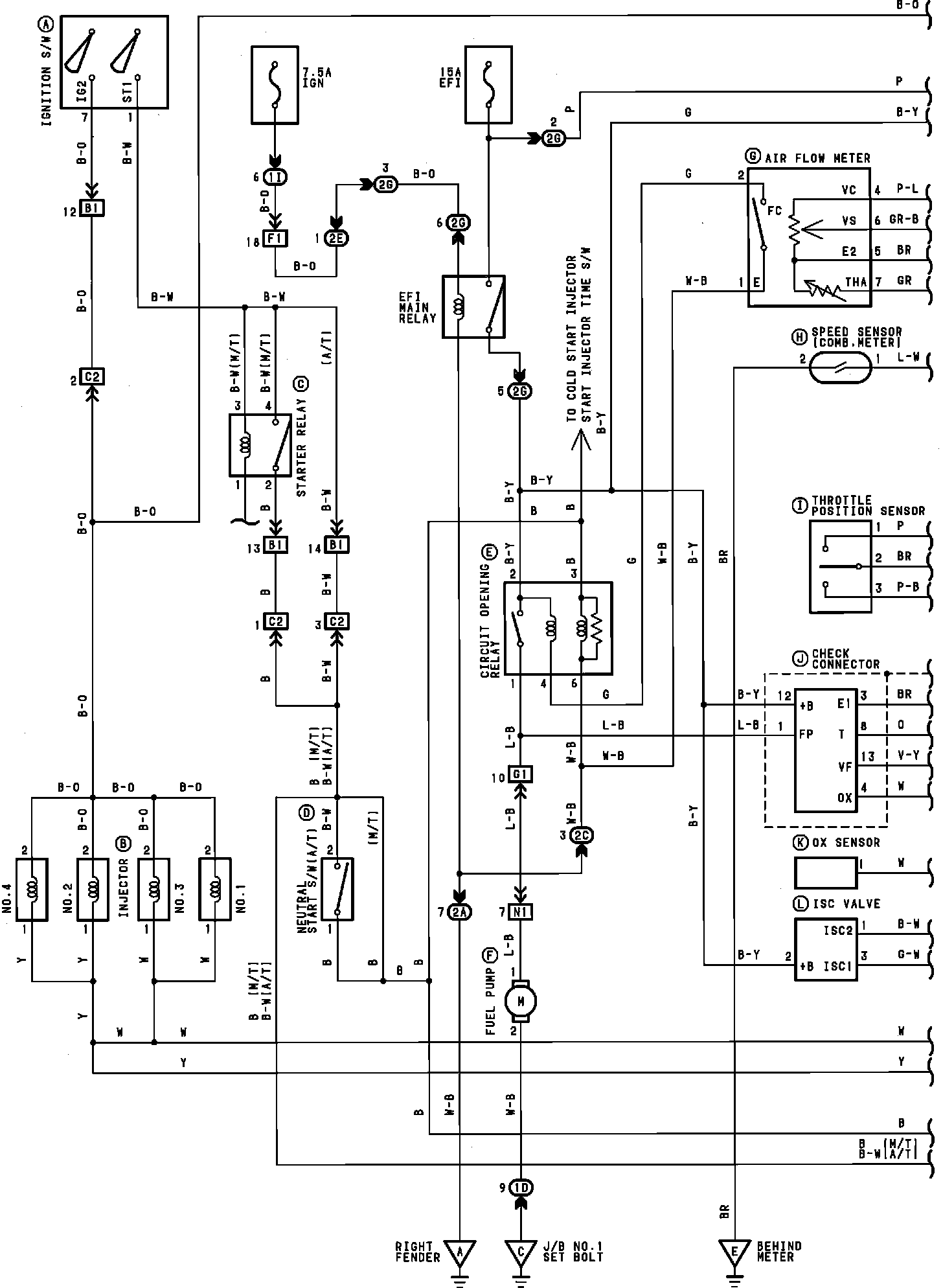

Fig. 256 EFI Wiring Diagram:

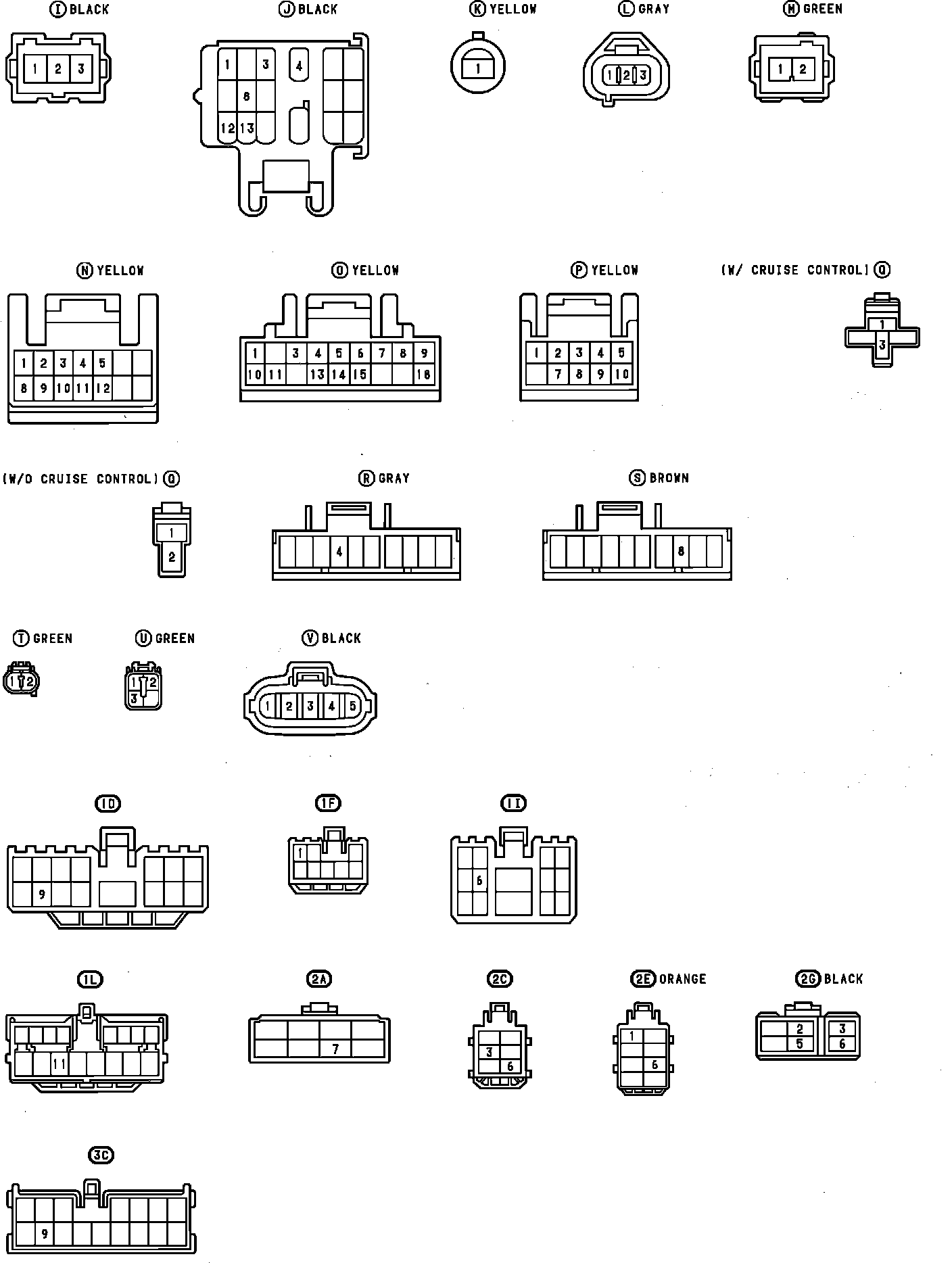

Fig. 257 EFI Wiring Diagram:



Fig. 258 EFI Wiring Diagram:



Fig. 259 EFI Wiring Diagram:
