Engine - Oil Filter Design Change
87toyota9 REFERENCE ENGINENUMBER 13 (REV)
DATE 03-02-88
MODEL SV, ST
TITLE "S" SERIES ENGINE OIL FILTER DESIGN CHANGE

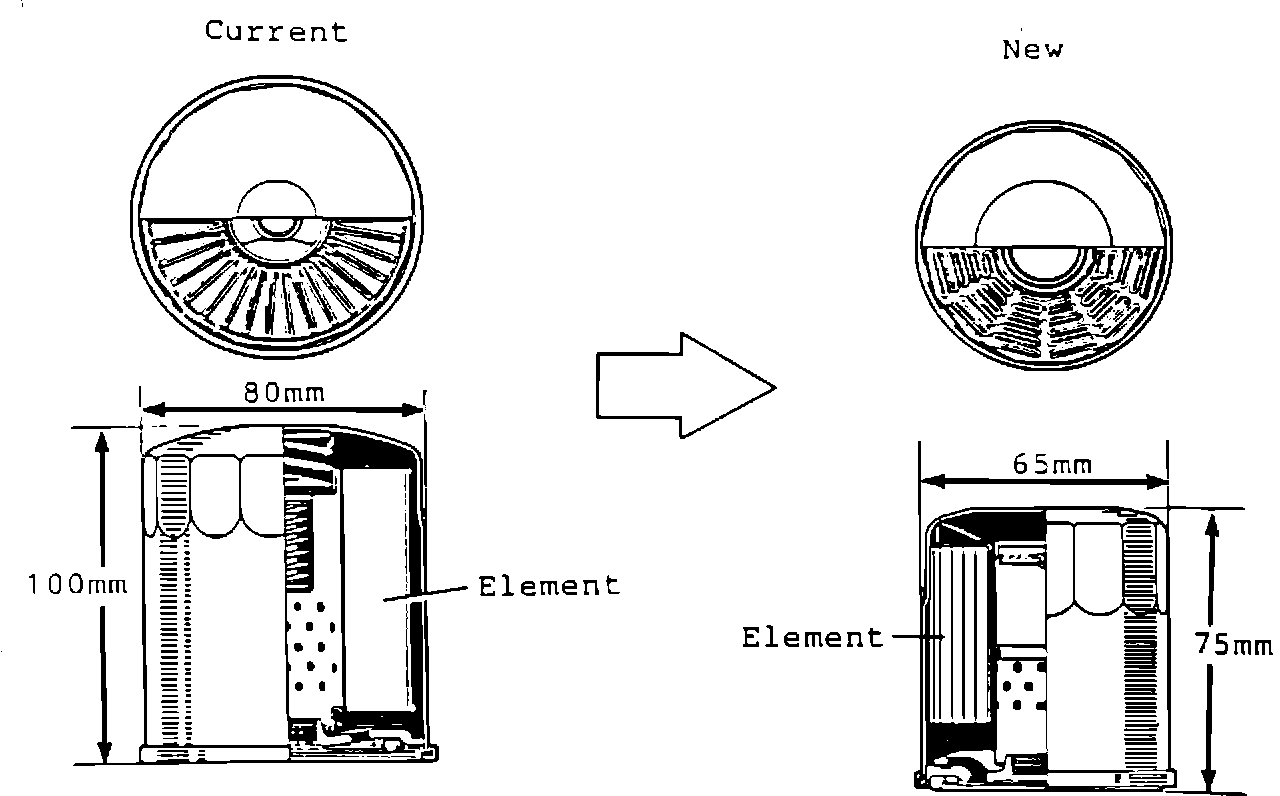

For part standardization and to facilitate oil filter replacement, the oil filter has been changed to a new smaller design (see fig. below).
Note: Oil filter performance remains unchanged.
Production Effective:
Starting VIN Production Date
JT2SV2#E*J0097265 Aug., 1987
JT2SV2#E*J3179304 "
JT2SV2#W*J0097265 "
JT2SV2#W*J3179304 "
JT2ST6#C*J7183253 "
JT2ST62K*J7183253 "
JT2ST6#L*J7183253 "
Note: All-Trac Celica and Camry will be from start of production
Part Number Information
E/G Previous P/N New P/N Part Name
3S-FE 15601-13011 to 90915-03001 Filter - Sub-Assy, Oil
3S-GE
3SGTE --- 90915-03002 Filter - Sub-Assy, Oil
New SST Information
To remove the redesigned oil filter, please use the following SST:
Part Number Part Name
09228-06500 Oil Filter Wrench
