Pressure/Temperature Relationship
Pressure/Temperature Relationship

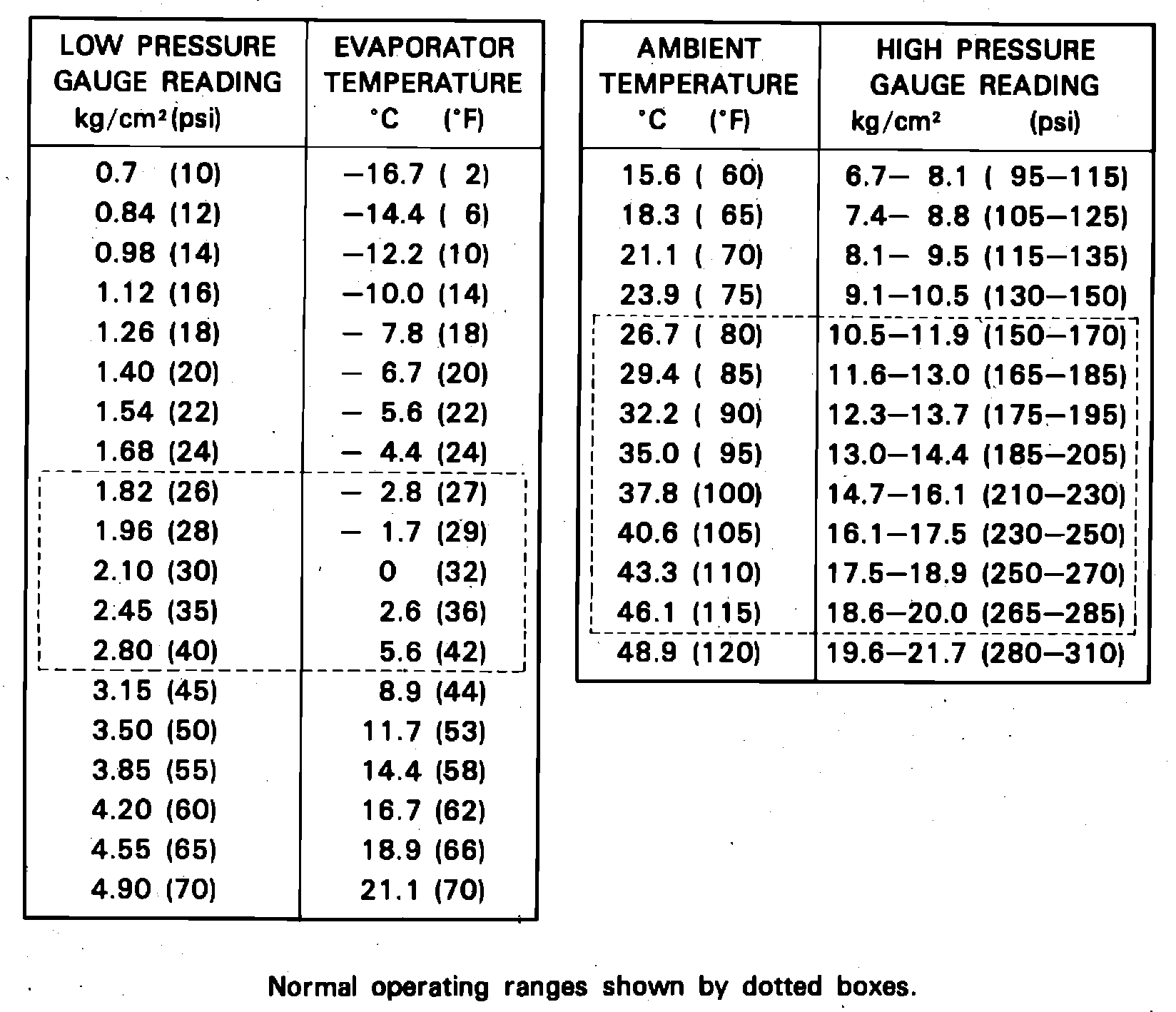

Fig. 3 Pressure/Temperature Relationship Chart:
