Charging System
Charging System

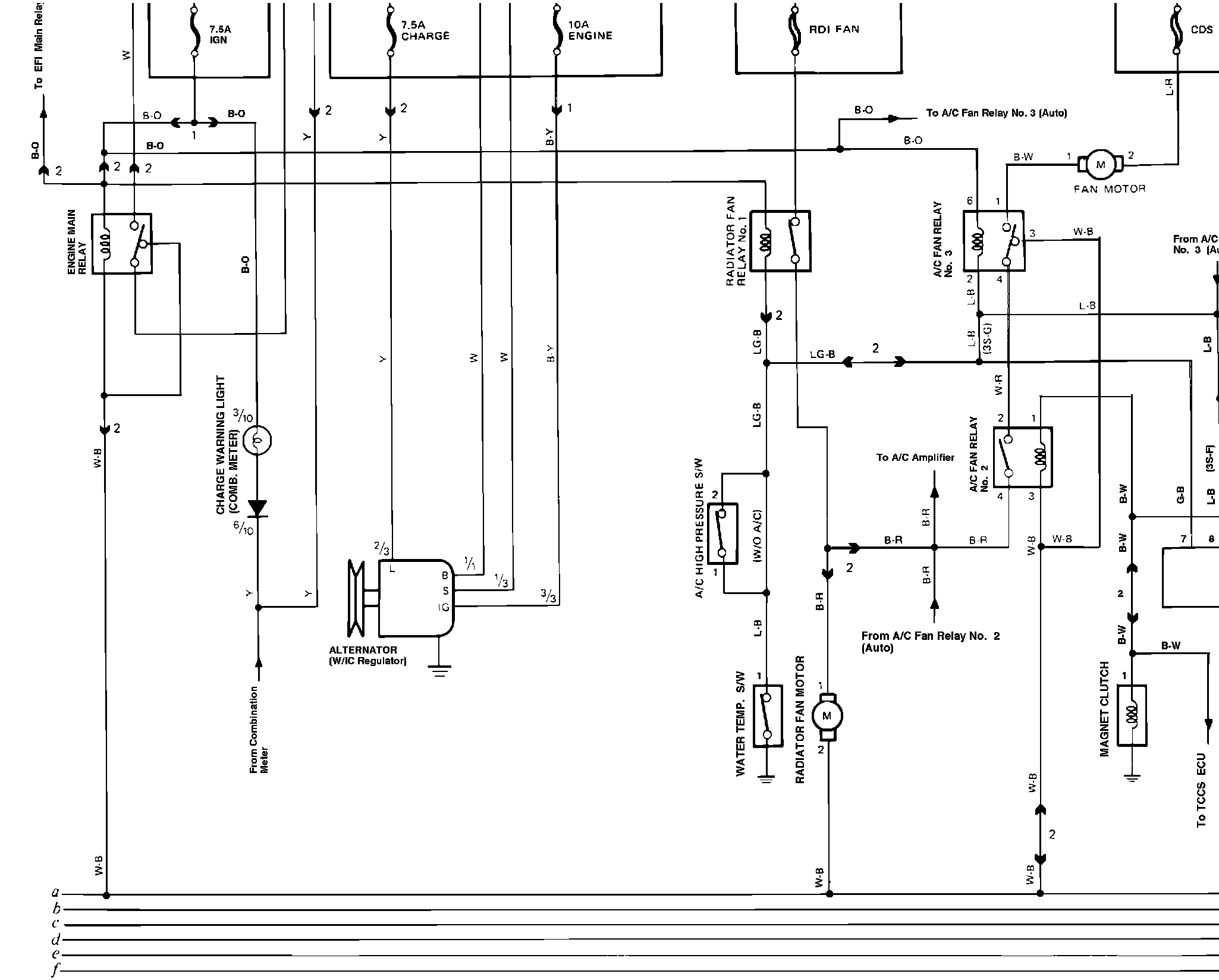

K�Lr�U��~�����˒Fig. 2bh Charging, Radiator Fan, Air Conditioner, Cooler and Heater, Front Wiper and Washer, Rear Wiper and Washer, Turn Signal and Hazard, Horn:
