Home
>>
Toyota
>>
1988
>>
Celica 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

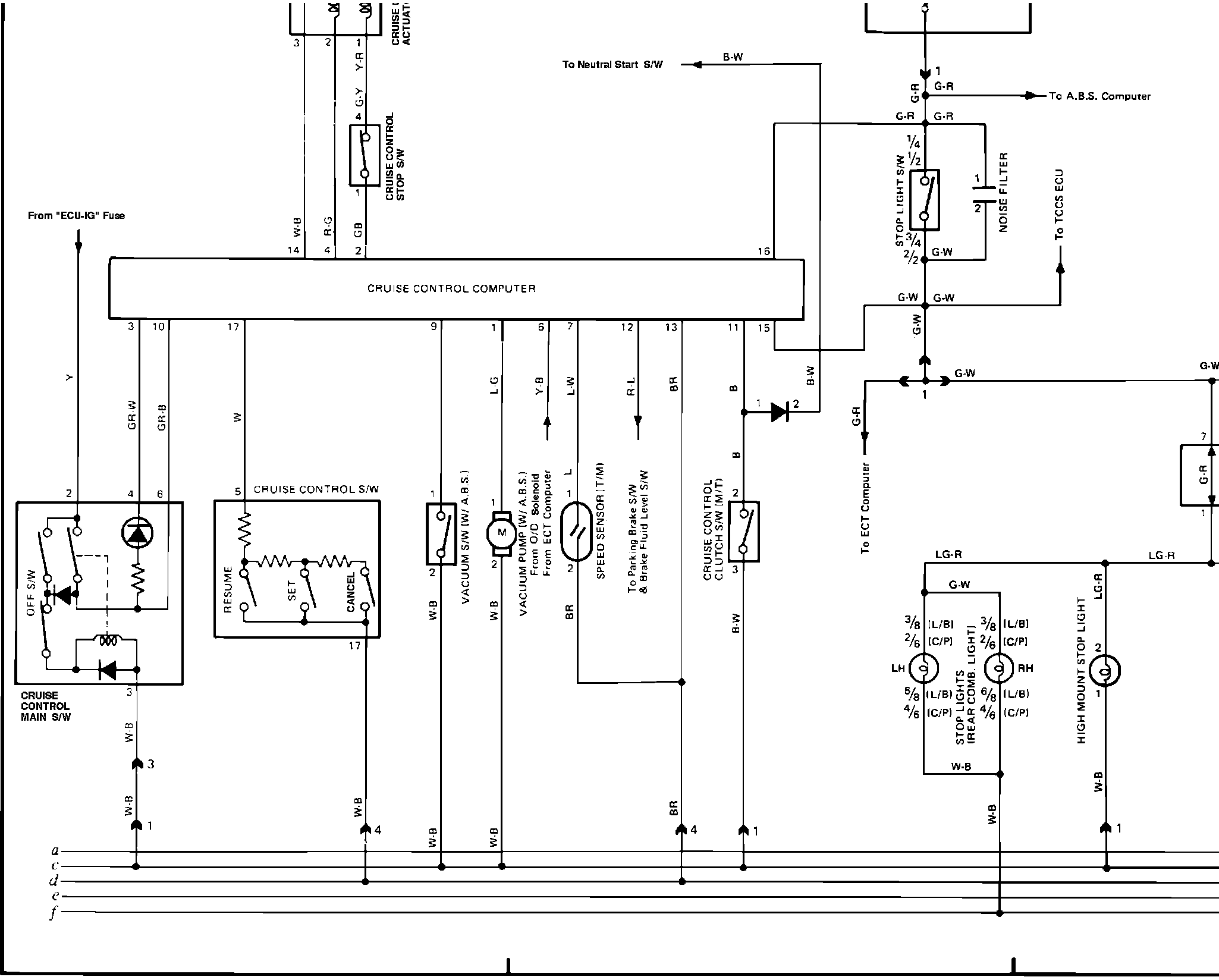

[���&�9B�)O��Y�R^�?c�Fig. 2eh Cruise Control, Stop Lights, Taillights and Illumination, Headlights:
