Engine Control System

DIAGNOSTIC CODE DESCRIPTIONS

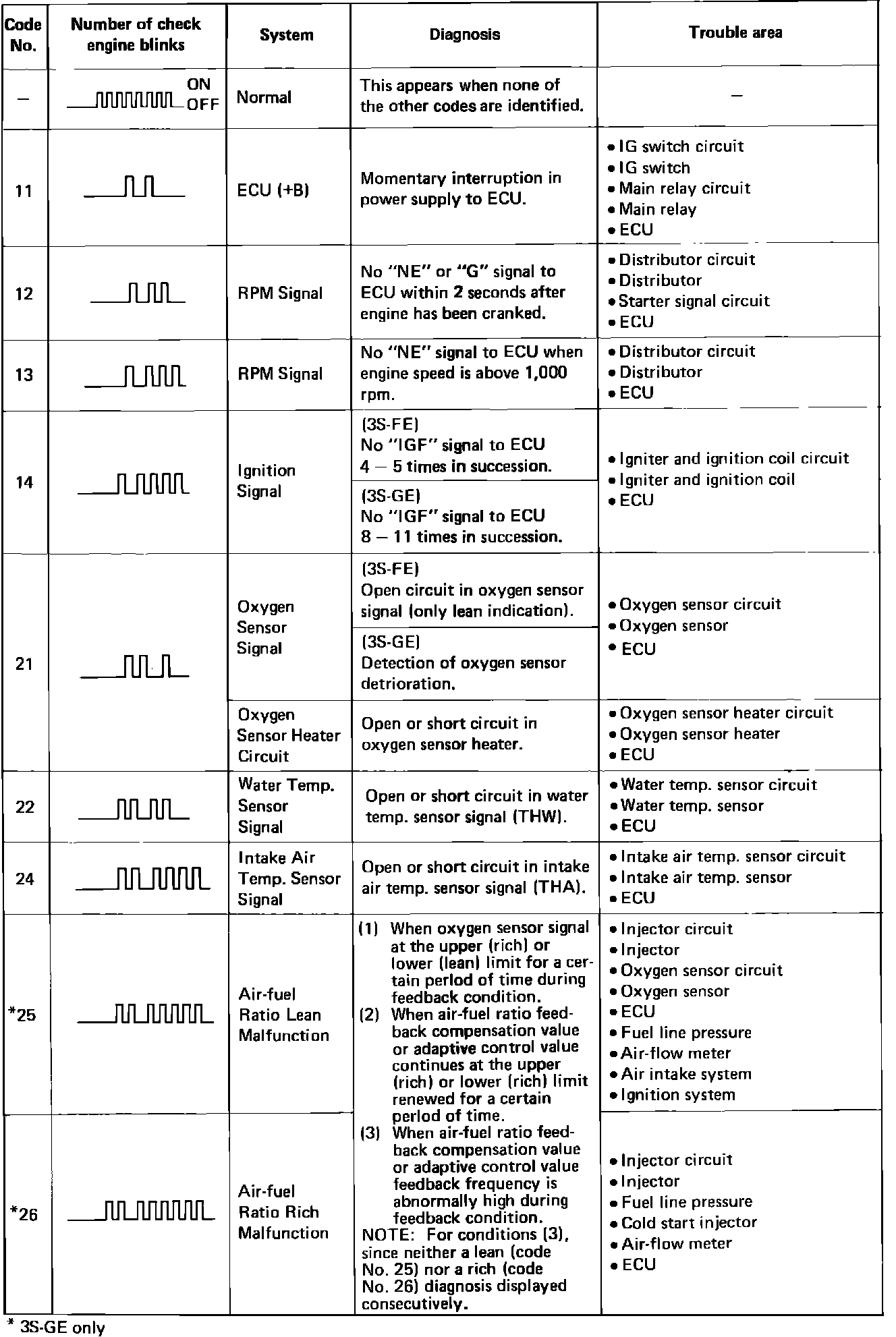

Diagnostic Codes 1 Of 2:

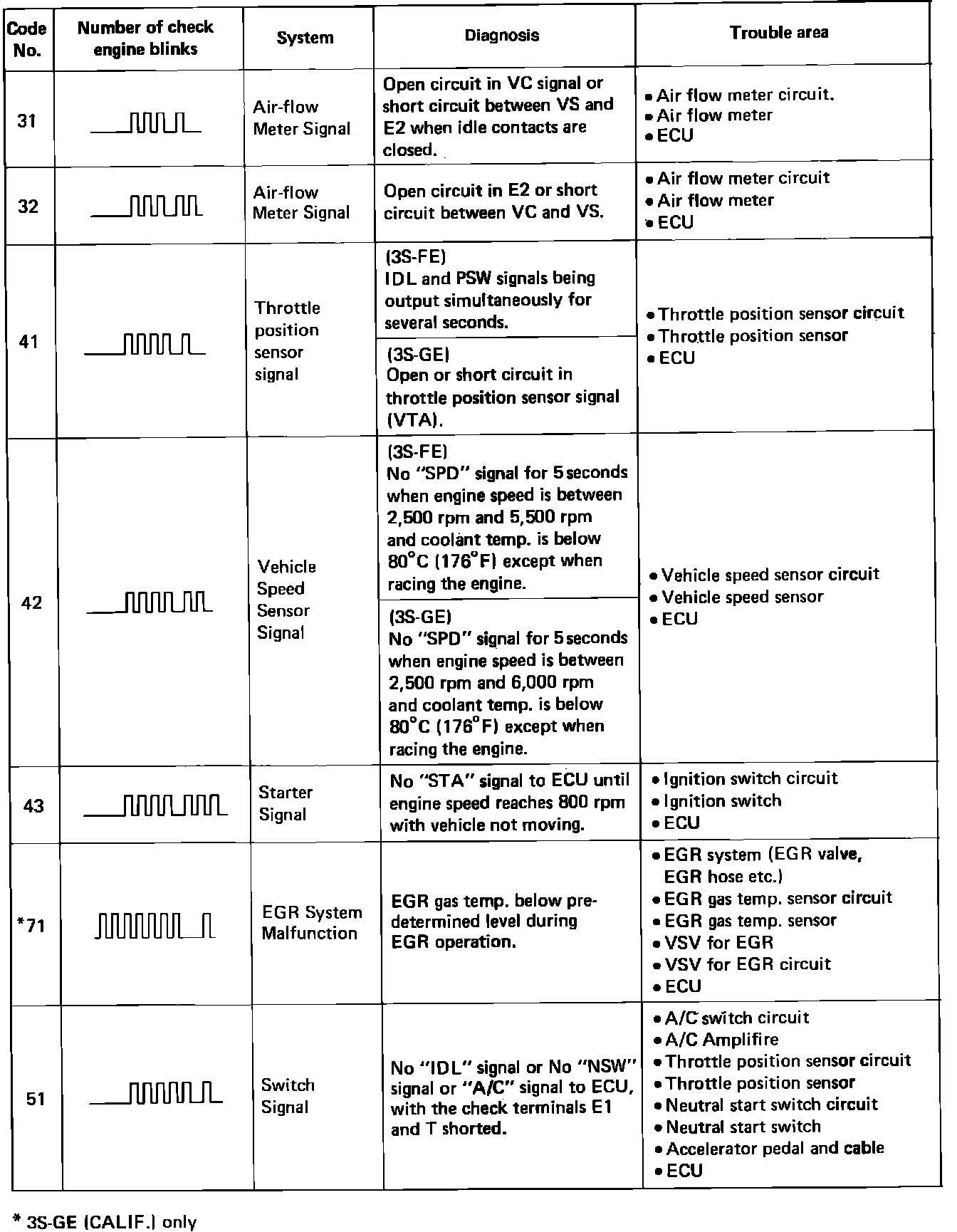

Diagnostic Codes 2 Of 2:

Diagnostic Code Reference Index:
Code 11 See Chart No. 1
Code 12 See Ignition System
Code 14 See Chart No. 4
Code 22 See Chart No. 10
Code 24 See Chart No. 9
Code 31 See Chart No. 8
Code 32 See Chart No. 8
Code 41 See Chart No. 3
Code 43 See Chart No. 5

NOTE: for information regarding diagnostic procedures please refer to Non-Trouble Code Diagnostic Procedures.

Component Tests and General Diagnostics
