Speed Sensor

REMOVAL OF SPEED SENSOR




1. REMOVE TRANSMISSION CASE PROTECTOR

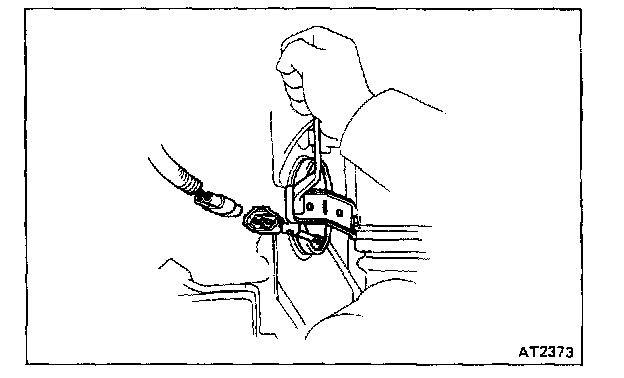

2. DISCONNECT SPEED SENSOR CONNECTOR
3. REMOVE BRACKET

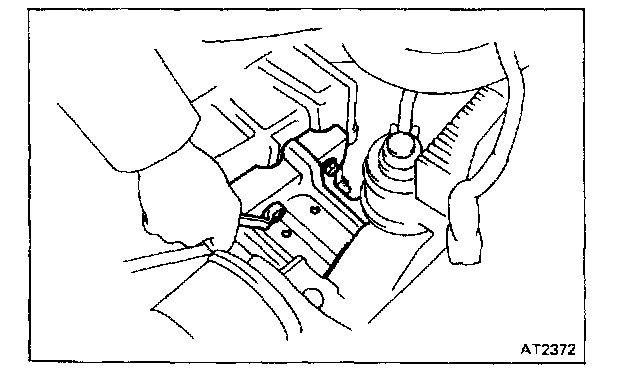

4. REMOVE SPEED SENSOR AND O-RING

INSPECTION OF SPEED SENSOR




INSPECT SPEED SENSOR

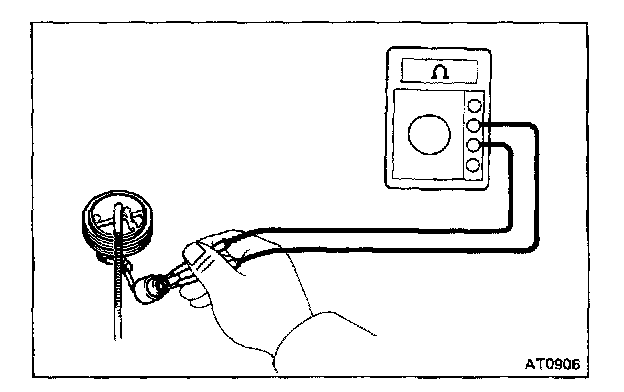

Connect an ohmmeter to the speed sensor and check that the meter deflects when the sensor is repeatedly brought close to a magnet and removed from it.

INSTALLATION OF SPEED SENSOR

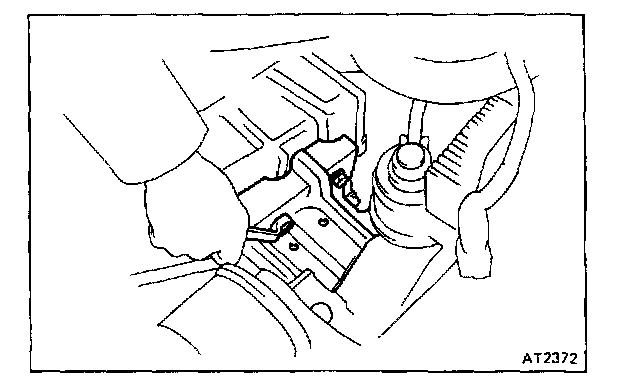

1. INSTALL SPEED SENSOR AND O-ring
2. INSTALL BRACKET

Torque: 130 kg.cm (9 ft.lb, 13 N.m)

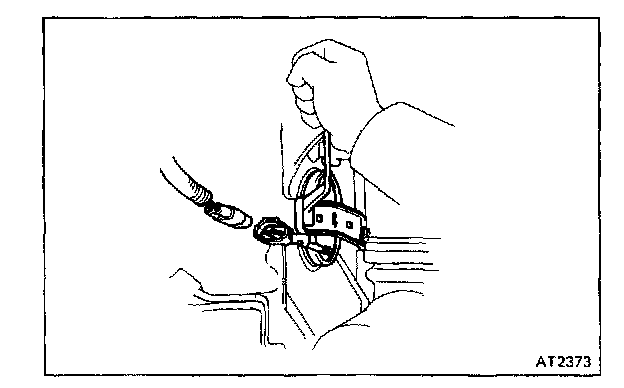

3. CONNECT SPEED SENSOR CONNECTOR




4. INSTALL TRANSMISSION CASE PROTECTOR
