Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1988
>>
Celica 2WD L4-1998cc 2.0L DOHC (3S-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
VF / Check Connector
VF / Check Connector

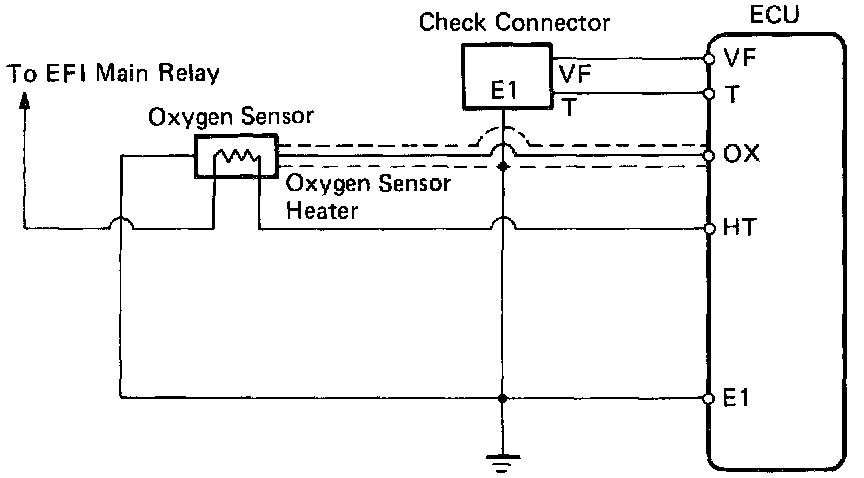

VF / CHECK CONNECTOR

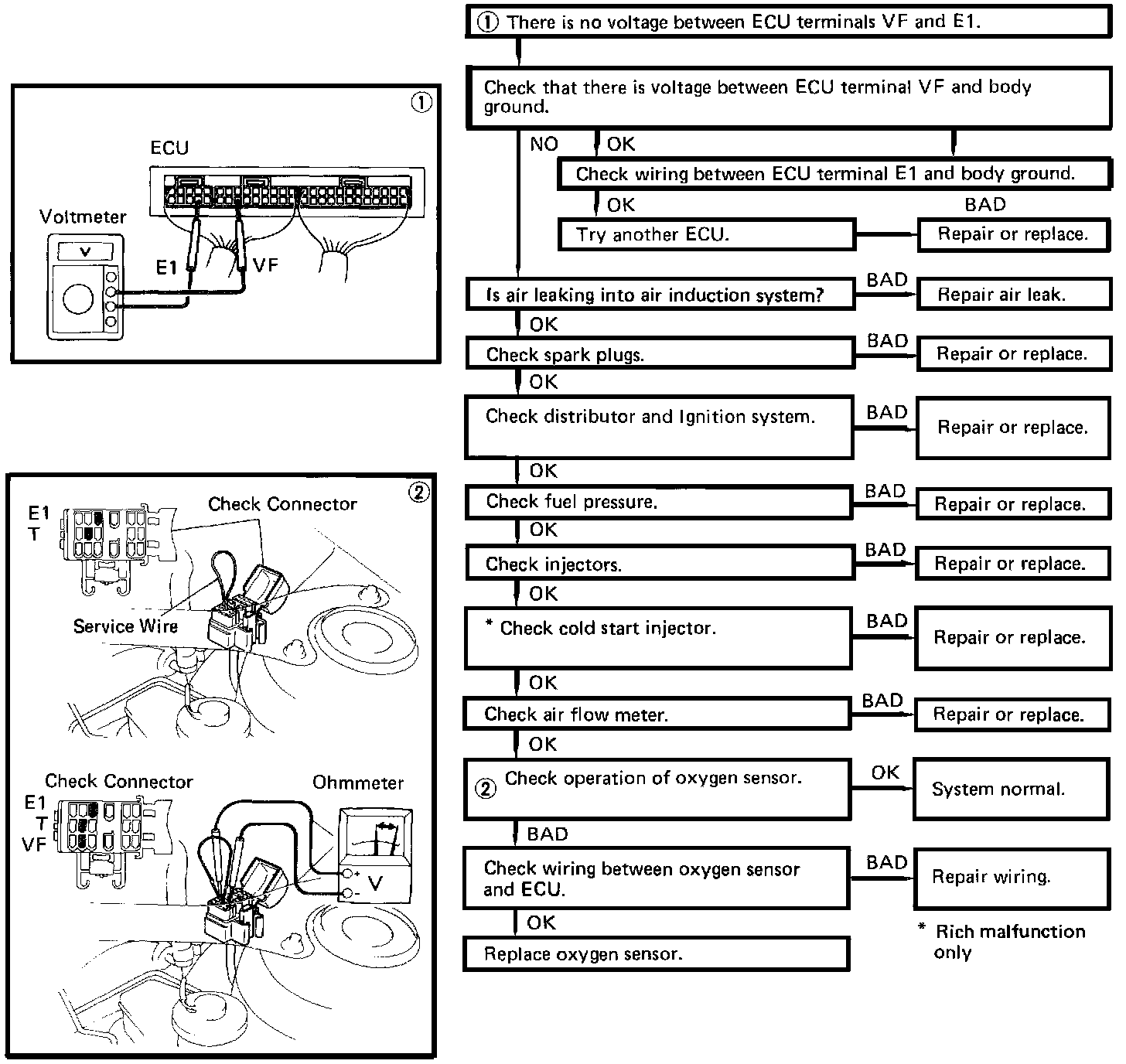

Part 1 of 2:
Part 2 of 2:
