Push Type Controls

Inspect A/C indicator light operation.

1. Connect the positive (+) battery lead to terminal B5 and the negative (-) battery lead to terminal B2.
2. With the A/C button pushed in, check that the indicator light is lit.

If operation is not as specified, replace the heater control.

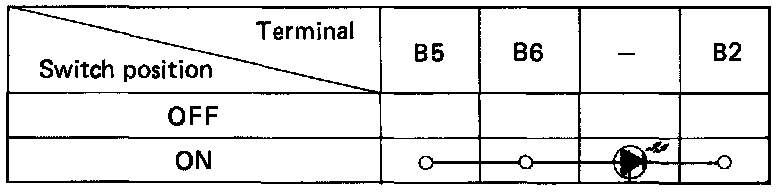

Inspect A/C switch continuity.

Inspect the A/C switch continuity between terminals.
