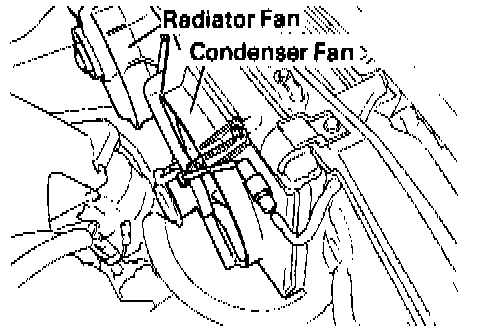

Condenser Fan: Testing and Inspection

INSPECTION OF FAN MOTORS

1. Check fan motors operation.

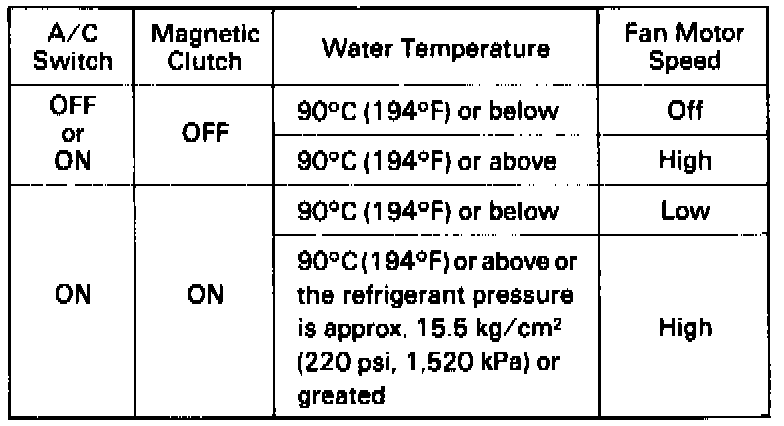

NOTE: The fan motors operate at two speeds depending on the water temperature and the A/C switch.





2. Inspection fan motor.

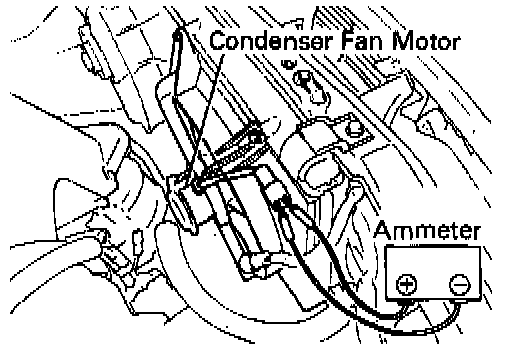

a. Disconnect 2-P connector of the fan motor.
b. Using wire harness, apply battery voltage to the connector.
c. Confirm smooth rotation of the motor within the specified current flow.
Standard current: 6.6 +/- 0.8 Amperes

If defective, replace the motor.
