A140L Electric Control Circuit Schematic
A140L Electric Control Circuit Schematic

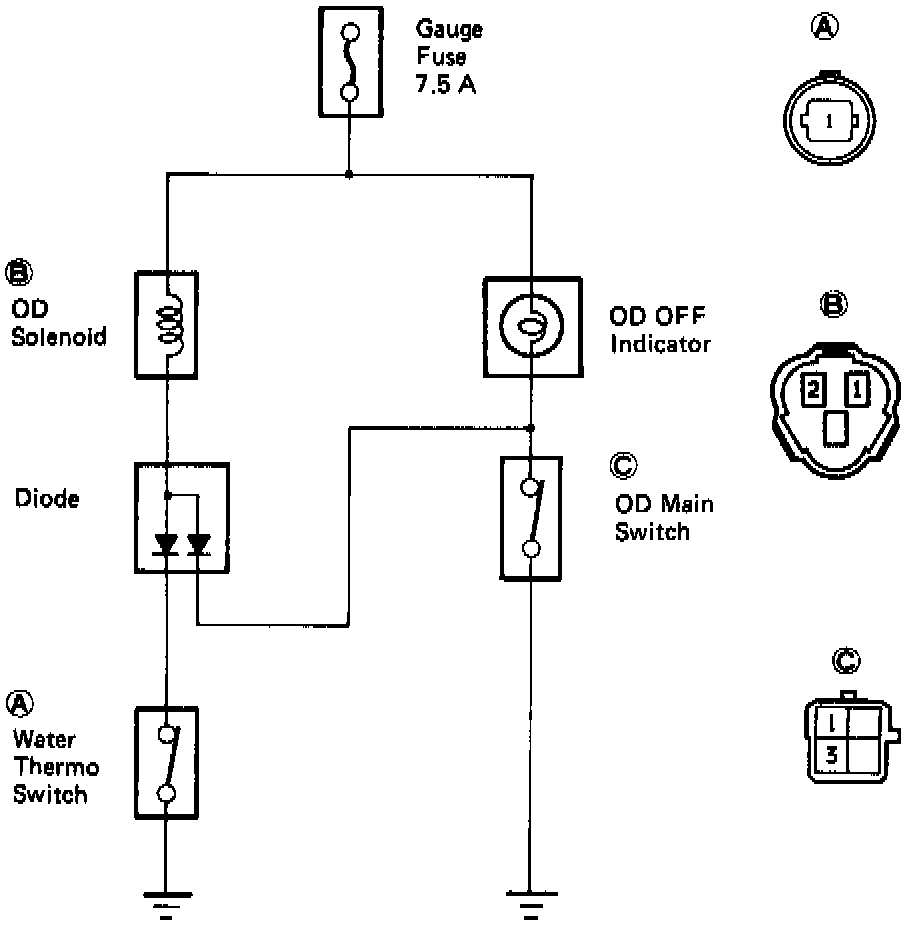

A140L Electric Control Circuit:
