Camry Sedan 2WD V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
>>
A540H 3-SPD O/D A/T
A540H 3-SPD O/D A/T

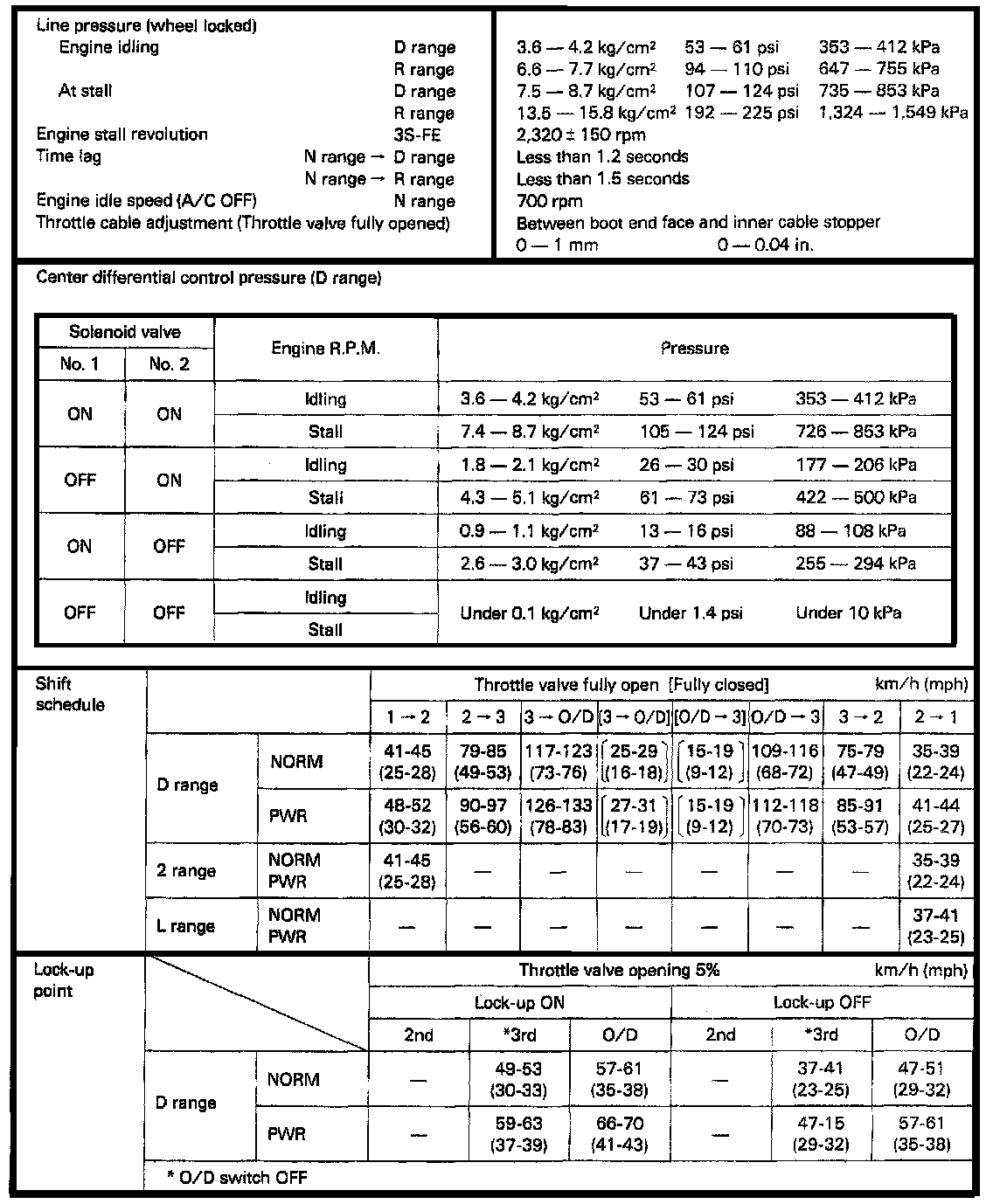

A540H 3-spd O/D A/T, Line Pressure/Shift Points:

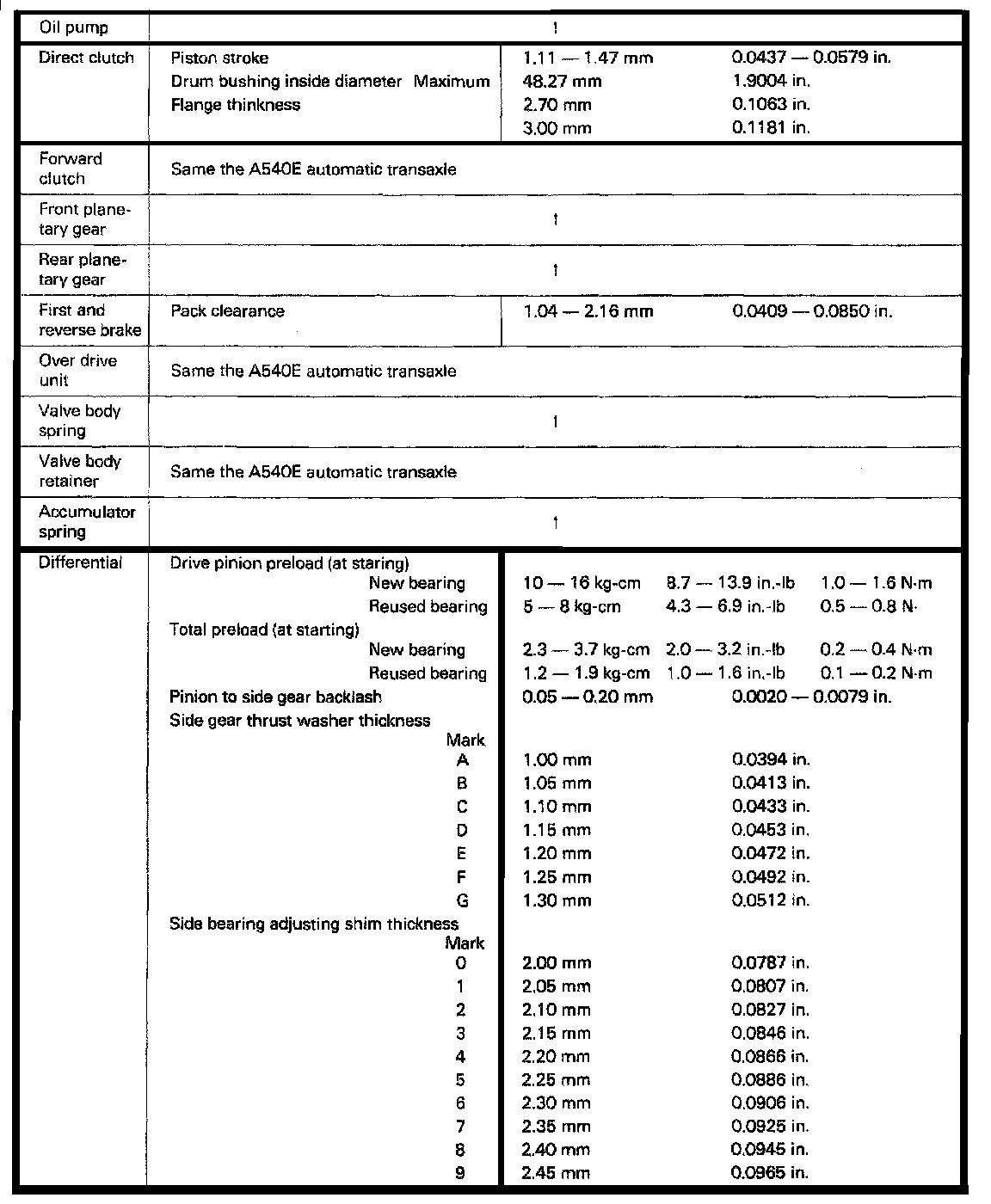

A540H 3-spd O/D A/T, Clutch/Differential:

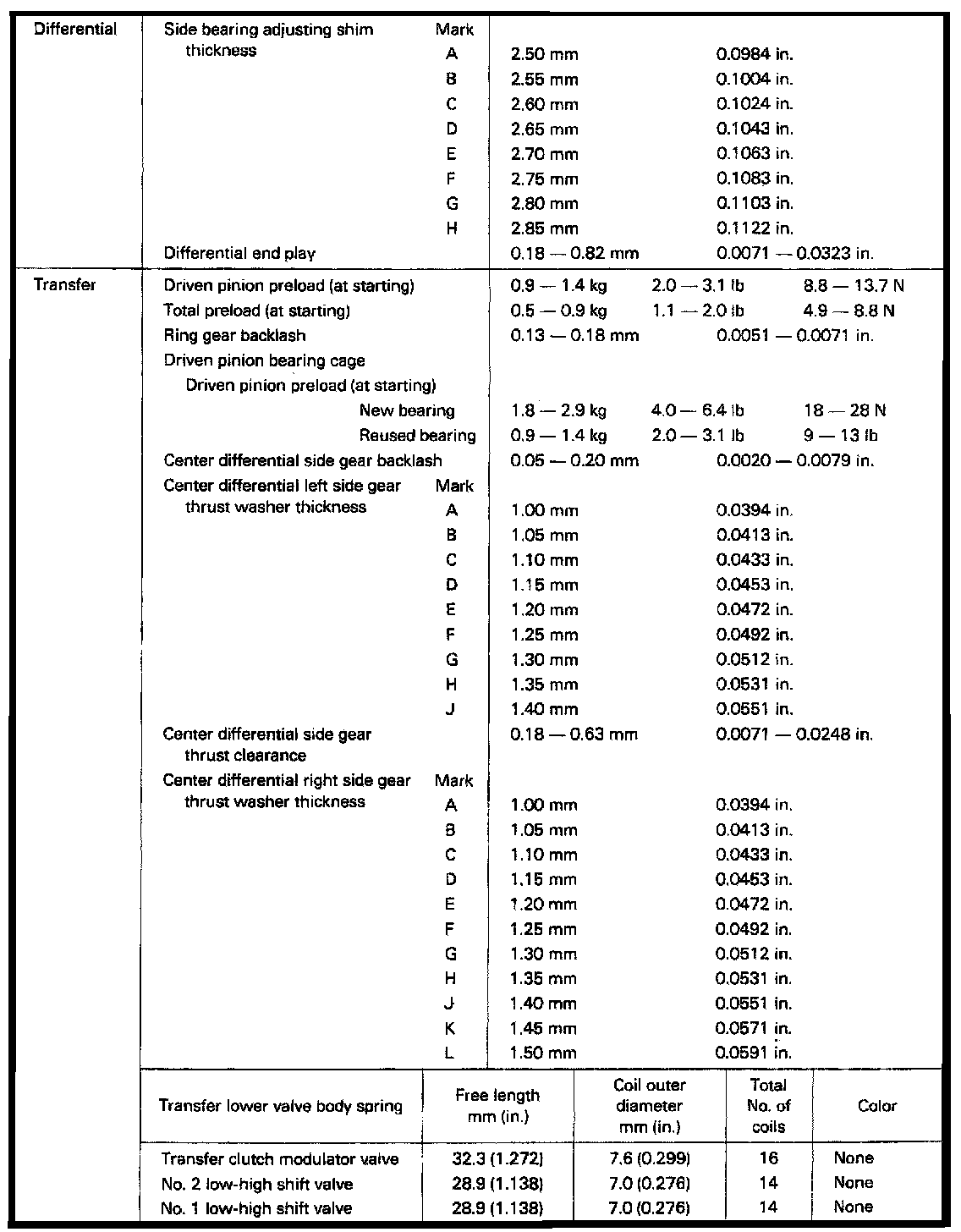

A540H 3-spd O/D A/T, Differential Thickness/Transfer:
