Manual Shifting Test

MANUAL SHIFTING TEST

NOTE: With this test, it can be determined whether the trouble lies within the electrical circuit or is a mechanical problem in the transmission.

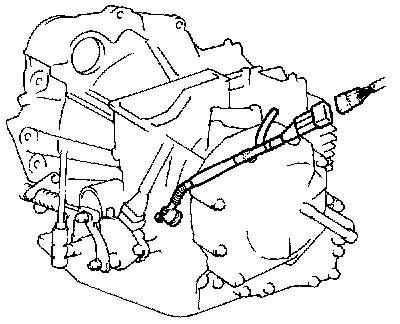

1. DISCONNECT SOLENOID WIRE.

2. INSPECT MANUAL DRIVING OPERATION.

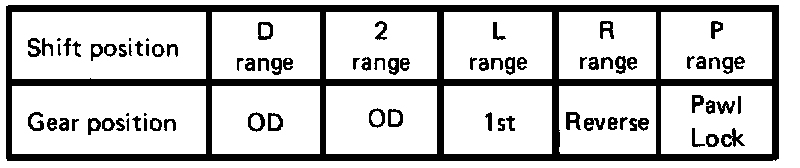

Check that the shift and gear positions correspond with the table.

NOTE: If the L, 2 and D range gear positions are difficult to distinguish, do not perform the following road test.

While driving, shift through the L, 2 and D ranges and back up again. Check that the gear change corresponds to the gear position.

If any abnormality is found in the above tests, do not perform the stall, time lag or gear change tests.

3. CONNECT SOLENOID WIRE.
