Operating Mechanism For Each Gear

OPERATING MECHANISM FOR EACH GEAR

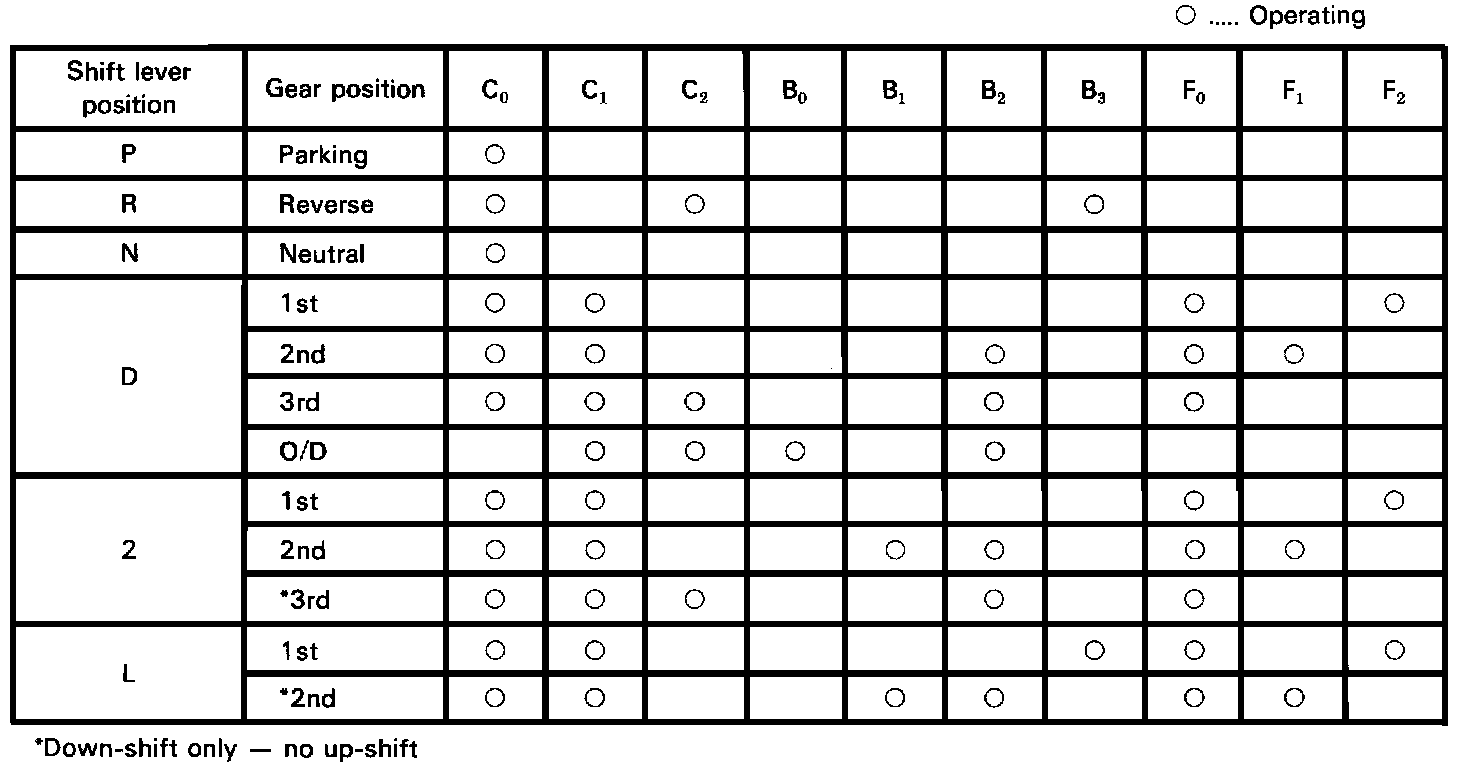

1. CLUTCH BRAKE AND ONE-WAY CLUTCH.






2. SOLENOID SYSTEM.

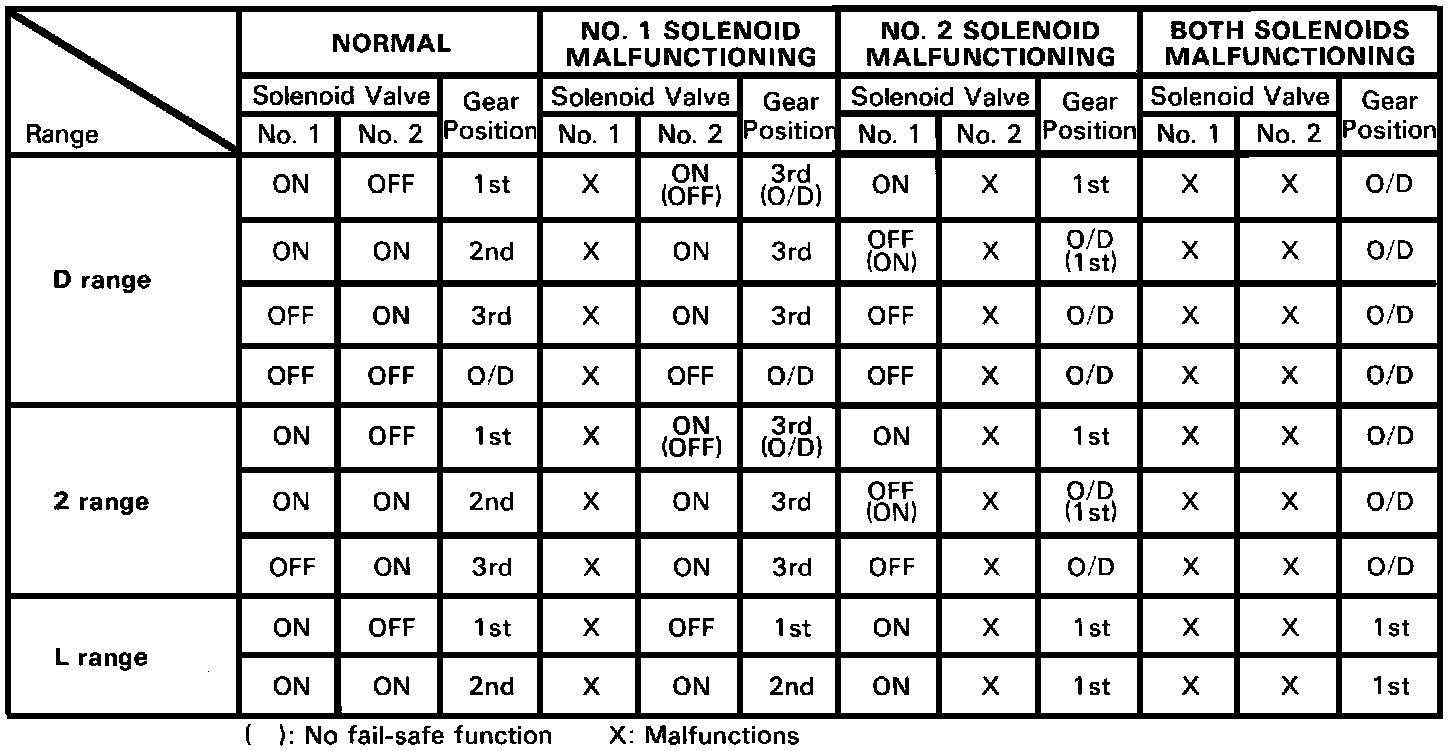

Possible gear positions in accordance with solenoid operating conditions.
