Camry Sedan 2WD V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Temperature Sensor
>>

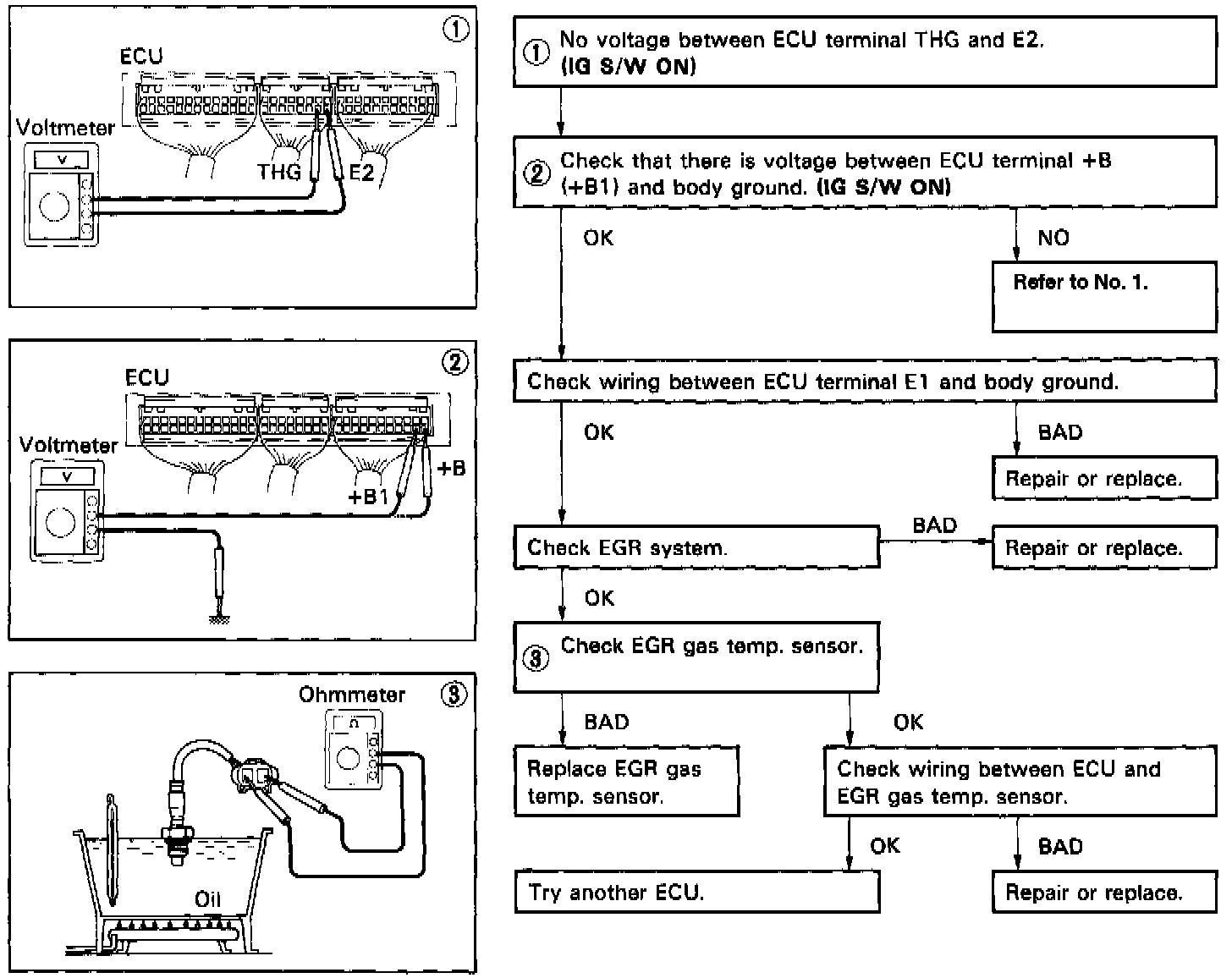

Testing and Inspection
>>
California Vehicles Only
California Vehicles Only

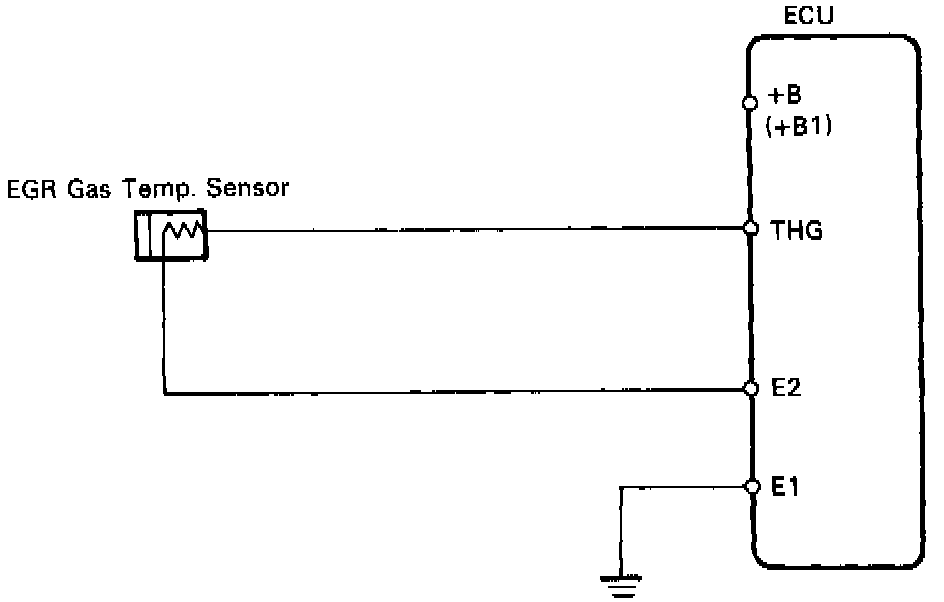

EGR TEMPERATURE SENSOR CIRCUIT (CALIFORNIA ONLY)
