Home
>>
Toyota
>>
1988
>>
Camry Sedan 2WD V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Testing and Inspection
>>

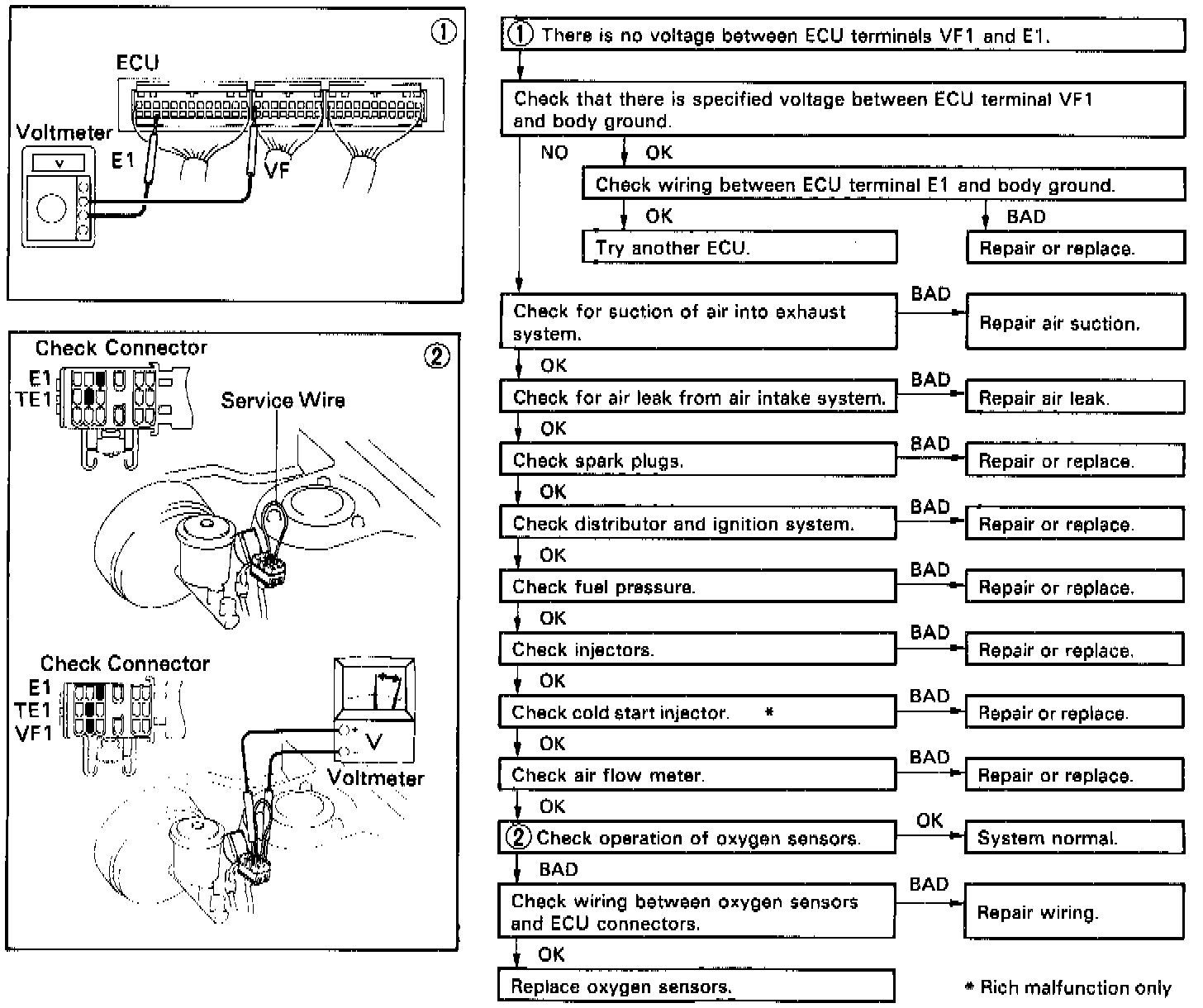

VF / Check Connector
VF / Check Connector

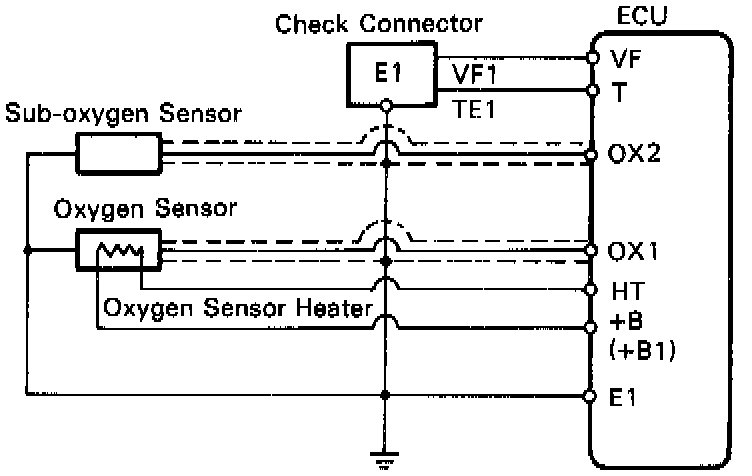

CHECK CONNECTOR CIRCUIT (CALIFORNIA ONLY)
