Radiator Cooling Fan Control Module: Testing and Inspection

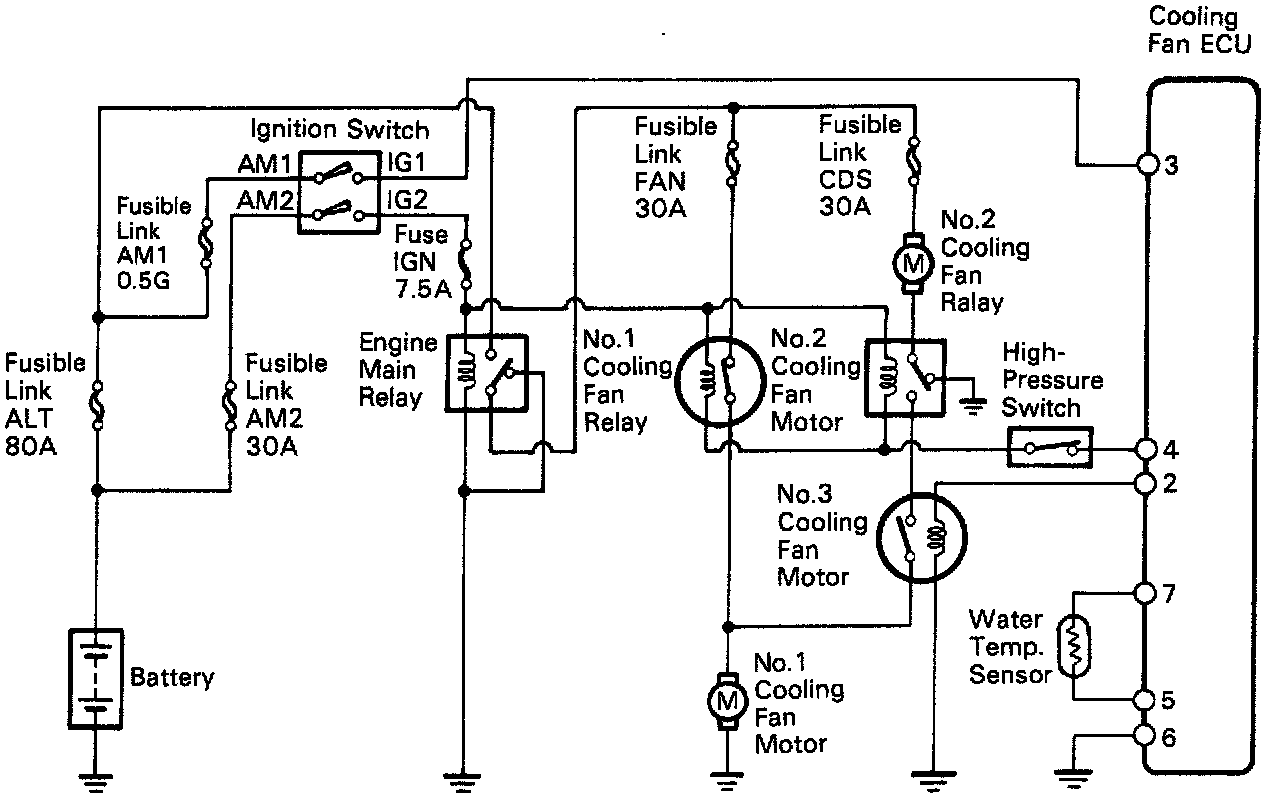

Cooling Fan Control Wiring Diagram:

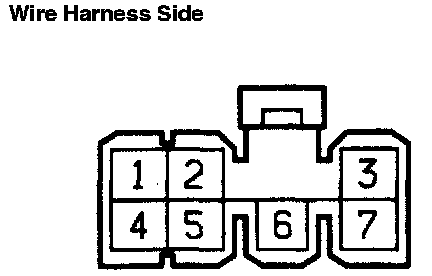

Cooling Fan Connector View:

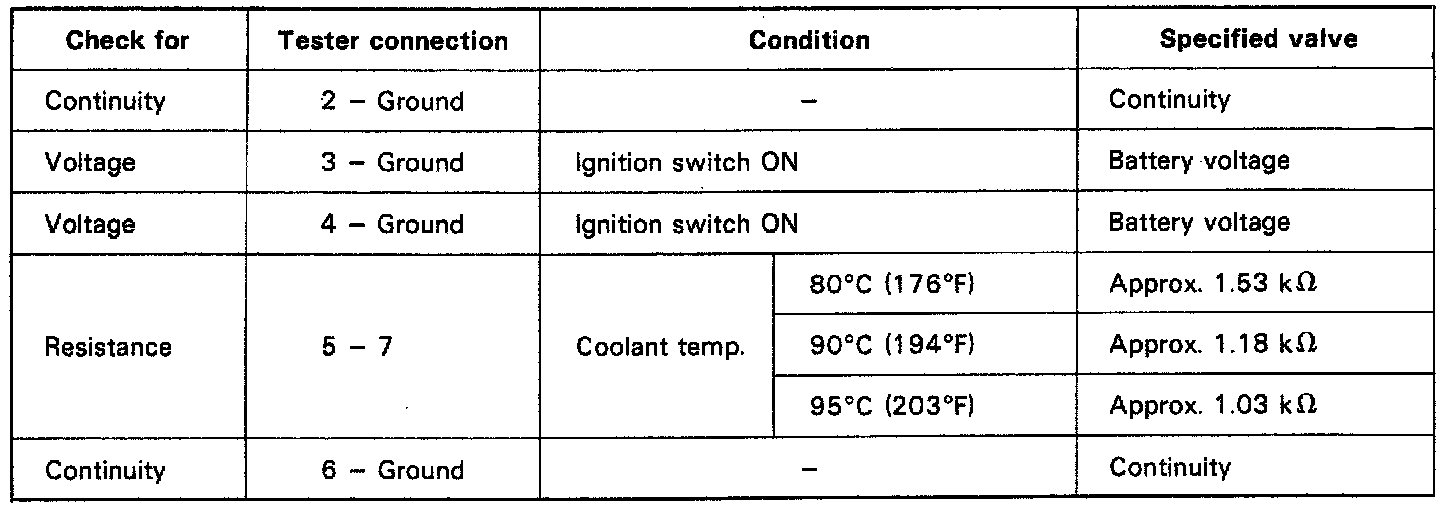

Cooling Fan Control Unit Test Table:

Refer to images above when inspecting cooling fan ECU.
