Camry Sedan 2WD V6-2507cc 2.5L DOHC (2VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting System
Starting System

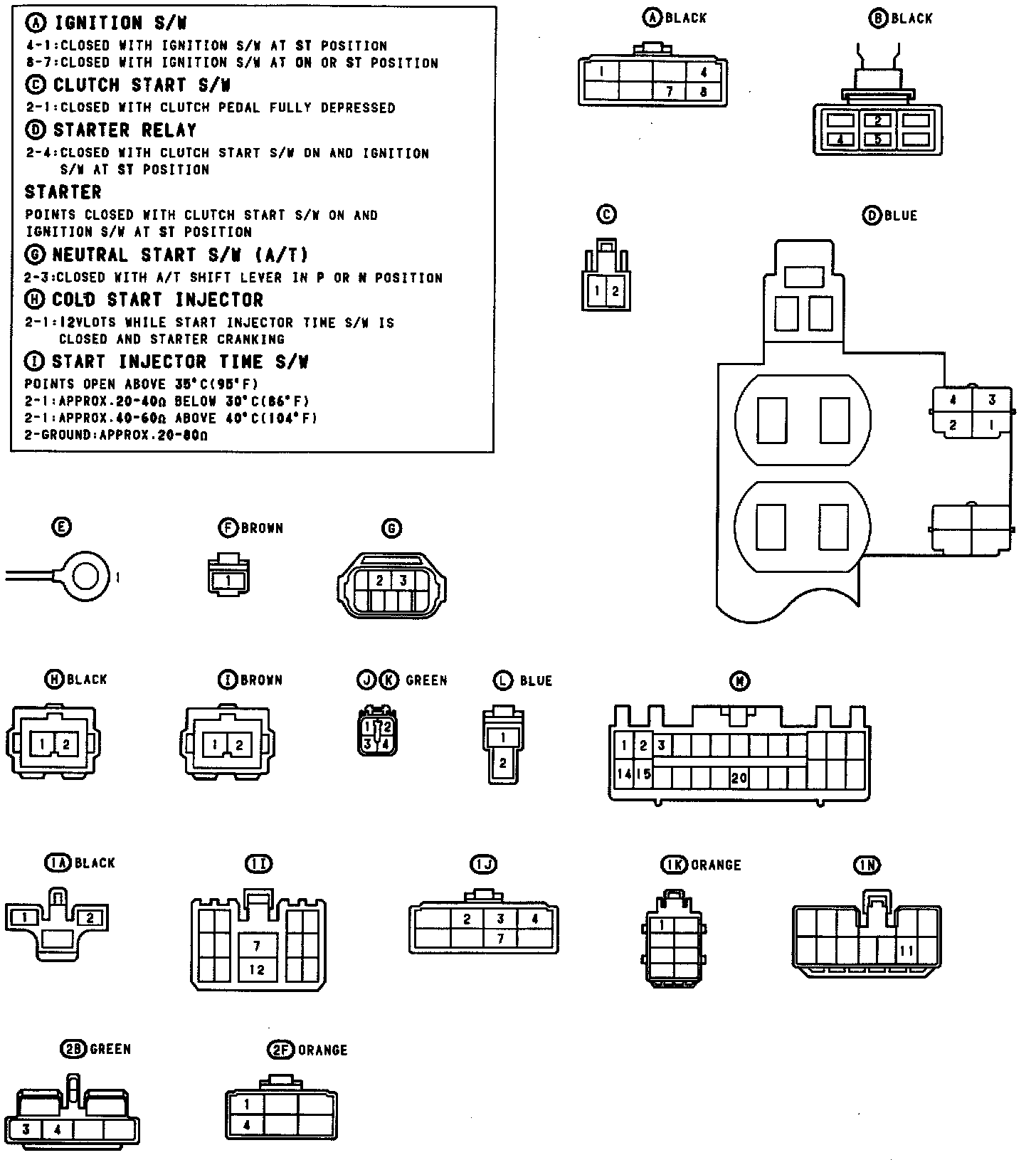

Starting And Ignition System Connectors And Troubleshooting:

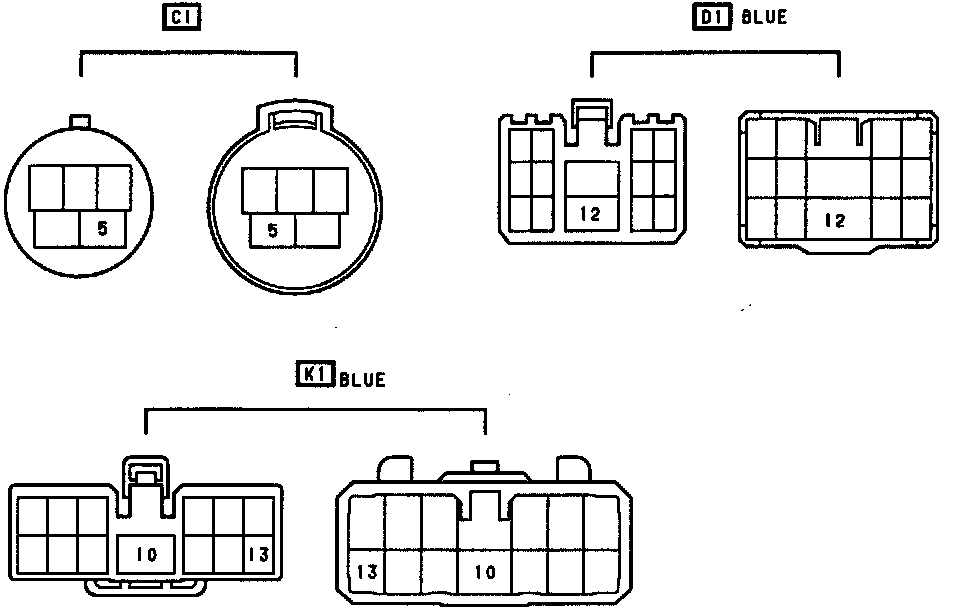

Starting And Ignition System Connectors:
