Replacement of Oil Pump O-Ring

1. REMOVE OIL PUMP
a. Position the transmission with the oil pump facing upward.
b. Remove the seven bolts.

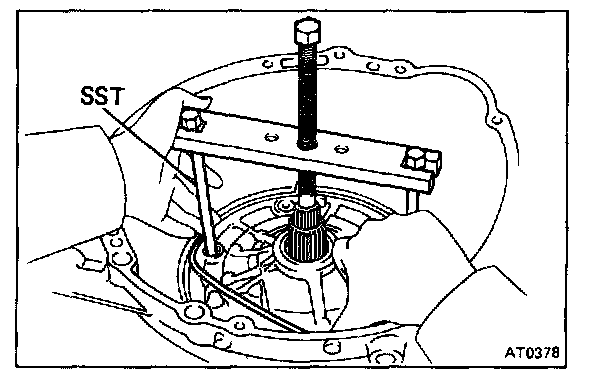

c. Remove the oil pump until the O-ring can be removed with SST.
SST 09350 - 32013 (09351 - 32061)
d. Temporarily install the bolt.
2. REMOVE O-RING
3. INSTALL NEW O-RING
4. INSTALL OIL PUMP MOUNTING BOLT



Tighten the seven bolts gradually and uniformly.

Torque: 225 kg.cm (16 ft.lb, 22 N.m)
