Vehicle - Specifications (Revised)

88toyota10

REFERENCE PRODUCT GENERAL INFORMATION
NUMBER 006 (REVISED)
DATE 07-08-88
MODEL 88 CAMRY (SV, VV)

TITLE 1988 MODEL CAMRY SPECIFICATIONS (REVISED -- V6 MODELS ADDED)

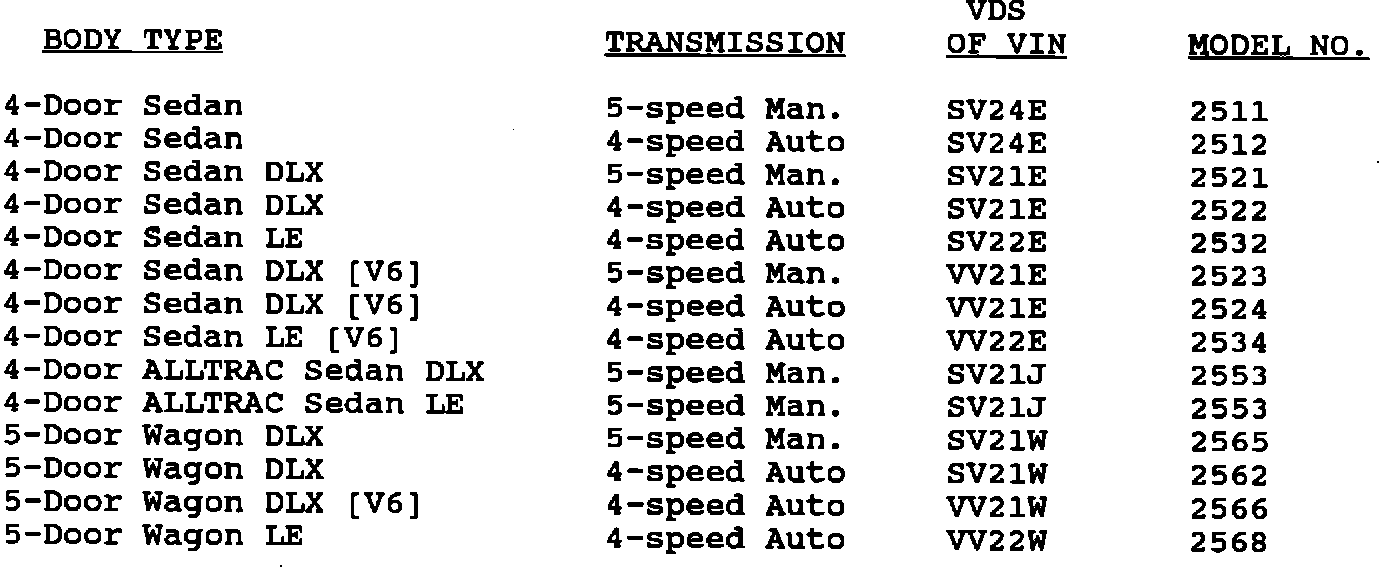

Vehicle Model and Codes:
WEIGHT (POUNDS):
Model No. Curb

2511 2690
2512 2745
2521 2733
2522 2789
2523 2879
2524 2934
2532 2811
2534 3001
2553 3086
2555 3108
2562 2910
2564 2921
2565 2855
2566 3045
2568 3111

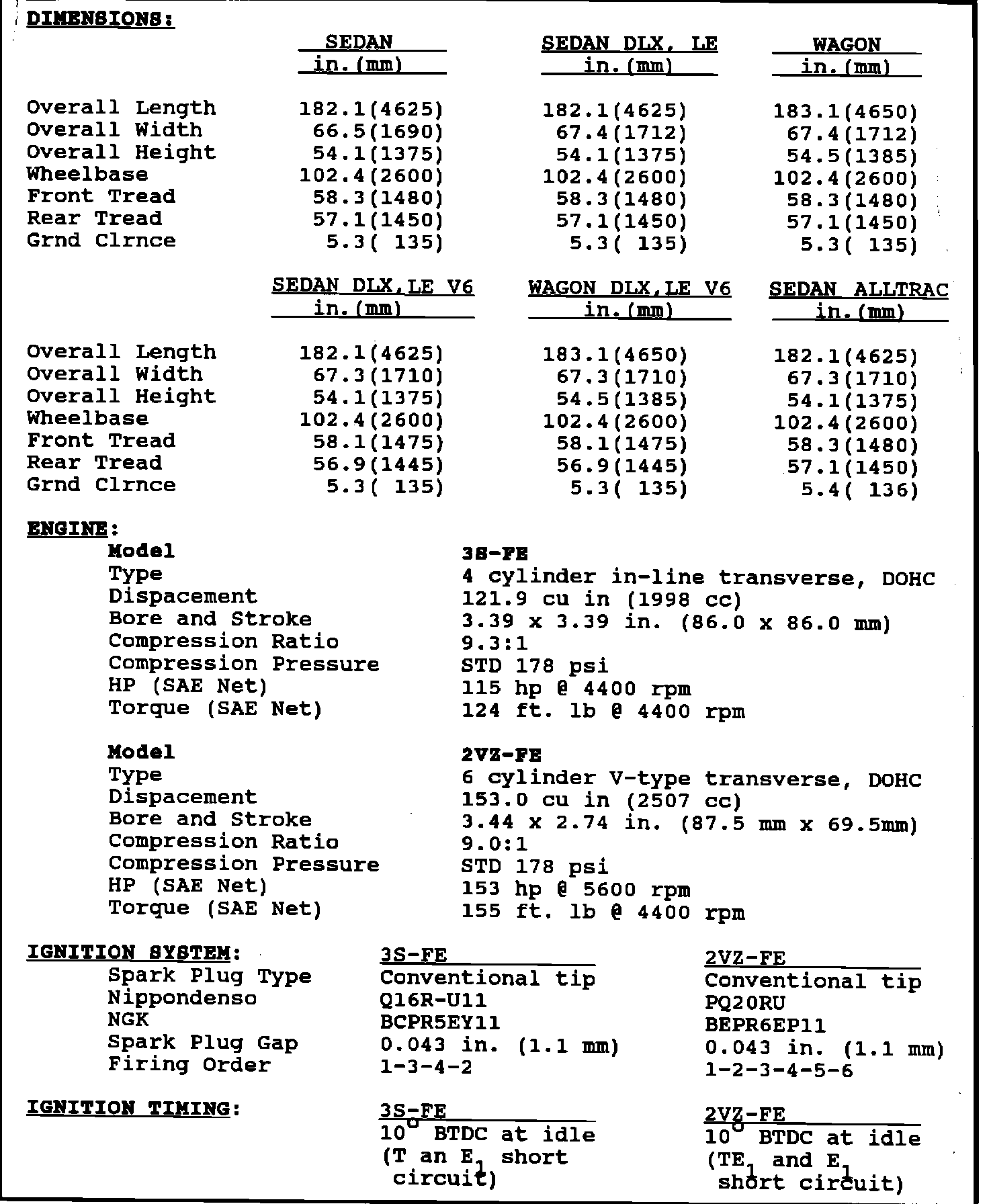

DIMENSIONS, ENGINE, IGNITION SYSTEM & TIMING INFORMATION

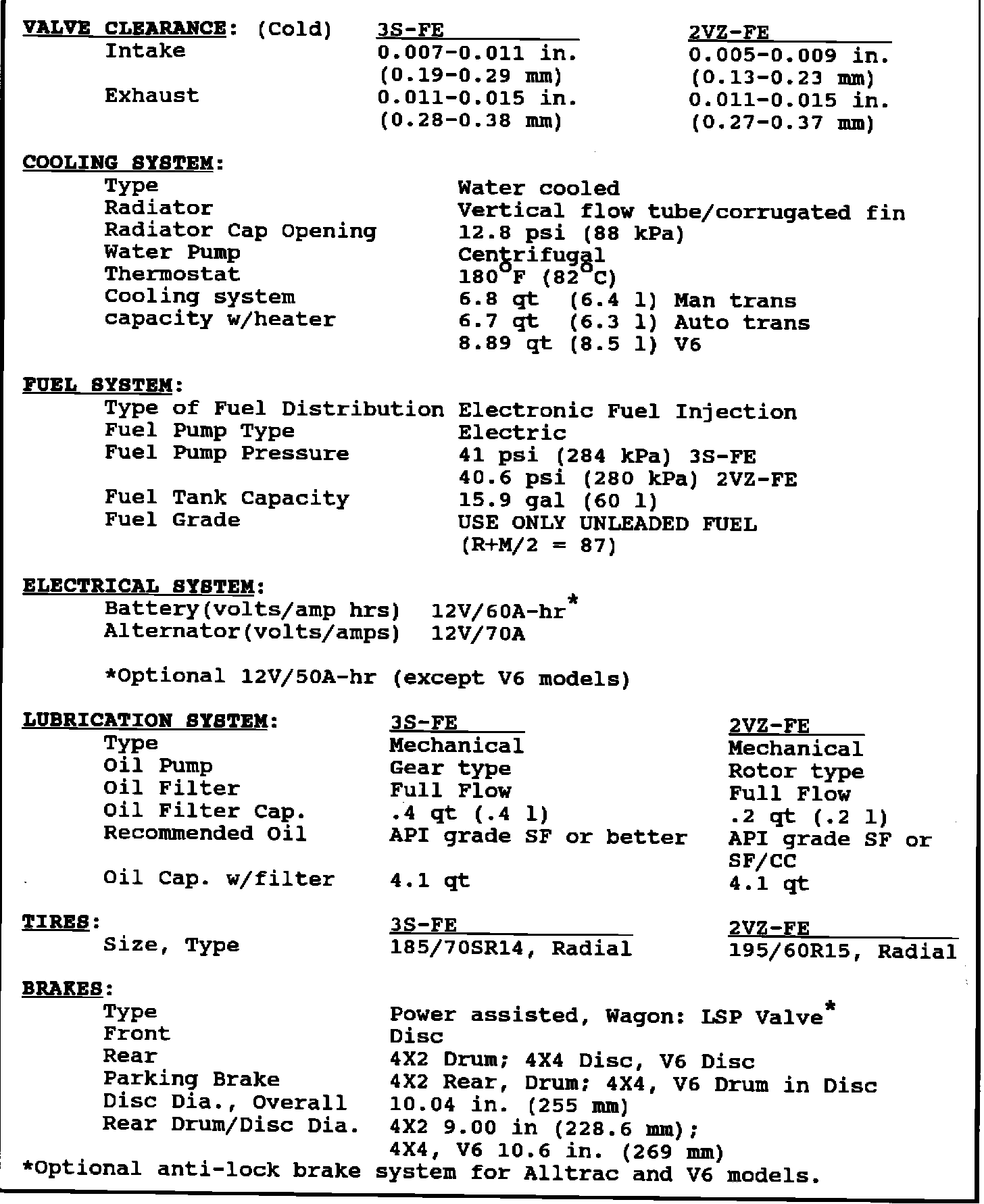

VALVE CLEARANCE, COOLING, FUEL, ELECTRICAL & LUBRICATION SYSTEMS, TIRES & BRAKE INFORMATION

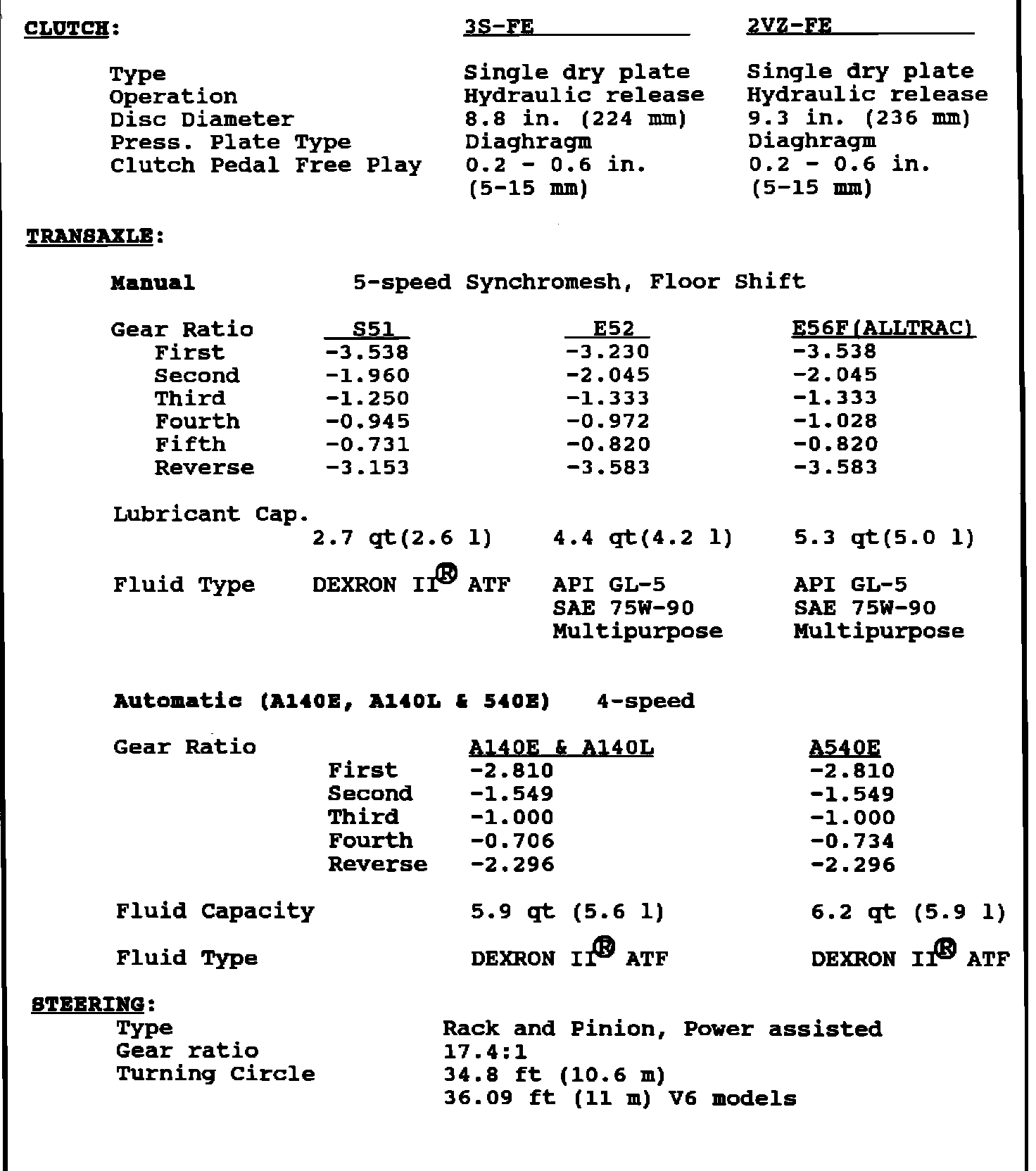

CLUTCH, TRANSAXLE & STEERING INFORMATION

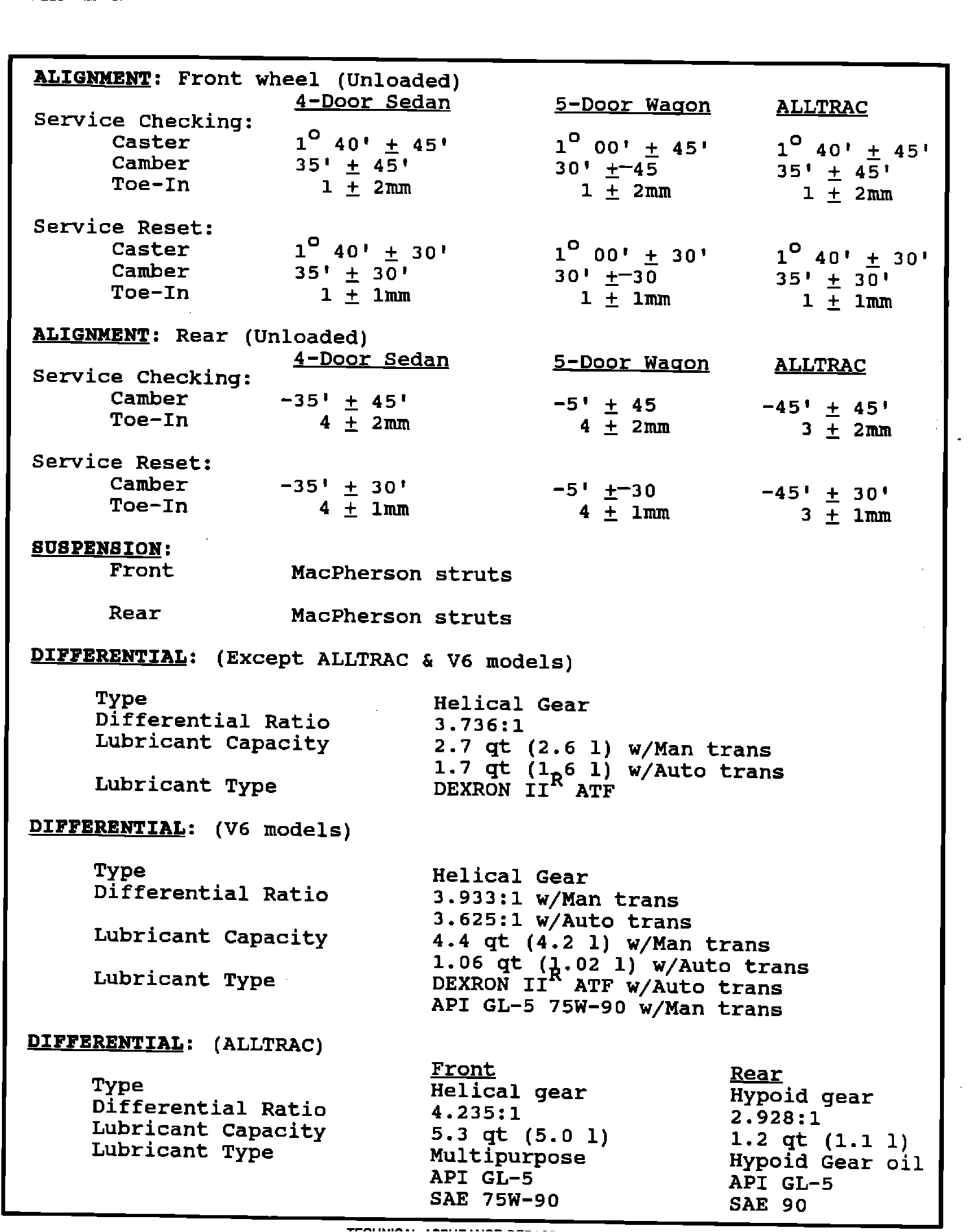

Alignments, Suspension & Differentials Information
